Alloy wheel
Jaguar: E-Type Series 1 and 2 (1961-70) • E-Type 5.3 V12 Series 3 (1971-74) • Mark I (1955-59) • Mark II (1959-67) • Daimler 250 V8 Saloon (1962-69) • optionally for XK150 (1957-61)
Aston Martin: DB6 Mark II with IRS axle (1969-70) • DBS (1967-72)

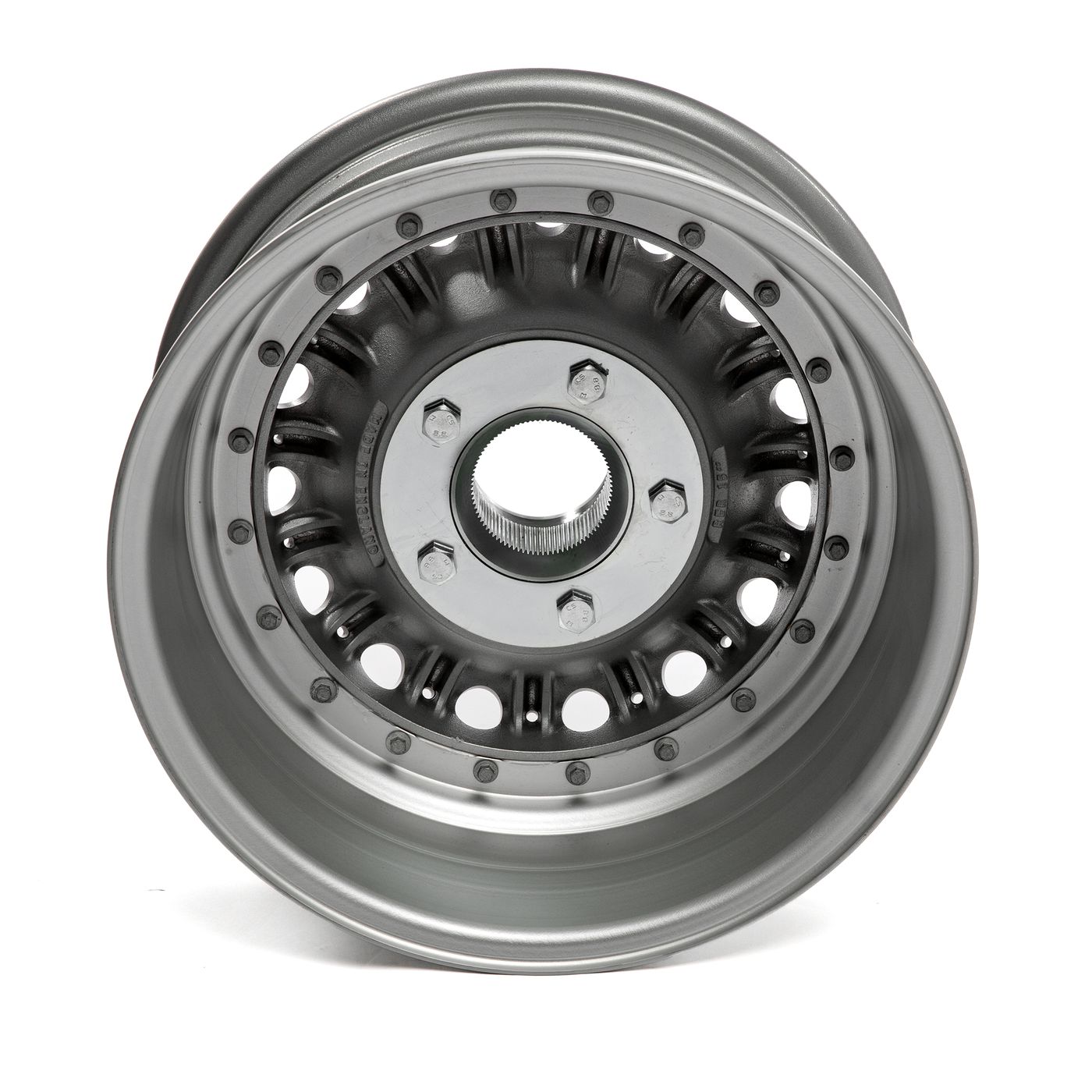

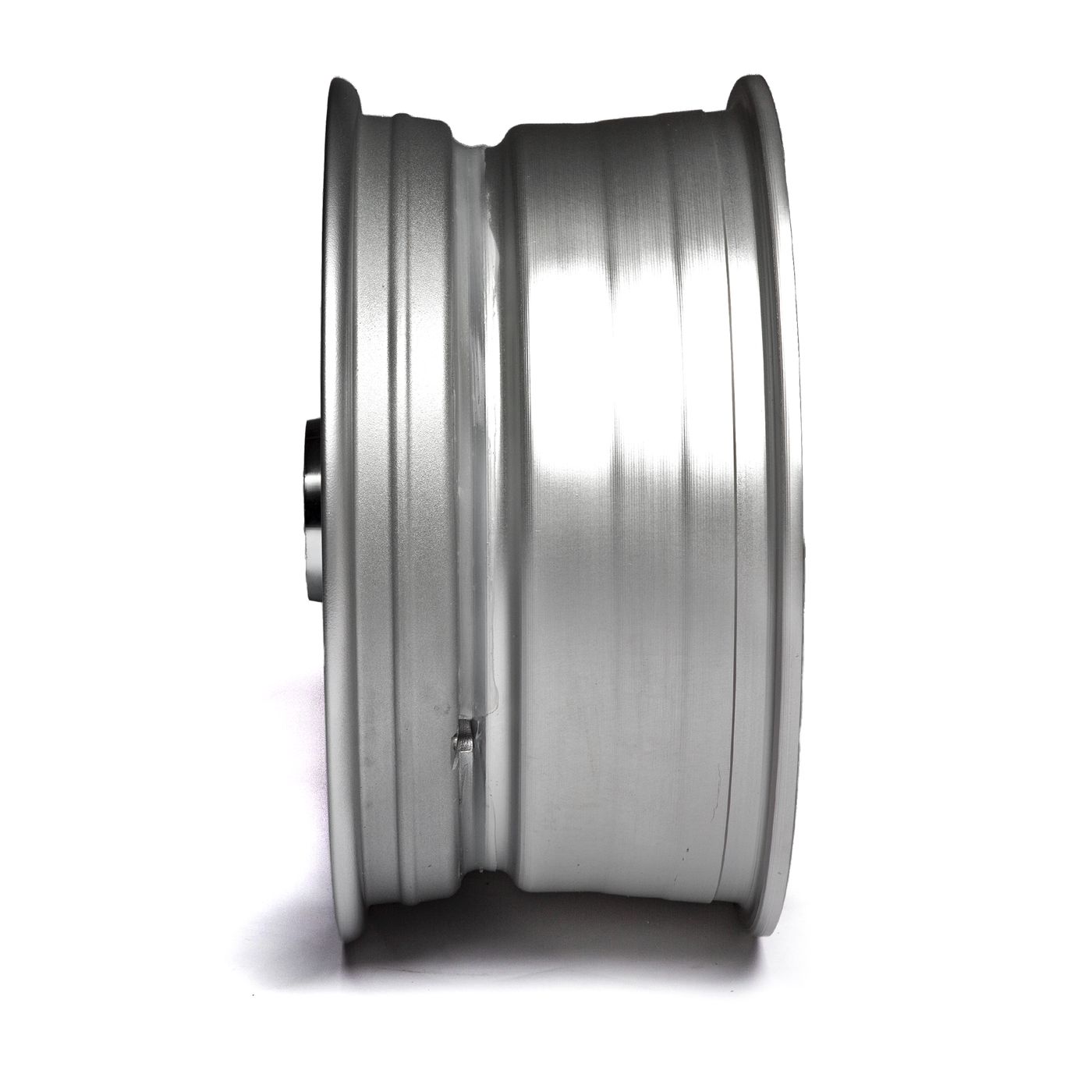

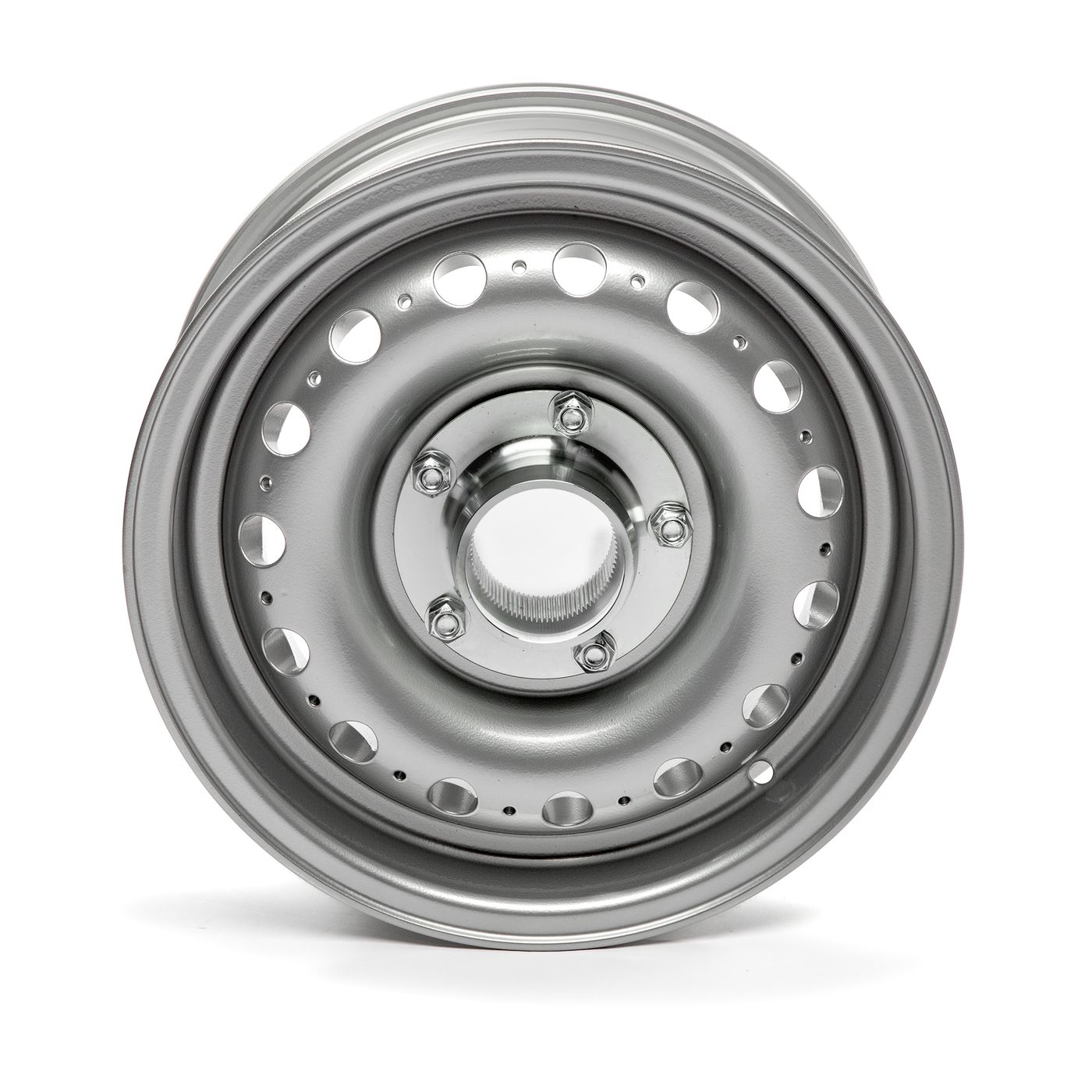

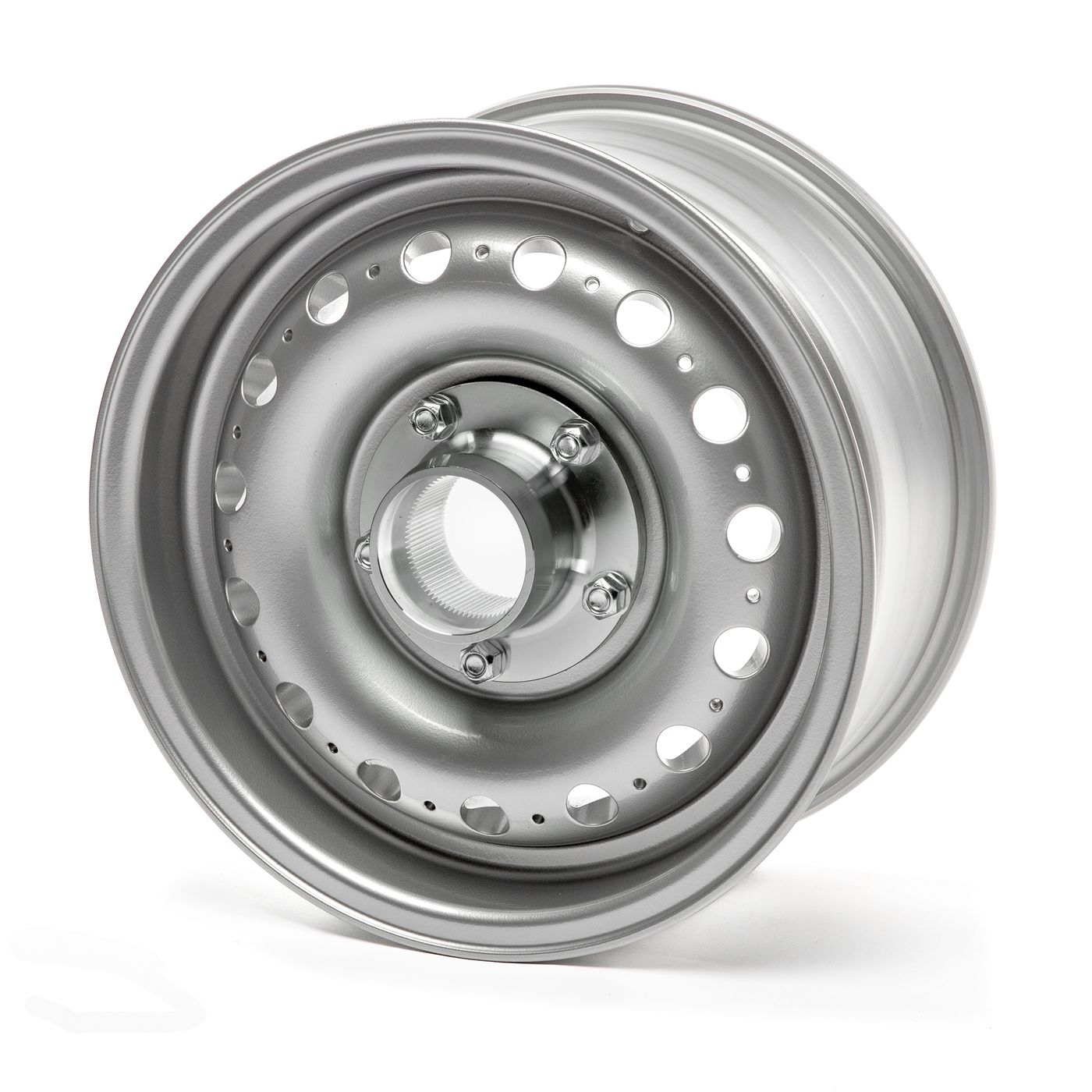

silver painted classic D-Type style aluminium wheel.
• rim size: 7.0J x 15"

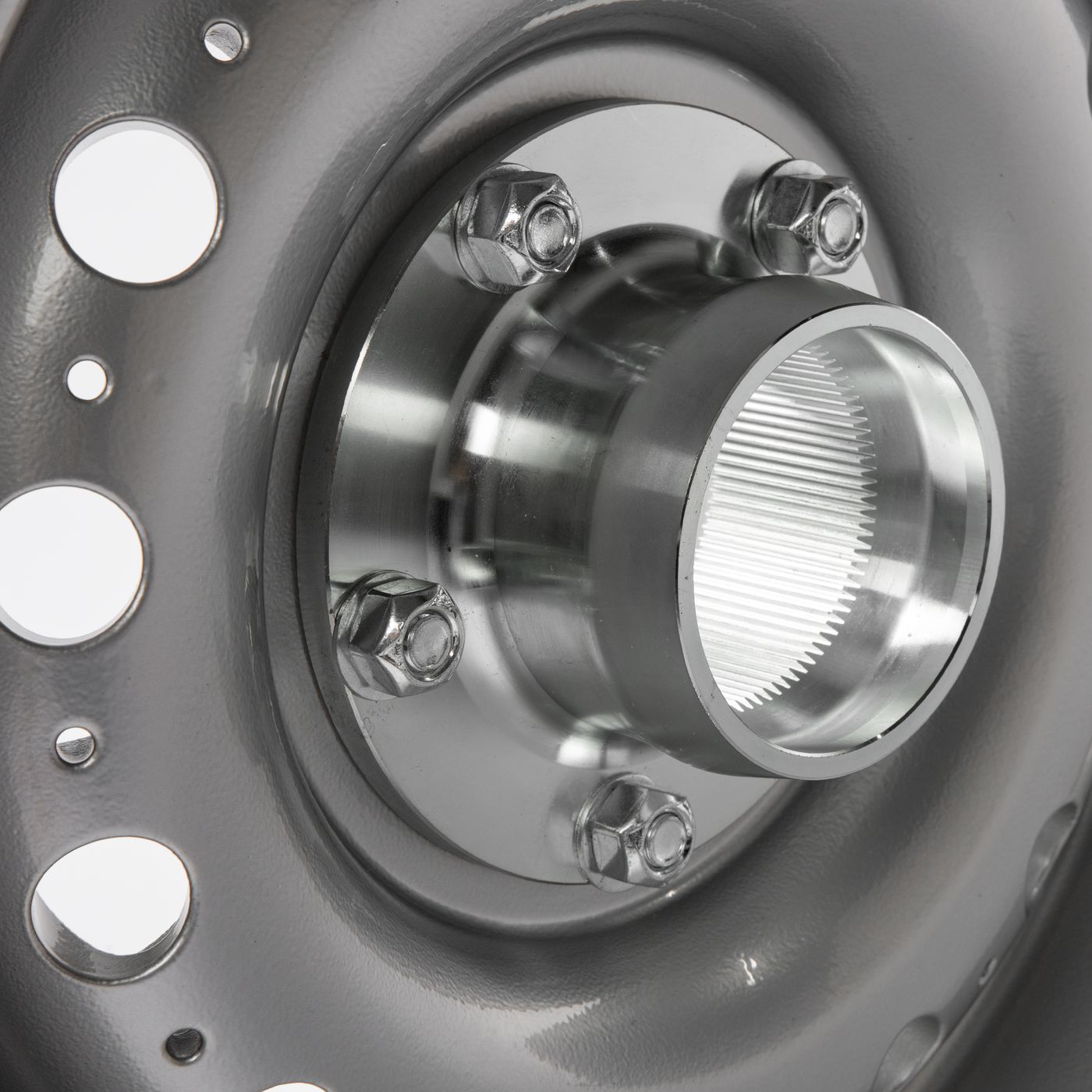

• fitment: 52 mm centre lock
• back spacing: 118 mm
• wheel weight: 13 kg
• wheel load: 700 kg
For the 'D-Type' rim, the manufacturer does not specify an offset but the backspace: 118 mm
Our 'D' style wheels are a finely detailed re-creation of Jaguars famous racing wheel as fitted to D-Types and early lightweight 'E's. Manufactured from our own tooling, the wheels are one-piece, die cast in aluminium, machined using the latest CNC equipment and after pressure testing the wheels are finished in silver powder coat with clear lacquer to give a robust and long lasting finish.
| Width inch: | 7 |
|---|---|
| Diameter inch: | 15 |
| Offset mm: | 0 |
| Mounting / bolt circle: | Central shutter 52 mm |
| Weight kg: | 13 |
| Load capacity kg: | 700 |
| Material / Surface: | silver |
| Expertise: | without certificate |
| Backspace in mm: | 0 |
