Alternator
MG: TD and TF (1950-55) • YB (1951-53) • Magnette ZA and ZB (1953-58)
Sprite / Midget: Vehicles with 948 cc engine: Sprite to HAN6-24731, Midget to GAN1-16183 (October 1962)
conversion kit C40 for negative earthed cars. Variant with mechanical tacho drive. Capacity: 40 Amps. Dimensions: shaft diameter: 15 mm, PCD of fixing holes: 144 mm, Distance between mounting brackets (at the holes): 144 mm
The wolf in sheeps clothing

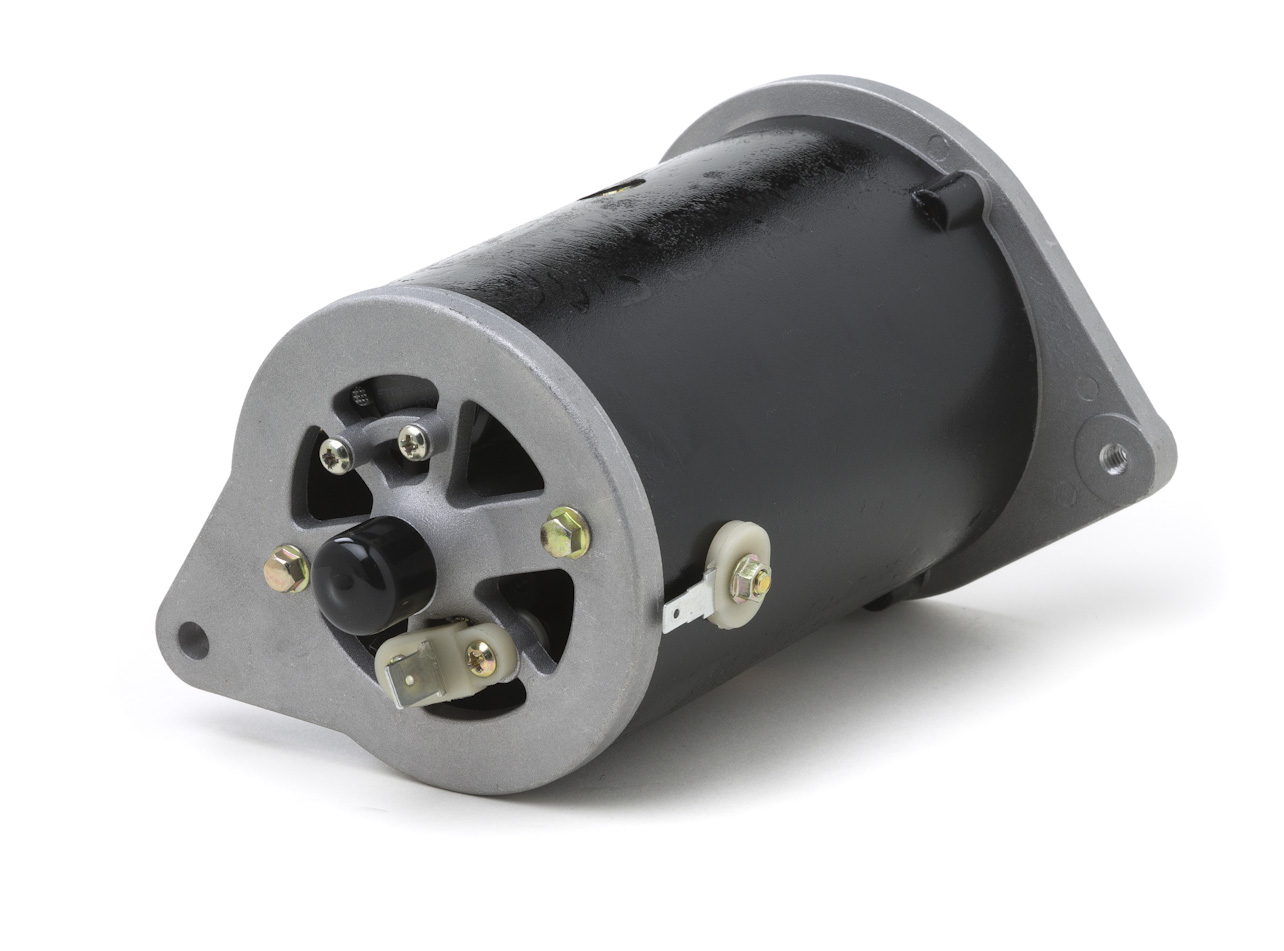

Alternator conversions as replacements for C39, C40, C40l, C42, C45 and C48 Lucas dynamos.Please note: We always recommend fitment by an experienced or qualified mechanic!
• ultramodern high performance alternator in extremly light but stiff aluminium housing
• perfect original look maintained
• half the weight, twice the power (3.2 instead of 5.6 kg)
• fully integrated regulator
• less mechanical power required
• no decrease in output when becoming hot
• easy to fit using original dynamo mountings
• some alterations required
• old regulator can be maintained for original look
