Alternator
Capacity: 40 Amps. Dimensions: shaft diameter: 17 mm, PCD of fixing holes: 152 mm, Distance between mounting brackets (at the holes): 166 mm
MG: TB and TC (1939-50) • YT (1948-50) • VA Saloon, Open Tourer and Drophead Coupe (1937-39)
other manufacturers: Jowett: Javelin (1947-53) • Jupiter (1950-54)
Jensen: Interceptor Mk.1 (1966-69)
Jaguar: Mark IV (S.S. Jaguar) 1.1/2 litre Saloon (1935-46)

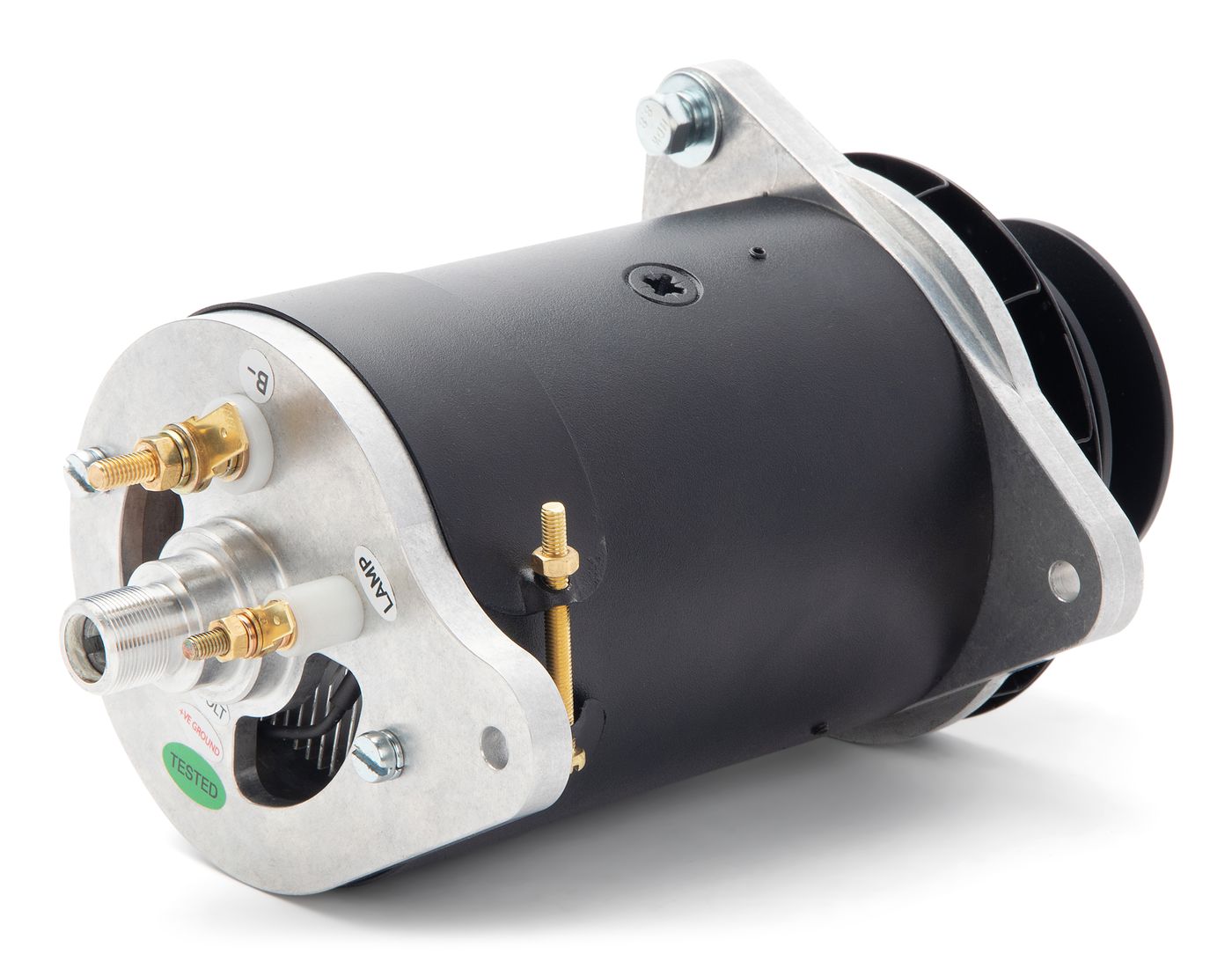

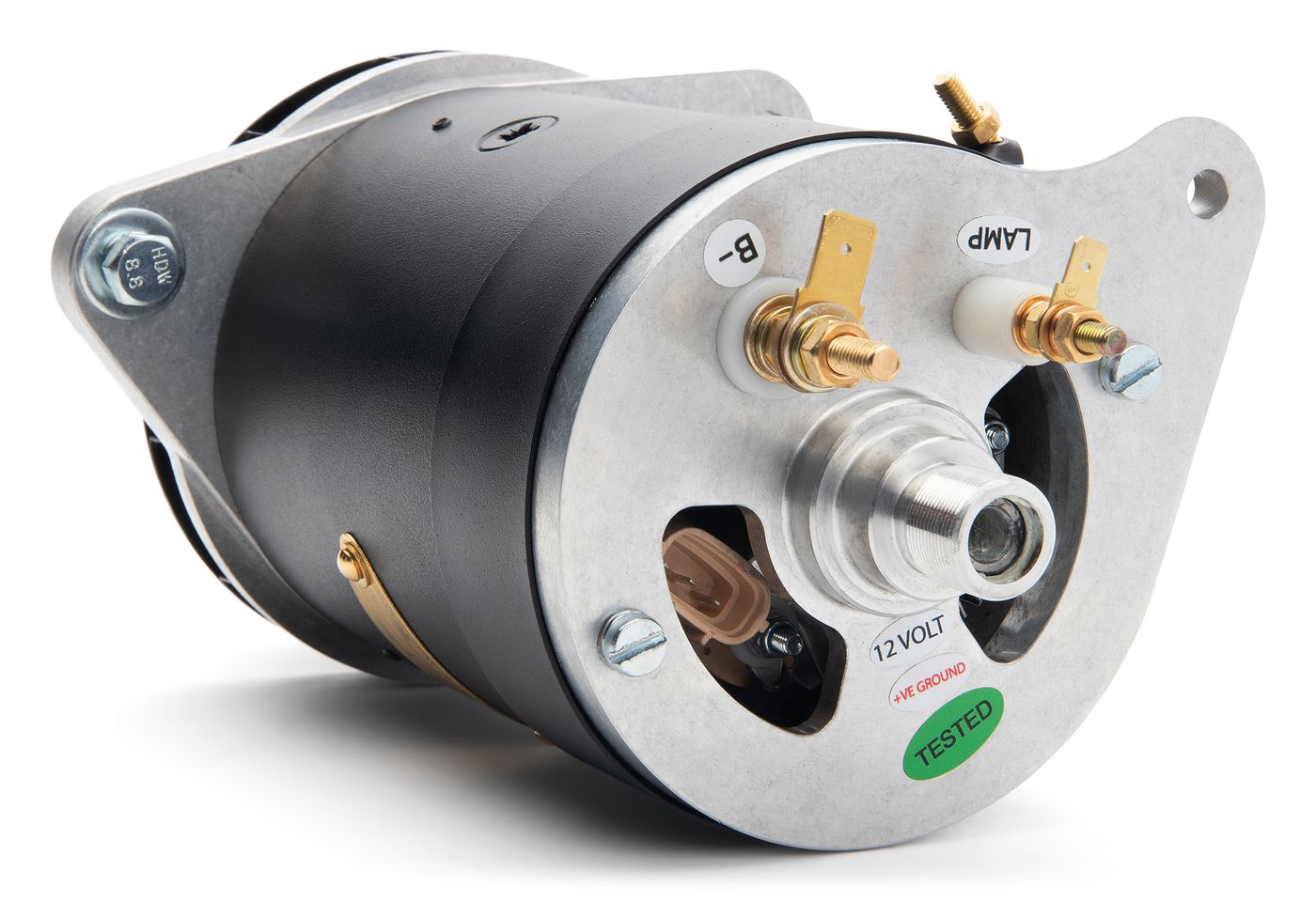

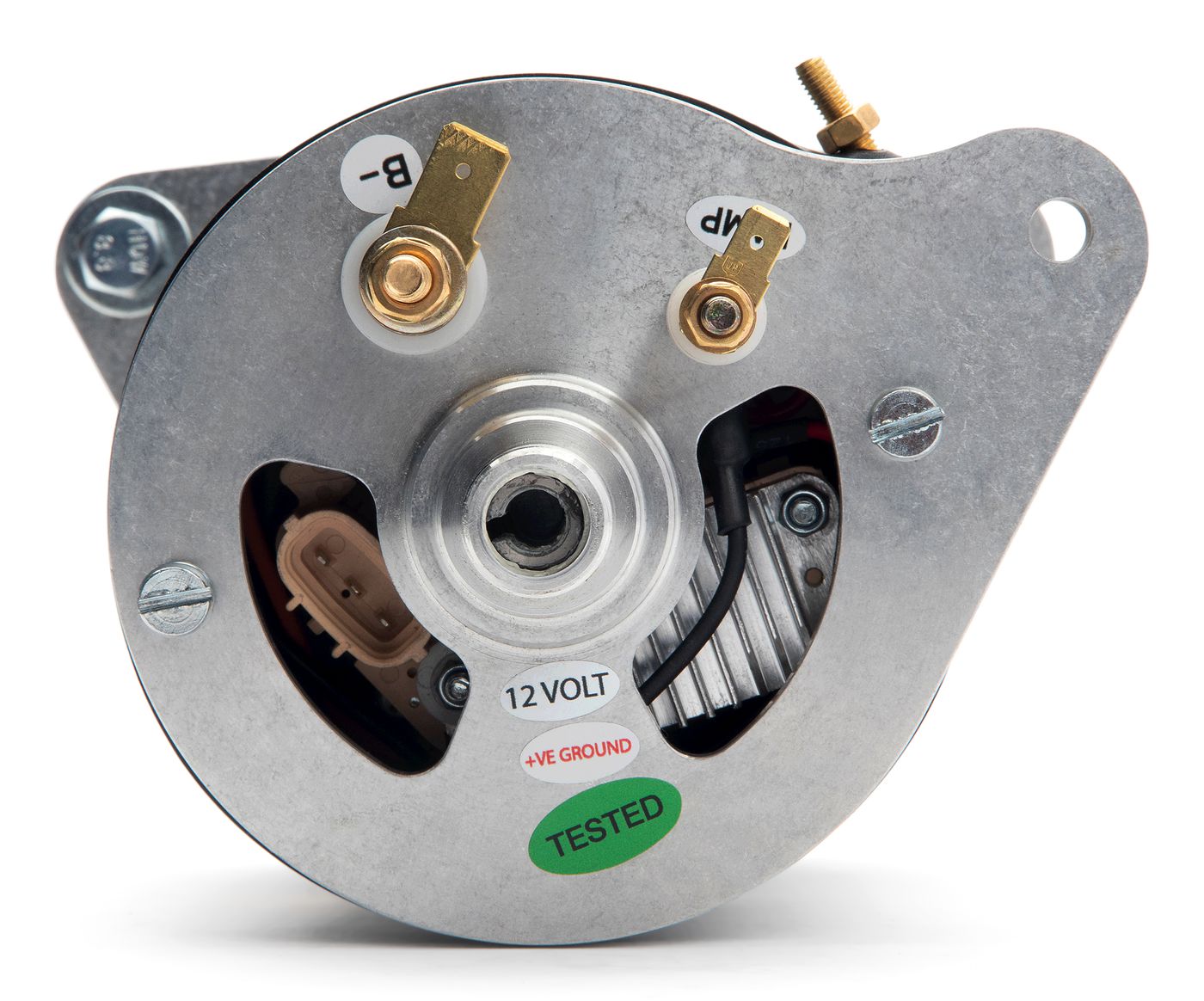

C45 conversion kit for positive earthed cars. Variant with mechanical tacho drive.
Capacity: 40 Amps. Dimensions: shaft diameter: 17 mm, PCD of fixing holes: 152 mm, Distance between mounting brackets (at the holes): 166 mm
The wolf in sheeps clothing
Alternator conversions as replacements for C39, C40, C40l, C42, C45 and C48 Lucas dynamos.Please note: We always recommend fitment by an experienced or qualified mechanic!
• ultramodern high performance alternator in extremly light but stiff aluminium housing
• perfect original look maintained
• half the weight, twice the power (3.2 instead of 5.6 kg)
• fully integrated regulator
• less mechanical power required
• no decrease in output when becoming hot
• easy to fit using original dynamo mountings
• some alterations required
• old regulator can be maintained for original look
