SU-H4 and H6 internal carburettor - BN1 and BN2, BN4 to engine no. 48862
without vent - with hexagonal brass head
Alternatives
Required: 2
without vent - with black plastic head
Alternatives
Required: 2
with piston - SU-H4 carburettor
Required: 2
with piston - SU-H6 carburettor
Required: 2
fixed type - marked: QW, standard
BN1 and BN2
Required: 2
fixed type - marked: QA, rich
BN1 and BN2
Required: 2
fixed type - marked: AT, weak
BN1 and BN2
Required: 2
SU-H4 carburettor
Required: 1
SU-H6 carburettor
Required: 1

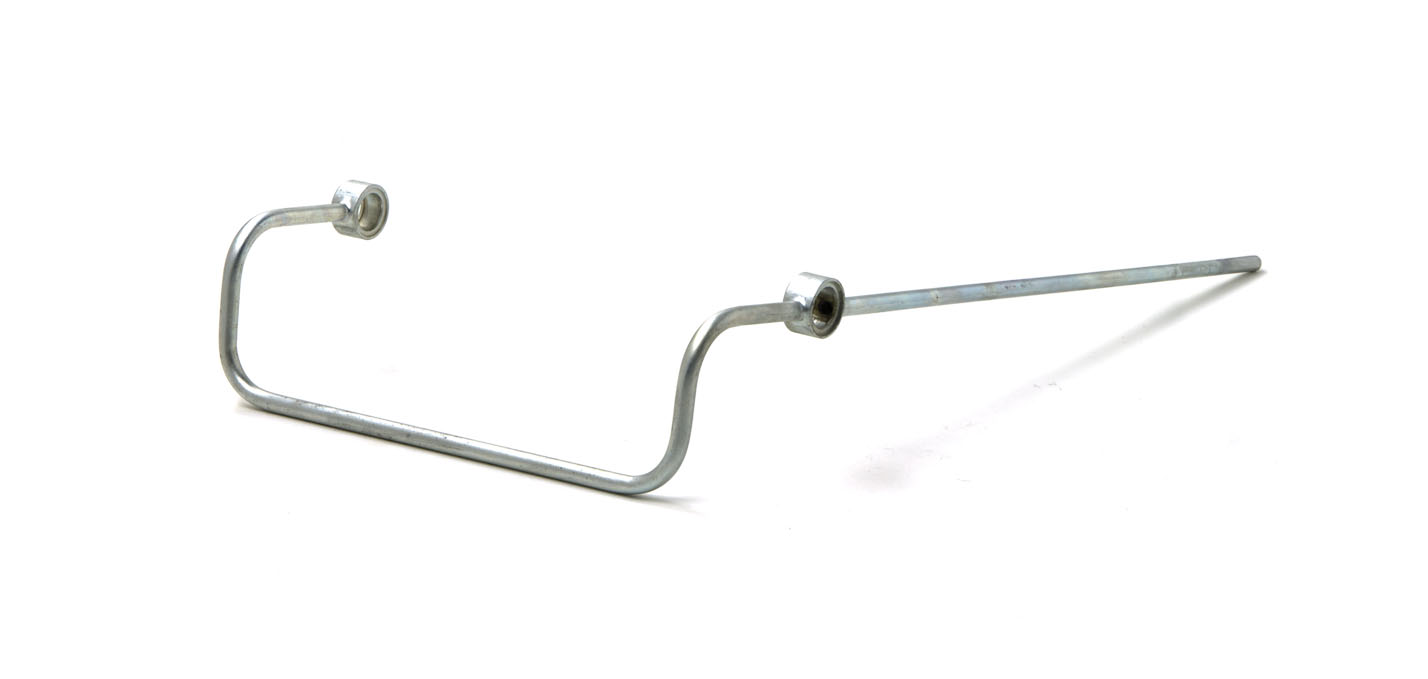

fuel pipe to rear carburettor. Variant with one screwed 1/4" BSP union
Required: 1

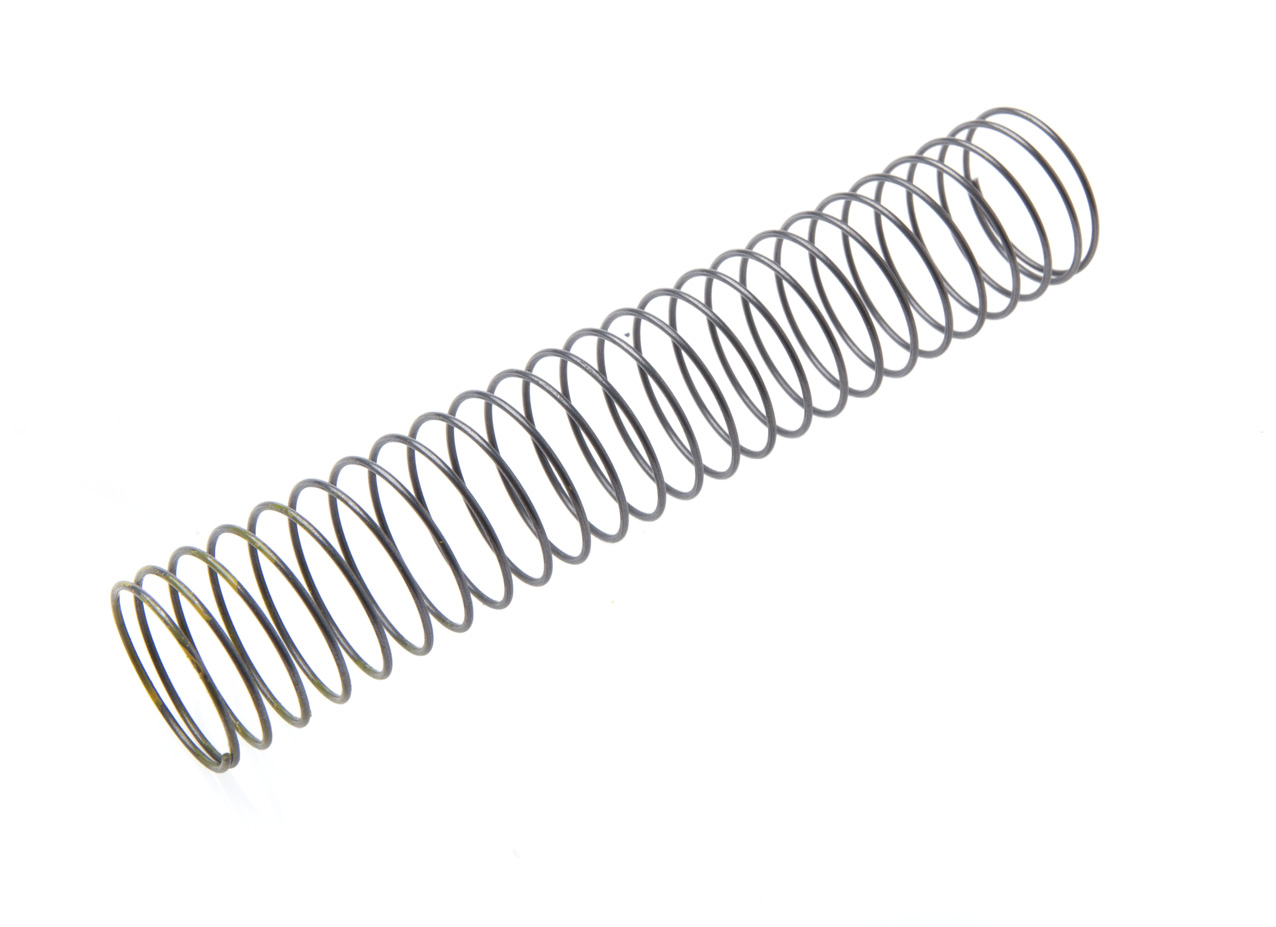

and spring - inside float chamber lid on SU carburettors
Required: 2
both carburettors
BN1, BN2 and 100M.
Copy with 2.3/8" diameter, please use with float lever 3141
Required: 2
front carburettor
BN4.
Copy with 2.3/8" diameter, please use with float lever 3141
Required: 1
rear carburettor
BN4.
Copy with 2.3/8" diameter, please use with float lever 3141
Required: 1

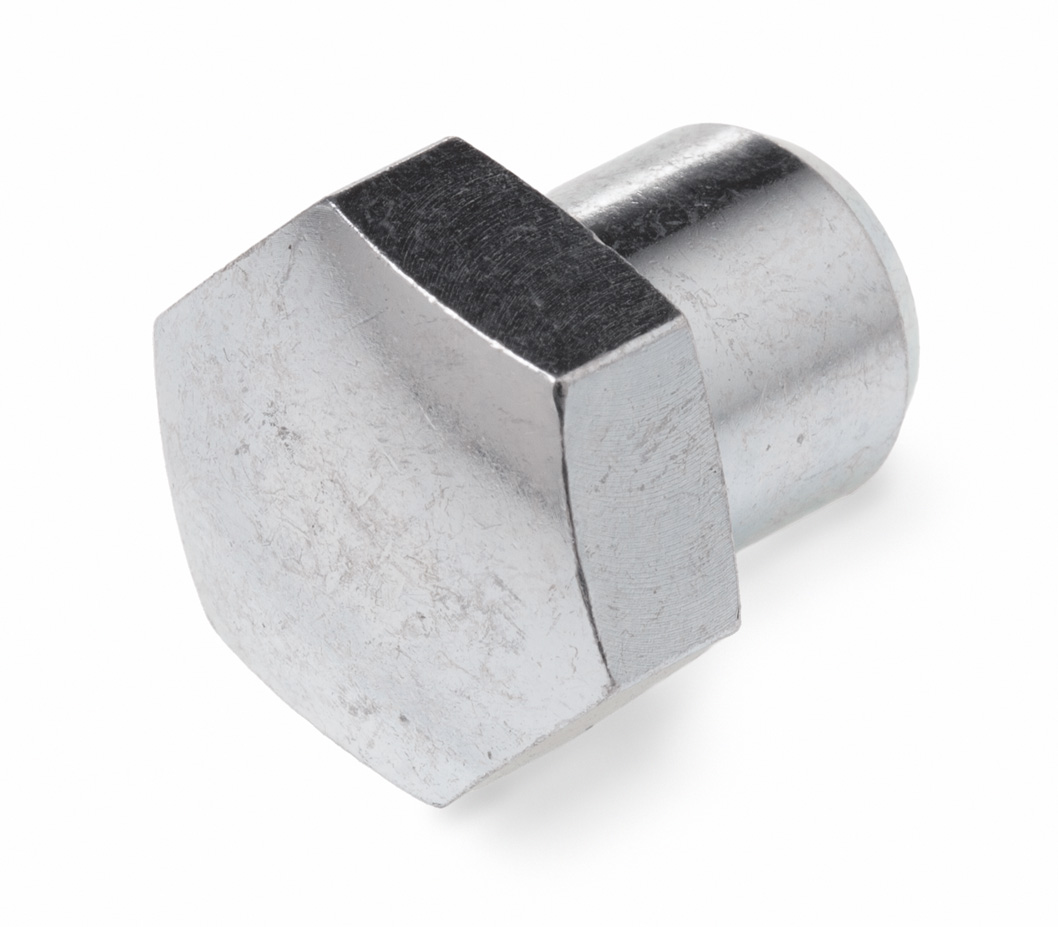

float lid - with hexagonal zinc plated head
100M
Required: 2
float on SU carburettors - height: 1/4". Fits to the original float chamber lid only
Use with the original float chamber lid
Required: 2
for SU-H, SU-HD and SU-HS type carburettors - superior replacement of needle valve and seat
Superior replacement of needle valve and seat
Required: 2
for SU H & HD type carburettor, diameter: 1.7/8" - unsinkable' float, made from Nitrile rubber foam
Required: 2

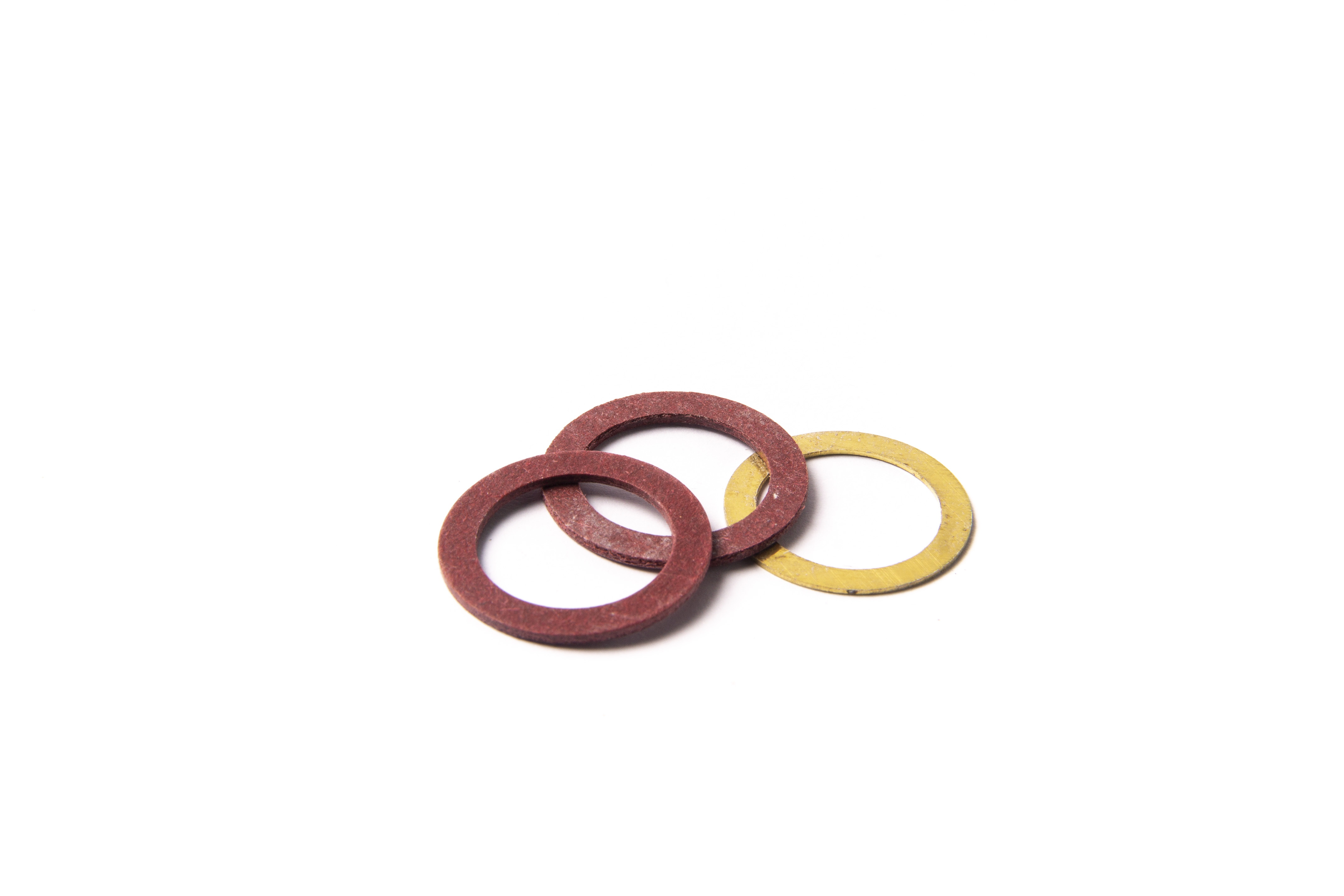

float chamber to body
Contains 2x fibre washers and 1x steel washer
Required: 2
with cork glands - for SU-H type carburettors with fixed needle
Required: 2
with treated rubber seals - for SU-H type carburettors with fixed needle
Required: 2
for SU-H4 carburettors - variant with standard size
BN1, BN2 and BN4
Required: 2
for SU-H4 carburettors - variant with 0.010" oversize
BN1, BN2 and BN4
Required: 2
for SU-H6 and HD6 carburettors - variant with standard size. Length: 6.3/8", diameter: 5/16", with slot for 1.1/2" and 1.3/4" throttle discs
100M
Required: 2
for SU-H6 and HD6 carburettors - variant with 0.010" oversize
100M
Required: 2
throttle spindle. For bodies with worn cast in bushes, useable on SU and Zenith Stromberg carburettors with 5/16" throttle spindle
For bodies with worn cast in bushes
Required: 4
Required: 6

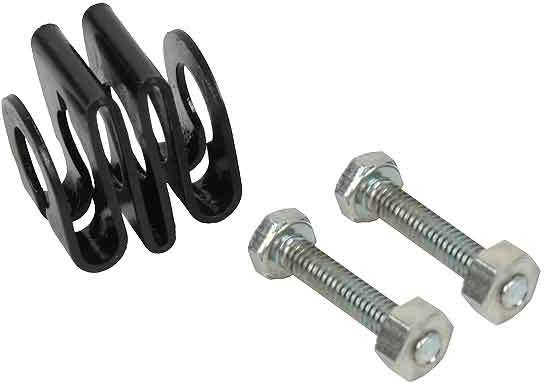

carburettor return spring
Containing illustrations 65 to 70
Required: 2
throttle spindles
100M
Required: 1
throttle spindles
BN4
Required: 1
fast idle - on front carburettor
BN1, BN2 and BN4
Required: 1

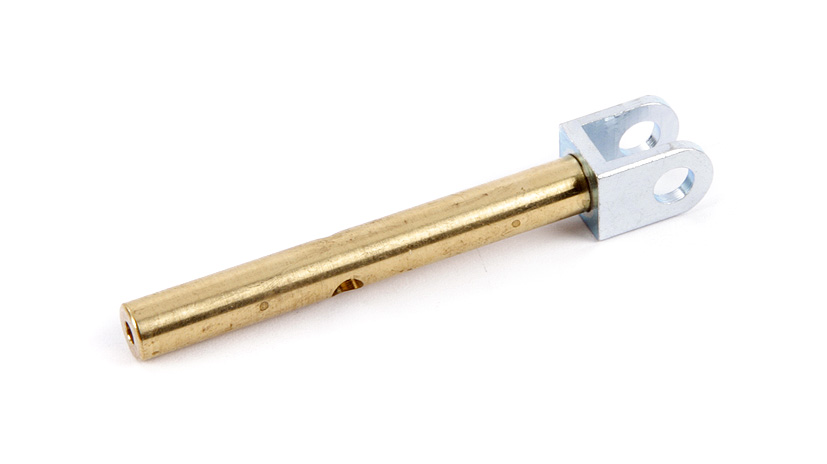

jet lever connection link
BN1, BN2 and 100M
Required: 1
SU-H type carburettor
BN1 and BN2, BN4 to 48862 (1953-58) plus 100M (1955-56)
Required: 2

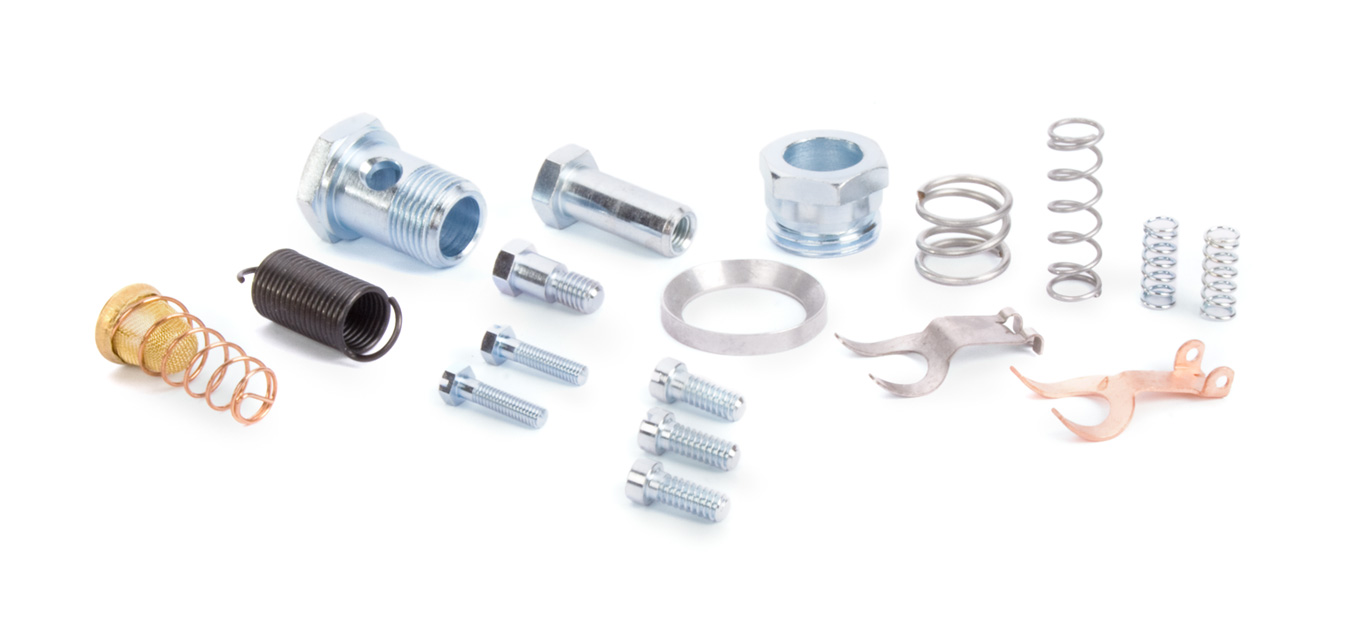

for single SU-H4 and SU-H6 type carburettor
BN1 and BN2, BN4 to 48862 (1953-58) plus 100M (1955-56)
Required: 2
for one SU-H1, H2 or H4 type carburettor
BN1, BN2 and BN4 (1953-59)
Required: 2
for single SU-H6 type carburettor
100M (1955-56)
Required: 2
for single SU-H4 type carburettor. Comprising service kit 200205 plus throttle disc and throttle spindle
BN1, BN2 and BN4 (1953-59)
Required: 2
for single SU-H6 type carburettor. Comprising service kit 200206 plus throttle disc and throttle spindle
100M (1955-56)
Required: 2

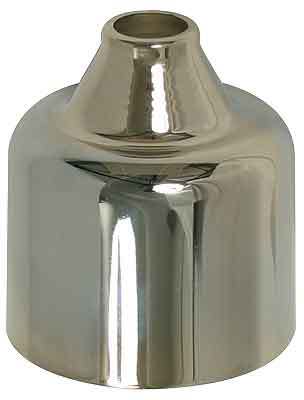

for SU-H4 carburettors. Chromed with 78 mm total height
Construction height: 78 mm
Required: 2
for SU-HS4 and HS6 carburettors. Chromed with 71 mm total height
Construction height: 71 mm
Required: 2
