Instruments - BN1, BN2, BN4, BN6, BN7, BT7 and BJ7

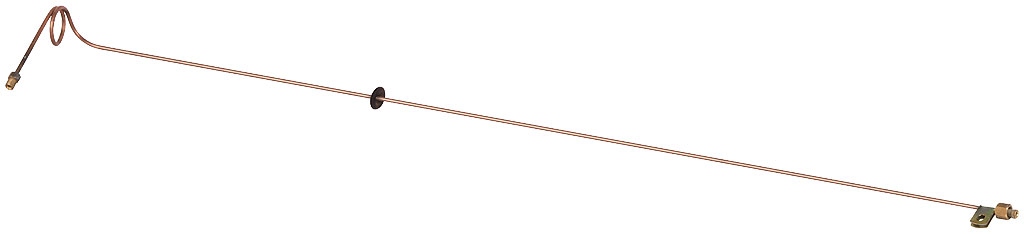

oil feed pipe - for RHD models

oil feed pipe to dashboard

BN7 and BT7 from 13751, BJ7

oil feed pipe

for clip 322968

to gauge - for LHD models

BN1 and BN2 (1953-56)

to gauge - for RHD models

BN1 and BN2 (1953-56)

to gauge - for LHD models

BN4, BN6, BN7, BT7 and BJ7 (1956-63)

to gauge - for RHD models

BN4, BN6, BN7, BT7 and BJ7 (1956-63)

oil feed pipe through bulkhead

BN4 to BJ7

dual gauge

for gauges with studs with 3BA thread - in aluminium with 3/8" outer diameter

for gauges with studs with 3BA thread - in brass with 3/8" outer diameter

for tachometer and speedometer

for gauges with studs with 3BA thread - in aluminium with 1/2" outer diameter

for gauges with studs with 3BA thread - in brass with 1/2" outer diameter

with bulb holder, fixing fuel gauge

for thermo capillary tube

BN7, BT7 and BJ7

through bulkhead

GD1500/29 - LBS/F°, exchange

BN1 and BN2

GD1500/29 - new item with 52 mm diameter, black with white illumination and clear glass, chrome bezel, oil range: 0-100 LBS, water range: 90-230 °F, mechanical with capillary, external lit

BN1 and BN2 (1953-56)

X42638/35 with 52 mm diameter, black dial and clear glass, chrome bezel, oil range: 0-100 PSI, water range: 0-100 C°, mechanical with capillary, external lit. Reconditioned, in exchange

BN1 and BN2

GD1502/00 - 52 mm diameter, gold with black illumination and clear glass, chrome bezel, oil range: 0-100 PSI, water range: 90-230 °F, mechanical with capillary, external lit- reconditioned, in exchange

BN4 to 68959, BN6 to 2029 (1956-58)

GD1502/05 - exchange item with 52 mm diameter, gold with black illumination and clear glass, chrome bezel, oil range: 0-100 PSI, water range: 90-230 F°, mechanical with capillary, external lit

BN4 from 68960, BN6 from 2030, all BN7, BT7 and BJ7 (1958-63)

GD1502/05 - new item with 52 mm diameter, silver with black illumination and clear glass, chrome bezel, oil range: 0-100 PSI, water range: 90-230 °F, mechanical with capillary, external lit

BN4 from 68960, BN6 from 2030, all BN7, BT7 and BJ7 (1958-63)

GD1502/09 - new item with 52 mm diameter. Magnolia dial with black illumination and clear glass, chrome bezel, oil range: 0-100 PSI, water range: 30-110 °C, mechanical with capillary, external lit

BN4 from 68960, BN6 from 2030, all BN7, BT7 and BJ7 (1958-63)

flat, diameter: 2" - dual gauge, fuel gauge, oil pressure gauge, time clock and water temperature gauge

BN4 to BJ7

for dual gauge and fuel gauge

BN4 to BJ7

chromed - for 2" instruments. Dual gauge and fuel gauge

BN1 and BN2 (1952-56)

Chrome, for fuel gauge and dual gauge

BN4 to BJ7

Square section, for 2" instruments

RN2301/00 with mechanical drive and 100 mm diameter, black surface with white illumination and chrome bezel. Range: 0-6000 RPM - reconditioned, in exchange

BN1, BN2 and 100M (from May 1953 to June 1956)

RN2301/01 with mechanical drive and 100 mm diameter, golden surface with white illumination and chrome bezel. Range: 0-6000 RPM - reconditioned, in exchange

BN4 to chassis no. 68959 (from June 1956 to September 1958)

RN2301/03 with mechanical drive and 100 mm diameter, golden surface with white illumination and chrome bezel. Range: 0-6000 RPM - reconditioned, in exchange

BN4 from chassis no. 68959, BN6, BN7, BT7 and BJ7 (from September 1958 to November 1963)

RN2351/03 with mechanical drive and 100 mm diameter, golden surface with white illumination and chrome bezel. Range: 0-6000 RPM - reconditioned, in exchange

BN4 from chassis no. 68959, BN6, BN7, BT7 and BJ7 (from September 1958 to November 1963)

flat, diameter: 4" - speedometer and tachometer

BN4 to BJ7

for tachometer and speedometer

BN4 to BJ7

round, chromed variant with 4" diameter. Fits to speedometer and tachometer

BN1 and BN2 (1952-56)

Square section, for 4" instruments

round, chromed variant with 4" diameter. Fits to speedometer and tachometer

BN4 to BJ7

RHD approx. 85 cms long

BN4 from 28484, BN6, BN7, BT7 and BJ7

approx. 122 cms long

BN1 and BN2, BN4 to 28483

speedometer and tachometer - length: 54"

RHD approx. 85 cms long

BN4 from 28484, BN6, BN7, BT7 and BJ7

SN6305/00 - exchange item. Range: 0-120 MP/H, turns: 1325, final ratio: 4.125:1

BN1, BN2 and 100M (1952-56)

SN6305/00 - new item. Range: 0-120 MP/H, turns: 1325, final ratio: 4.125:1

BN1, BN2 and 100M (1952-56)

SN6305/01 - exchange item. Range: 0-200 MP/H, turns: 820, final ratio: 4.125:1

BN1, BN2 and 100M (1952-56)

SN6305/01 - new item. Range: 0-200 MP/H, turns: 820, final ratio: 4.125:1

BN1, BN2 and 100M (1952-56)

exchange item. Range: 0-140 MP/H, turns: 1180, final ratio: 3.6:1

100S

exchange item. Range: 0-220 KP/H, turns: 720, final ratio: 3.6:1

100S

SN6105/06 - MP/H, exchange

BN4 and BN6 without Overdrive - rear axle ratio 1:3.9

SN6105/09 - KM/H, exchange

BN4 and BN6 without Overdrive - rear axle ratio 1:3.9

SN6105/08 - MP/H, exchange

BN4 and BN6 with Overdrive - rear axle ratio 1:4.1

SN6105/07 - KM/H, exchange

BN4 and BN6 with Overdrive - rear axle ratio 1:4.1

SN6155/19 - MP/H, exchange

BN7, BT7 and BJ7 without Overdrive - rear axle ratio 1:3.54

SN6165/20 - KM/H, exchange

BN7, BT7 and BJ7 without Overdrive - rear axle ratio 1:3.54

SN6155/21 model with 100 mm diameter, with gold dial, black print and chrome bezel. Range: 0-120 MP/H, turns: 980, final ratio: 3.909:1 - reconditioned in exchange

BN7, BT7 and BJ7 with Overdrive (1959-63)

SN6155/21 model with 100 mm diameter, with gold dial, black print and chrome bezel. Range: 0-120 MP/H, turns: 980, final ratio: 3.909:1 - new item

BN7, BT7 and BJ7 with Overdrive (1959-63)

SN6155/22 model with 100 mm diameter, with gold dial, black print and chrome bezel. Range: 0-200 KP/H, turns: 620, final ratio: 3.909:1 - reconditioned in exchange

BN7, BT7 and BJ7 with Overdrive (1959-63)

SN6155/22 model with 100 mm diameter, with gold dial, black print and chrome bezel. Range: 0-200 KP/H, turns: 620, final ratio: 3.909:1 - new item

BN7, BT7 and BJ7 with Overdrive (1959-63)

speedometer

approx. 114 cms long

BN1 and BN2

approx. 160 cms long

BN1 and BN2

with 57" length

BN4 and BN6 without Overdrive (1956-59), BN7 to 5588 and BT7 to 6774 with side shift gearbox but without Overdrive (1959)

with 48" length

BN7 and BT7. side shift gearbox, BN7 from 5589 and BT7 from 6775 - without Overdrive.

with 63" length

BN4 and BN6. BN7 and BT7. side shift gearbox, BN7 to 5588 and BT7 to 6774 - with Overdrive.

with 57" length

BN7 from 5589 to 15880 and BT7 from 6775 to 160338 with side shift gearbox and Overdrive (1959-61)

speedometer - length: 42"

BN7, BT7 and BJ7. Middle shift gearbox, BN7 from 16039, BT7 from 15881, BJ7 - without Overdrive.

speedometer - approx. 140 cms

BN7, BT7 and BJ7. Middle shift gearbox, BN7 from 16039, BT7 from 15881, BJ7 - with Overdrive.

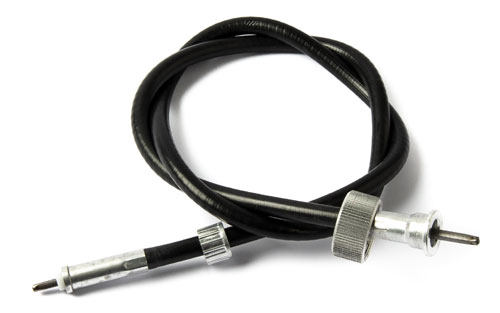

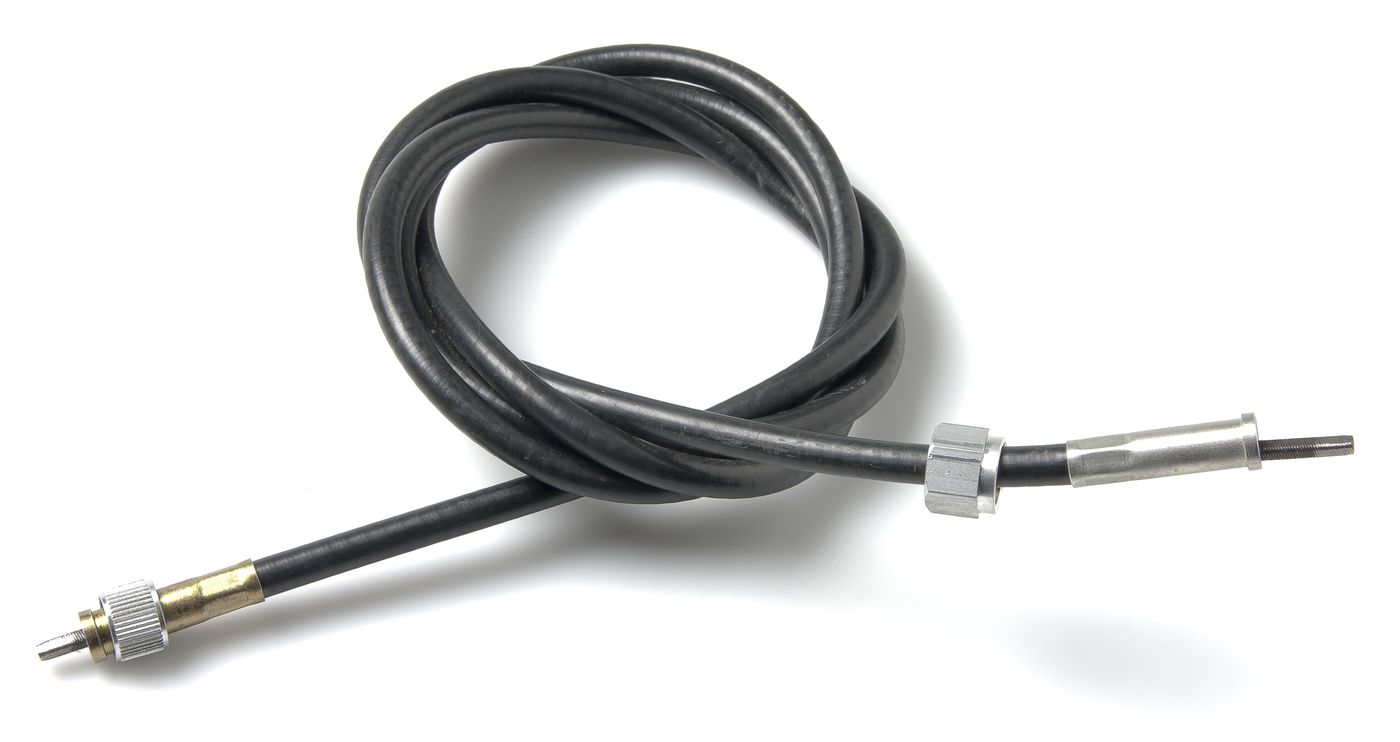

speedometer cable

BN1 and BN2

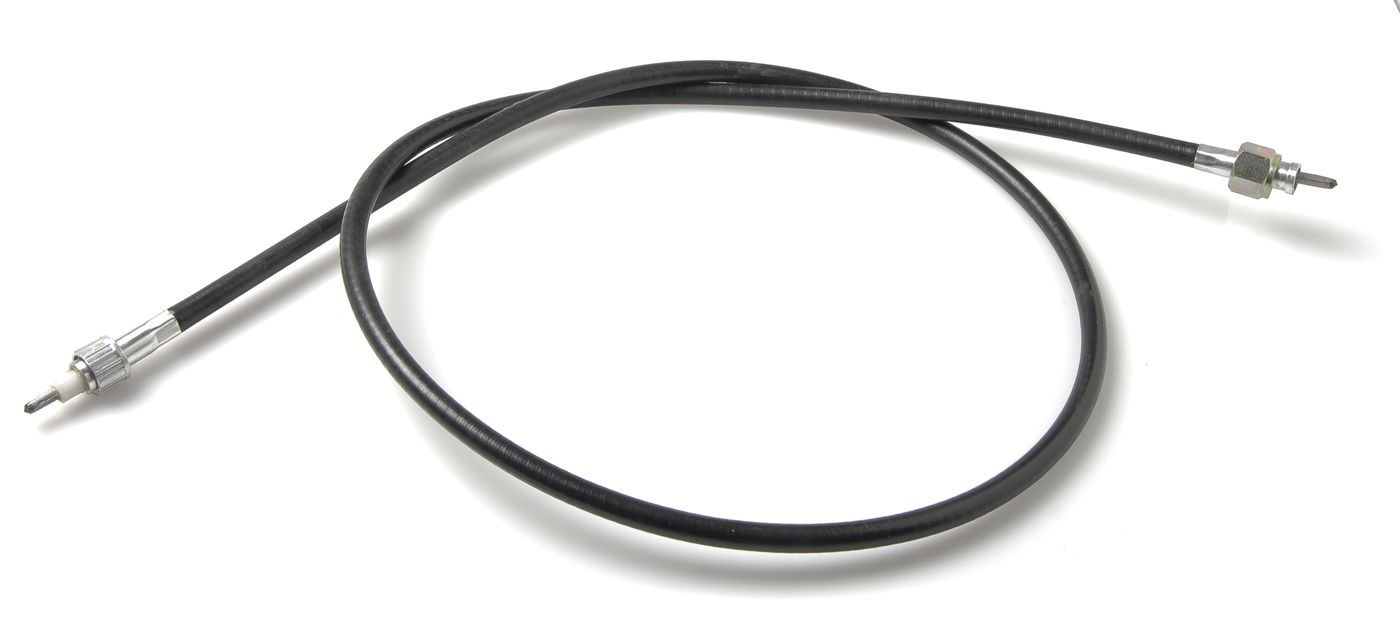

speedometer cable

BN4 to BJ7

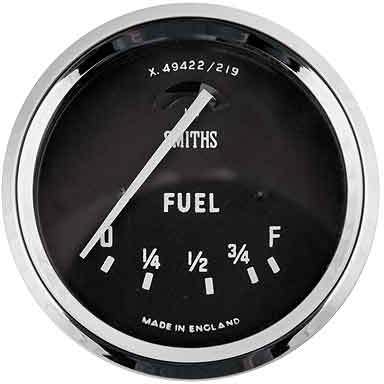

FG2530/19, exchange

BN1 and BN2

FG2530/19 - new item

BN1 and BN2

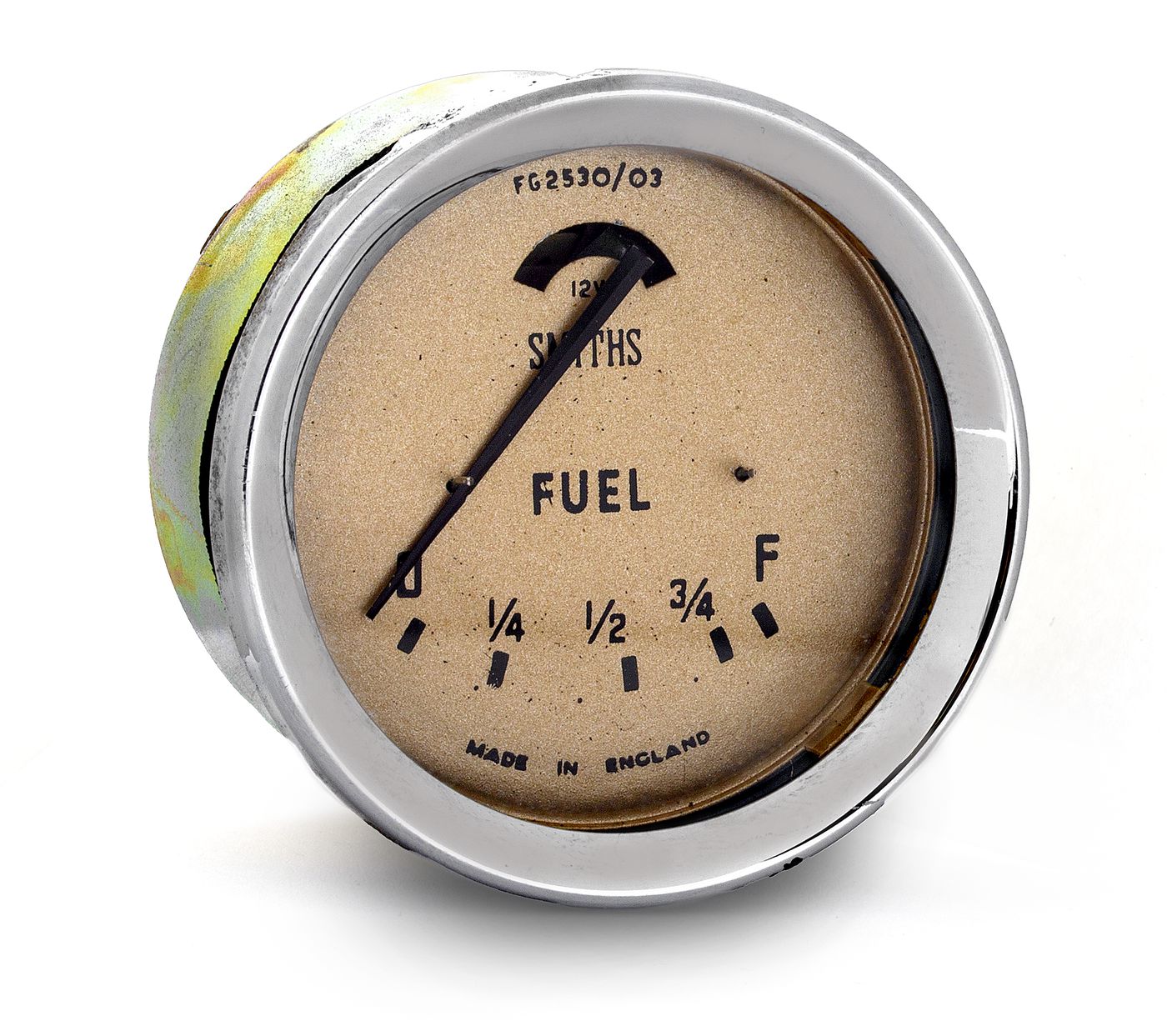

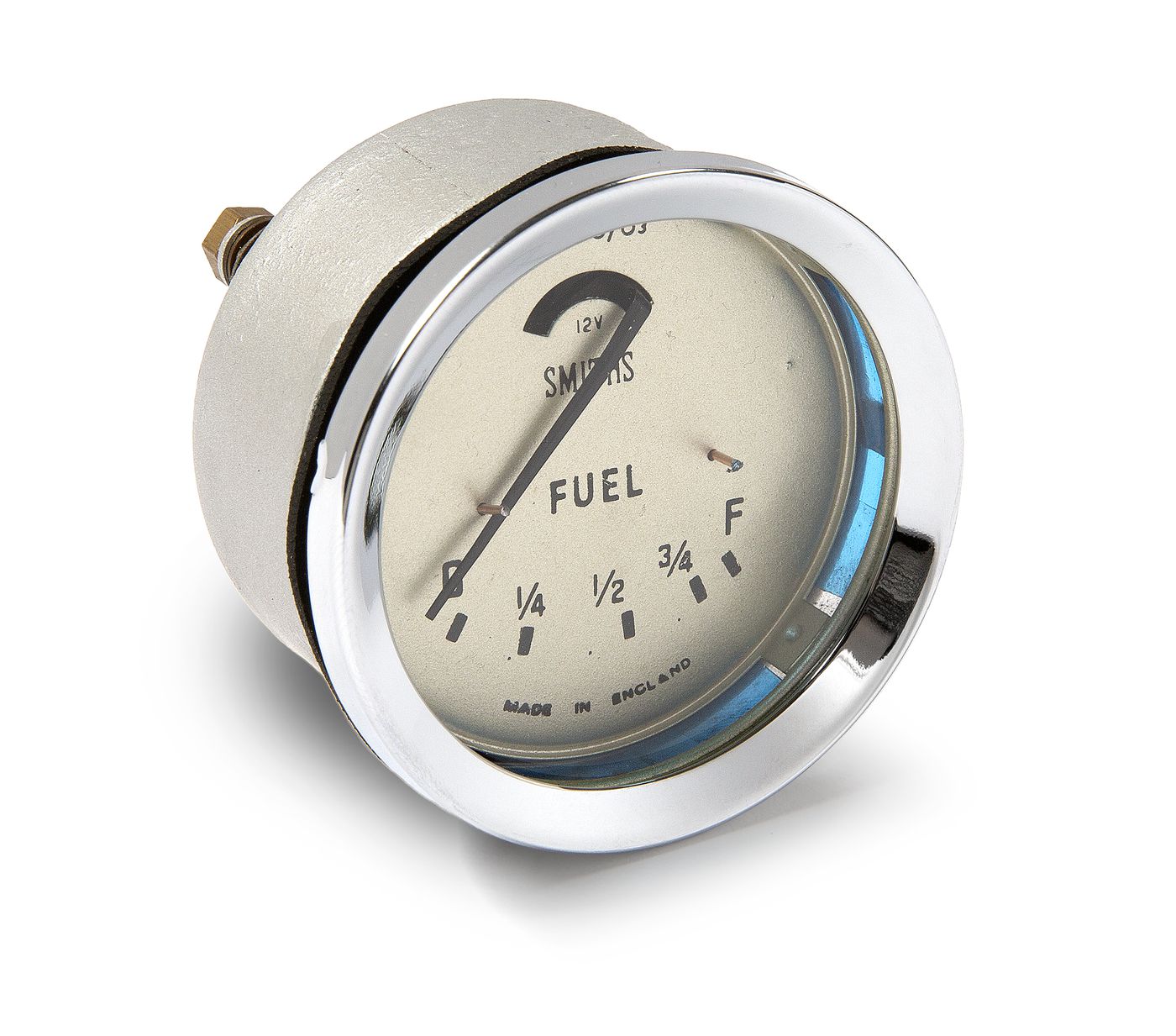

FG2530/03 with 52 mm diameter, golden surface with white illumination and chrome bezel. Range: 0-1/4-1/2-3/4-F - reconditioned, in exchange

BN4, BN6, BN7, BT7 and BJ7 (1956-62)

FG2530/03 - new item with 52 mm diameter, golden surface with white illumination and chrome bezel. Range: 0-1/4-1/2-3/4-F

BN4, BN6, BN7, BT7 and BJ7 (1956-62)

in exchange (picture shows sample)

You can identify your speedometer by the number printed on the face of the instrument. A re-calibration from miles to kilometres is possible by overhauling your own speedometer.

side and headlamp

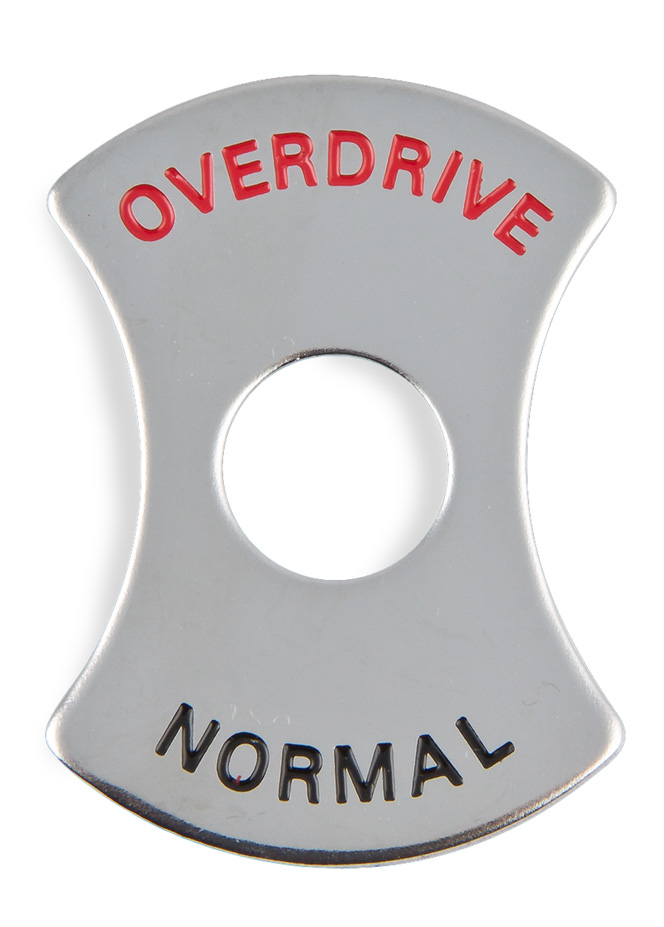

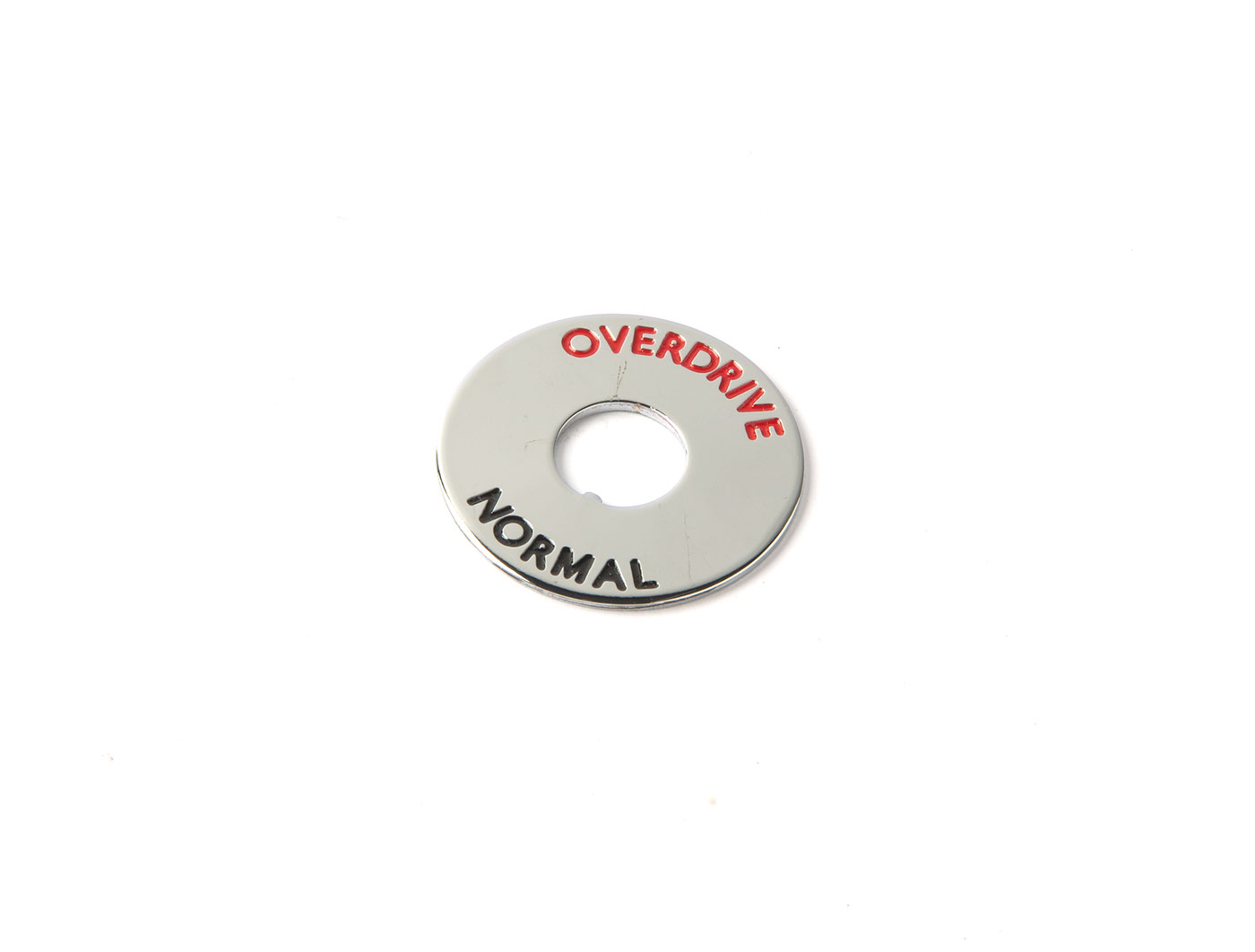

overdrive switch

BN1 and BN2

BN4 to BJ7

overdrive switch

BN4 to BJ7

2.2 watts - E10/13 screw type

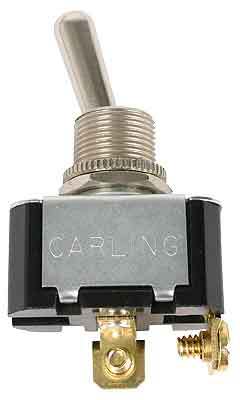

two wire type with screw base

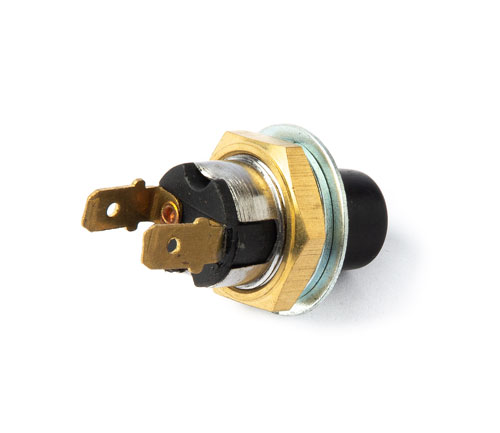

with knob - variant with push on terminals

Windscreen wiper

for windscreen wiper switch

without barrel and keys. Comes with modern bezel, re-use existing

with two keys

blank key with FS code

To identify the correct ignition key for your vehicle, add the three-digit combination to your key code to, i.e. FS876

blank key with FT code

To identify the correct ignition key for your vehicle, add the three-digit combination to your key code to, i.e. FS876

blank key with FA code

To identify the correct ignition key for your vehicle, add the three-digit combination to your key code to, i.e. FS876

steering lock

If steering lock is fitted

Panel light

GD1301/62 - new item with 52 mm diameter. Black with white illumination and clear glass, chrome bezel, oil pressure range: 0-100 PSI, water temperature range: 30-110 °C, mechanical with capillary, internal lit

BN4 to BJ8 (1956-68)

A direct replacement for the obsolete originals

GD1301/65 - new item with 52 mm diameter. Magnolia with black illumination and clear glass, chrome bezel, oil pressure range: 0-100 PSI, water temperature range: 90-230 °F, mechanical with capillary, internal lit

A direct replacement for the obsolete originals

GD1301/85 - new item with 52 mm diameter. Magnolia with black illumination and clear glass, chrome bezel, oil pressure range: 0-100 PSI, water temperature range: 30-110 °C, mechanical with capillary, internal lit

12 volt, for positive and negative earthed cars without cut-off relay, complete with fitting instructions

Complete with fitting instructions

12 volt, for positive and negative earthed cars with cut-off relay, complete with fitting instructions

Complete with fitting instructions

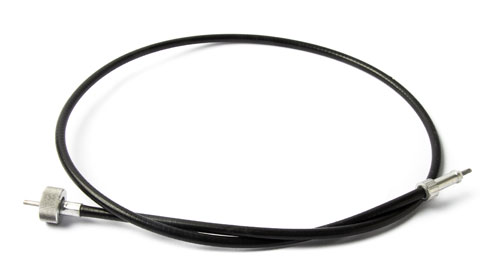

speedometer cable, competition type in perfect quality

BN4 to BJ7

Improved specification

for dash, instrument illumination and warning lights - for negative earth - 6 pieces

BN1 to BJ7

for dash, instrument illumination and warning lights - for positive earth - 6 pieces

BN1 to BJ7
