Handbrake
assembly
Series 1 and 2 OTS and FHC (1961-70)
Required: 1
handbrake. The kit includes: ratchet assembly, handbrake pawl and securing fittings
Required: 1

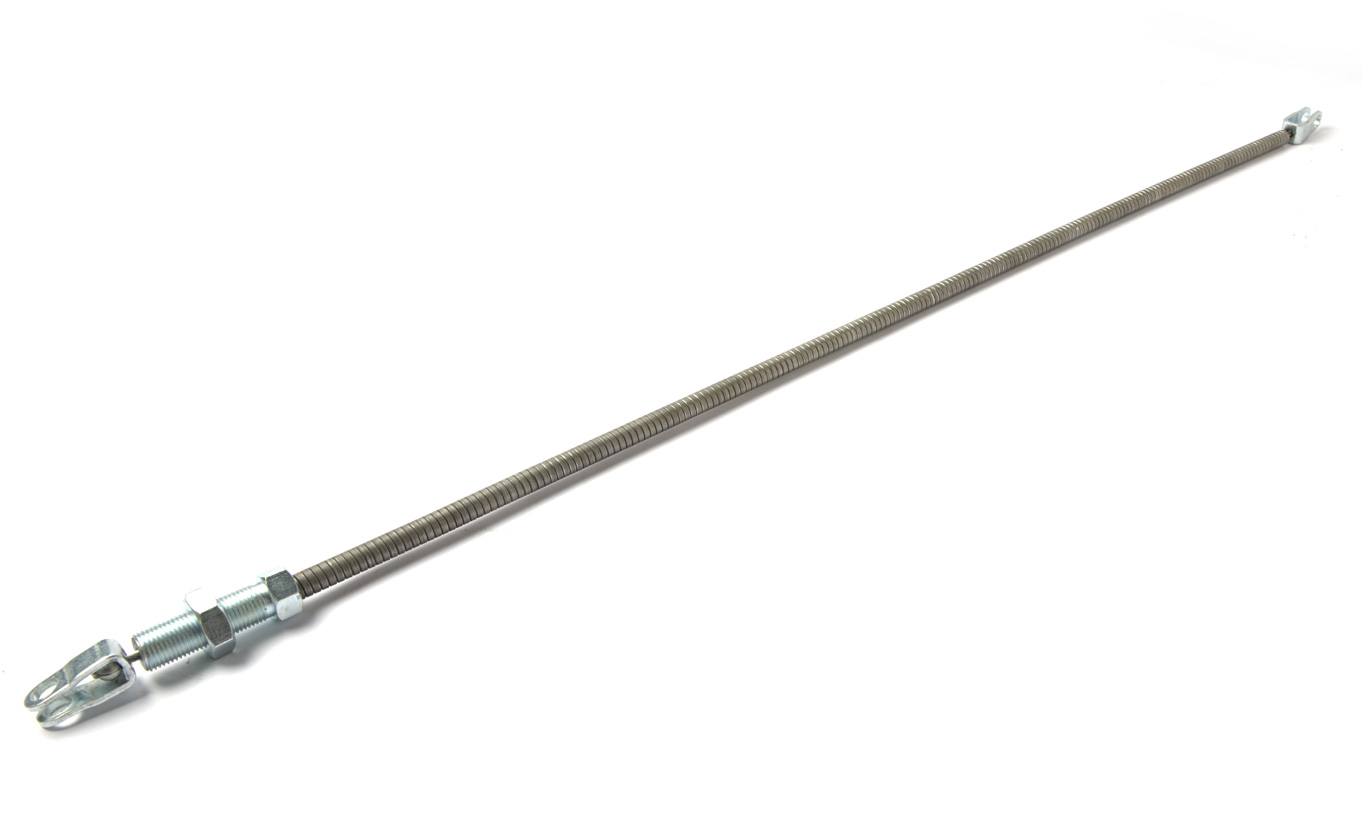

with PVC covered conduit
3.8 Series 1 OTS from 850001 to 850554 (RHD) and 875001 to 877566 (LHD), FHC from 860001 to 860663 (RHD) and 885001 to 886262 (LHD) (1961)
Required: 1

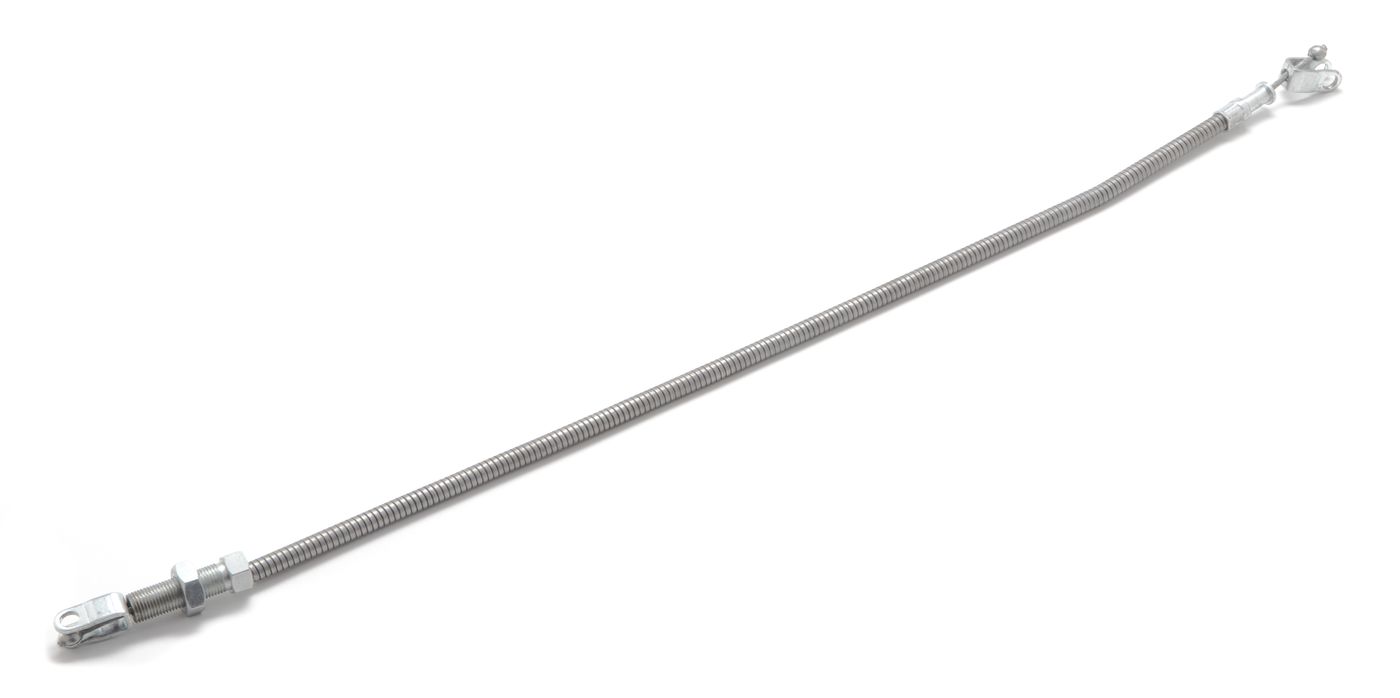

with PVC covered conduit
3.8 Series 1 OTS from 850555 (RHD) and 877567 (LHD), FHC from 860664 (RHD) and 886263 (LHD) 4.2 Series 1 and 2 OTS and FHC models (1962-70)
Required: 1
with PVC covered conduit
4.2 Series 1 2+2 from 1E50001 to 1E51379 (RHD) and 1E75001 to 1E79222 (LHD) (1966-68)
Required: 1
with PVC covered conduit
4.2 Series 2 2+2 from 1R35001 (RHD) and 1R40001 (LHD) (1968-70)
Required: 1

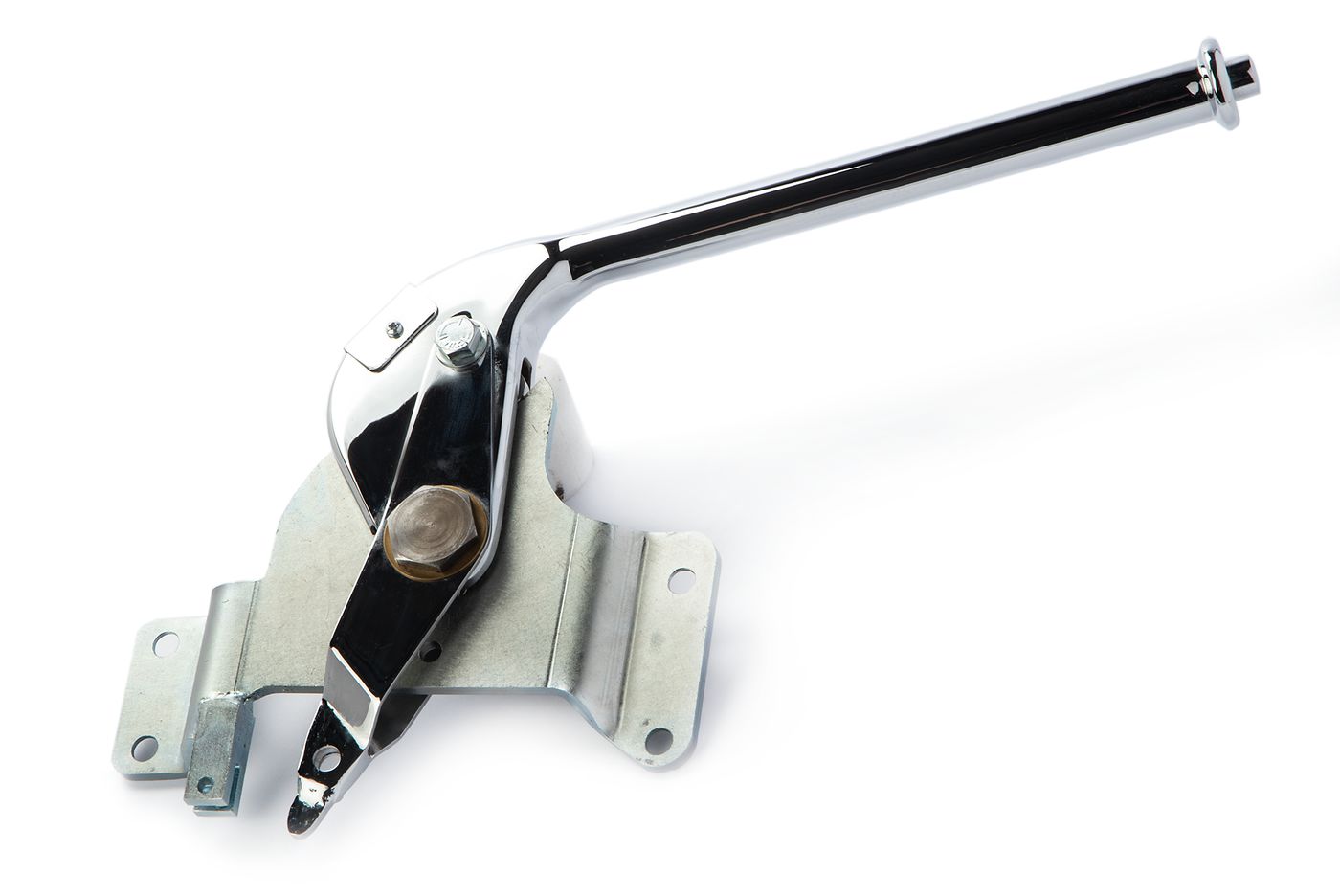

handbrake lever
Required: 1
in propeller shaft tunnel
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
handbrake cable - in transmission tunnel
4.2 Series 1 and 2 2+2 models from 1E50001 and 1E75001 (1966-70)
Required: 1
handbrake lever push rod
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
securing clevis pin
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
mounting switch warning light on handbrake lever
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1

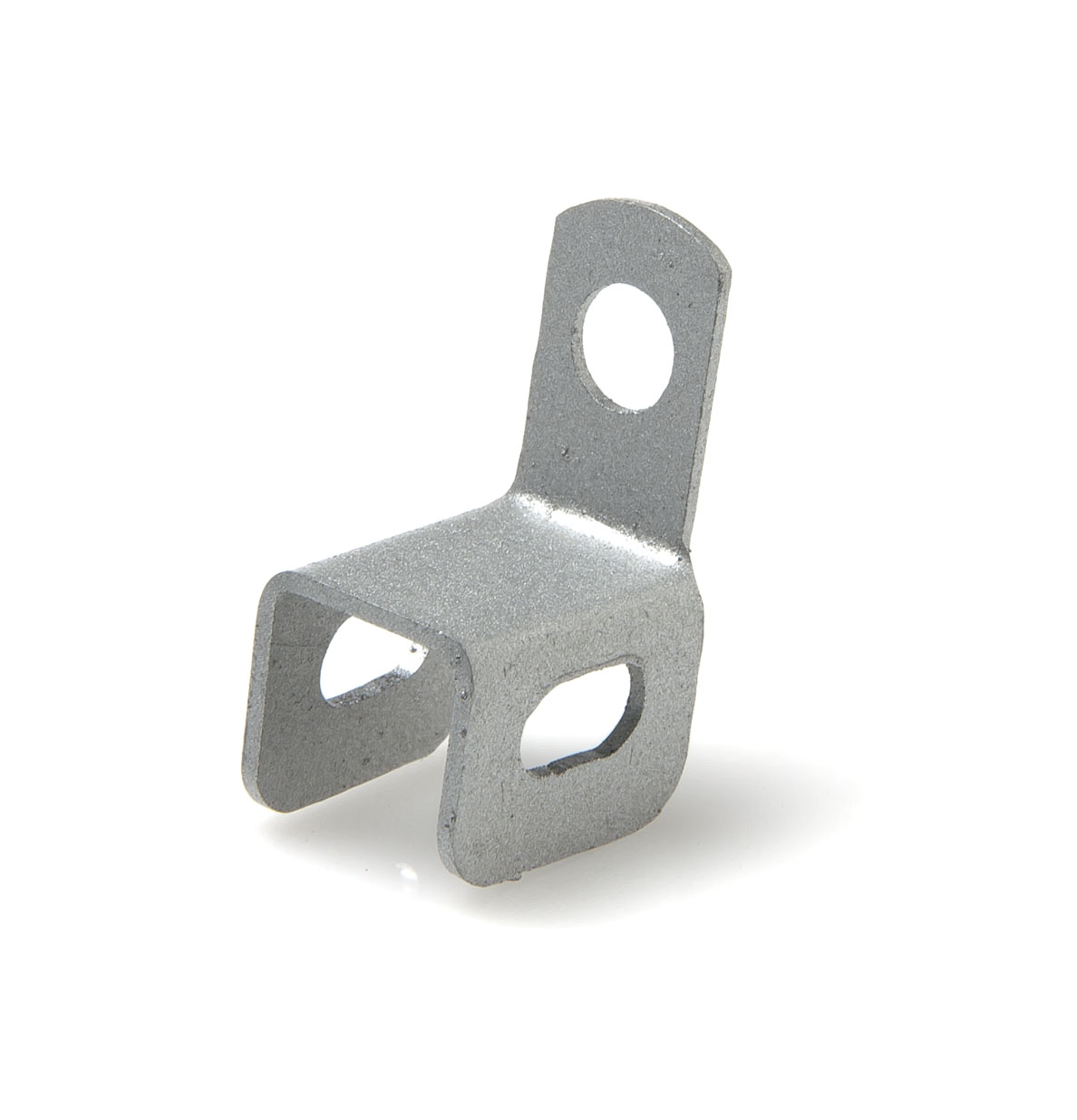

retaining bracket
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
retaining bracket
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
retaining bracket
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
handbrake warning light switch
3.8 and 4.2 Series 1 and 2 OTS and FHC (1961-70)
Required: 1
assembly - used item
4.2 Serie 1 und 2 2+2 Modelle ab 1E50001 und 1E75001 (1966-70)
Required: 1
adjusting warning light switch
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 1
handbrake lever to tunnel, side
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 2
handbrake lever to tunnel, upper
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 1
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 3
under upper screw
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 1
handbrake lever
4.2 Series 1 and 2 2+2 Models from 1E50001 and 1E75001 (1966-70)
Required: 1
handbrake - reproduction
Series 1 and 2 (1961-70)
Required: 1
handbrake - replacement for the original device. Actuation via cables
Series 1 and 2 OTS and FHC (1961-70))
Required: 1
retaining fork end, link arm to compensating mechanism
Required: 2
retaining fork end, link arm to compensating mechanism
Required: 2
retaining fork end, link arm to compensating mechanism
Required: 2
between handbrake cable and rear bracke hose braket
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1
for retaining spring to handbrake cable
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1

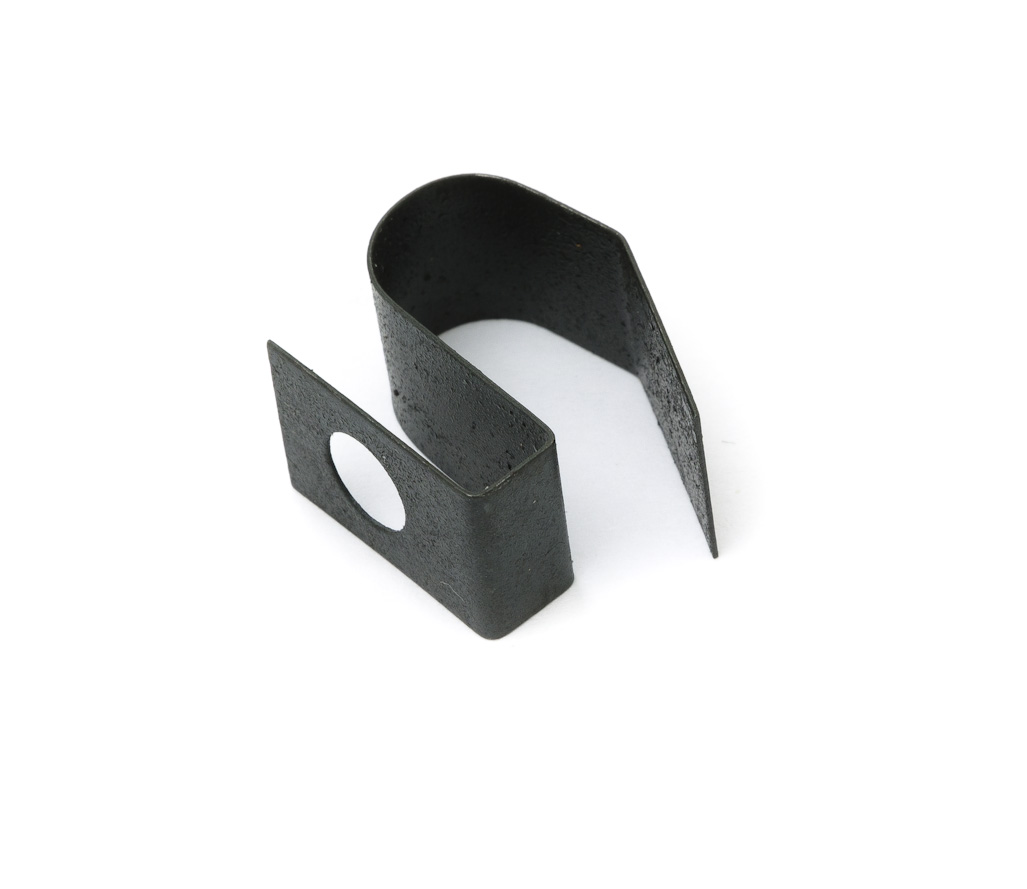

retaining clip
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1
retaining clip
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1
retaining clip
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1
retaining clip
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Required: 1
