Cylinder head 3.8 litre
for LH smooth rocker cover. Made of polished aluminium with 68 mm diameter
Required: 1
for LH rocker cover. Made of polished aluminium with 68 mm diameter with Jaguar lettering in gold
Required: 1
quick release type, polished aluminium. Monza style with 65 mm diameter
Required: 1
made in red vulcanised fibreboard with the correct rivets and brackets
Required: 1
90° angled - plastic reproduction with Champion lettering
Required: 6
securing capillary tube to rocker covers
Required: 4

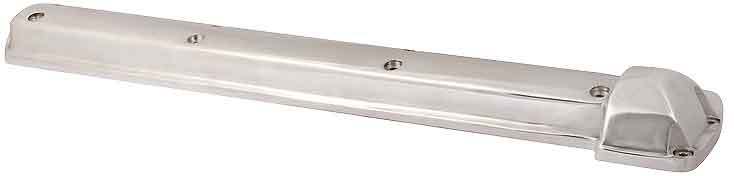

LH - polished aluminium
Models to engine no. R2599
Required: 1
LH - aluminium
Modelle from Motornummer R2600
Required: 1
RH - aluminium. Feature: slot for electric tachometer drive
Required: 1
chromed. Securing rocker covers and cylinder head
Contents illustrations 16, 17, 68, 69, 70, 83 and 84
Required: 1
270° 'Road' specification - new items, supplied in pairs. Specification: 4 bolt fixing
XJ6 specification
Required: 1
exhaust - XJ6 version, can be fixed with 2 and 4 bolts
Required: 1
inlet - XJ6 version, can be fixed with 2 and 4 bolts
Required: 1
Alternatives
Required: 12
for Jaguar XK6 engines and 6.0 V12 engines (diameter 17.44 mm <> 0.6126 inch)
Required: 1
made of chrome-nickel-magnesium steel with nitrided surface. Diameter: 41.3 mm
Made from 214N stainless steel - alternatives
Required: 6
made of chrome-nickel-magnesium steel with nitrided surface. Diameter: 41.3 mm
Made from 214N stainless steel - alternatives
Required: 6
inlet valve - bronze valve guide with 0.502" outside diameter and 1.866" length
Required: 6
inlet valve +0.003" (1st oversize). Steel type
Required: 6
inlet valve - bronze valve guide with 0.507" outside diameter and 1.866" length
Required: 6
inlet valve, 2nd oversize with 12.85 mm outer diameter and 47.41 mm length. Steel type
Required: 6
inlet valve - bronze valve guide with 0.504" outside diameter and 1.866" length
Required: 6
inlet valve, 3rd oversize with 12.95 mm outer diameter. Steel type
Required: 6
inlet valve - bronze valve guide with 0.510" outside diameter and 1.866" length
Required: 6
exhaust valve, 1st oversize with 12.83 mm outer diameter. Steel type
Required: 6
exhaust valve - bronze valve guide with 0.506" outside diameter and 1.957" length
Required: 6
exhaust valve, 2nd oversize with 12.88 mm outer diameter. Steel type
Required: 6
exhaust valve - bronze valve guide with 0.507" outside diameter and 1.957" length
Required: 6
exhaust valve, 3rd oversize with 12.95 mm outer diameter. Steel type
Required: 6
exhaust valve - bronze valve guide with 0.510" outside diameter and 1.957" length
Required: 6

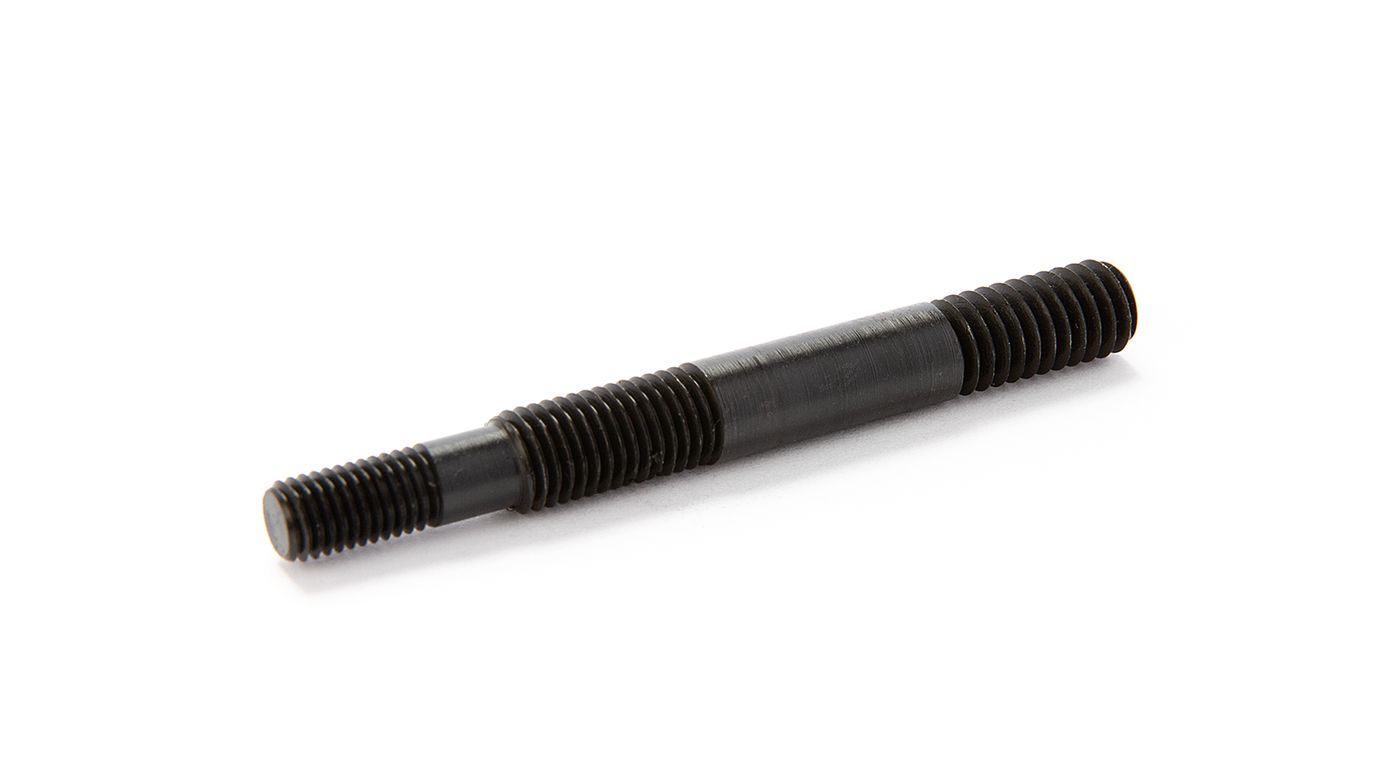

exhaust manifold. Stainless steel, may replace original stud
Required: 16

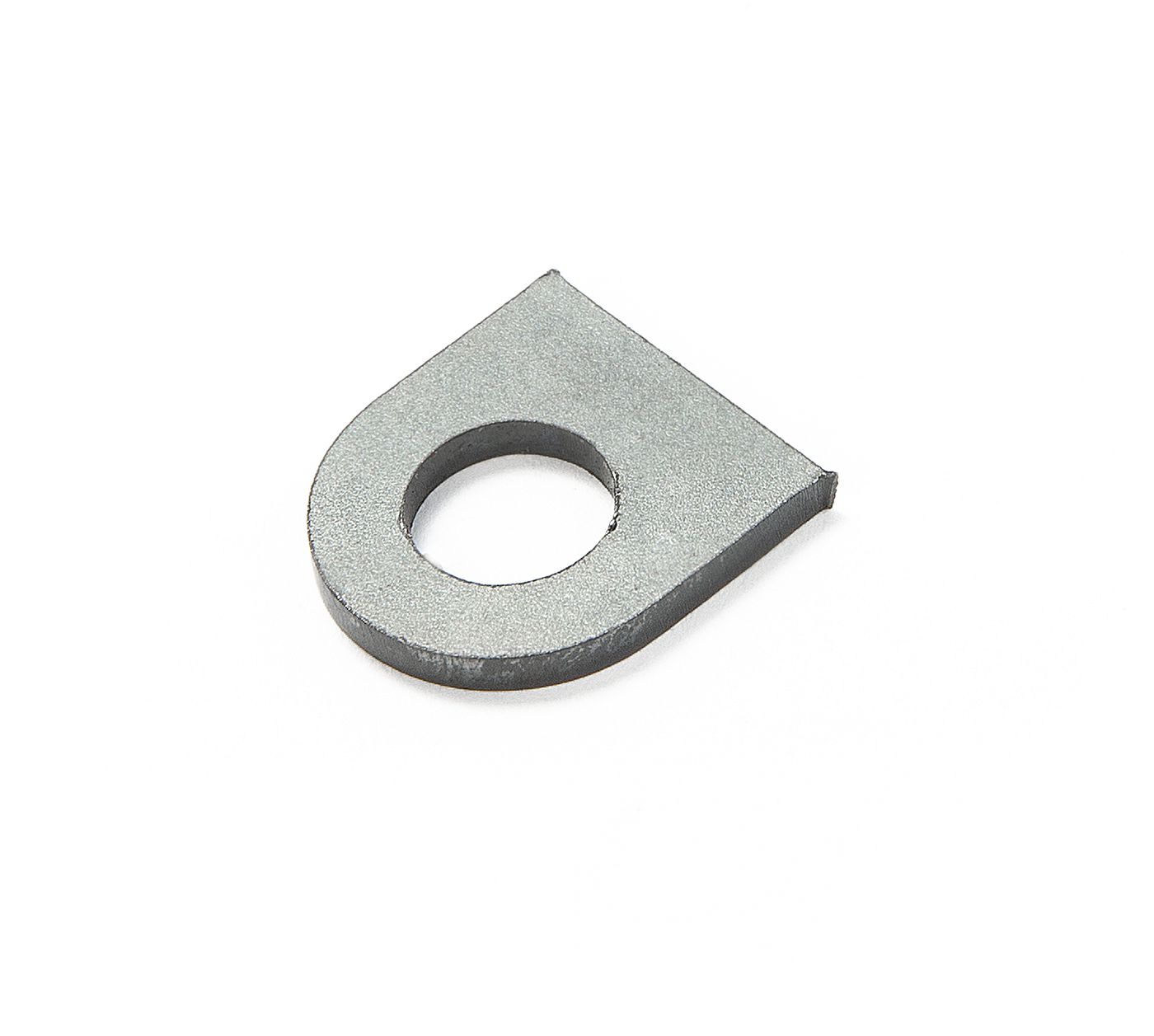

7/16" - galvanised D-shaped washer for cylinder head dome nut
Alternatives
Required: 10
7/16" - chromed D-shaped washer for cylinder head dome nut
Alternatives
Required: 10
7/16" - galvanised 3 mm thick washer for cylinder head dome nut
Alternatives
Required: 4
7/16" - chromed 3 mm thick washer for cylinder head dome nut
Alternatives
Required: 4
rear crankshaft cover to cylinder block - diameter: 5/16"
Rocker cover to cam bearing caps
Required: 16
engine breather
Models from VIN: 850001 to 850091, 875001 to 875385, 860001 to 860004 and 885001 to 885020
Required: 1
engine breather
Models from VIN. 850092, 875386, 860005 and 885021
engine breather
Modelle from VIN: 850001 to 850091, 875001 to 875385, 860001 to 860004 and 885001 to 885020
Required: 1

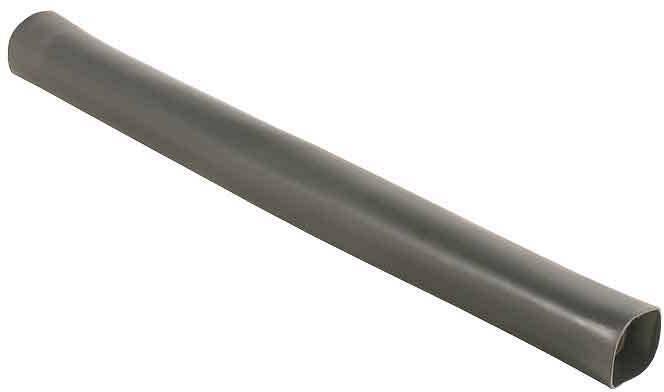

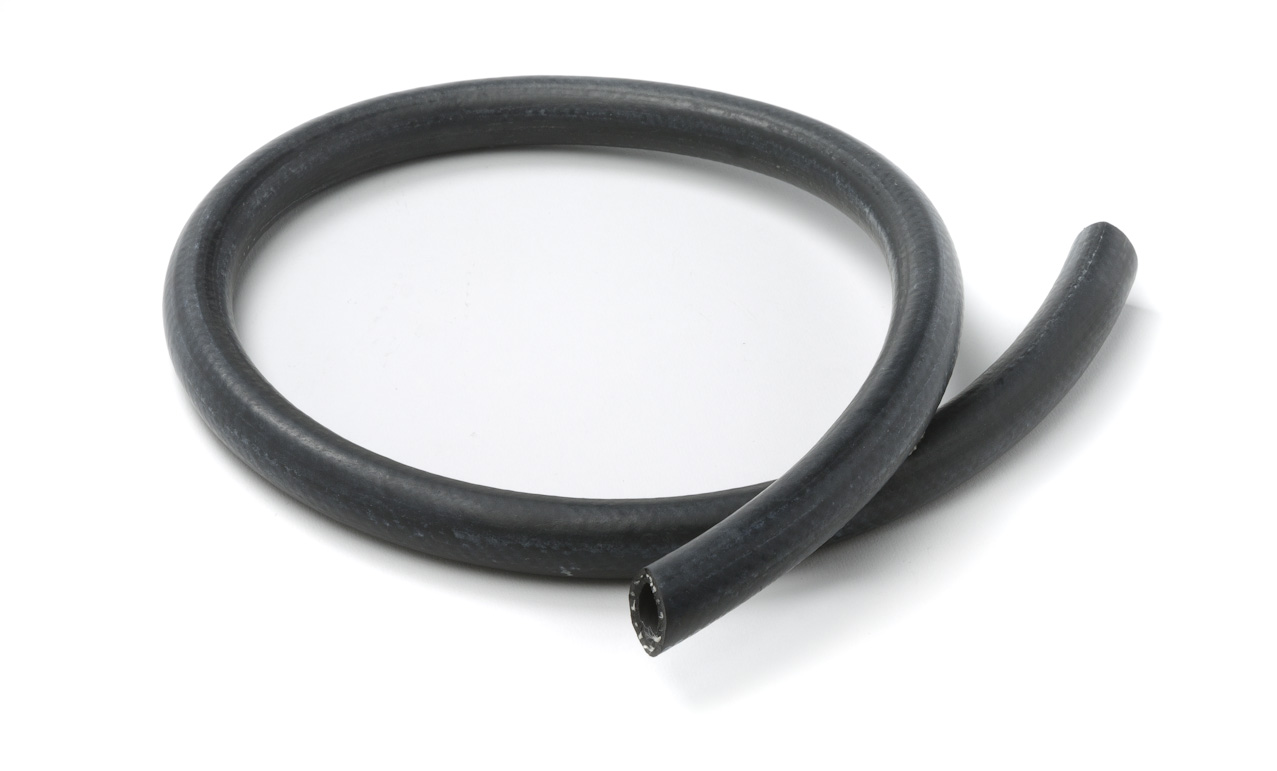

engine breather - supplied in metres
Required: 1
inlet valve. Hardened version for lead free applications. Dimensions: OD = 1.88", ID = 1.38", H = 0.43"
Required: 6
exhaust, hardened. For lead free applications
Required: 6
inlet manifold
Stainless steel, may replace original stud
Required: 18
exchange. Straight port head with new valves, springs and guides, new cam bearings. Shimming up of camshafts and fitting hardened exhaust seat inserts for lead free applications
Required: 1

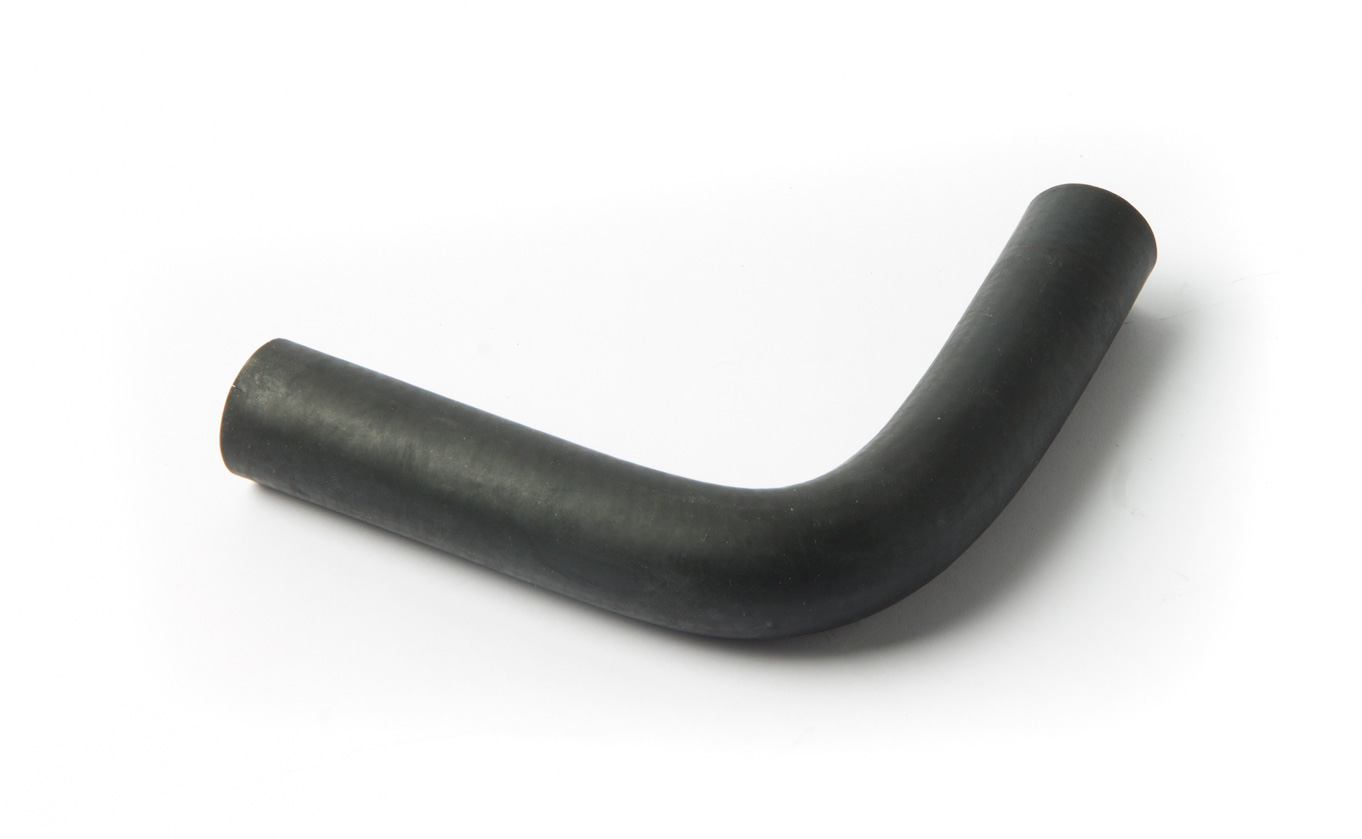

engine breather - 90° angled
Models from VIN: 850092, 875386, 860005 and 885021
Required: 1
Models from VIN: 850092, 875386, 860005 and 885021
Required: 4
engine breather - 78 cm long
Models from VIN: 850092, 875386, 860005 and 885021
Required: 1
breather
Models from VIN: 850092, 875386, 860005 and 885021
Required: 1
adaptor
Models from VIN: 850092, 875386, 860005 and 885021
Required: 1
made from high quality composite material. Bore size: 88.50 mm, Thickness: 0.35", built in thickness: 0.33"
Required: 1

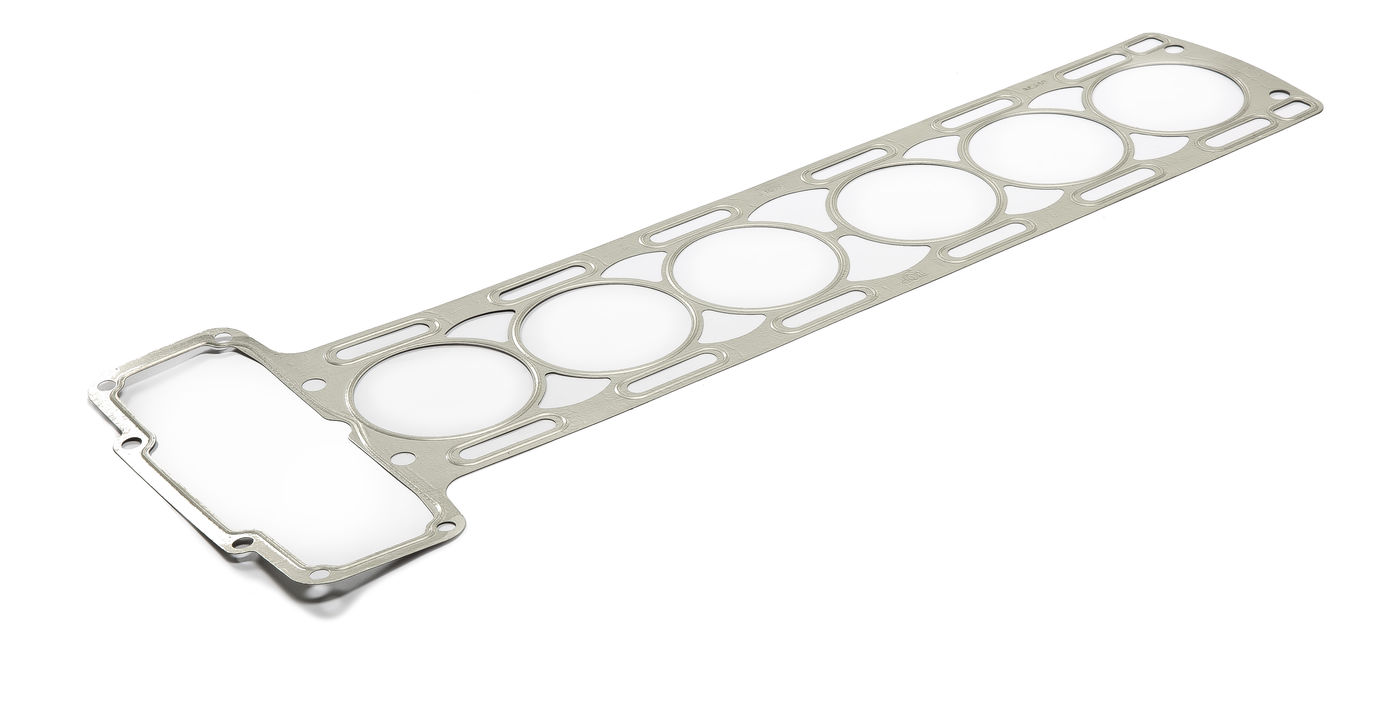

with classic sheet metal head gasket - for vehicles with 'Straight Port' cylinder head and triple SU carburettors
Required: 1
with modern high quality composite head gasket. Bore size: 88.50 mm, Thickness: 0.35", built in thickness: 0.33" - for vehicles with 'B type' and 'Straight Port' cylinder head
Required: 1
with high quality 'full race' composite head gasket. Bore size: 90.5 mm, thickness: 0.64", built in thickness: 0.61" - for vehicles with 'B type' and 'Straight Port' cylinder head
Required: 1
with high quality Cometic CFM head gasket for high compression engines. Max bore size: 88 mm, built in thickness: 0.059" - for vehicles with 'Straight Port' cylinder head and triple SU carburettors
Required: 1
aluminium - set of two. 'D' Type variant with breather for cars fitted with electric tachometer. Features: Recess on LH exhaust cover: 29 mm, recess on RH inlet cover: 46 mm
Required: 1
raw aluminium - set of two.For cars fitted with electric tachometer. Features: Recess on LH exhaust cover: 29 mm, recess on RH inlet cover: 46 mm
Required: 1
polished aluminium - set of two.For cars fitted with electric tachometer. Features: Recess on LH exhaust cover: 29 mm, recess on RH inlet cover: 46 mm
Required: 1
