Steering

black with two spokes

Sprite I and II to HAN7-38828 (1958-64)

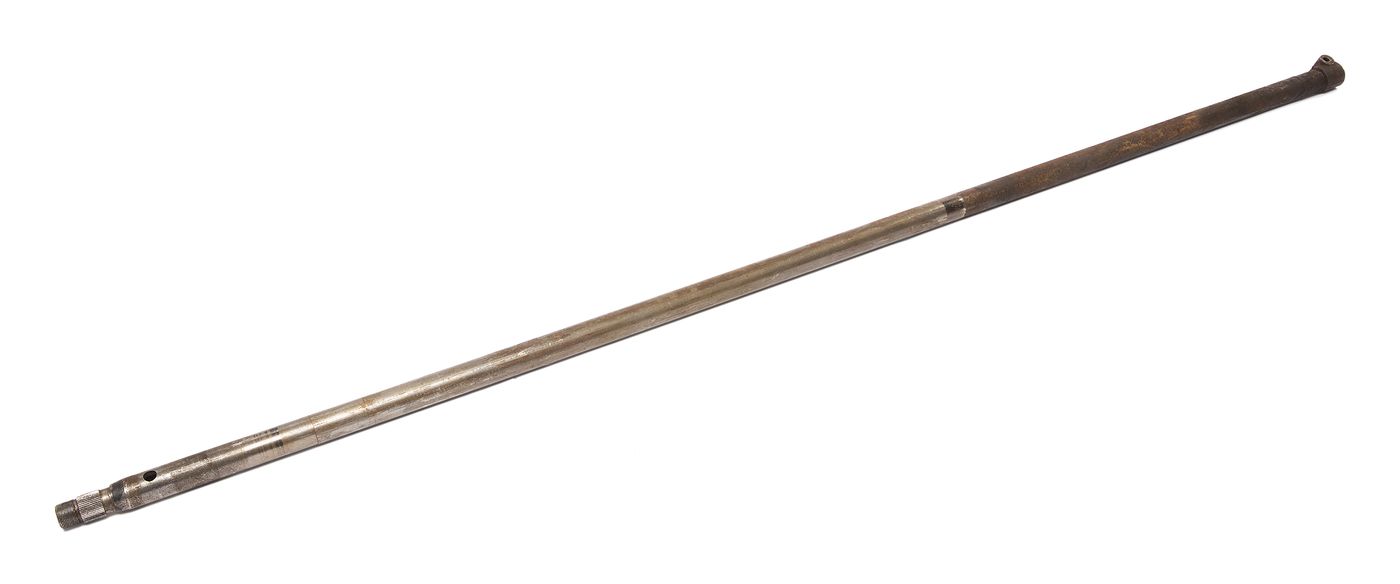

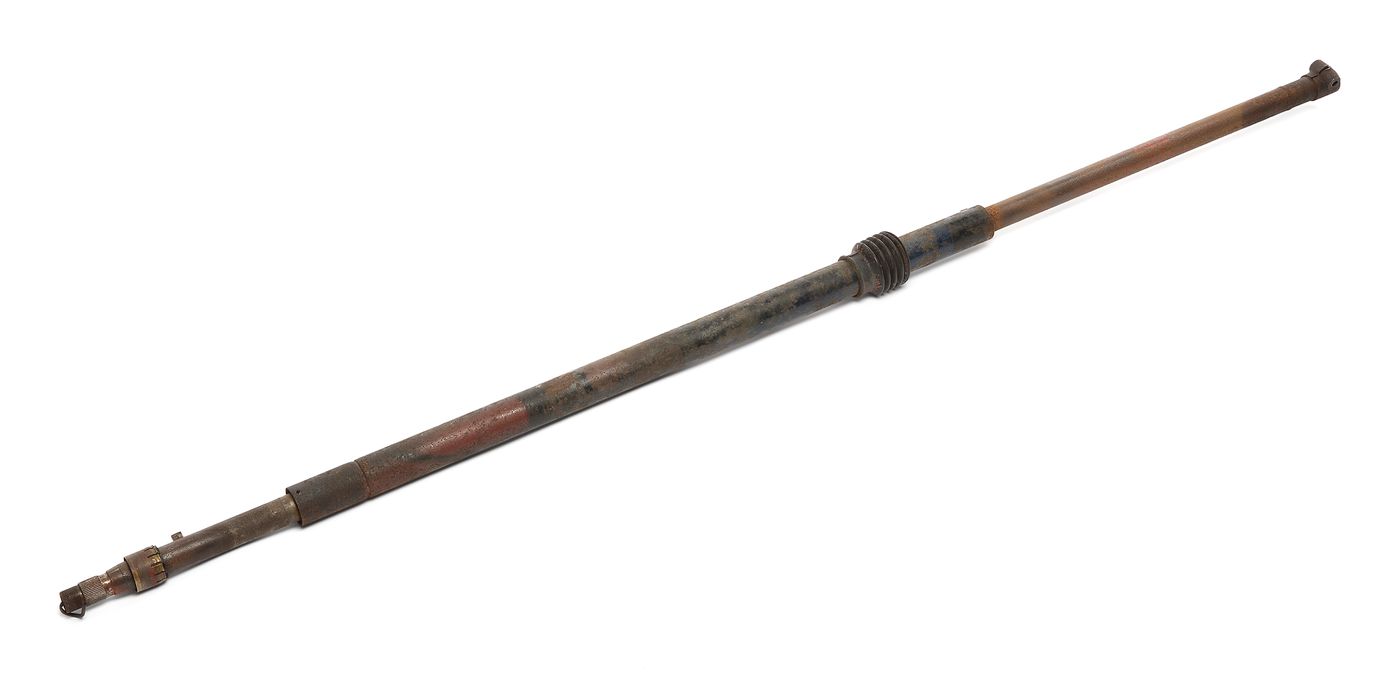

inner column - used item for vehicles fitted with a non collapsible steering column but without steering lock at column

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787

inner column - used item for vehicles fitted with a non collapsible steering column but without steering lock at column

from March 1964 to September 1969 - Sprite from HAN8-38829 to HAN9-85286, Midget from GAN3-25788 to GAN4-74885

inner column - used item for vehicles fitted with a non collapsible steering column but without steering lock at column

Sprite from September 1969 to July 1971 (from HAN10-85287 to AAN10-87824), Midget from September 1969 to June 1970 (from GAN5-74886 to GAN5-86767)

inner column - used item for vehicles fitted with a non collapsible steering column but with steering lock at column

from September 1969 to July 1971 - Sprite from HAN10-85287 to AAN10-87824, Midget from GAN5-74886 to GAN5-105500

outer tube - used item for vehicles fitted with a non collapsible steering column but without steering lock at column

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787

outer tube - used item for vehicles fitted with a non collapsible steering column but without steering lock at column

from March 1964 to September 1969 - Sprite from HAN8-38829 to HAN9-85286, Midget from GAN3-25788 to GAN4-74885

outer tube - used item for vehicles fitted with a non collapsible steering column and no steering lock at column

Sprite from September 1969 to July 1971 (from HAN10-85287 to AAN10-87824), Midget from September 1969 to June 1970 (from GAN5-74886 to GAN5-86767)

outer tube - used item for LHD vehicles fitted with a non collapsible steering column but with steering lock at column

from September 1969 to July 1971 - Sprite from HAN10-85287 to AAN10-87824, Midget from GAN5-74886 to GAN5-105500

outer tube - used item for RHD vehicles fitted with a non collapsible steering column but with steering lock at column

from September 1969 to July 1971 - Sprite from HAN10-85287 to AAN10-87824, Midget from GAN5-74886 to GAN5-105500

used item for LHD vehicles fitted with a non collapsible steering column but with steering lock at column

Midget from July 1971 to October 1974 (from GAN5-105501 to GAN5-153920)

used item for RHD vehicles fitted with a non collapsible steering column but with steering lock at column

Midget from July 1971 to December 1975 (from GAN5-105501 to GAN6-170989)

used item for RHD vehicles fitted with a non collapsible steering column but with steering lock at column

Midget from December 1975 (from GAN6-170990)

steering column, upper half shell - used item

all models (1958-79) except vehicles with collapsible steering column

steering column, lower cap - used item

all models (1958-79) except vehicles with collapsible steering column

steering column, upper

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787 except vehicles with collapsible steering column

steering column, upper

from March 1964 to July 1971 - Sprite from HAN8-38829 to AAN10-87824, Midget from GAN3-25788 to GAN5-105500 except vehicles with collapsible steering column

steering column upper, replaces genuine ball bearing. Models with collapsible steering column

from July 1971 - Midget from GAN5-105501 with collapsible steering column

steering column lower. Models with collapsible steering column

steering column, lower. For vehicles without steering lock

steering column lower. Use when steering lock is fitted

steering column

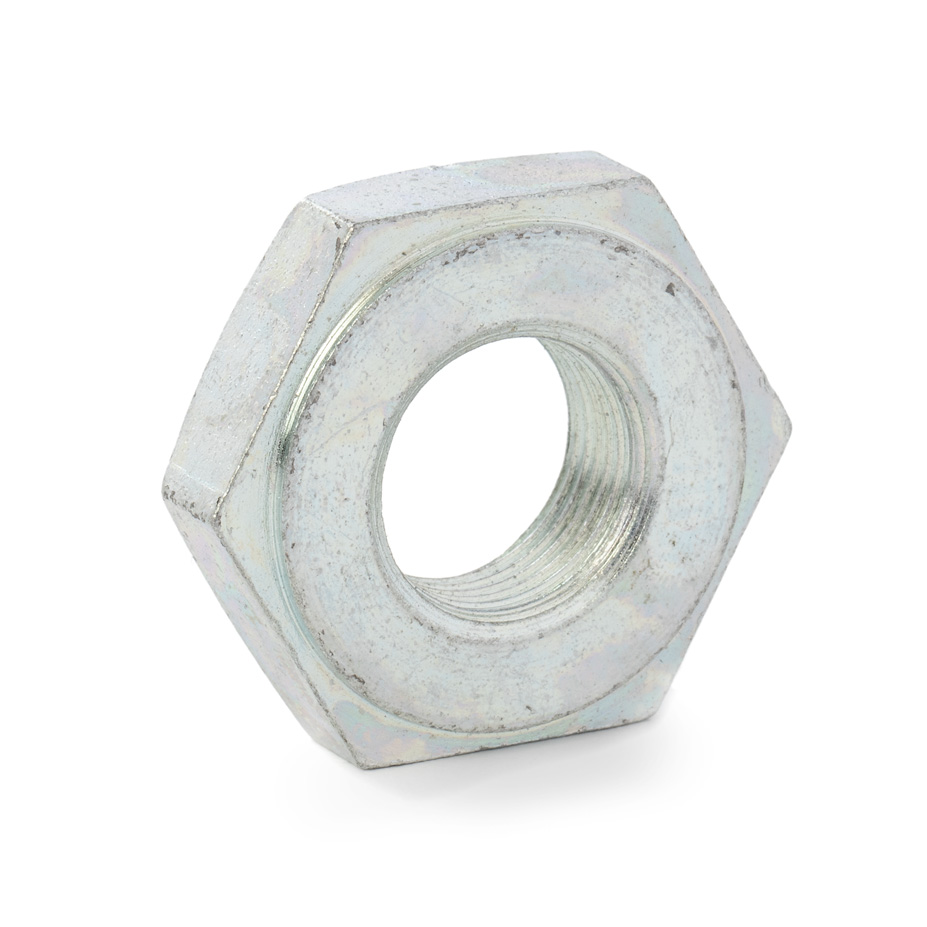

steering wheel retaining

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787

steering wheel retaining, spanner size: 1.5/16"AF

from March 1964 to September 1969 - Sprite from HAN8-38829 to HAN9-85286, Midget from GAN3-25788 to GAN4-74885

steering wheel retaining

from September 1969 - Sprite from HAN10-85287, Midget from GAN5-74886

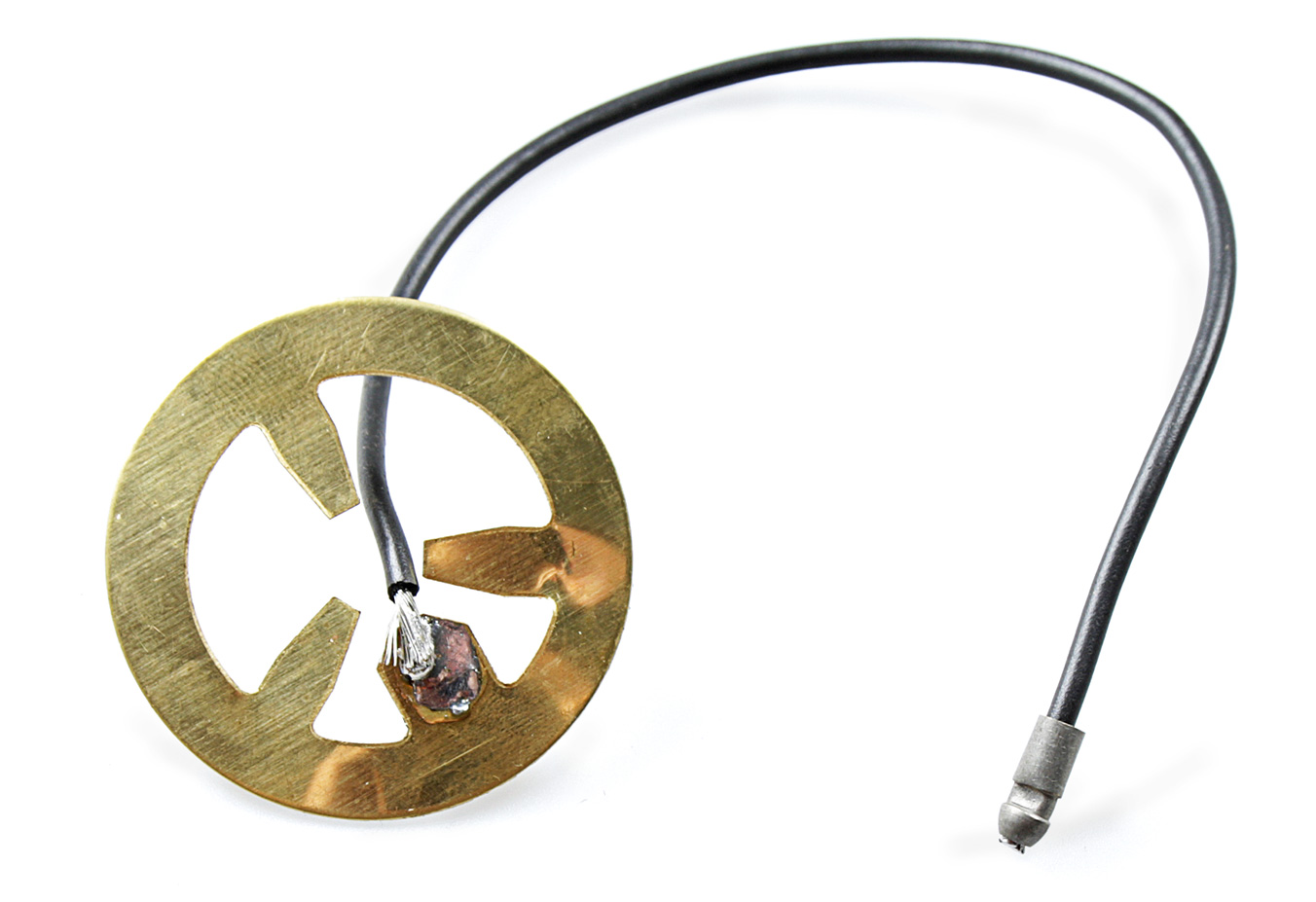

total length: 76 mm, length of the plastic piece: 52 mm

from July 1971 to August 1977 (Midget from GAN5-105501 to GAN6-200000

total length: 66 mm, length of the plastic piece: 43 mm

to March 1964 (Sprite to HAN7-38828, Midget to GAN2-25787)

horn

from December 1970 to July 1971 - Sprite from HAN10-83303 to AAN10-87824, Midget from GAN5-89515 to GAN5-105500

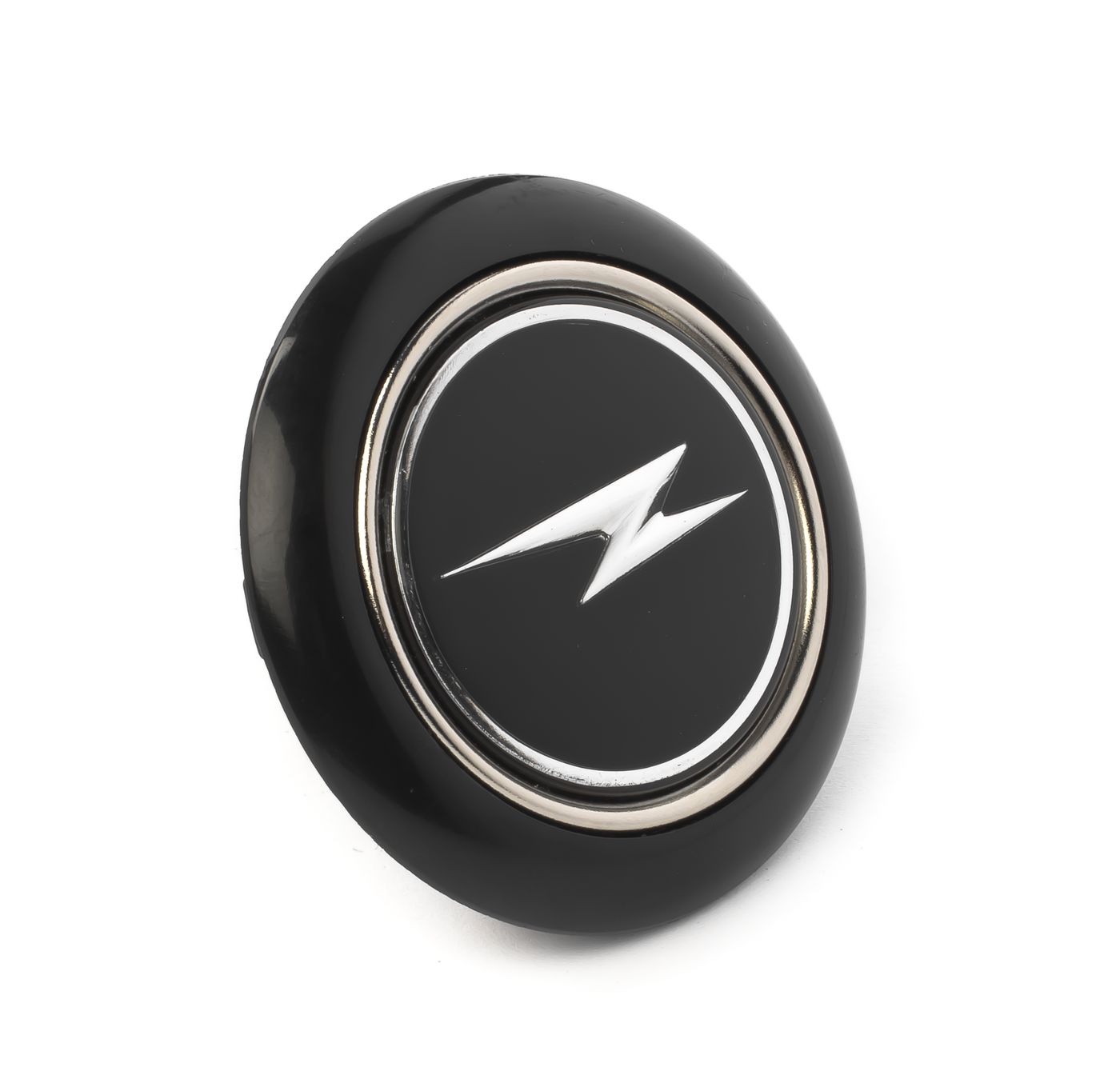

with Sprite logo

to March 1964 - Sprite to HAN7-38828

with MG logo

to March 1964 - Midget to GAN2-25787

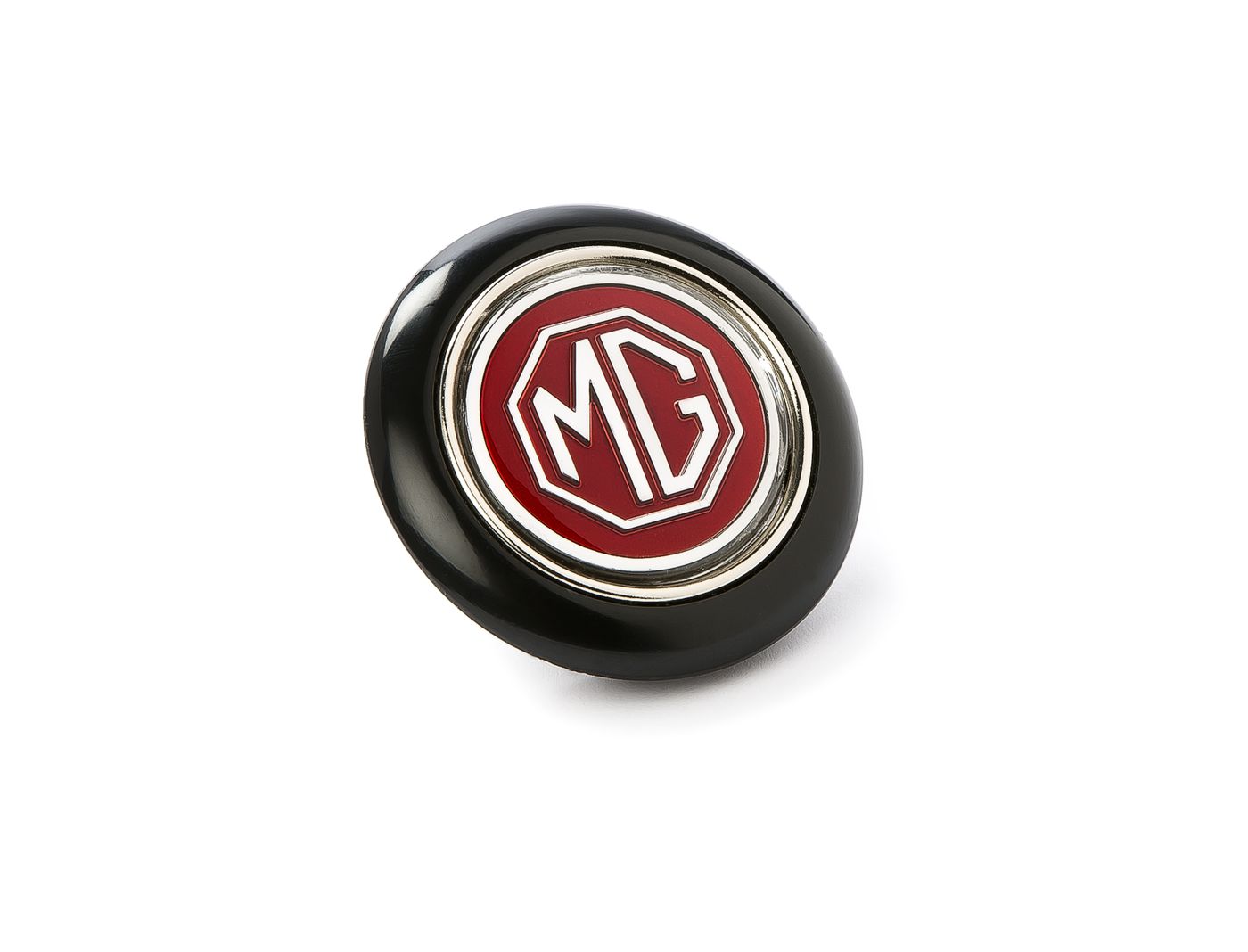

with MG badge

from December 1970 to August 1977 - Midget from GAN5-89515 to GAN6-200000

steering wheel centre - new item less 'MG' badge

Midget 1500 from GAN6-200001 (from August 1977)

"MG", black/silver- steering wheel

Midget 1500 from GAN6-200001 (from August 1977)

service replacement to suit RHD models with non collapsible steering column

Sprite from HAN9-64735, Midget from GAN4-52390

steering lock - M8 thread

Not fitted to vehicles with collapsible steering column

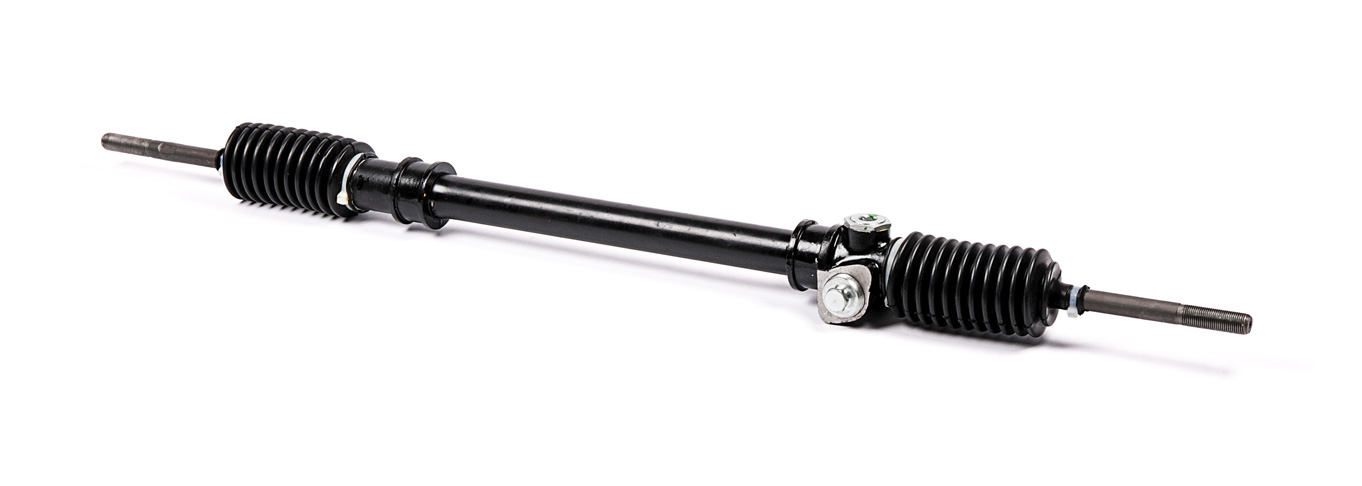

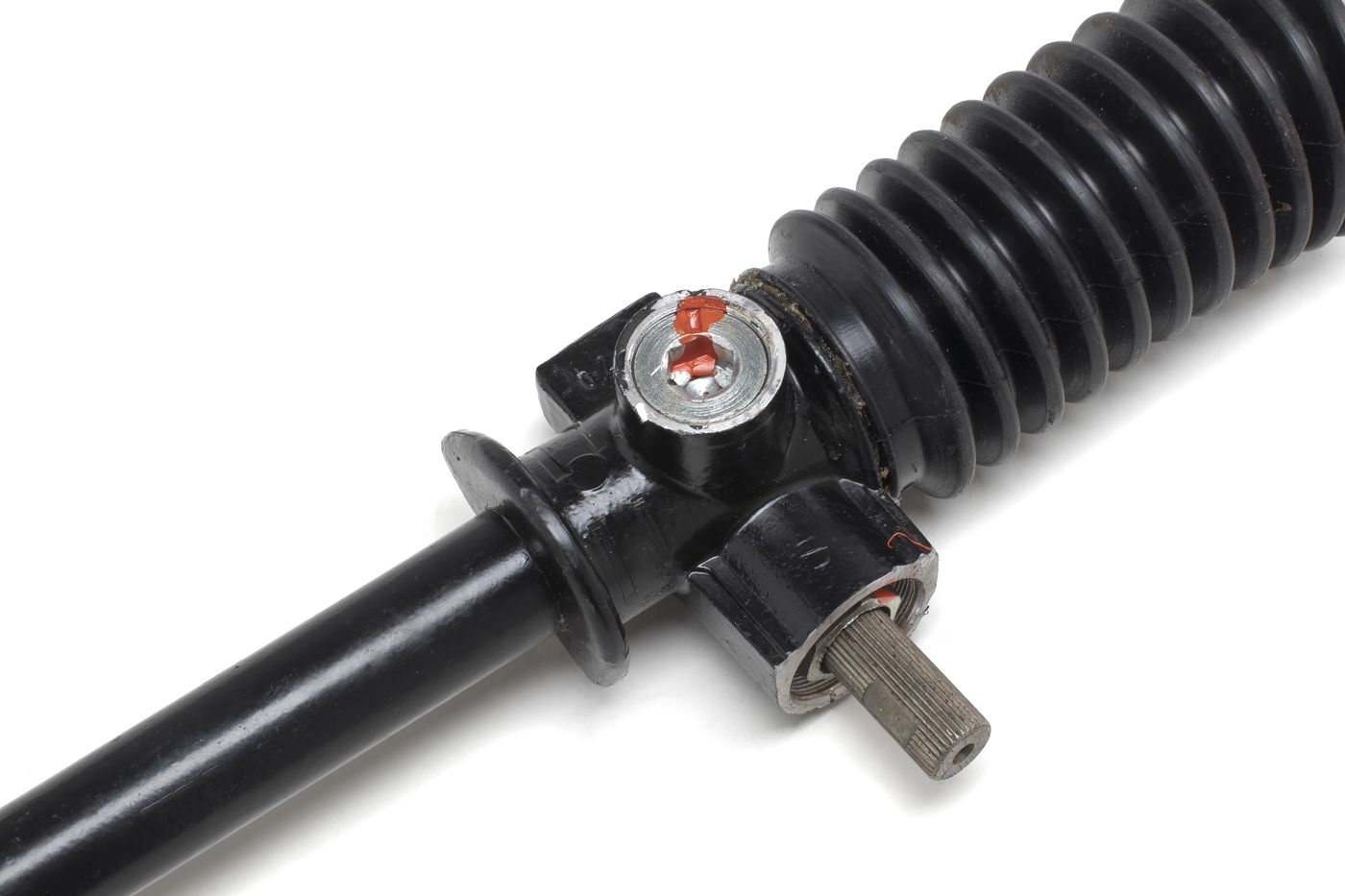

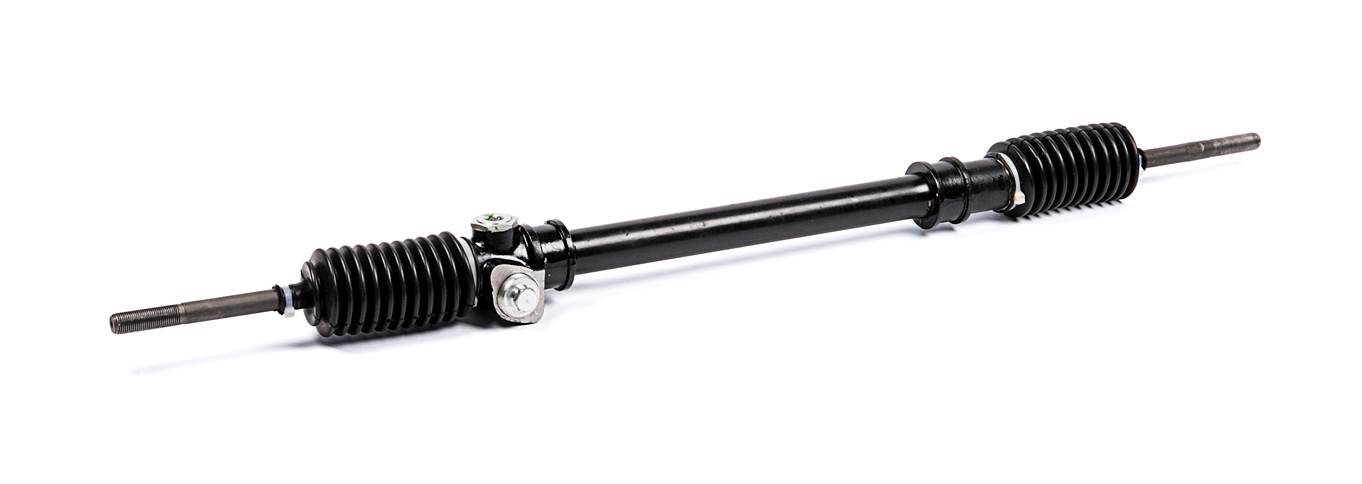

new item. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

LHD models to January 1968 (Sprite to HAN9-72528, Midget to GAN4-61166)

exchange item. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

LHD models to January 1968 (Sprite to HAN9-72528, Midget to GAN4-61166)

new item. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

RHD models to January 1968 (Sprite to HAN9-72528, Midget to GAN4-61166)

reconditioned, in exchange. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

RHD models to January 1968 (Sprite to HAN9-72528, Midget to GAN4-61166)

new item to suit LHD models. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

Sprite from HAN9-75529, Midget from GAN4-61167 to GAN5-114642

exchange to suit LHD models. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

Sprite from HAN9-75529, Midget from GAN4-61167 to GAN5-114642

new item to suit RHD models. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

Sprite from HAN9-75529, Midget from GAN4-61167 to GAN5-114642

exchange item to suit RHD models. Identfy by 5/8" thread on steering rod, 1.3/8" outer tube diameter

Sprite from HAN9-75529, Midget from GAN4-61167 to GAN5-114642

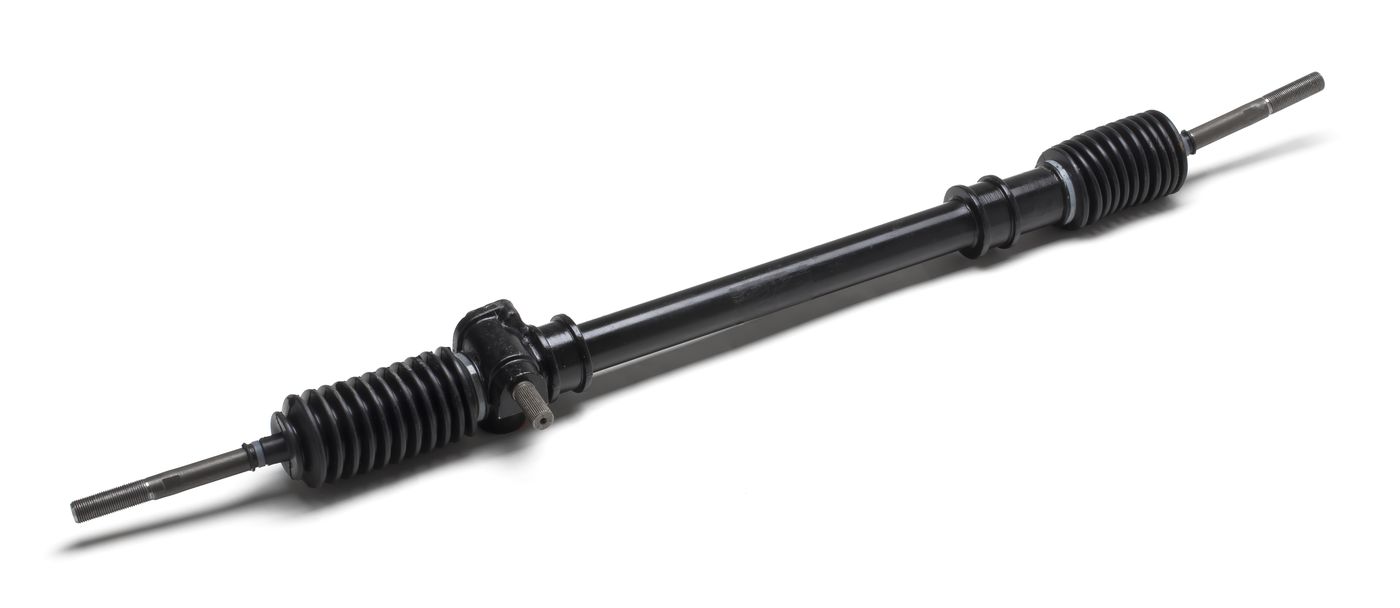

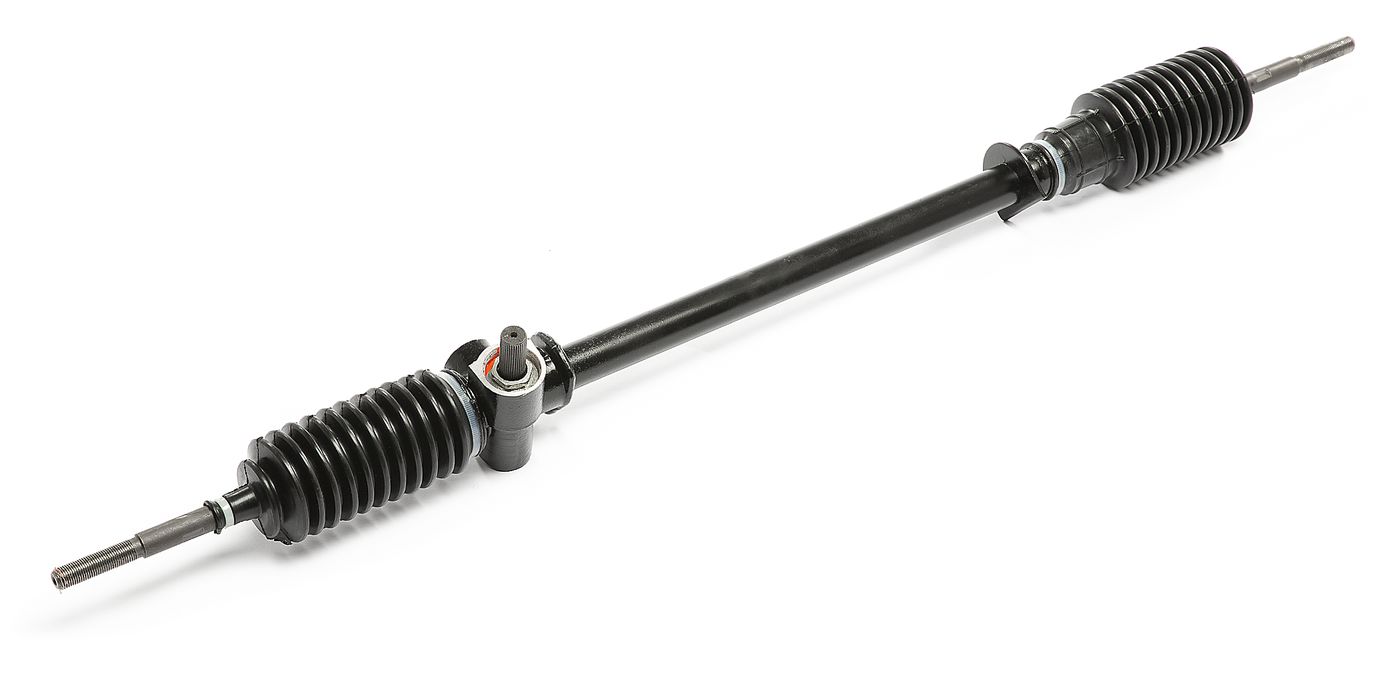

new item for LHD models. Identfy by 1/2" thread on steering rod, 1.1/16" outer tube diameter

Midget from GAN5-114588 (February 1972)

exchange item to suit LHD models. Identfy by 1/2" thread on steering rod, 1.1/16" outer tube diameter

Midget from GAN5-114588 (February 1972)

new item for RHD models. Identfy by 1/2" thread on steering rod, 1.1/16" outer tube diameter

Midget from GAN5-114643 (February 1972)

exchange item to Suit RHD models. Identfy by 1/2" thread on steering rod, 1.1/16" outer tube diameter

Midget from GAN5-114643 (February 1972)

identify by 5/8" UNF thread on tie rod

All Sprite, Midget to GAN5-114642

identified by 1/2" UNF thread

Midget from GAN5-115643

track rod end

All Sprite, Midget to GAN5-114642

track rod end - made from clear nylon

Midget from GAN5-115643

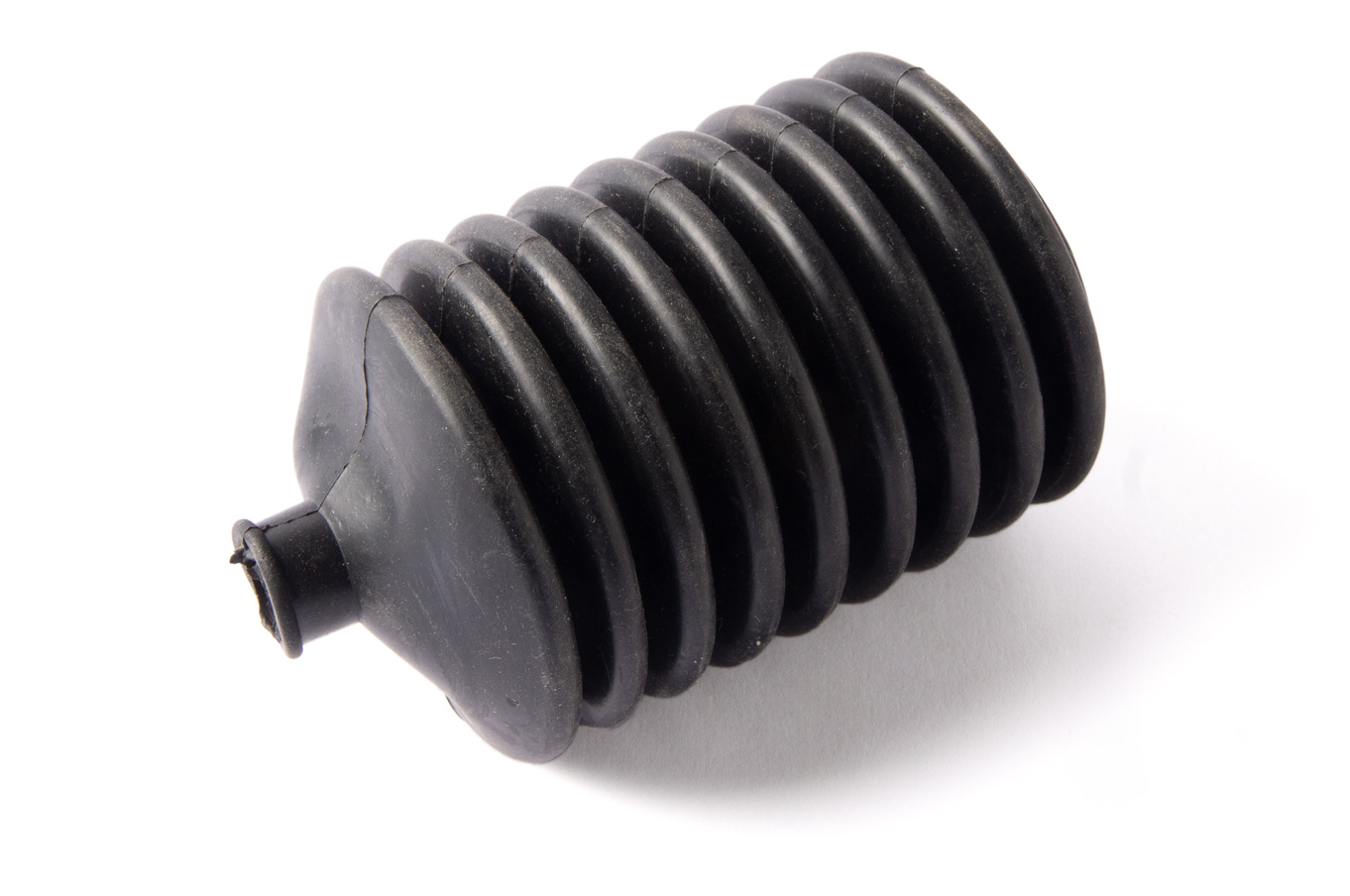

for track rod end gaiter

All Sprite, Midget to GAN5-114642

for track rod end gaiter

Midget from GAN5-115643

supplied in pairs

to February 1972 - Sprite to AAN10-87824, Midget to GAN5-114642

to February 1972 - Sprite to AAN10-87824, Midget to GAN5-114642

supplied in pairs

from February 1972 - Midget from GAN5-114643

passengers side (small gaiter)

from February 1972 - Midget from GAN5-114643

drivers side (large gaiter)

from February 1972 - Midget from GAN5-114643

two piece set - replacement rubber boots for all types of steering racks

all models (1958-79)

Midget from GAN5-114643

Midget from GAN5-114643

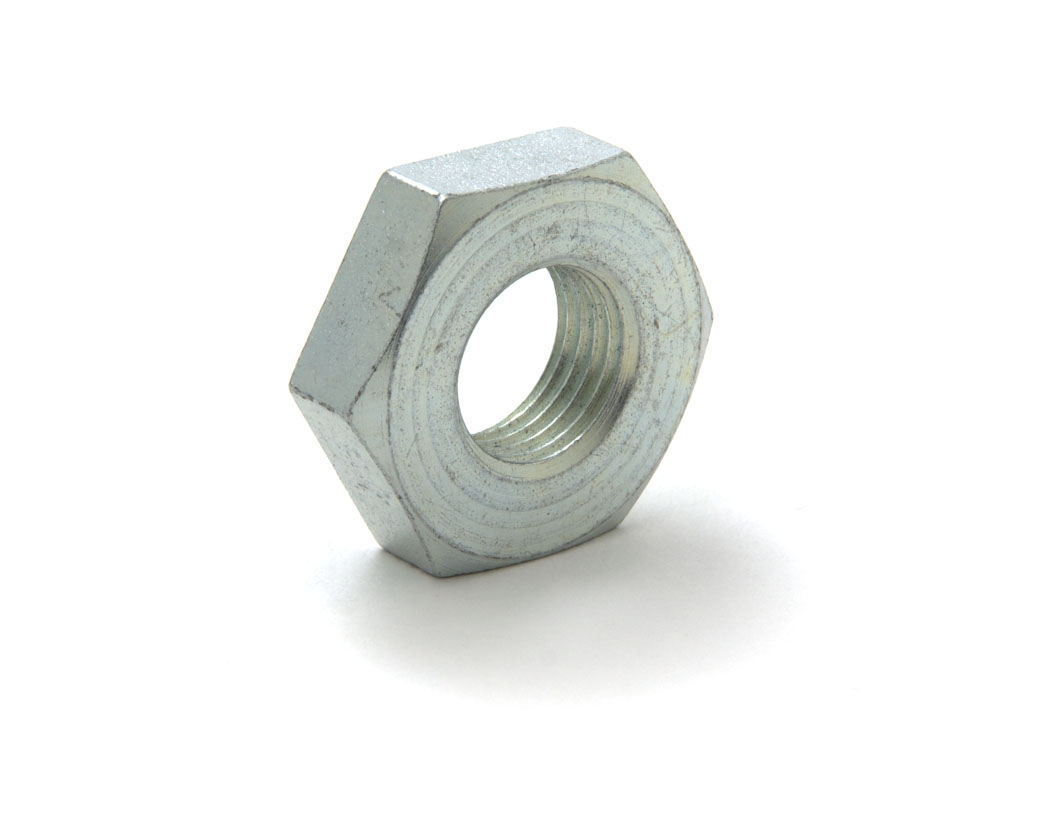

7/16" UNF - spanner size: 5/8"

All Sprite, Midget to GAN5-114642.

Alternatives

7/16" UNF - spanner size: 5/8" AF

All Sprite, Midget to GAN5-114642.

Alternatives

self locking, 3/8" UNF

Midget from GAN5-114643

note: Thread on track rod could be either imperial or metric. Please check before ordering. Imperial 3/8" UNF nuts use a 9/16"AF spanner.

M10 x 1.25

note: Thread on track rod could be either imperial or metric. Please check before ordering. Metric nuts use a 17 mm spanner.

with MG badge

from December 1970 to August 1977 - Midget from GAN5-89515 to GAN6-200000

models with collapsible steering column

with 3 polished spokes with holes

from September 1969 - Sprite from HAN10-85287, Midget from GAN5-74886

column to steering rack

all models (1958-79)

steering column to bulkhead

USA and Canada models from September 1969 - Sprite from HAN10-85287, Midget from GAN5-74886

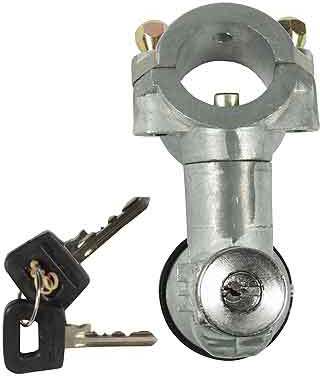

with ignition switch and 2 keys - for vehicles with collapsible steering column

USA models: Sprite from HAN10-85287, Midget from GAN5-74886 to 153920

with ignition switch and 2 keys - for vehicles with collapsible steering column

USA models: Midget from GAN6-154101

steering lock - M8 thread

Fitted to vehicles with collapsible steering column

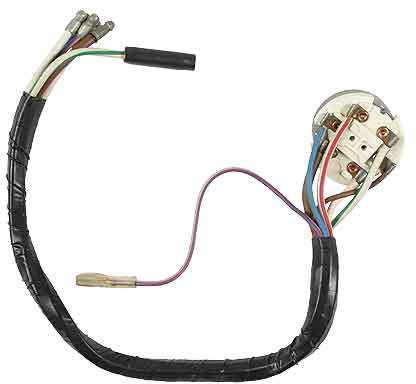

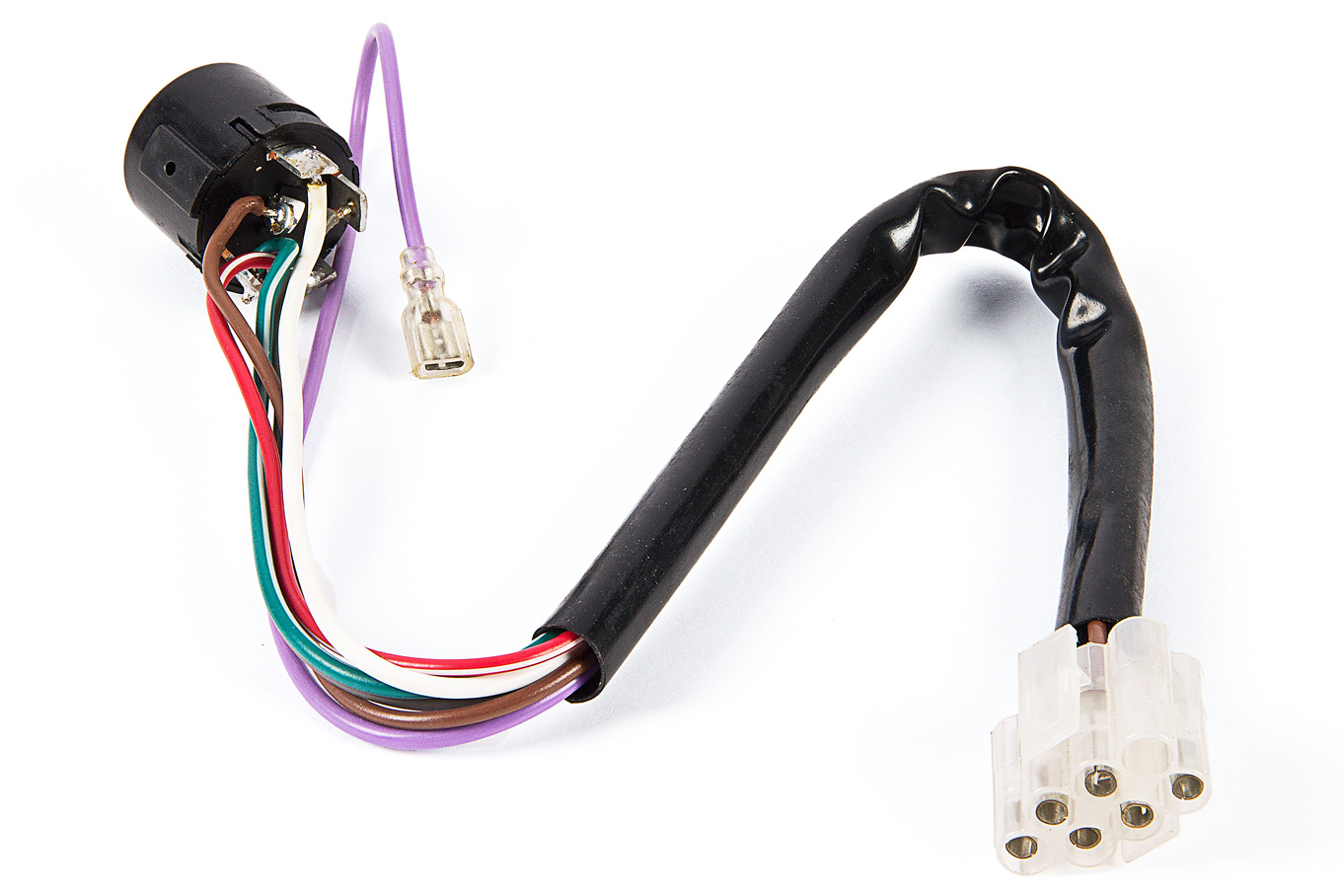

steering lock - serial no. LU???. Characteristic: 28 mm diameter, loom with 6 connection plug plus 1 single cables

USA models: Sprite from HAN10-85287, Midget from GAN5-74886 to 153920

steering lock - serial no. LU39753. Characteristic: 35 mm diameter, loom with 6 connection plug plus 1 single cables

USA models: Midget from GAN6-154101

stering boss, white plastic - to suit LHD models

Sprite to HAN7-38828, Midget to GAN2-25787

stering boss, white plastic - to suit RHD models

Sprite to HAN7-38828, Midget to GAN2-25787

horn

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787

with MG logo

to March 1964 - Midget to GAN2-25787

with Sprite logo

to March 1964 - Sprite to HAN7-38828

total length: 66 mm, length of the plastic piece: 43 mm

to March 1964 - Sprite to HAN7-38828, Midget to GAN2-25787

steering wheel centre pad

Sprite I & II, Midget I
