Crankshaft - 1500, 1600, 1622 and De Luxe
1500 to engine no. 15GB-258
Required: 1
1500 from engine no. 15GB-259, all 1600, 1622 to engine no. 16GC-8262
Required: 1
timing cover
1500 from engine no. 15GB-259, all 1600, 1622 to engine no. 16GC-8262
Required: 1
timing cover
1500 from engine no. 15GB-259, all 1600, 1622 to engine no. 16GC-8262
Required: 1
1622 from engine no. 16GC-8263
Required: 1
3/4" x 5/16" UNF
Timing cover and front engine plate to cylinder block
Required: 4
Timing cover and front engine plate to cylinder block
Required: 4
oval
Timing cover and front engine plate to cylinder block
Required: 4
hydraulic
1500 from engine no. 15GB-259, all 1600 and 1622
Required: 1
hydraulic
1500 from engine no. 15GB-259, all 1600, 1622 and De Luxe (1955-62)
Required: 1
timing chain tensioner
1500 from engine no. 15GB-259, all 1600 and 1622
Required: 1
timing chain tensioner to front engine plate
1500 from engine no. 15GB-259, all 1600 and 1622
Required: 2
uprated double row endless chain with 52 pitches
Required: 1
made from rubber
1500 to engine no. 15GB-258
Required: 2
without keyway, tachometer drive gear needs to be glued on. New item - British manufactured
Tachometer drive gear needs to be glued on
Required: 1
640™ - high strength anaerobic adhesive
Required: 1
Content: 50 ml (€2,567.40 / 1000 ml)

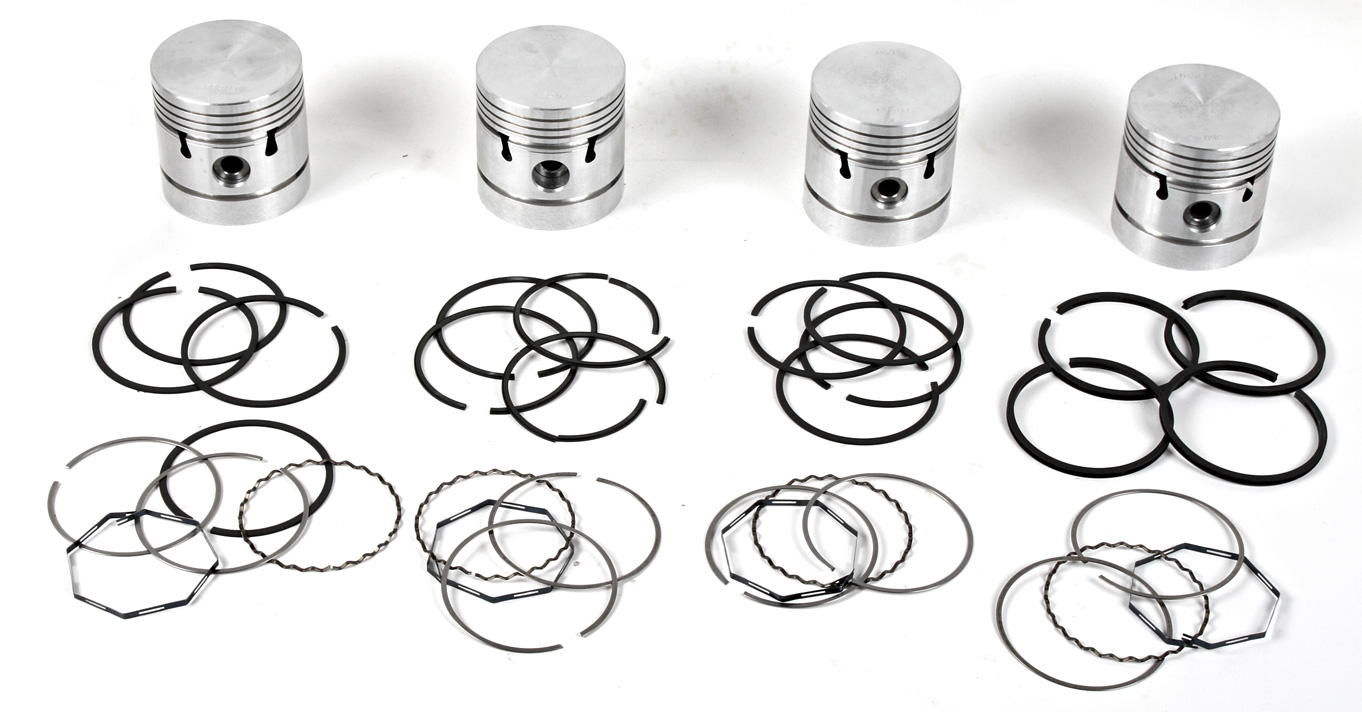

standard size. Specifications: 1489 cc four cylinder engine - 5-ring piston, standard bore size: 2.875", compression ratio: 8.3:1
MGA 1500 (1955-59)
Required: 1
+0.020" oversize. Specifications: 1489 cc four cylinder engine - 5-ring piston, standard bore size: 2.875", compression ratio: 8.3:1
MGA 1500 (1955-59)
Required: 1
+0.030" oversize. Specifications: 1489 cc four cylinder engine - 5-ring piston, standard bore size: 2.875", compression ratio: 8.3:1
MGA 1500 (1955-59)
Required: 1
+0.040" oversize. Specifications: 1489 cc four cylinder engine - 5-ring piston, standard bore size: 2.875", compression ratio: 8.3:1
MGA 1500 (1955-59)
Required: 1
+0.060" oversize. Specifications: 1489 cc four cylinder engine - 5-ring piston, standard bore size: 2.875", compression ratio: 8.3:1
MGA 1500 (1955-59)
Required: 1
standard
1500: 3-ring piston, standard bore size: 2.875", compression ratio: 9:1
Required: 1
+0.020" oversize
1500: 3-ring piston, standard bore size: 2.875", compression ratio: 9:1
Required: 1
+0.030" oversize
1500: 3-ring piston, standard bore size: 2.875", compression ratio: 9:1
Required: 1
+0.040" oversize
1500: 3-ring piston, standard bore size: 2.875", compression ratio: 9:1
Required: 1
+0.060" oversize
1500: 3-ring piston, standard bore size: 2.875", compression ratio: 9:1
Required: 1
standard size. Specifications: 1588 cc four cylinder engine - 5-ring piston, standard bore size: 2.968", compression ratio: 8.3:1
MGA 1600 (1959-61)
Required: 1
+0.020" oversize. Specifications: 1588 cc four cylinder engine - 5-ring piston, standard bore size: 2.968", compression ratio: 8.3:1
MGA 1600 (1959-61)
Required: 1
+0.030" oversize. Specifications: 1588 cc four cylinder engine - 5-ring piston, standard bore size: 2.968", compression ratio: 8.3:1
MGA 1600 (1959-61)
Required: 1
+0.040" oversize. Specifications: 1588 cc four cylinder engine - 5-ring piston, standard bore size: 2.968", compression ratio: 8.3:1
MGA 1600 (1959-61)
Required: 1
+0.060" oversize. Specifications: 1588 cc four cylinder engine - 5-ring piston, standard bore size: 2.968", compression ratio: 8.3:1
MGA 1600 (1959-61)
Required: 1
standard
1600: 3-ring piston, standard bore size: 2.968", compression ratio: 9:1
Required: 1
+0.020" oversize
1600: 3-ring piston, standard bore size: 2.968", compression ratio: 9:1
Required: 1
+0.030" oversize
1600: 3-ring piston, standard bore size: 2.968", compression ratio: 9:1
Required: 1
+0.040" oversize
1600: 3-ring piston, standard bore size: 2.968", compression ratio: 9:1
Required: 1
+0.060" oversize
1600: 3-ring piston, standard bore size: 2.968", compression ratio: 9:1
Required: 1
standard size. Specifications: 1622 cc. four cylinder engine, 5-ring piston, standard bore size: 2.9995", compression ratio: 9.0:1
MGA 1622 Mark II (1961-62)
Required: 1
+0.020" oversize. Specifications: 1622 cc. four cylinder engine, 5-ring piston, standard bore size: 2.9995", compression ratio: 9.0:1
MGA 1622 Mark II (1961-62)
Required: 1
+0.030" oversize. Specifications: 1622 cc. four cylinder engine, 5-ring piston, standard bore size: 2.9995", compression ratio: 9.0:1
MGA 1622 Mark II (1961-62)
Required: 1
+0.040" oversize. Specifications: 1622 cc. four cylinder engine, 5-ring piston, standard bore size: 2.9995", compression ratio: 9.0:1
MGA 1622 Mark II (1961-62)
Required: 1
+0.060" oversize. Specifications: 1622 cc. four cylinder engine, 5-ring piston, standard bore size: 2.9995", compression ratio: 9.0:1
MGA 1622 Mark II (1961-62)
Required: 1
standard

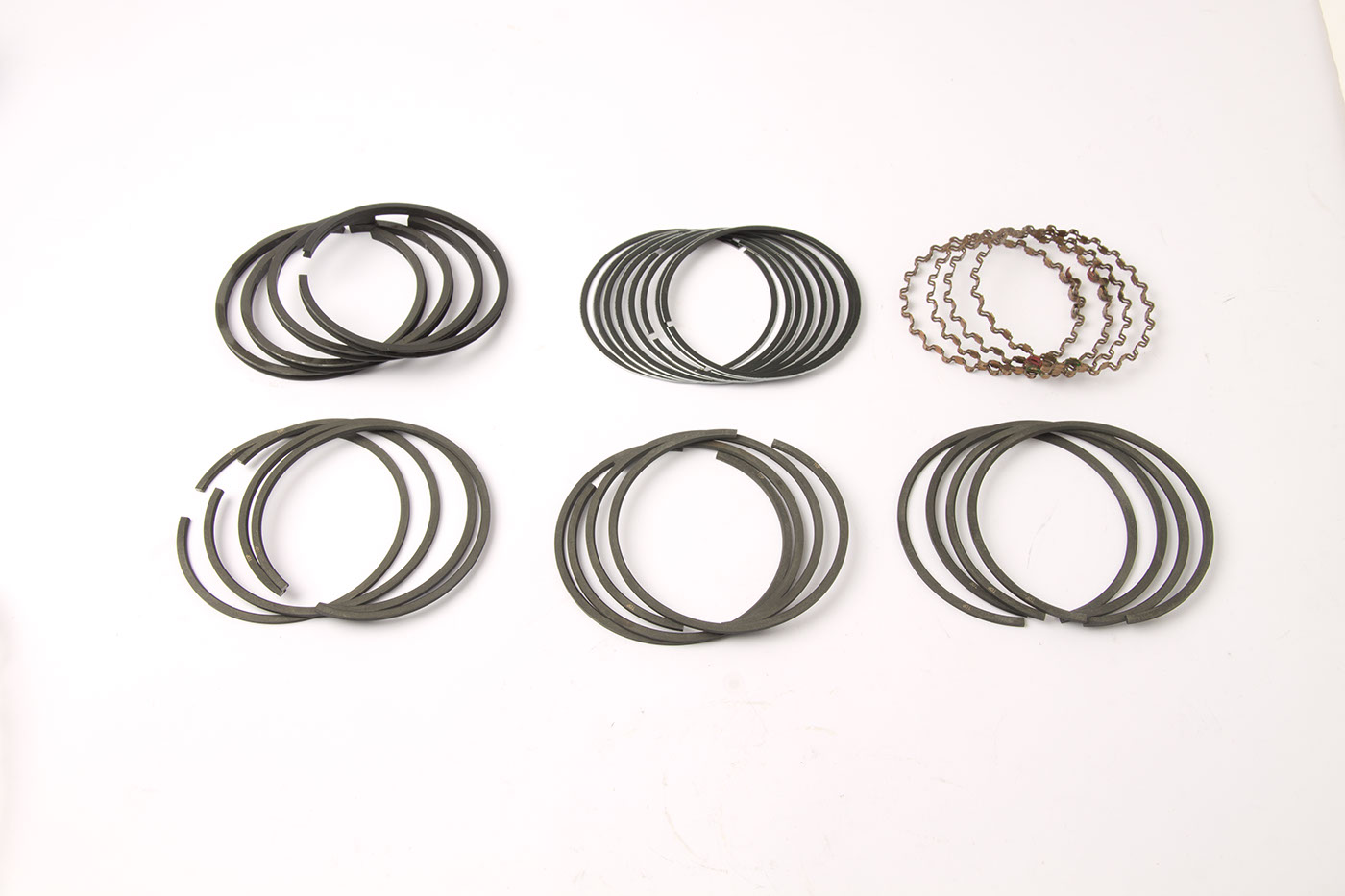

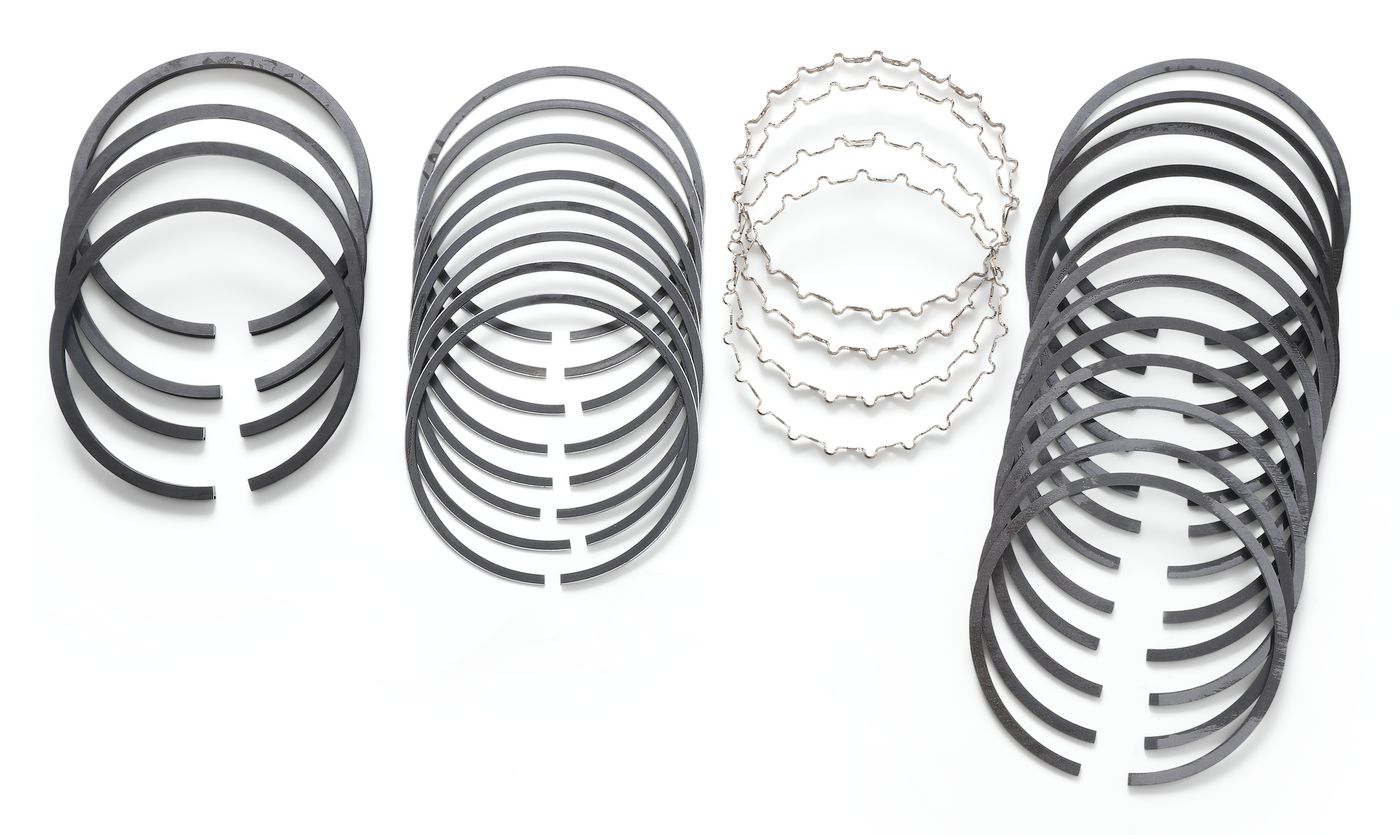

1500 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.020" oversize
1500 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.030" oversize
1500 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.040" oversize
1500 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.060" oversize
1500 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
standard

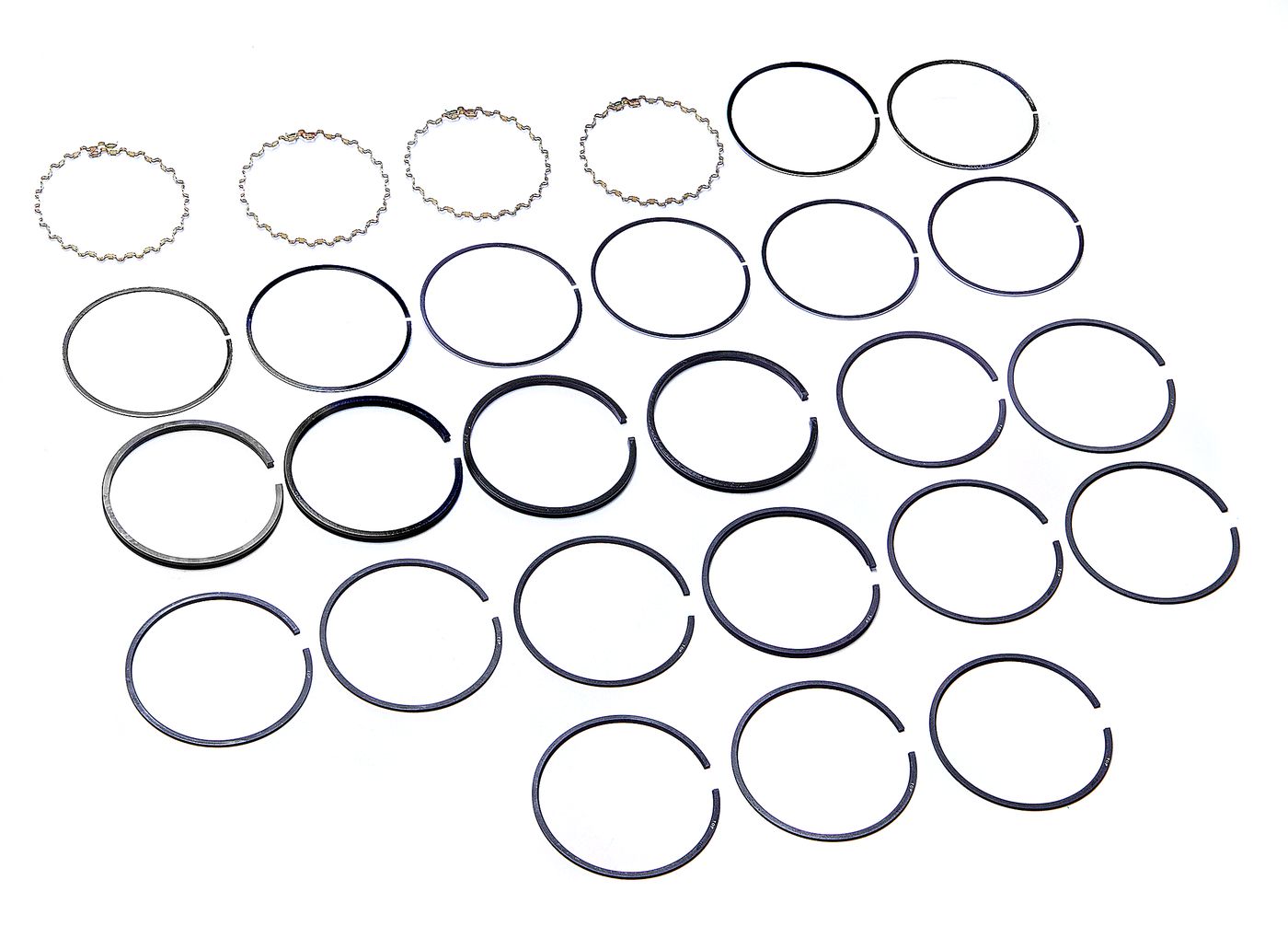

1600 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.020" oversize
1600 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.030" oversize
1600 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.040" oversize
1600 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.060" oversize
1600 with 3, 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
standard

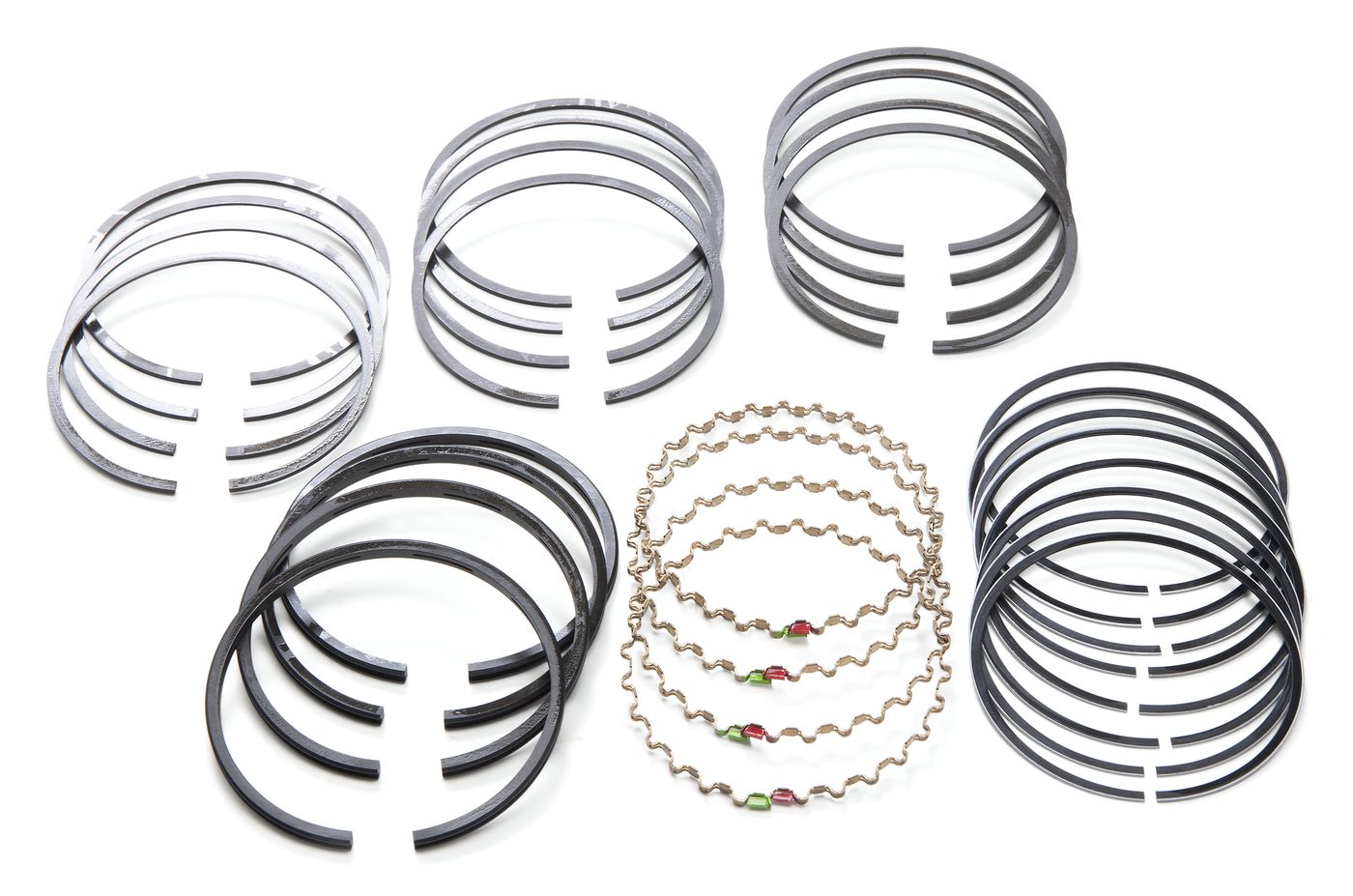

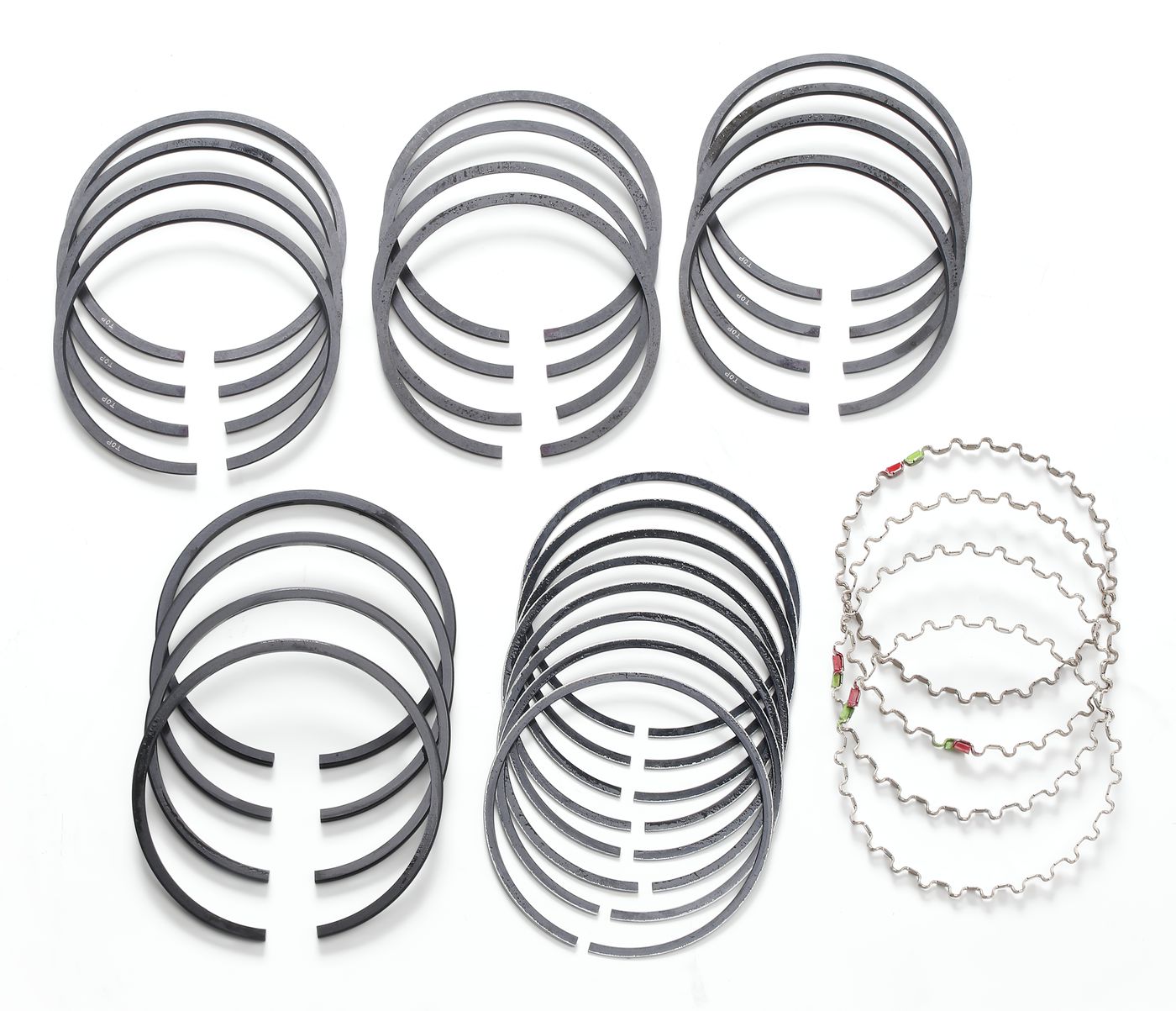

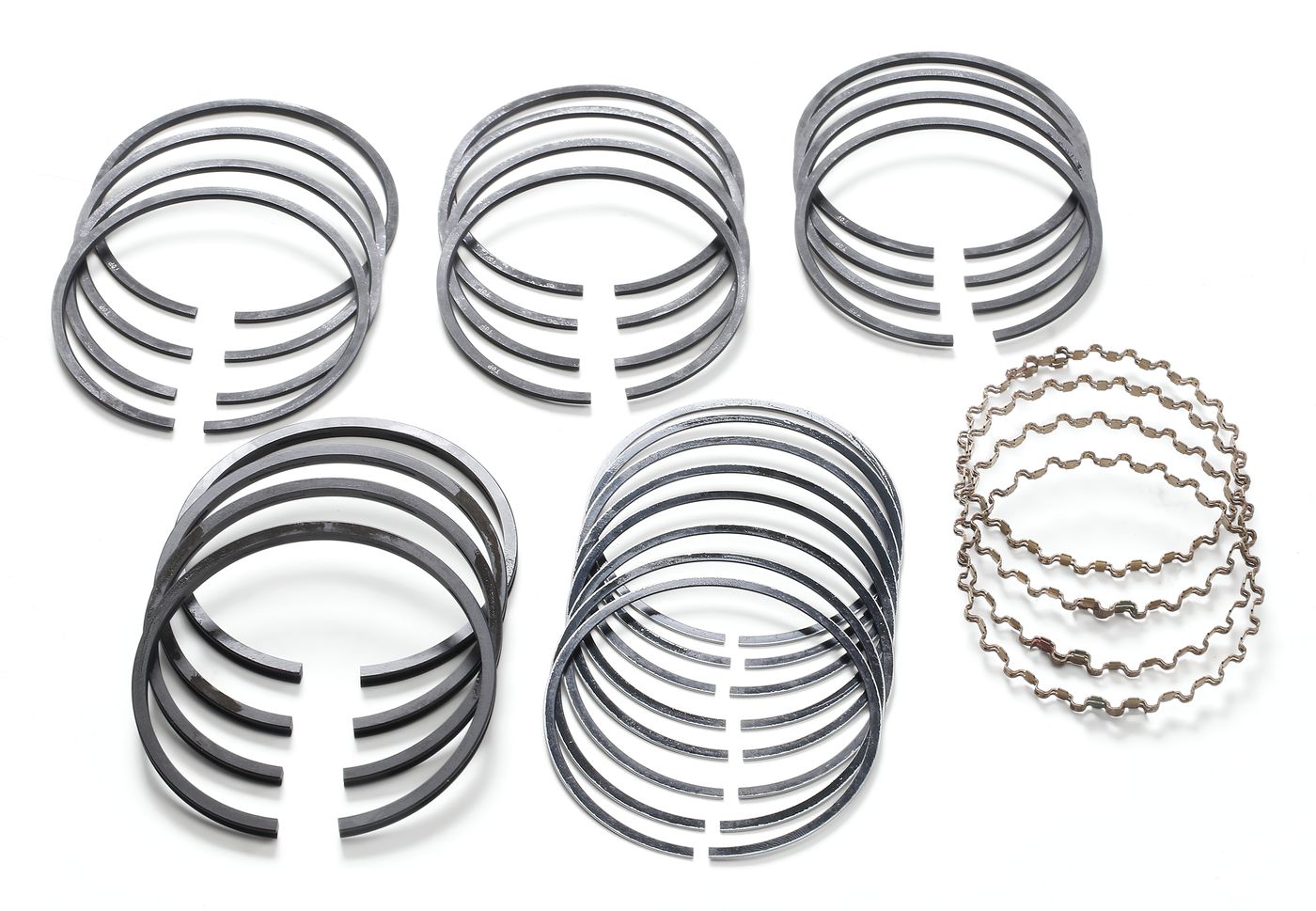

1622 with 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.020" oversize
1622 with 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.030" oversize
1622 with 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.040" oversize
1622 with 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
+0.060" oversize
1622 with 4 or 5-ring pistons. Content: 3 compression rings and 2 oil rings
Required: 1
1600
Required: 4
1622
Required: 4

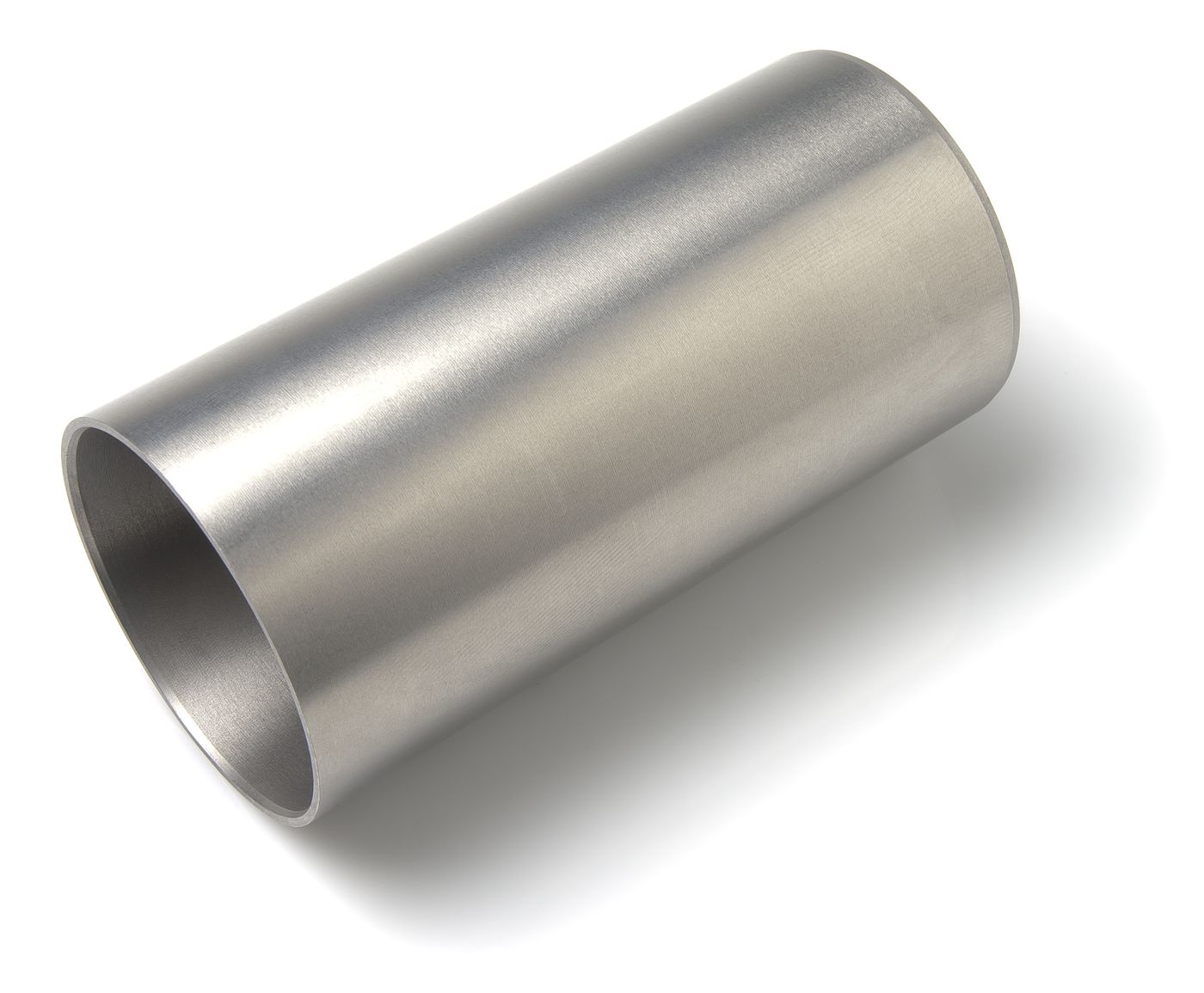

nominal dimensions: 2.875 x 3.0185 x 6.0625"
1500
Required: 4
nominal dimensions: 2.968 x 3.144 x 6.063"
1600 and 1622
Required: 4
crankshaft, variant with starting handle slot
Required: 1
crankshaft
All 1500 and 1600, 1622 to engine no. 16GC-8262
Required: 1
crankshaft - variant without harmonic balancer
1622 from engine no. 16GC-8263
Required: 1
Required: 1
with bearings - reconditioned, in exchange
1500 and 1600
Required: 1
reconditioned, in exchange
1500 and 1600
Required: 1
reground without bearings - new item
1500 and 1600
Required: 1
with bearings - reconditioned, in exchange
MGA 1622
Required: 1
without bearings - reconditioned, in exchange
MGA 1622
Required: 1
reground without bearings - new item
MGA 1622
Required: 1

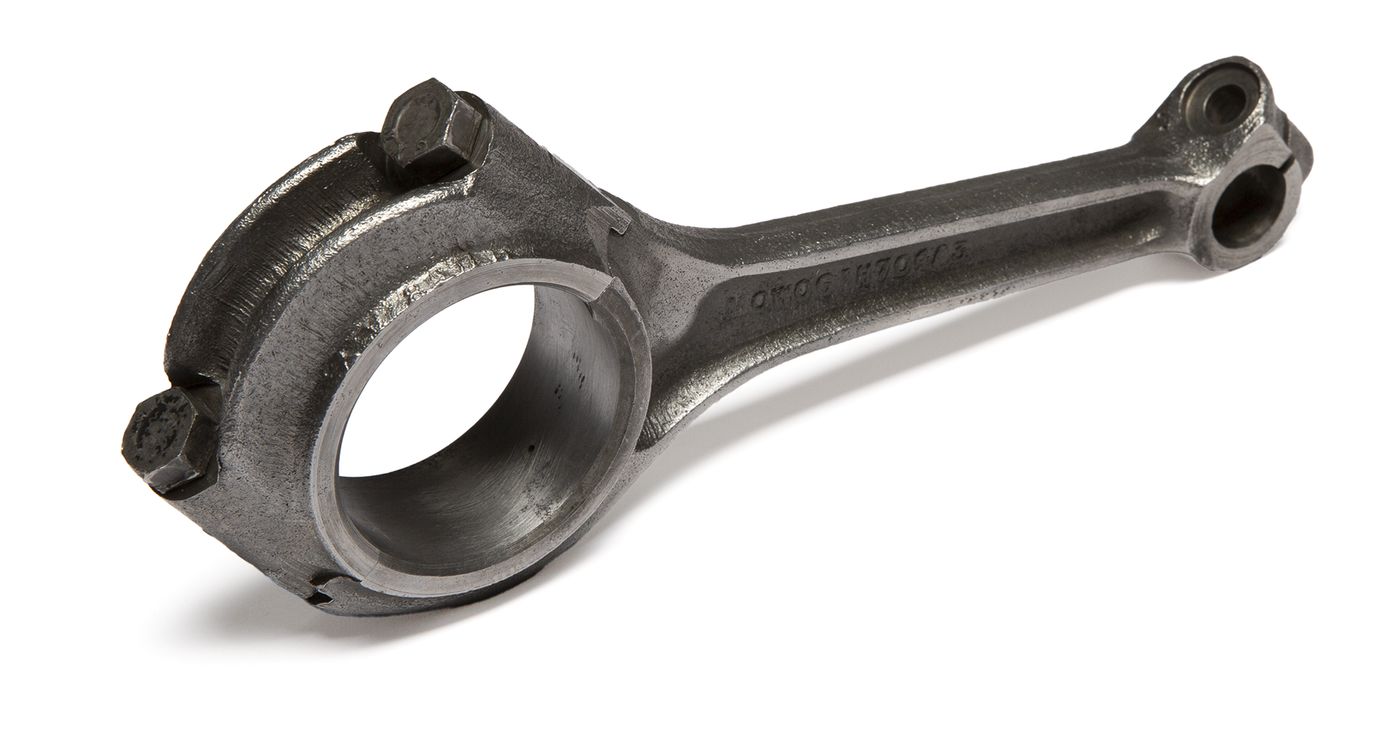

for cylinder no. 1 and 3 - reconditioned, outright
1500 and 1600
Required: 2
for cylinder no. 2 and 4 - reconditioned, outright
1500 and 1600
Required: 2
for cylinder no. 1 and 3 - reconditioned, in exchange
1622
Required: 2
for cylinder no. 2 and 4 - reconditioned, in exchange
1622
Required: 2

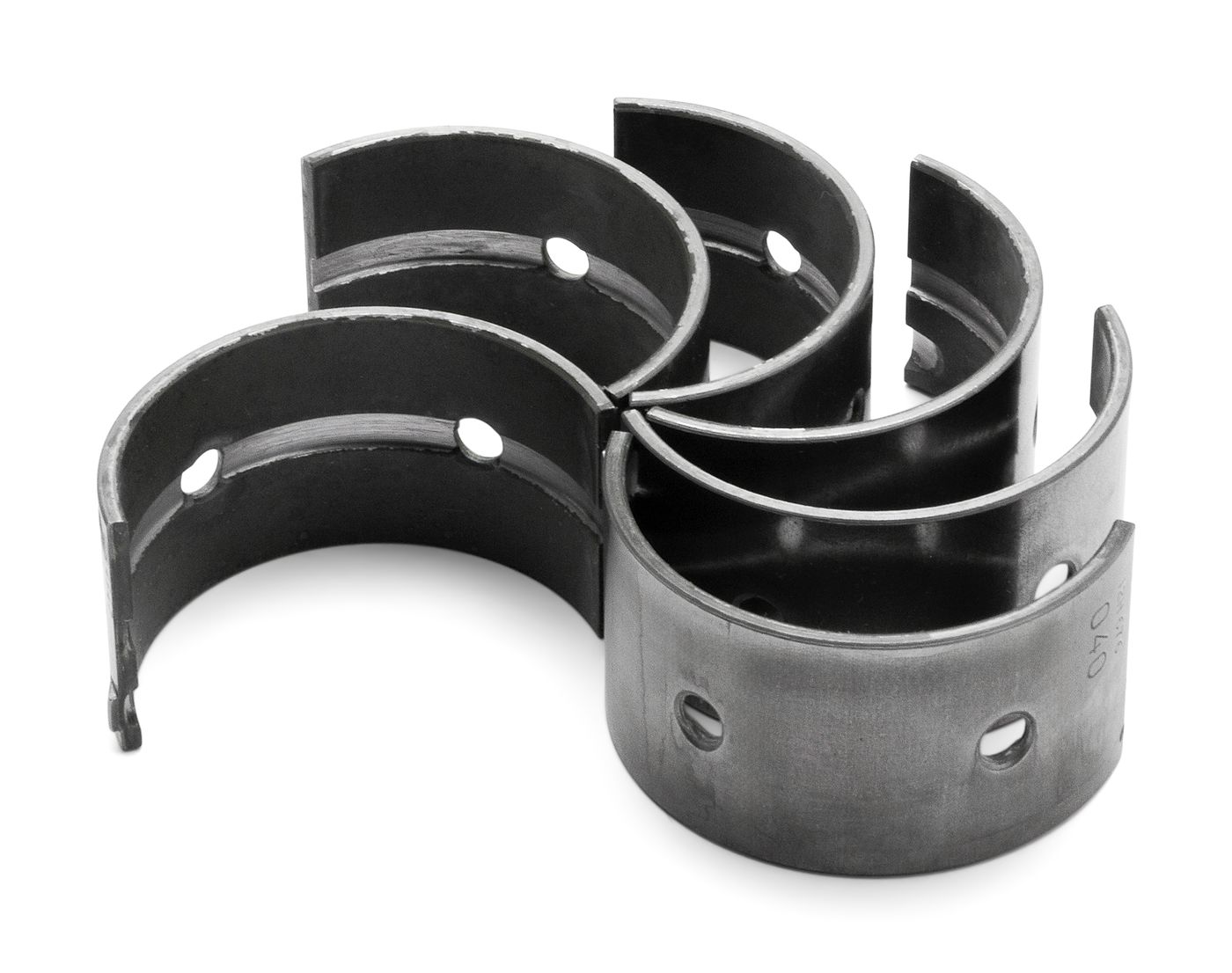

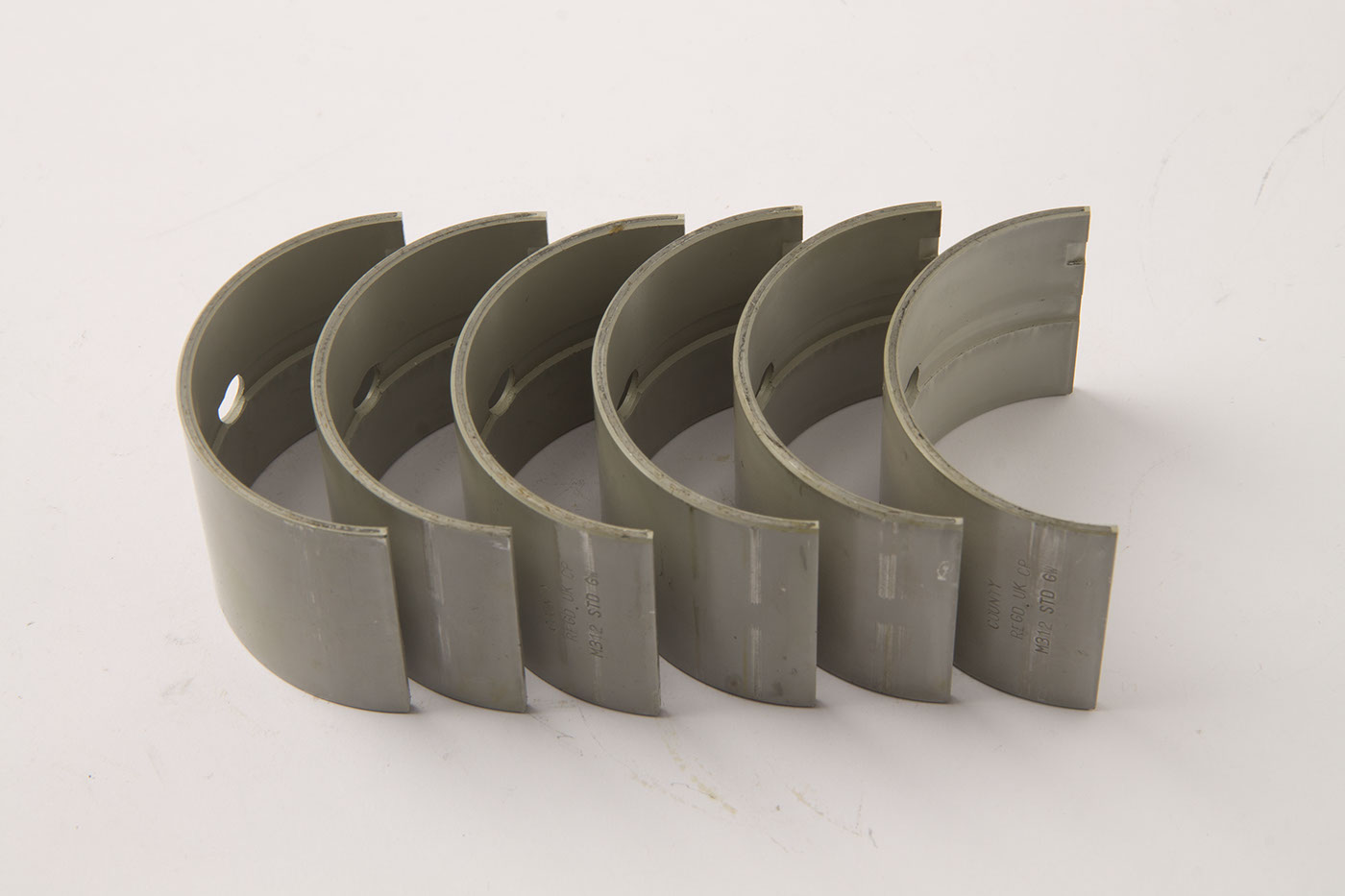

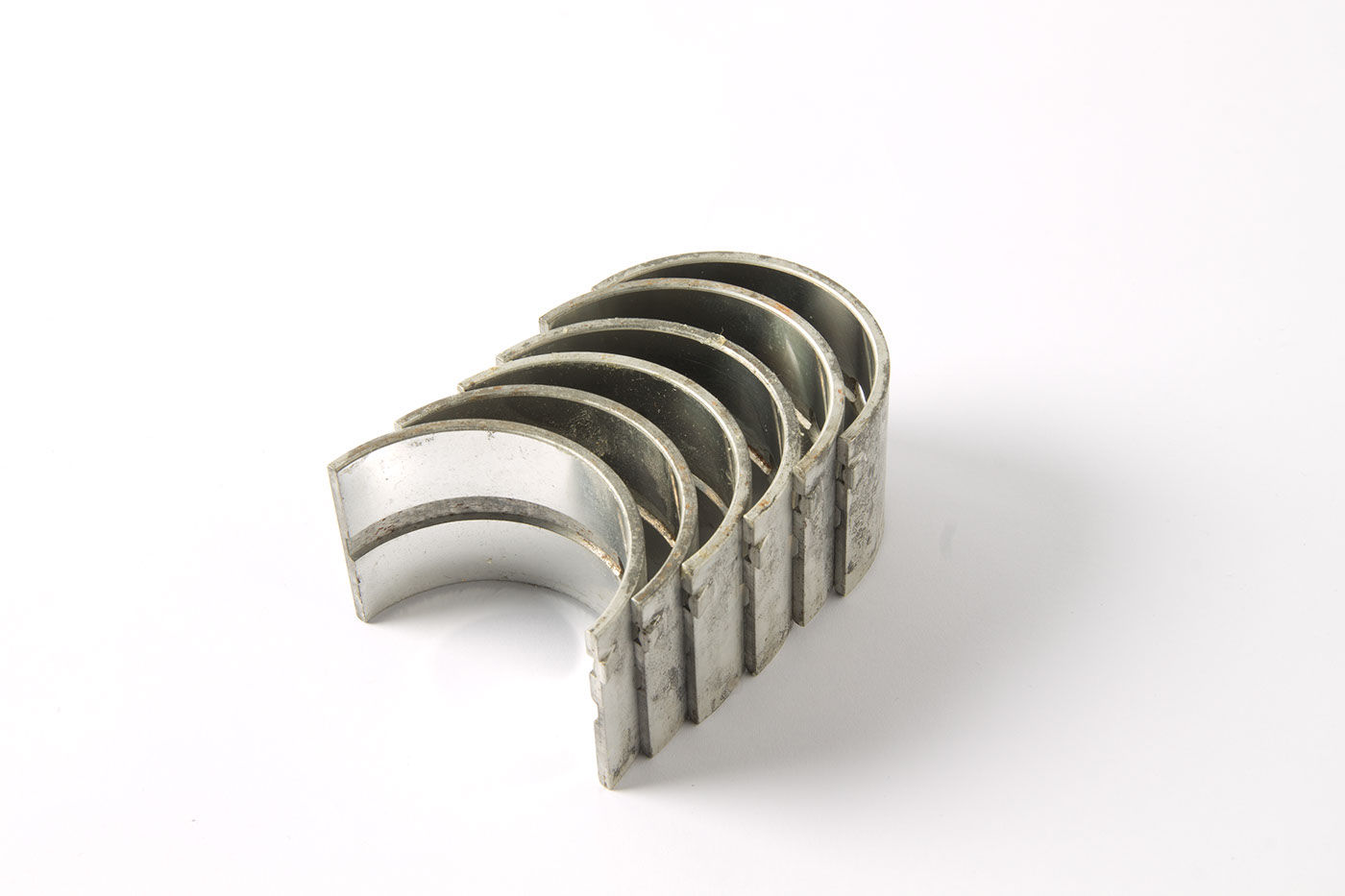

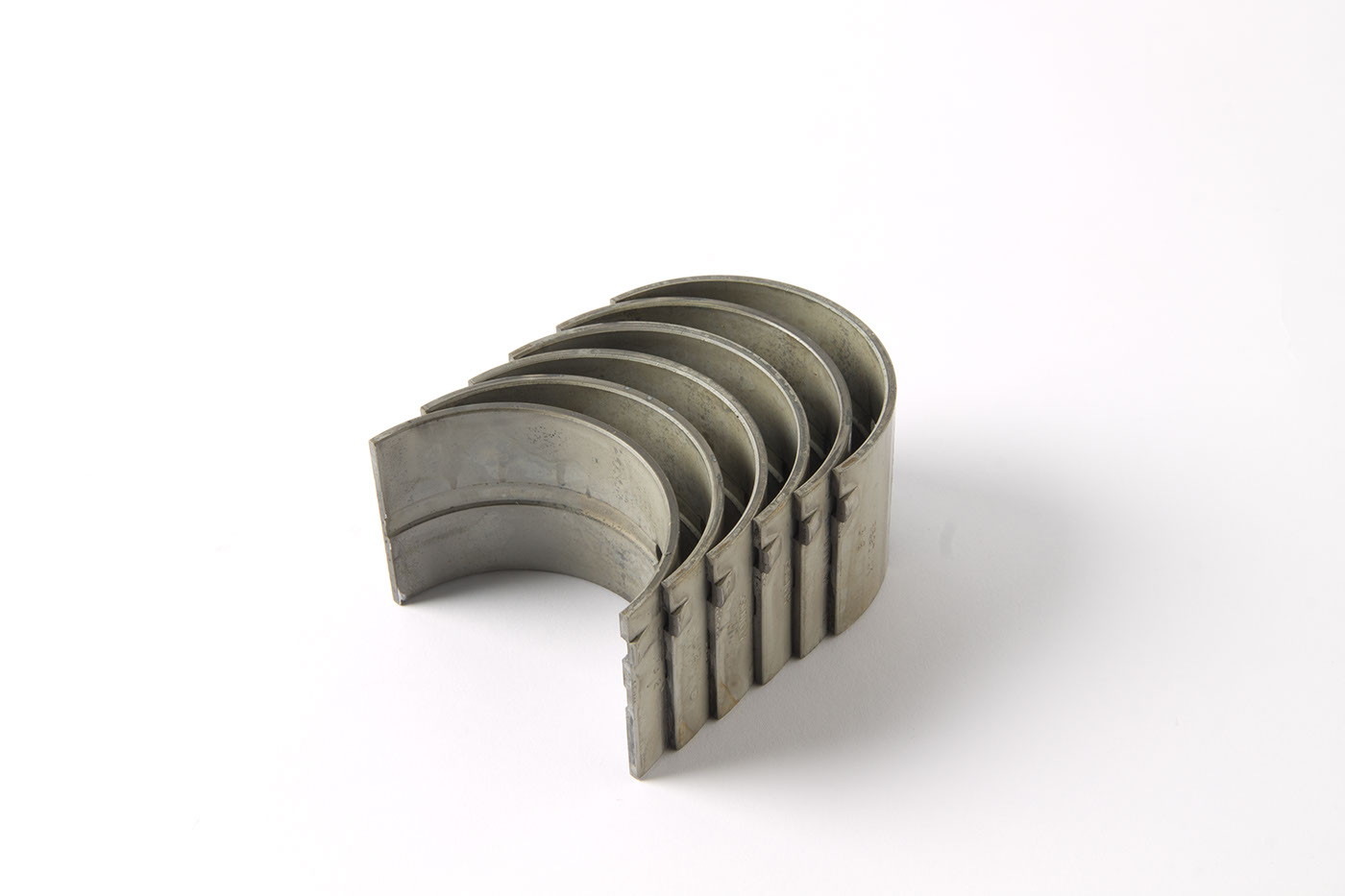

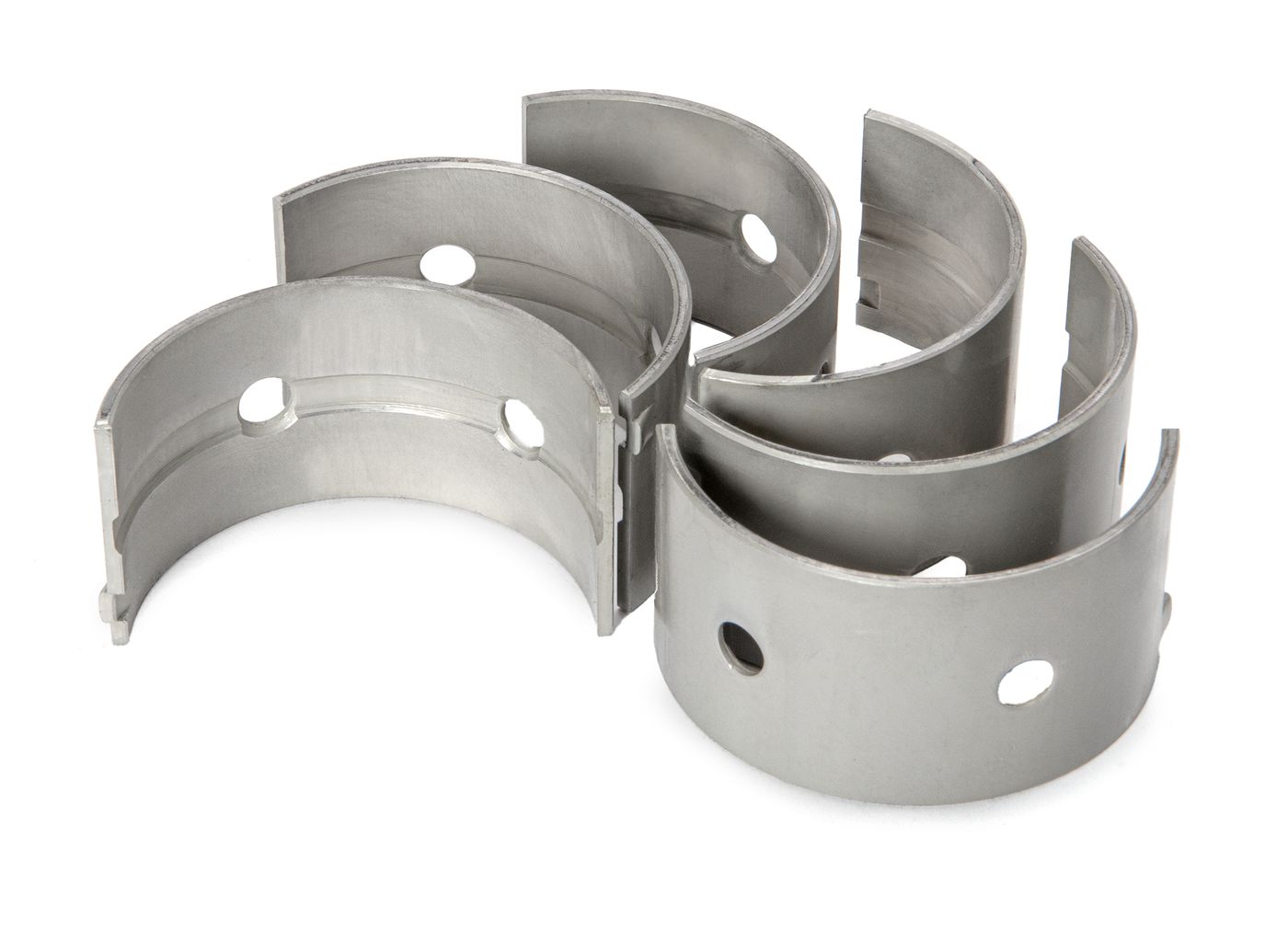

standard size - shaft diameter: 1.876"
Required: 1
+0.010" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.020" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.030" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.040" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.050" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.060" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
oil gallery in crankshaft
Required: 4

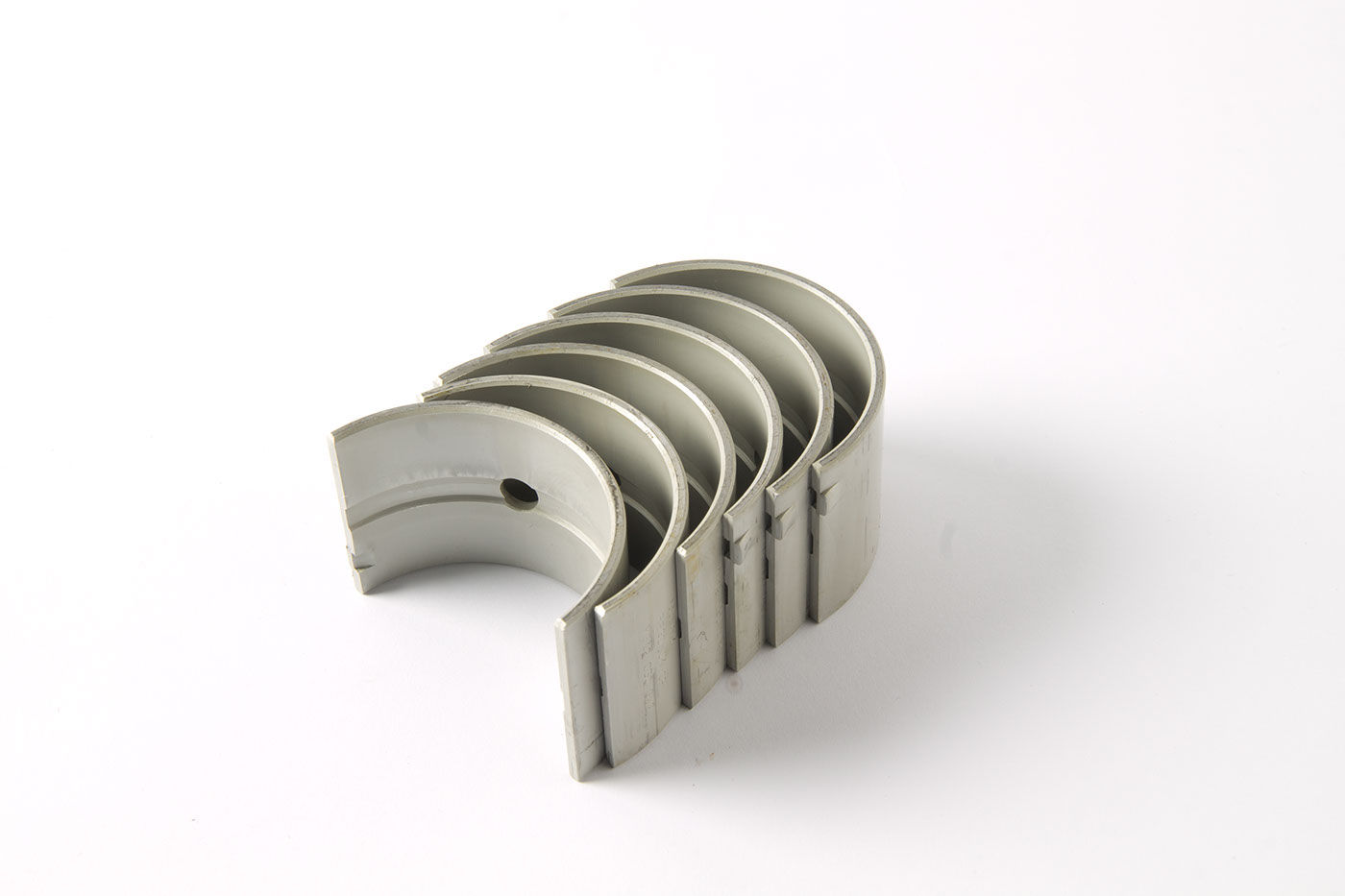

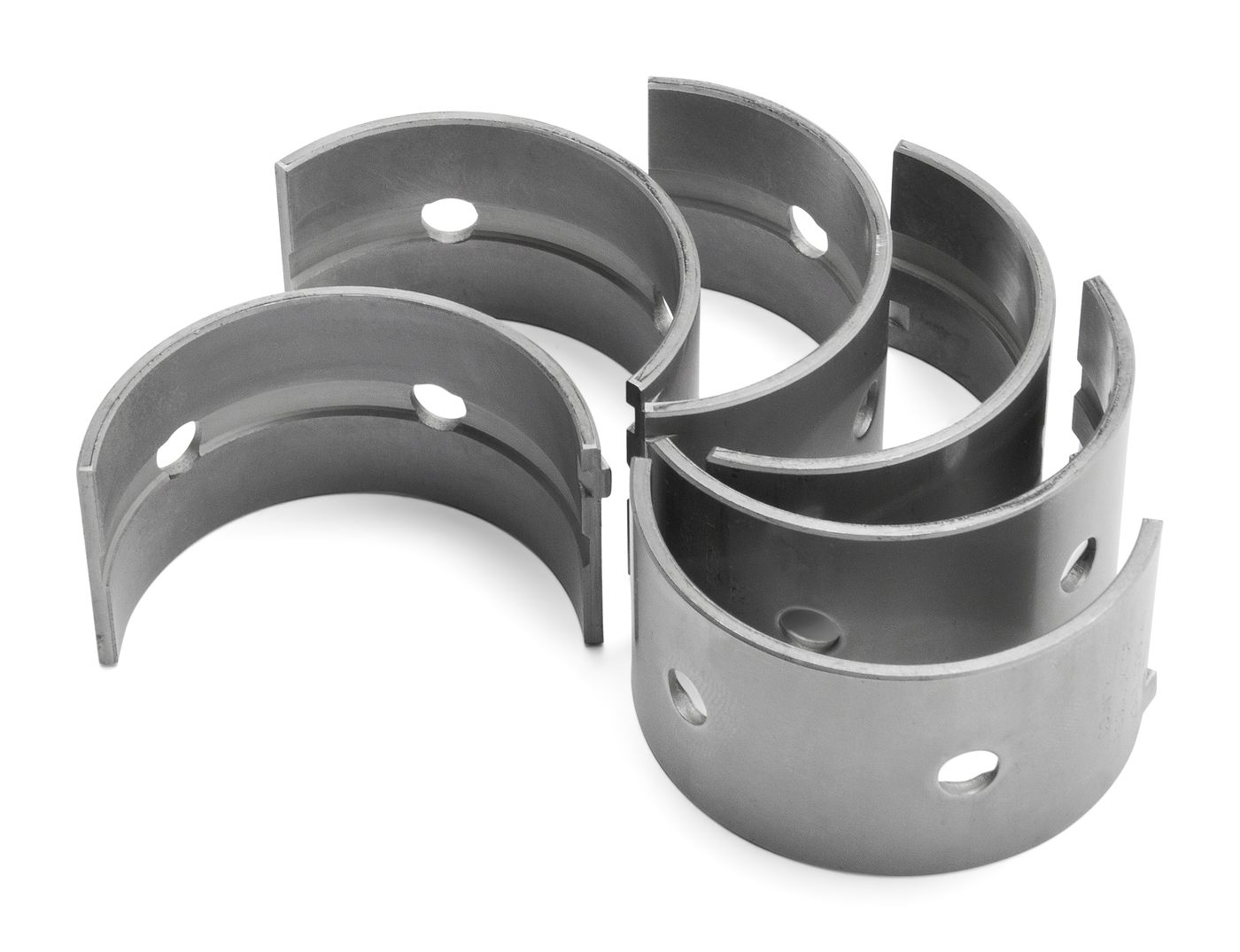

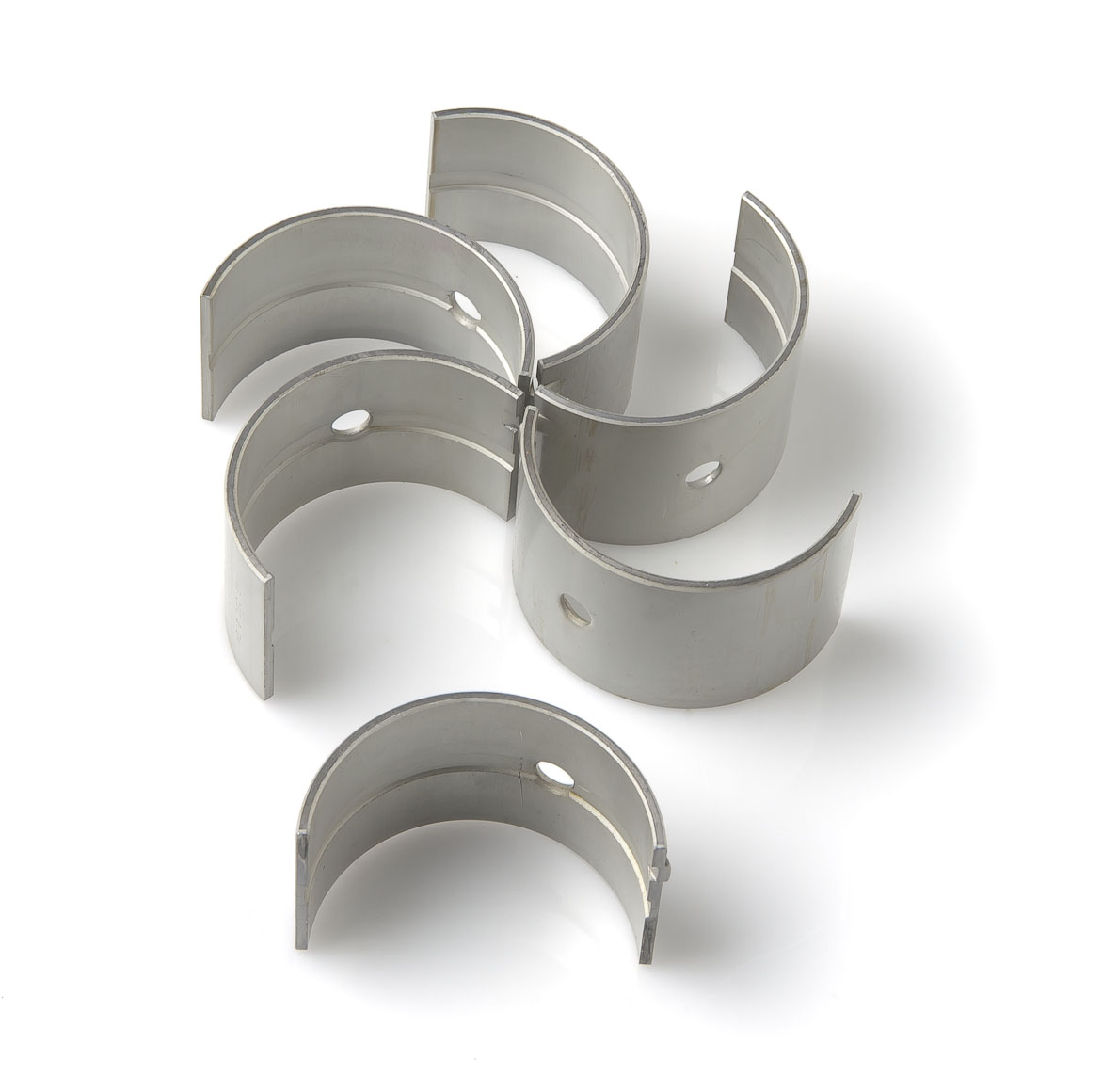

+0.010" oversize - shaft diameter: 2.001"
1500 and 1600
Required: 1
+0.050" oversize
1500 and 1600
Required: 1
+0.025" oversize
Required: 1

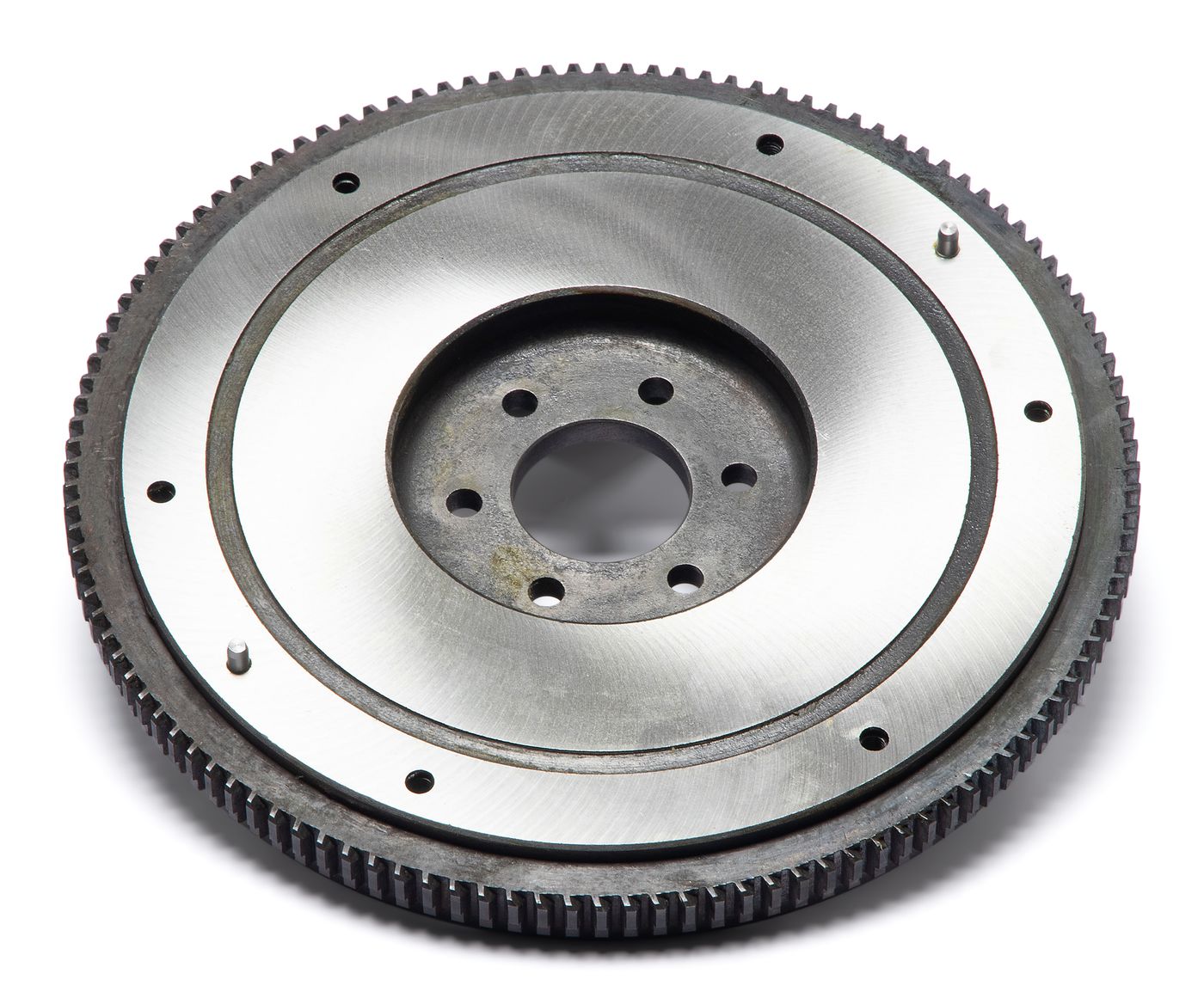

flywheel - number of teeth: 120, diameter: 10.3/4" thickness: 5/8"
Required: 1
