Crankshaft - 3 main bearing engine
without keyway, tachometer drive gear needs to be glued on. New item - British manufactured
Required: 1
uprated double row endless chain with 52 pitches
Required: 1
timing chain tensioner
Required: 1
standard size. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 1
+0.020" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 1
+0.030" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 1
+0.040" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 1
+0.060" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 1
standard size. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Restricted quantity
Required: 4
+0.020" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 4
+0.030" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Restricted quantity
Required: 4
+0.040" oversize. Specifications: 1.798 cc engine - 5-ring piston, standard bore size: 3.1595", compression ratio: 8.75:1. Pinch bolt dished type
Required: 4

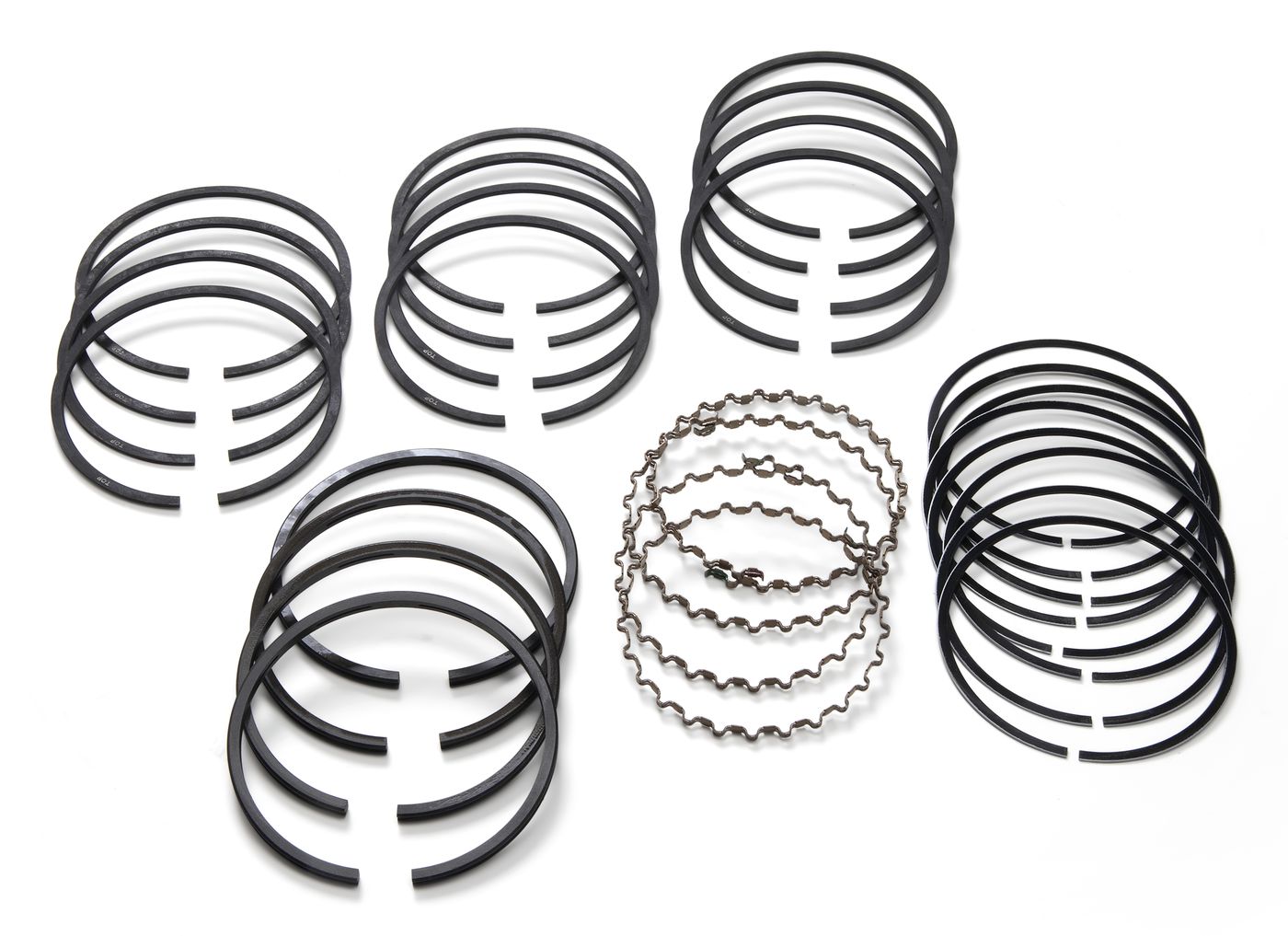

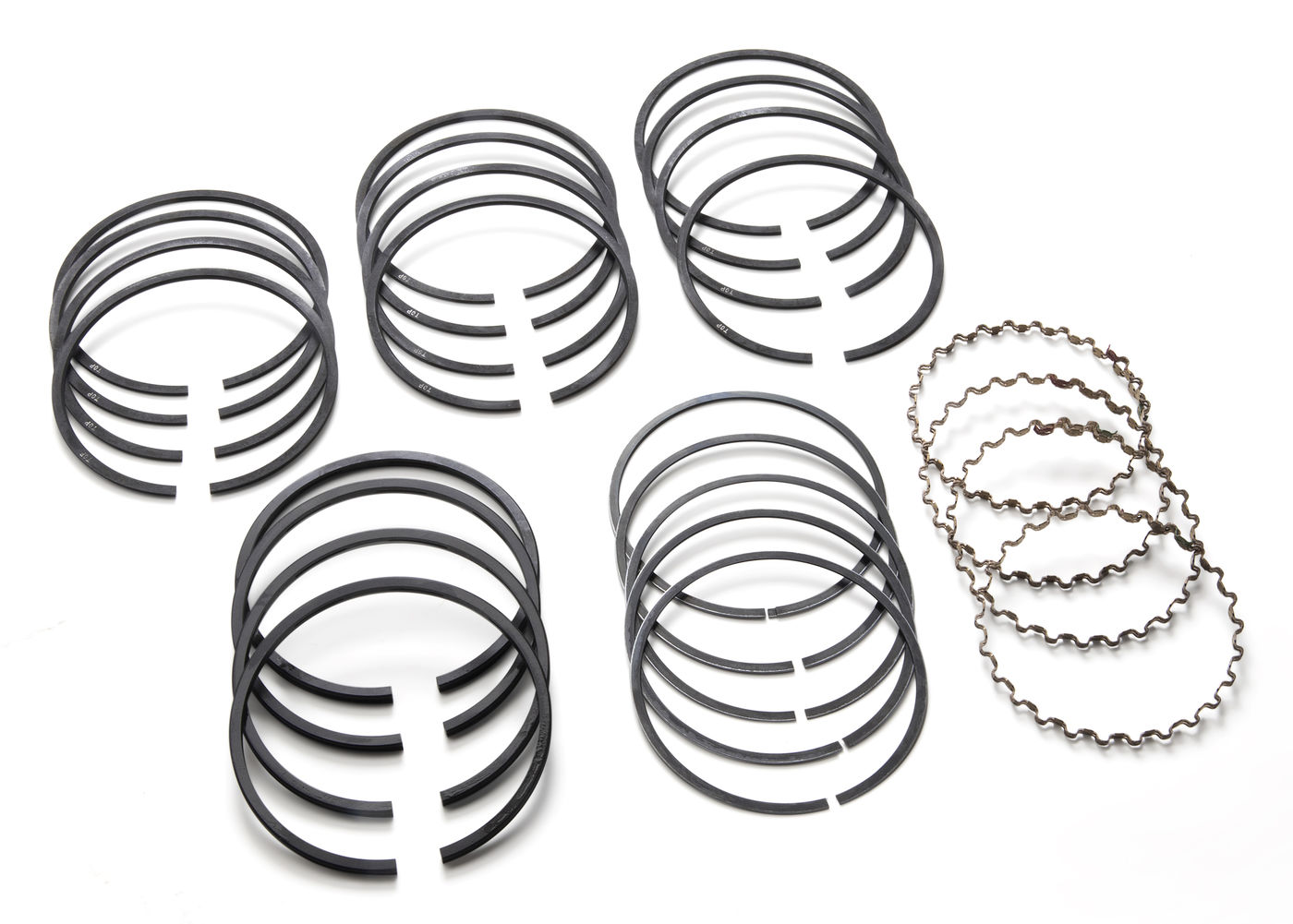

standard size - for 5 ring pistons with 3 compression rings and 2 oil rings
Required: 1
+0.020" oversize - for 5 ring pistons with 3 compression rings and 2 oil rings
Required: 1
+0.030" oversize - for 5 ring pistons with 3 compression rings and 2 oil rings
Required: 1
+0.040" oversize - for 5 ring pistons with 3 compression rings and 2 oil rings
Required: 1
+0.060" oversize - for 5 ring pistons with 3 compression rings and 2 oil rings
Required: 1
Required: 4
1st and 3rd cylinder - reconditioned, in exchange
Required: 2
2nd and 4th cylinder - reconditioned, in exchange
Required: 2
crankshaft
Required: 1
less bearings, new item
Required: 1
big end journal in crankshaft
Required: 4

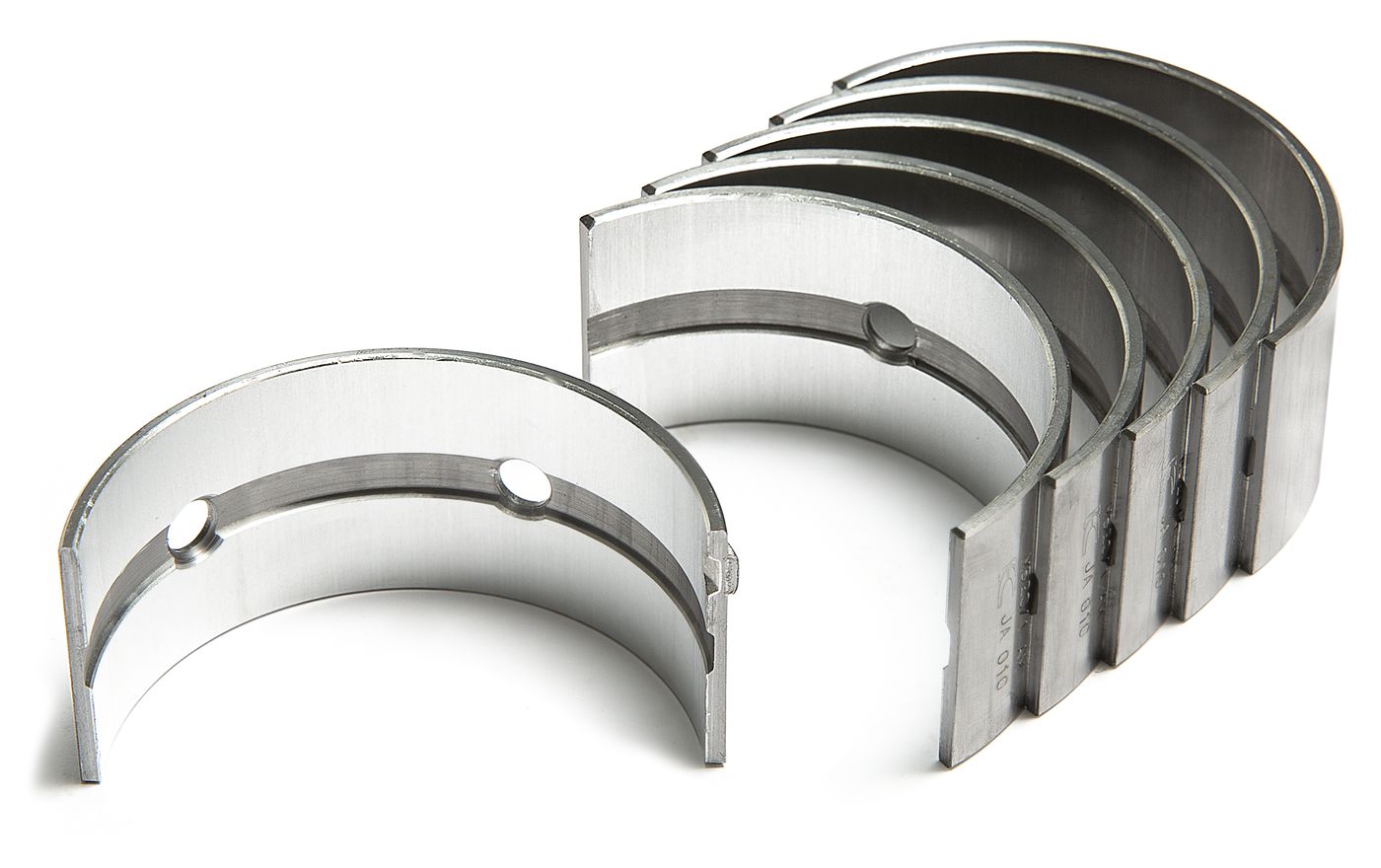

standard size - shaft diameter: 1.876"
Required: 1
+0.010" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.020" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.030" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.040" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.050" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.060" oversize - shaft diameter of the standard bearing: 1.876"
Required: 1
+0.010" oversize - shaft diameter of the standard bearing: 2.127"
Required: 1
+0.020" oversize - shaft diameter of the standard bearing: 2.127"
Required: 1
+0.030" oversize - shaft diameter of the standard bearing: 2.127"
Required: 1
+0.040" oversize - shaft diameter of the standard bearing: 2.127"
Required: 1
crankshaft, +0.0030" oversize
Required: 1

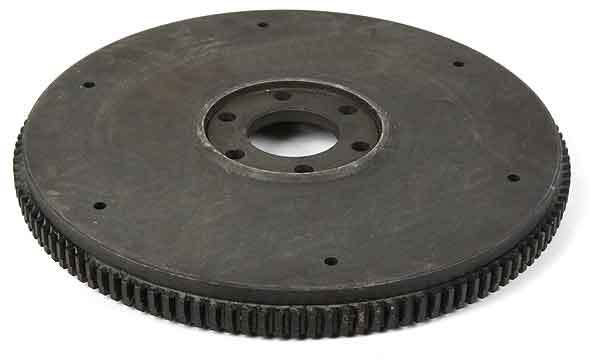

flywheel - number of teeth: 120, diameter: 10.3/4" thickness: 5/8"
Required: 1
