Flywheel housing and clutch cover Verto type clutch A-plus series
diameter bearing idler gear: 1.375"
1275 cc
with crankcase ventilation and hole for sensor flywheel
Required: 1
in flywheel housing for 1st motion shaft
outer ring fitted in housing, bearing fitted on shaft
Required: 1
for outer ring bearing 200516 in flywheel housing
Required: 1
for idler gear, outer diameter baering: 1.375" (34.92 mm) inner diameter: 0.750" (19 mm)
for idler gear with 0.75" shaft diameter
Required: 1
for idler gear, outer diameter: 1.375" (34.92 mm) inner diameter: 0.875" (22.225 mm)
for idler gear with 0.875" shaft diameter
Required: 1
short, flywheel housing to engine
late A-plus series
alternative for screw 2826, used without springwasher 212194
Required: 3
for fitting flywheel housing
only 6 requiered if taptite screws used
Required: 9
in flywheel housing
not used if tapite bolt used
Required: 1
in flywheel housing
not used if tapite bolt used
Required: 1
in flywheel housing
not used if tapite bolt used
Required: 1
in flywheel housing
not used if tapite bolt used
Required: 1
in flywheel housing
late A-plus series
alternative for bolt 6524, used without lock tabs
Required: 3
in flywheel housing
for injection cars
could also be used alternative for oil seal 26393
Required: 1
clutch and flywheel housing
Required: 1
fitting cover
late A-plus series
used without springwasher 212194
Required: 8
fitting cover
not used if taptite screw used
Required: 8

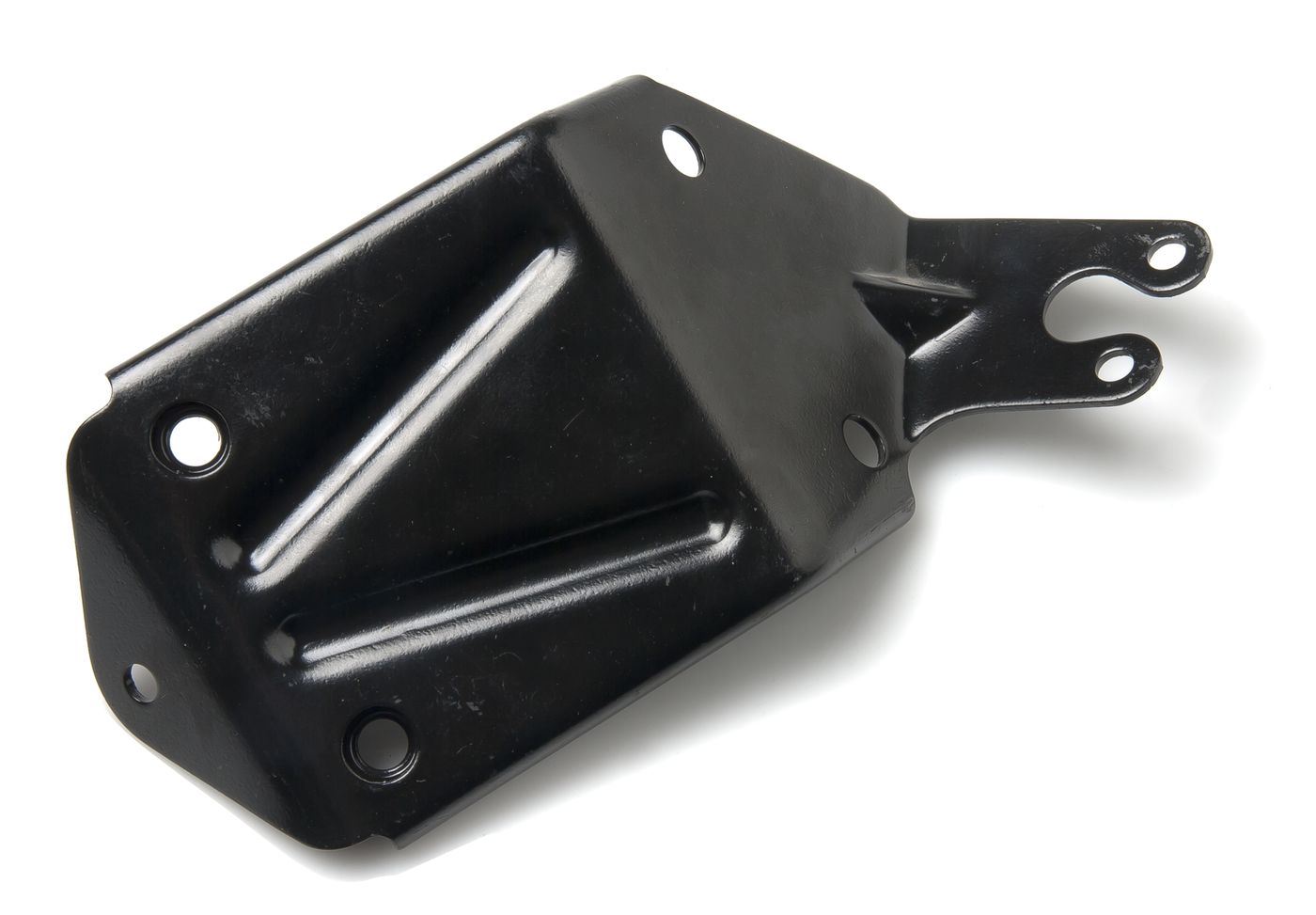

mounting plate to clutch cover
Required: 1
