Heater 1970 MK3 on
complete
upto (VIN)073750
plastic case
Required: 1
complete
(VIN)BD073751 upto (VIN)BD134454
plastic case, single speed
Required: 1
complete
(VIN)BD134455 on, 1997 Multi Point Injection
plastic case, twin speed
Required: 1
upto (VIN)073750
single speed
Required: 1
(VIN)BD073751 on
single or twin speed
Required: 1
heater
upto (VIN)BD134454
single speed
Required: 1
heater
(VIN)BD134454 on
twin speed
Required: 1
control air distribution
Required: 1
heater
upto (V)BD134454, 1997 Multi Point Injection
single speed
Required: 1
heater
(V)BD134455, 1997 Multi Point Injection on
twin speed
Required: 1
for two speed heater blower
1.3 Mpi from VIN...BD134455 (1997-2000)
Required: 1
with outlets with 0.5" diameter
from 1970 to 1984 (to VIN...212068)
Required: 1
identify by outlets with 0.5" diameter, ourlets distance mid/mid 4.1/2" (14,3 mm) meassures: ~194 x 140 x 58 mm
MK1/2
Please measure the distance between the connections of the heater matrix on your car before ordering
Required: 1
identify by outlets with 0.5" diameter, ourlets distance mid/mid 4.7/8" (~124 mm) meassures: ~200 x 140 x 60 mm
Please measure the distance between the connections of the heater matrix on your car before ordering
Required: 1
with outlets with 0.625" diameter
from 1984 to 1991 (from VIN...212069 to BD073750)
Required: 1
with metal housing and welded metal outlets with 0.625" diameter
1.3 Spi from VIN...BD073750 (1991-94) and 1.3 Mpi from VIN...BD134455 (1997-2000)
Required: 1
original spec. with plastic housing and screw-on side outlets
1.3 Spi from VIN...BD073750 (1991-94) and 1.3 Mpi from VIN...BD134455 (1997-2000)
Required: 1

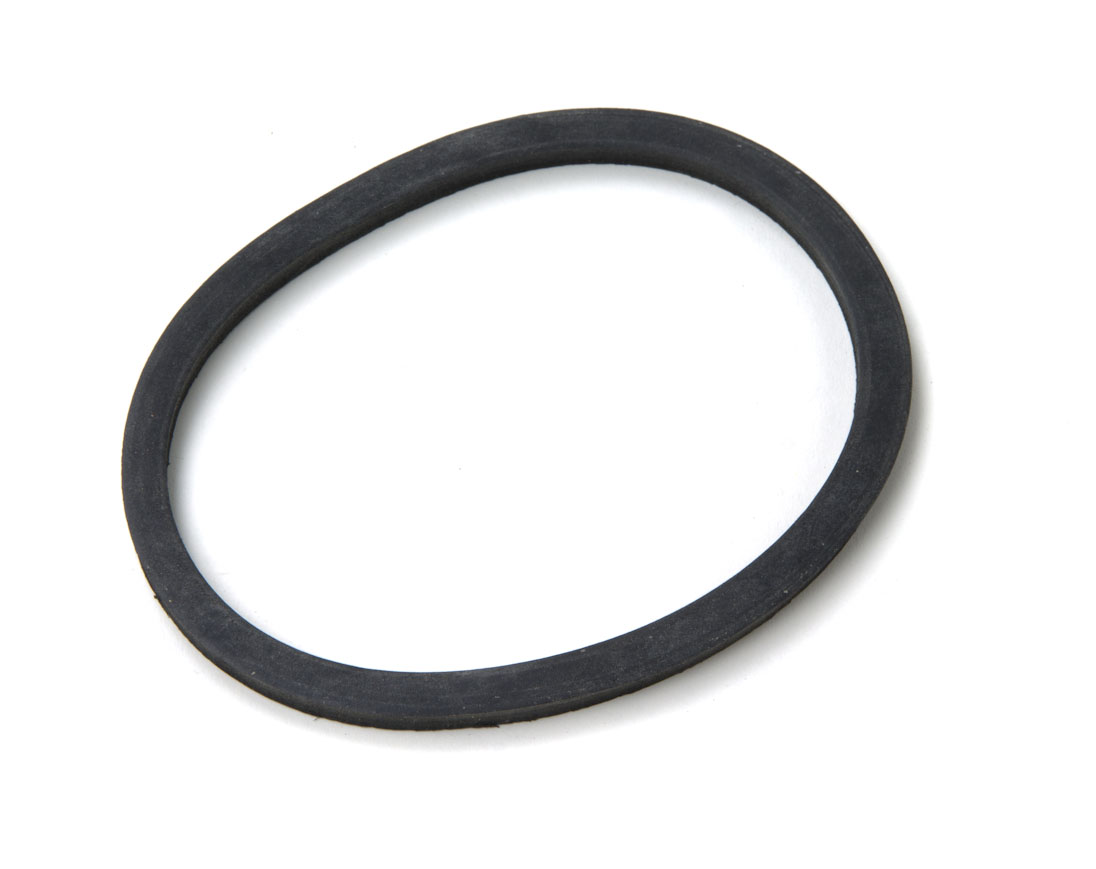

sealing for screw-on outlet on heater matrix
approx. 1984 on
Required: 2
for hoses to matrix, Mini from 1984
approx. 1984 on

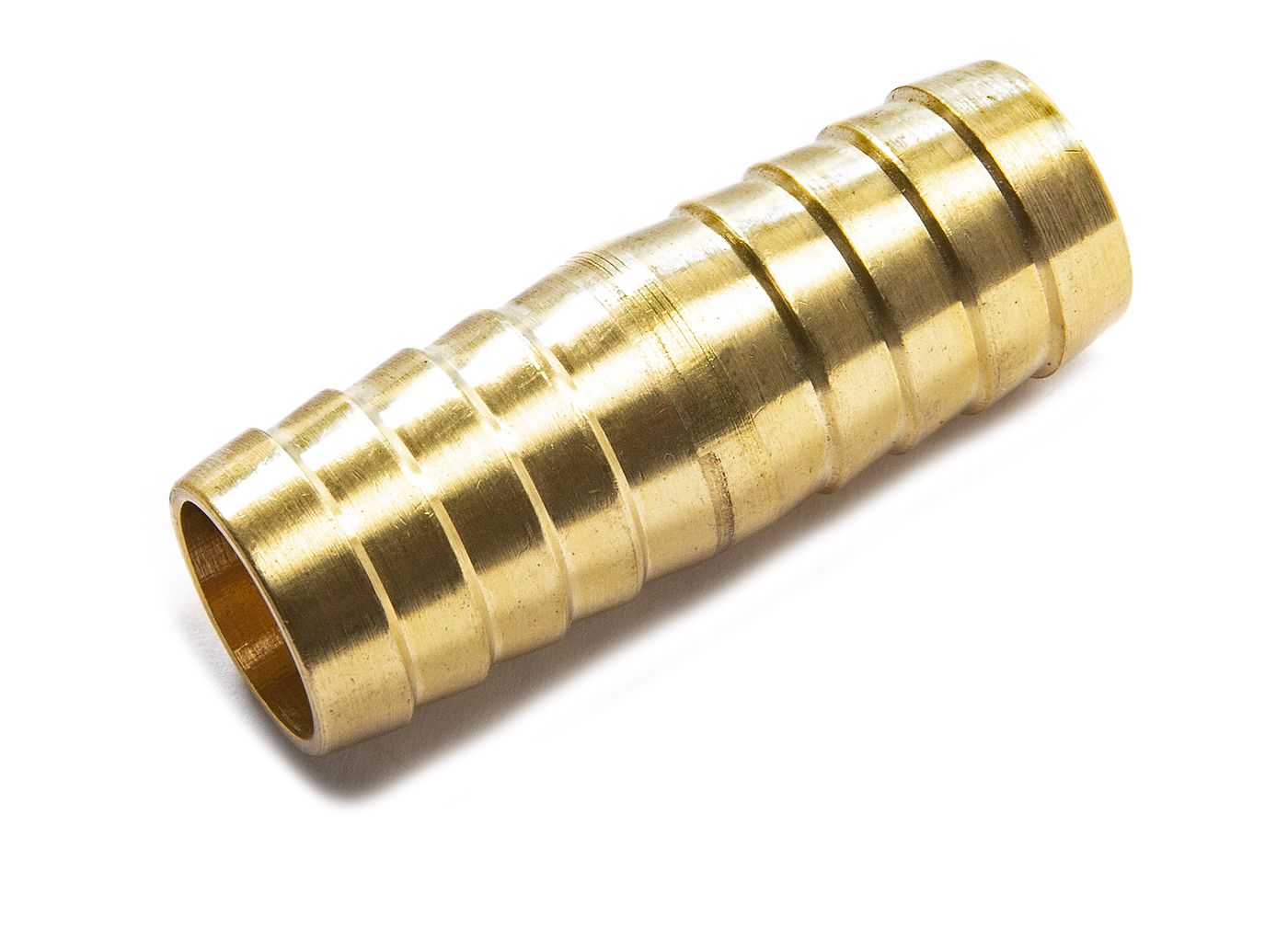

optional uprated replacement from solid brass for the genuine plastic outlets
Required: 1
retaining heater assembly to bulkhead
(V)BD134455, 1997 Multi Point Injection on
Required: 2
retaining heater assembly to parcel shelf
Required: 2

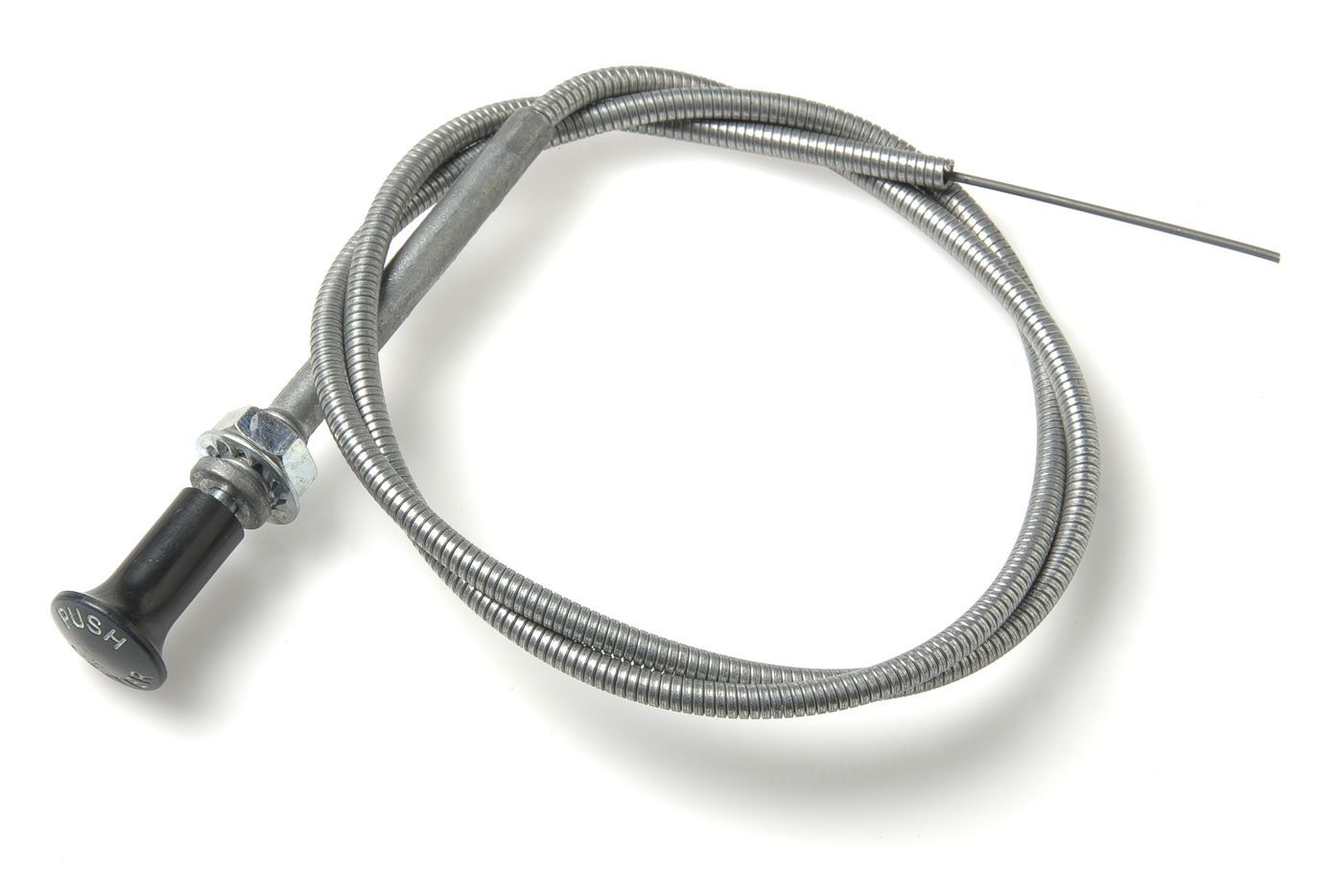

with bakelite knob - script: "Push Heater"
Mk1 (1959-64)
Required: 1

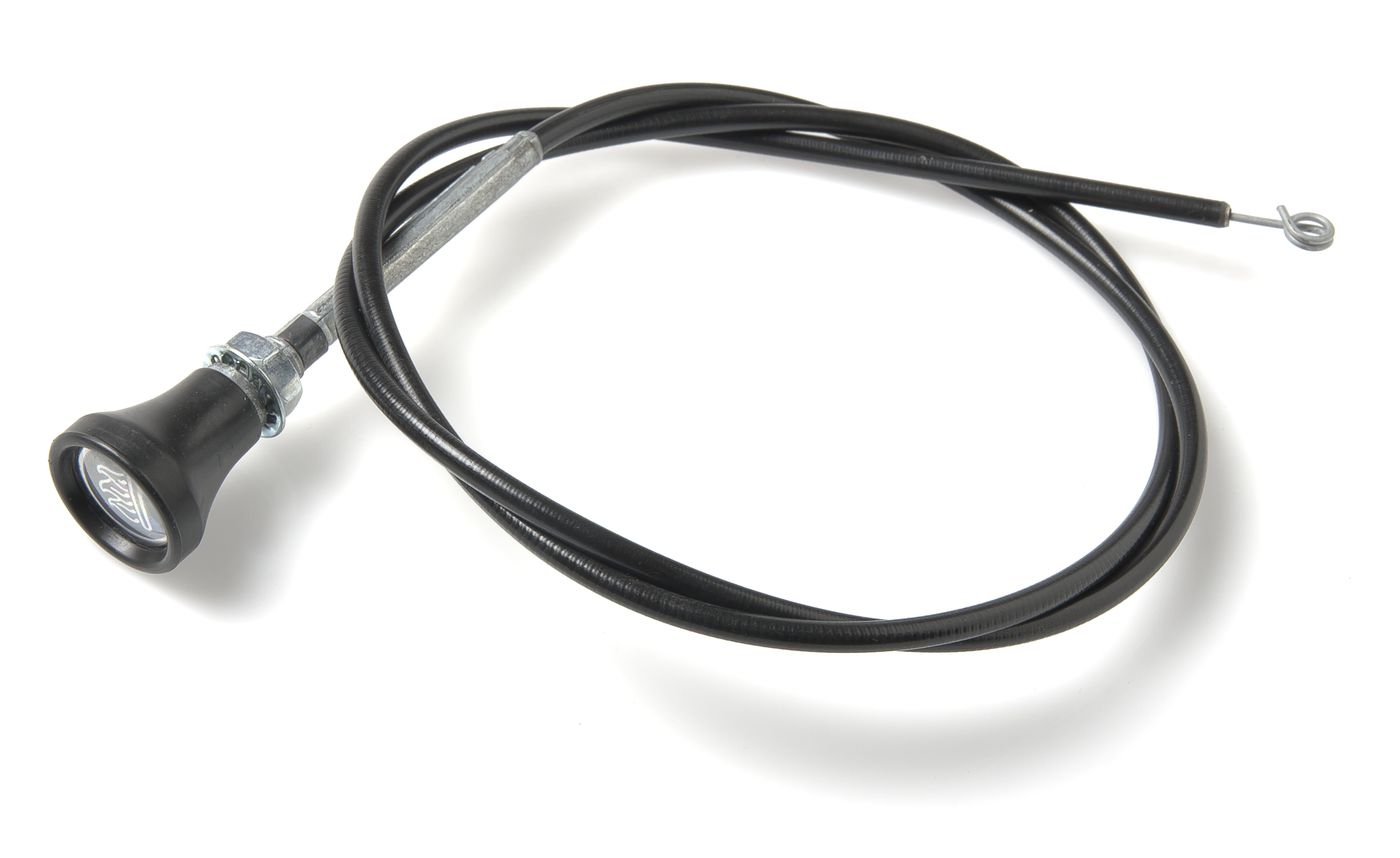

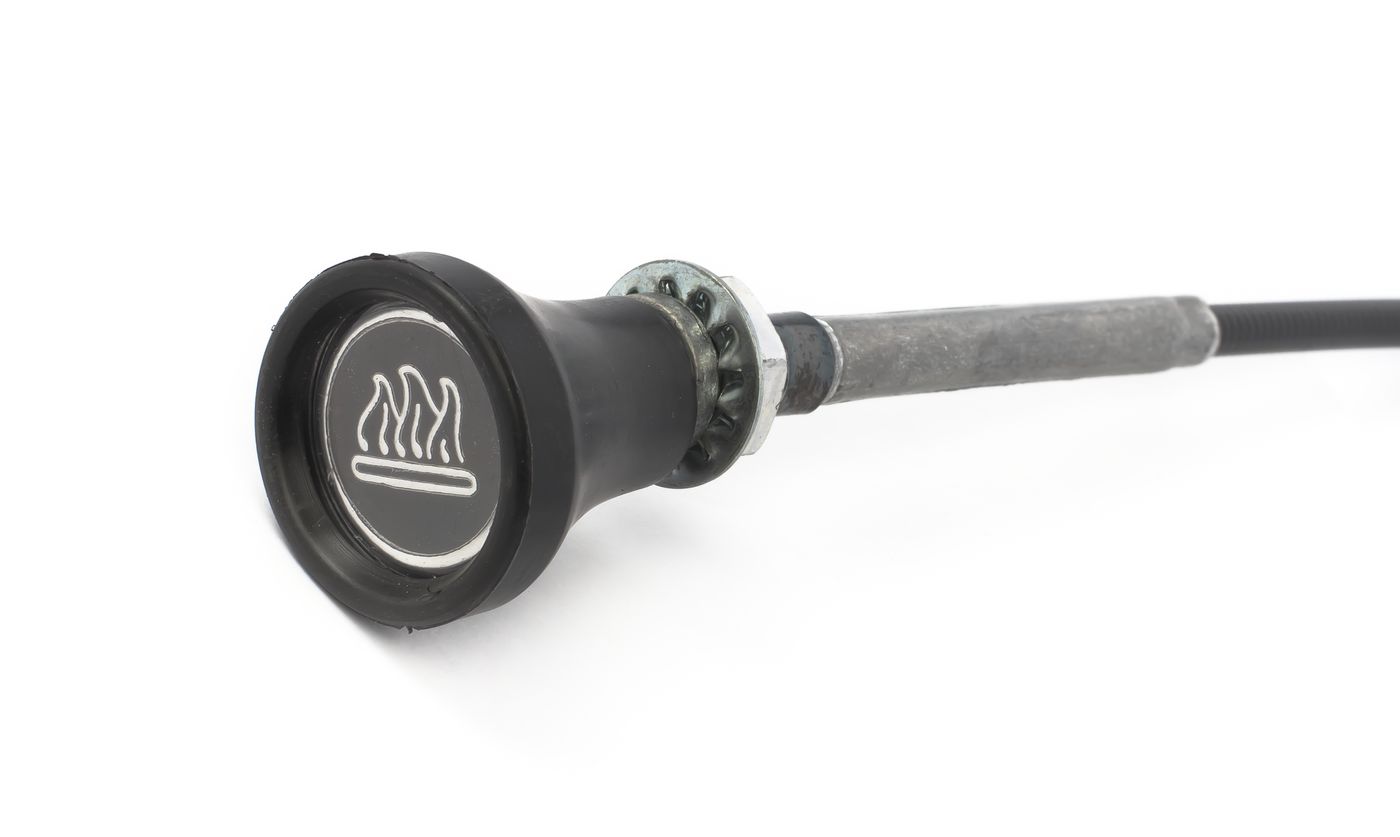

plastic knob with flame motif, lenght: 30"
approx. 1964 on upto 1989
Required: 1

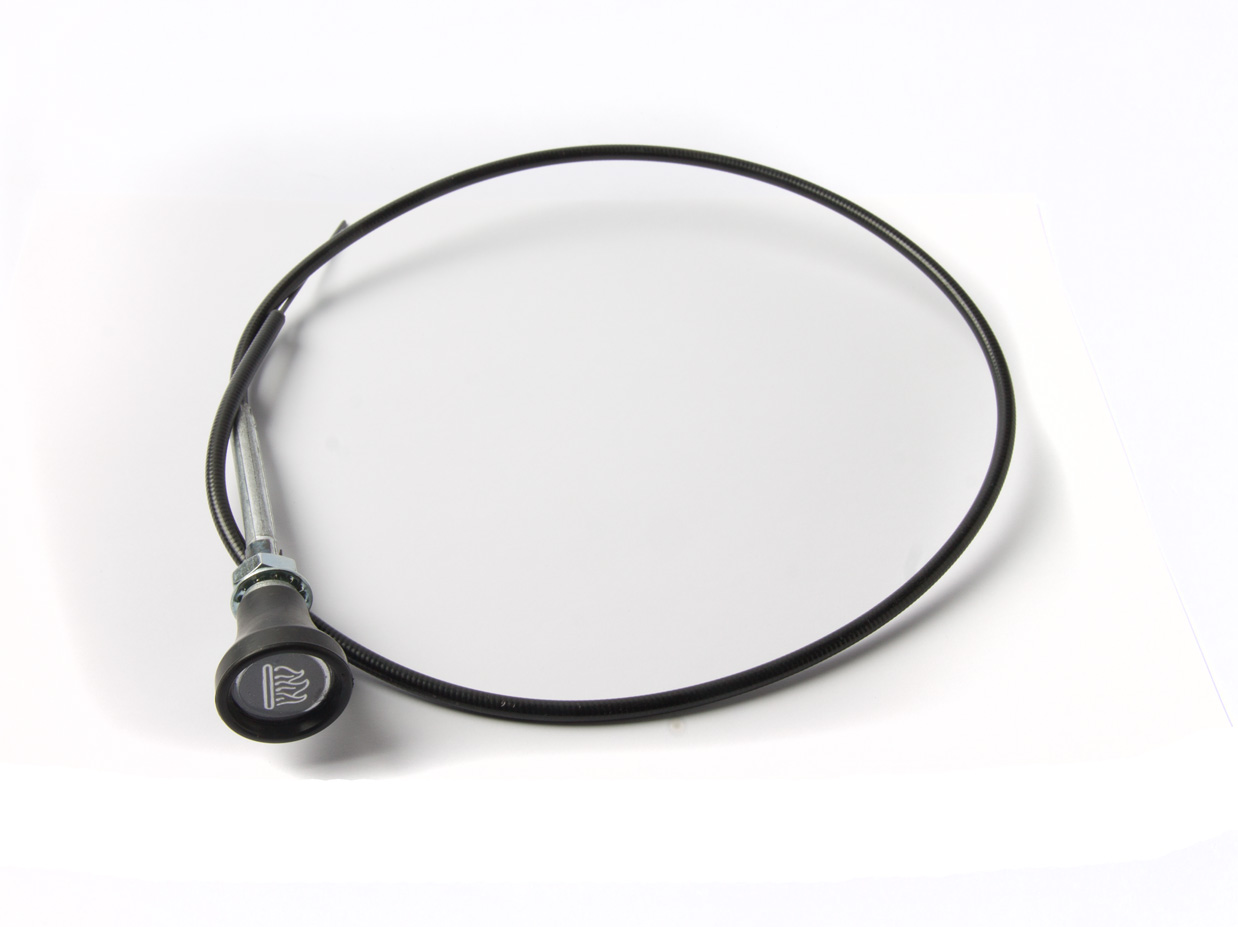

plastic knob with Flame motif, lenght: 30" with looped end
998 cc approx. 1989 on with servo brake
use with heater valve 289295
Required: 1
plastic knob less motif, lenght: 30", with looped end
998 cc approx. 1989 on with servo brake
use with heater valve 289295
Required: 1
with plastic knob less motif - lenght: 40.5" with looped end
1275 cc Carburettor models and 1.3 Spi to VIN...BD134455 (1990-96)
use with heater valve 289295
Required: 1
plastic knob, lenght: 17,7" with looped end
(V)BD134455, 1997 Multi Point Injection on
use with heater valve 355462
Required: 1
knob heater cable - red/blue
for heater cable less motif
Required: 1
right hand
not Clubman
Required: 1
right hand
only Clubman
Required: 1
in right hand wing
Required: 1
if no face vents
Required: 1
if face vents
upto (V)504653, approx. 1993
Required: 1
if face vents
(V)504654, approx. 1993 on
Required: 1
outlet air distribution box
upto (V)336542
Required: 1

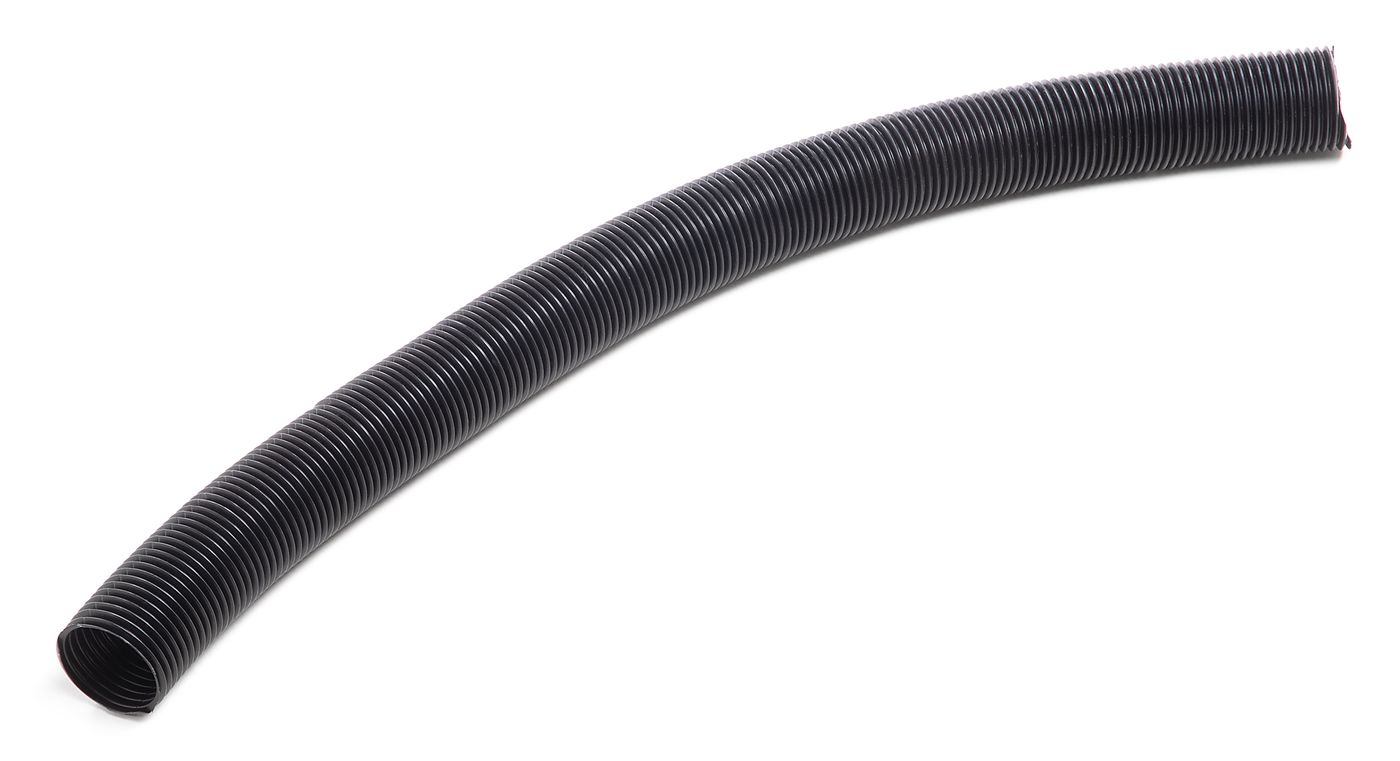

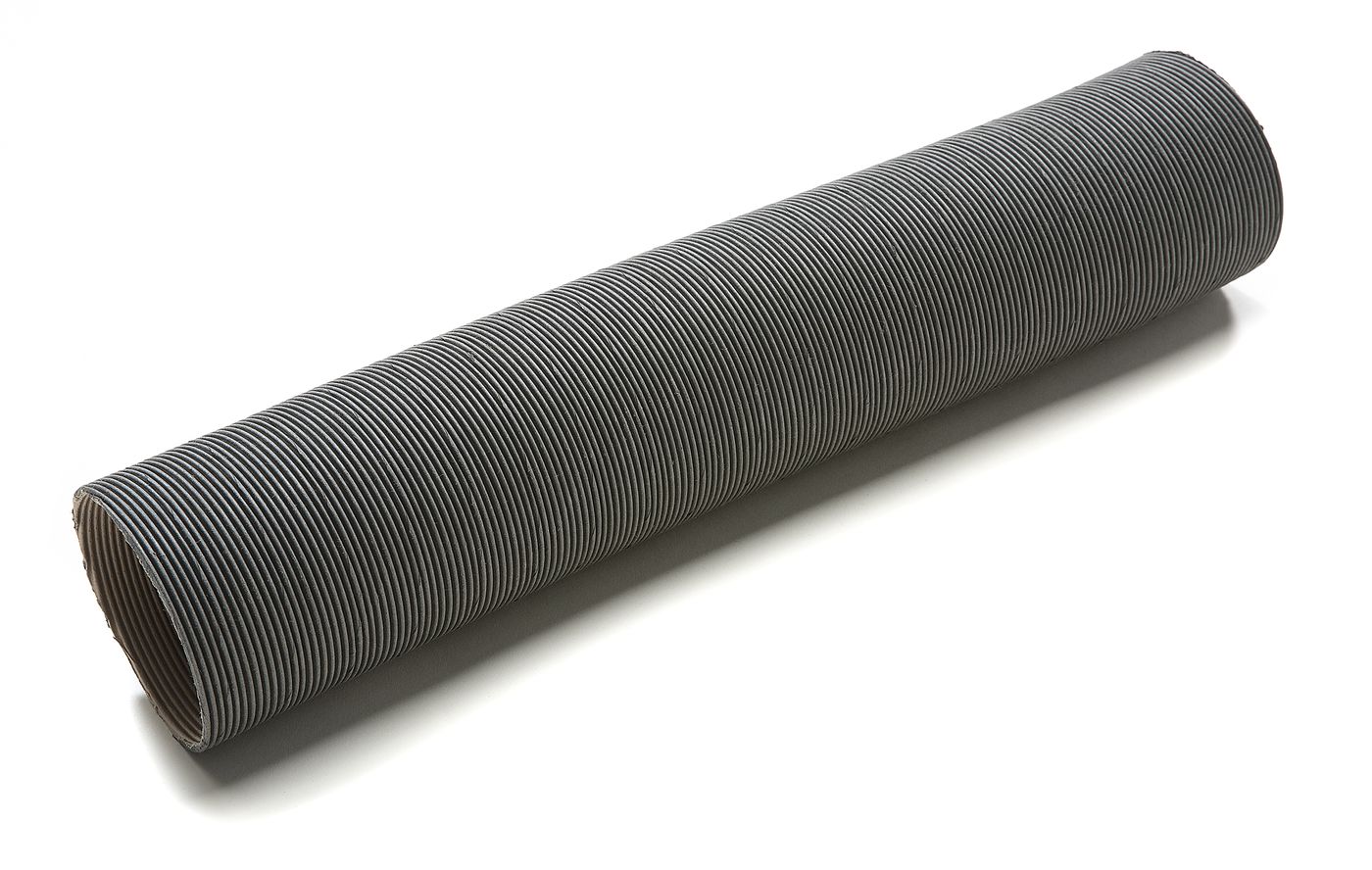

heater to demister - identified by 1.1/4" inner diameter
upto (V)073750, approx. 1992
Required: 2
heater to demister
from VIN...073750 (1992-2000)
Identification: Inner diameter 1.1/2"
Required: 2
upto (V)073750, approx. 1992
for 1.1/4" diameter air hose
Required: 2
(V)073751, approx. 1992 on
for 1.1/2" diameter air hose
Required: 2
No.10 with 5/8" length - galvanised screw with Phillips PZ2 cross slotted panhead
Required: 4
fresh air - left hand
not Clubman
Required: 1
fresh air - left hand
only Clubman
Required: 1
air duct to face vent - left hand
Required: 1
air distributor box to air hose
Required: 1
left hand
Required: 1

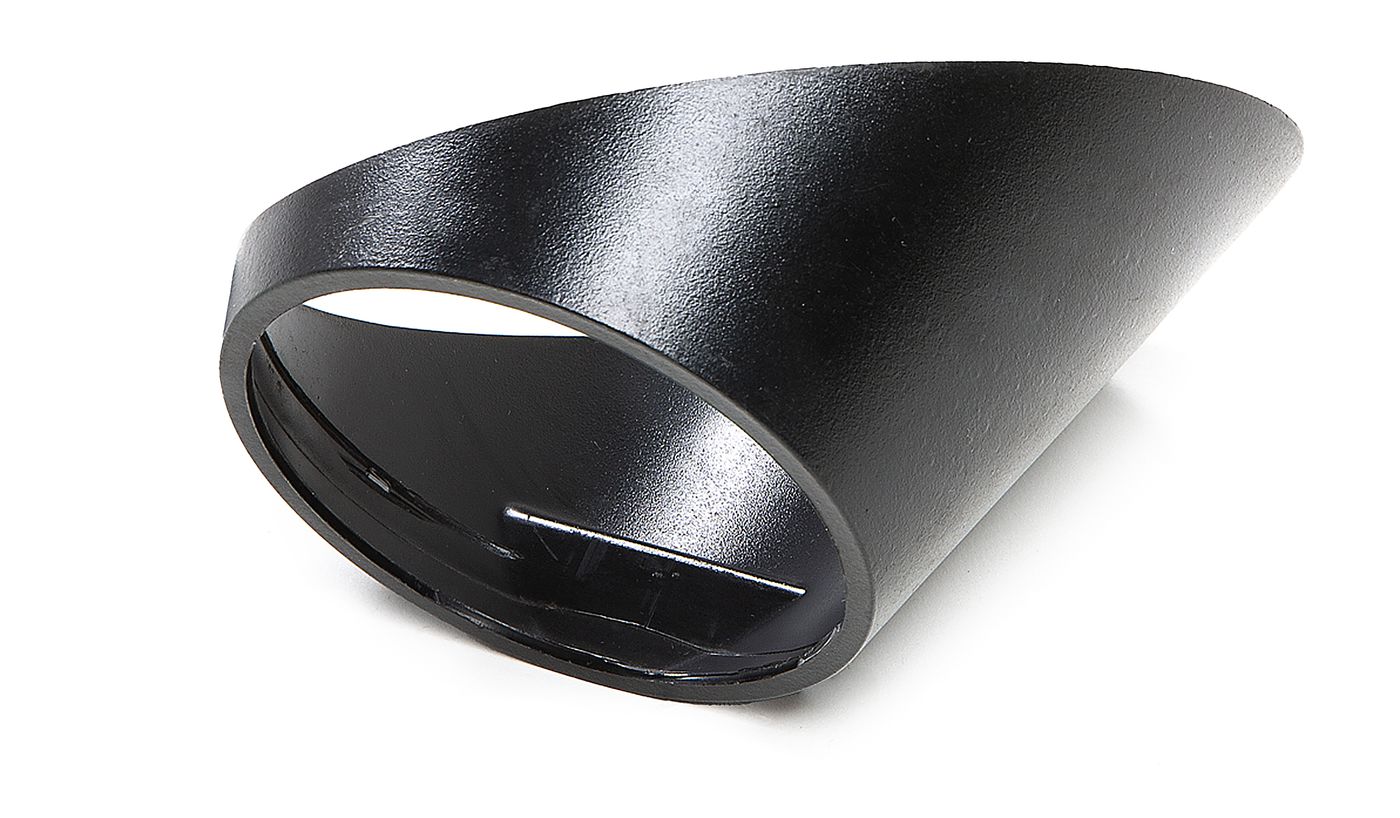

face vent - right hand
Required: 1
1974 upto (V)396448, approx. 1989
fitted on cylinderhead
Required: 1
retaining heater tap
upto (V)396448, approx. 1989
Required: 2

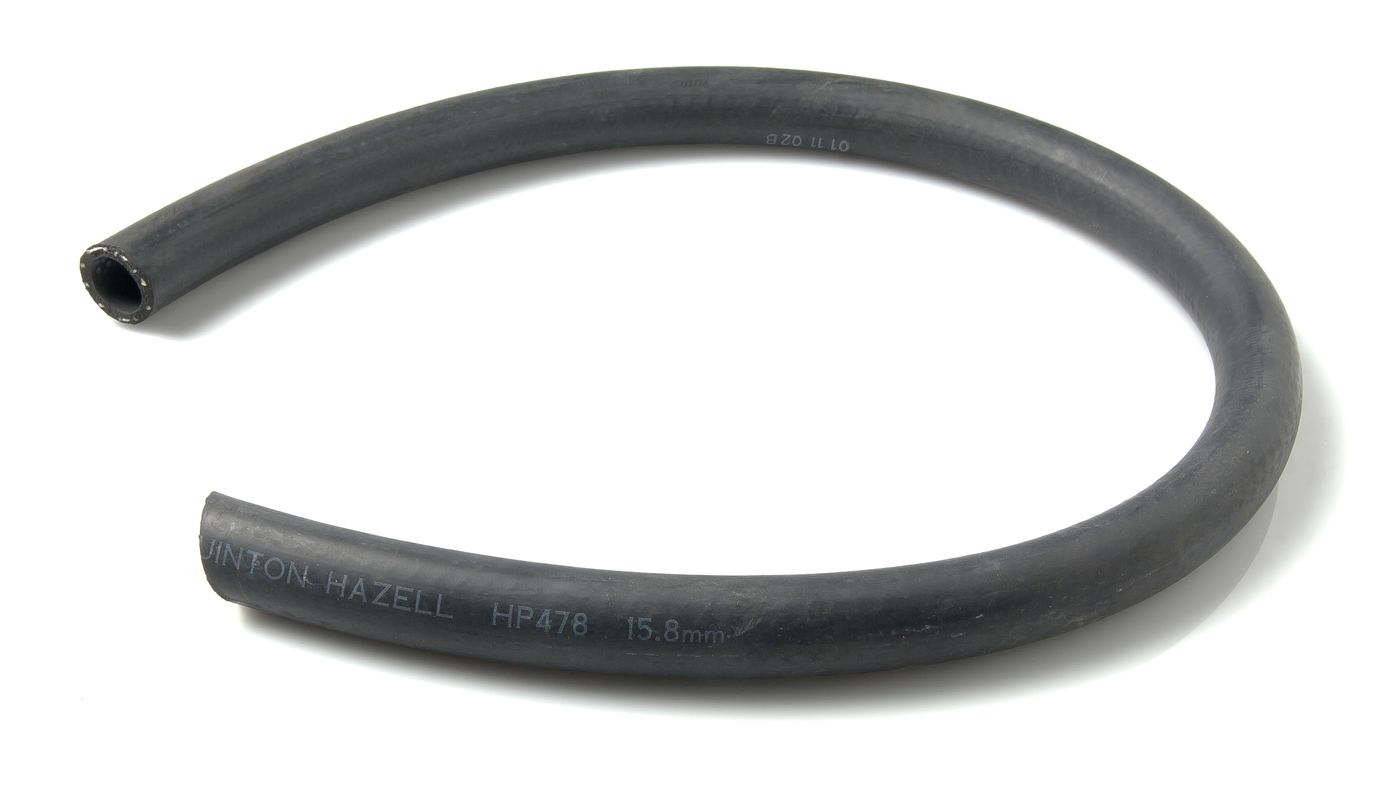

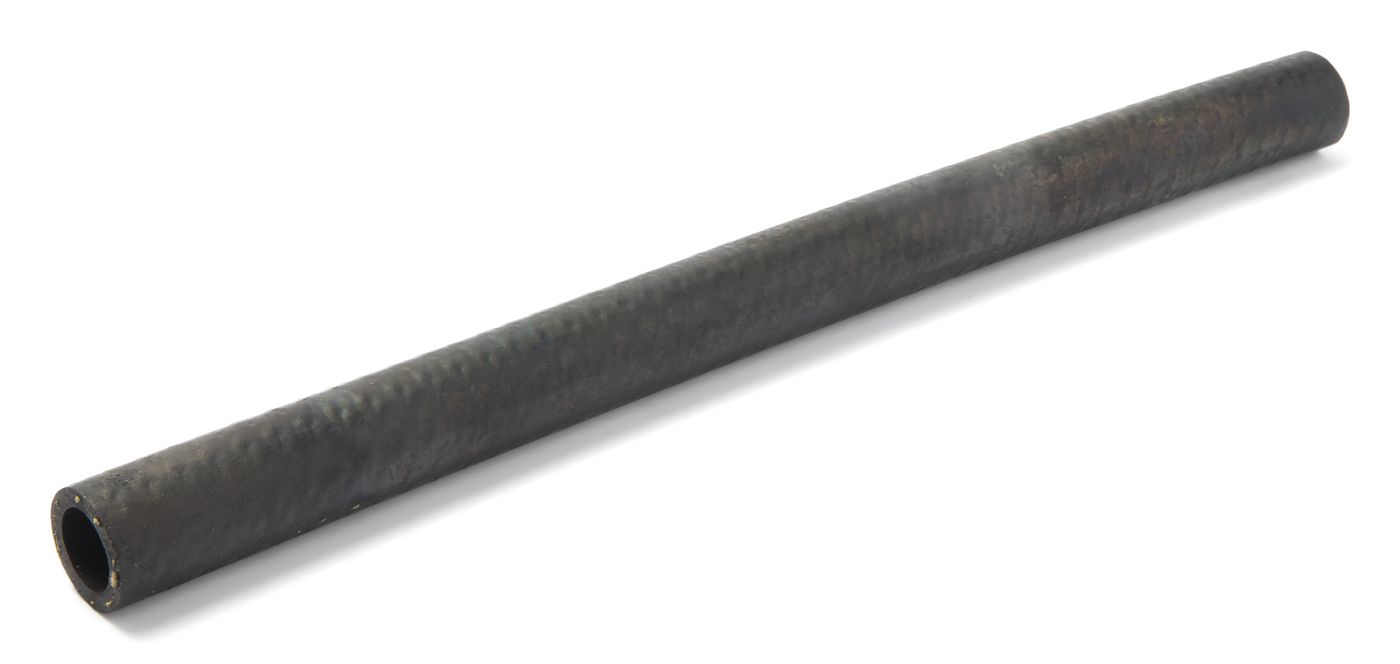

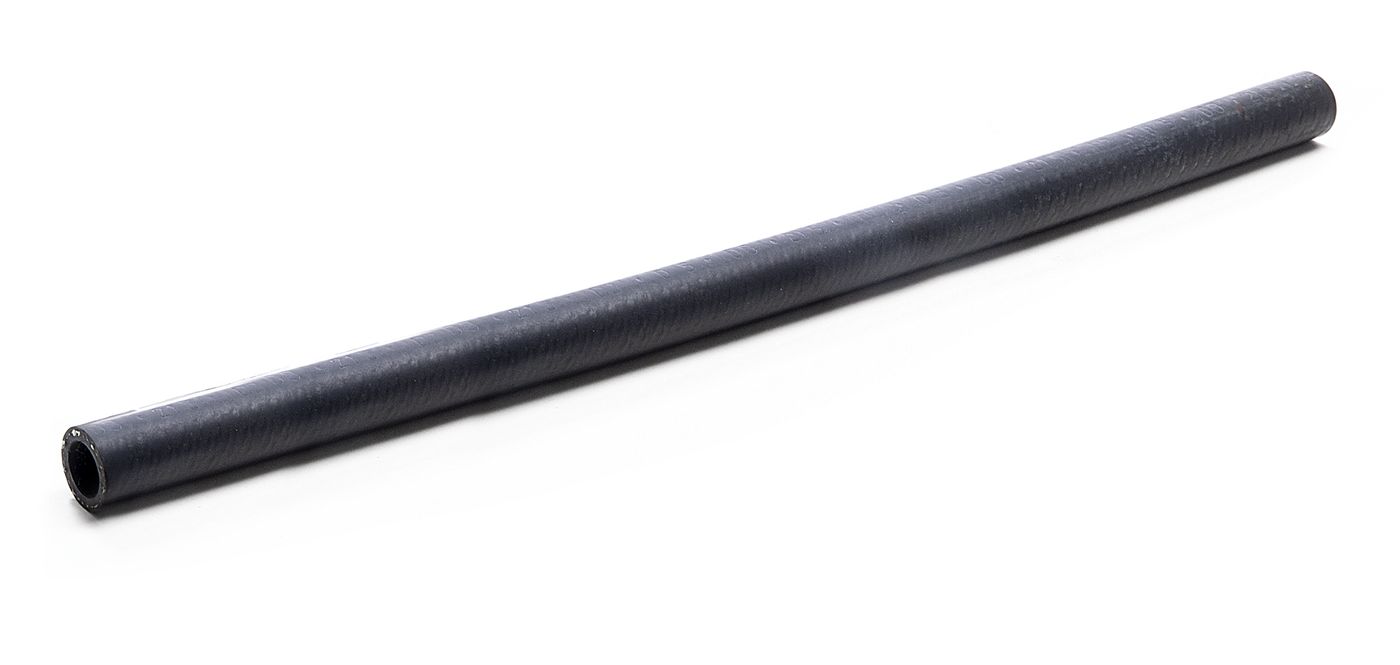

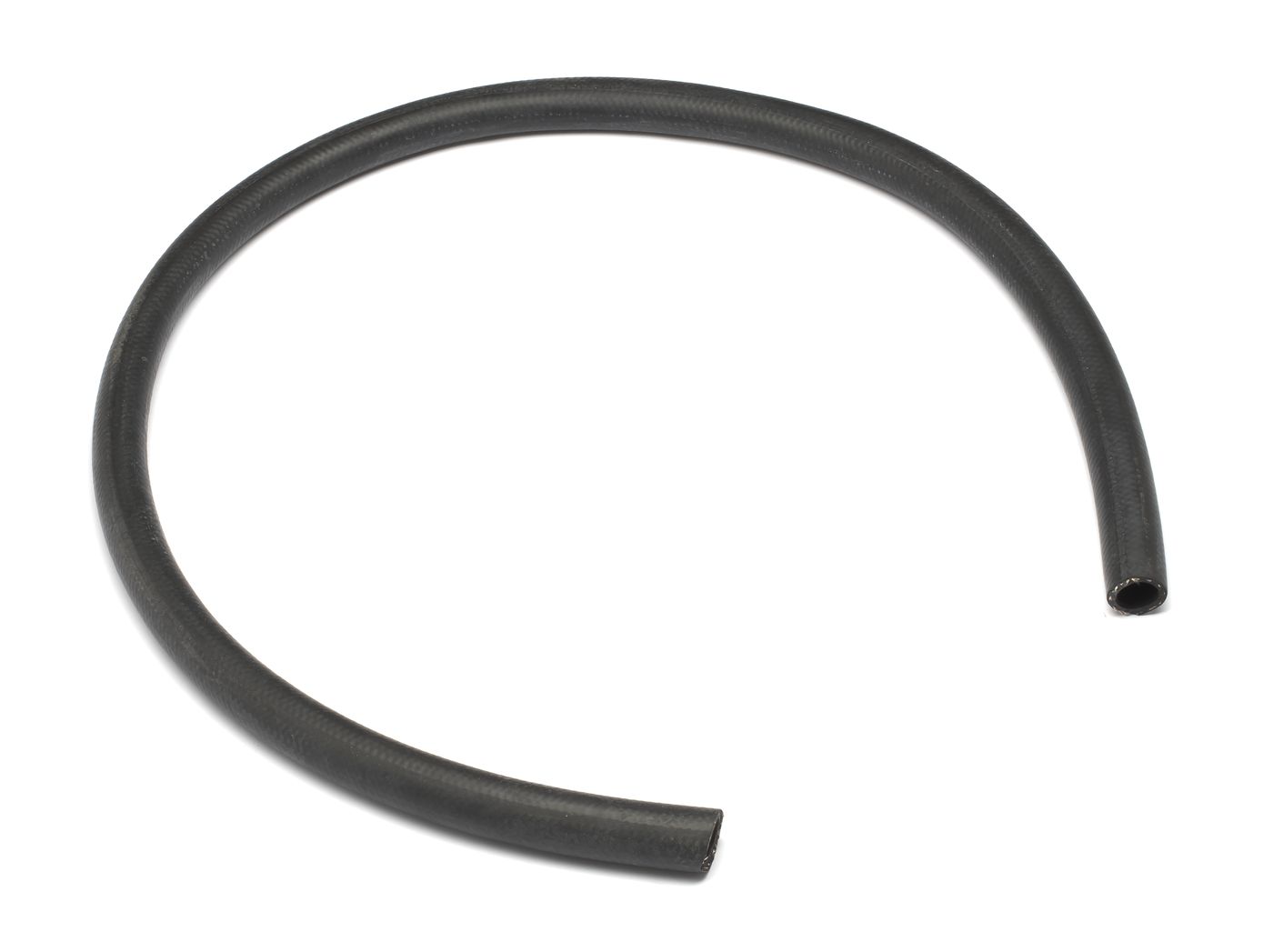

heater to heater valve - 1/2" inner diameter - supplied in meter
upto approx. 1984
cut to requiered length: LHD = 26", RHD = 29"
Required: 1
heater to heater valve - the inner diameter stepped from 1/2" to 5/8"
approx. 1984 on upto 1989
cut to requiered length: LHD = 26", RHD = 29"
Required: 1

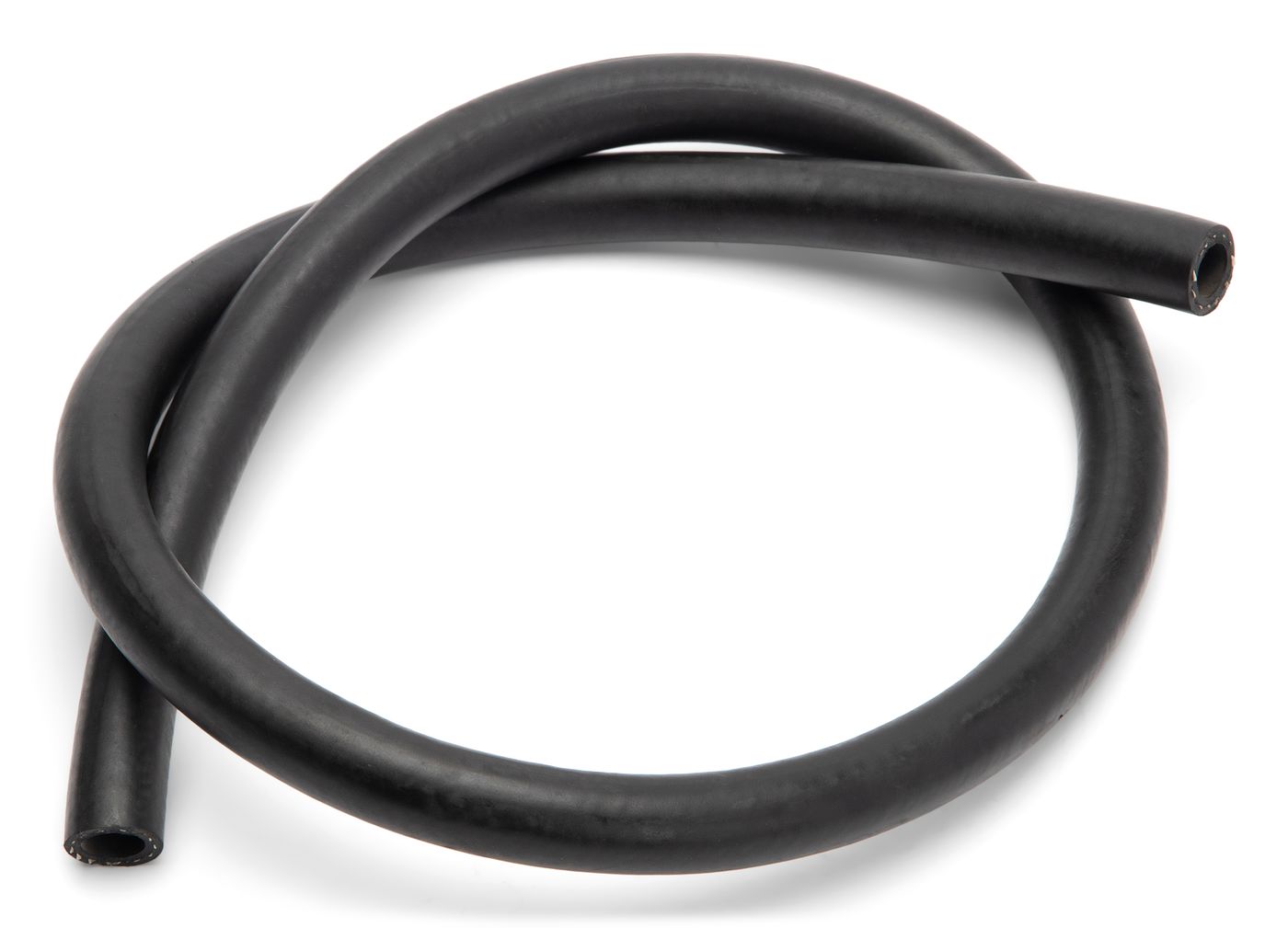

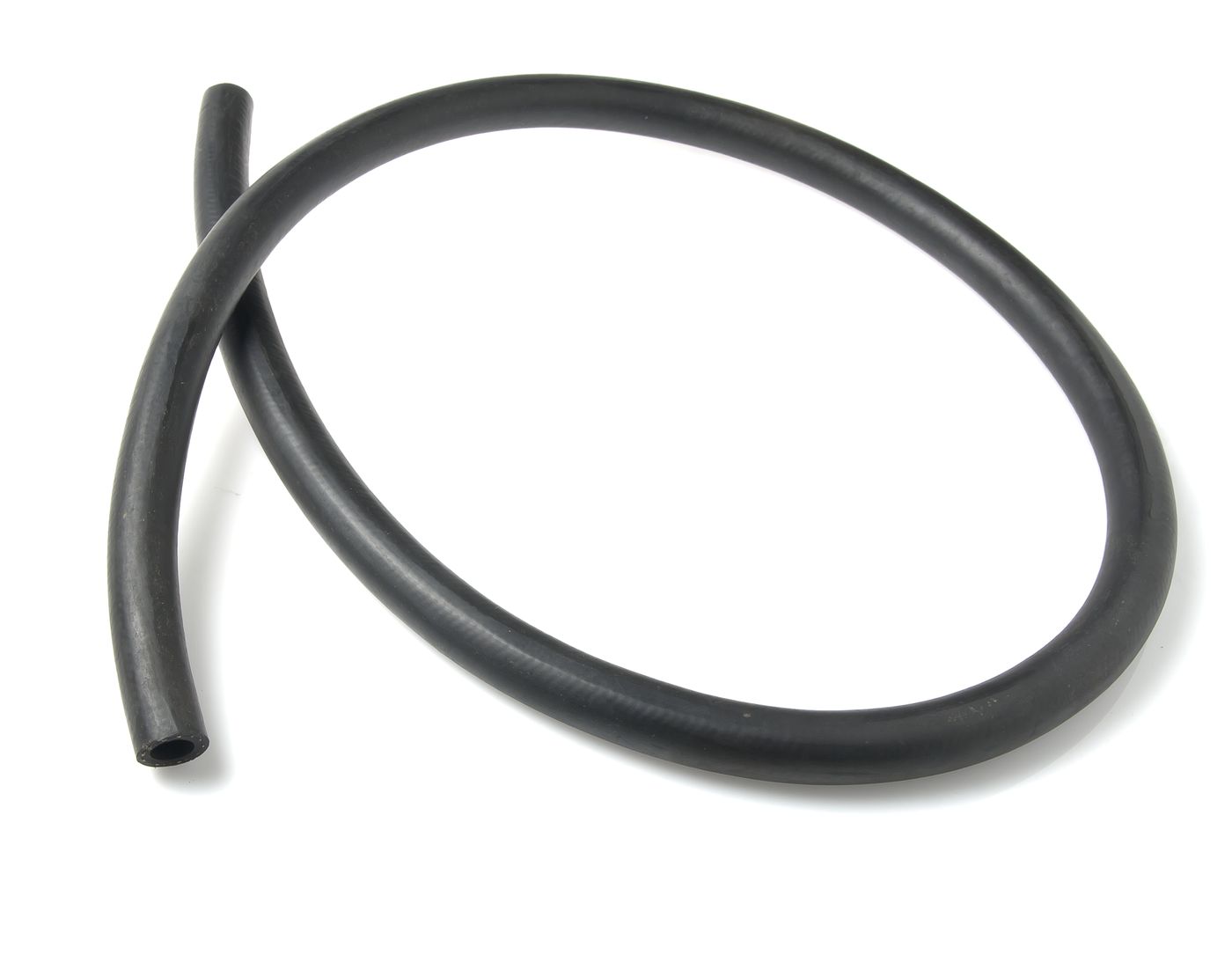

heater to radiator hose - 1/2" inner diameter
upto approx. 1984
cut to requiered lenght: LHD = 35"
Required: 1
heater to heater valve - the inner diameter stepped from 1/2" to 5/8"
approx. 1984 on upto 1989
cut to requiered lenght
Required: 1
cylinder head
998cc (V)396448, approx. 1989 on
Required: 1
retaining hose adaptor
998cc (V)396448, approx. 1989 on
Required: 2
hose adaptor to heater tap
998cc (V)396448, approx. 1989 on
Required: 1
retaining heater hose to valve cover
998cc (V)396448, approx. 1989 on
Required: 1
with bracket. Fitted in the engine bay
998cc from VIN...396448, (from 1989)
Required: 1
heater cable to bracket heater valve
998 ccm from VIN...396448 (from 1989)
Required: 1
less bracket
998cc from VIN...396448, (from 1989)
Change the valve only. Fitted with two pozi screws, ready.
Required: 1
heater to heater valve
998cc (V)396448 on upto (V)504670
Required: 1
heater to radiator hose
998 cc models from VIN...396448 to 504670
Required: 1
heater to radiator hose
998cc (V)504671 on
Required: 1
heater hose to radiator hose
998cc (V)396448, approx. 1989 on
Required: 1

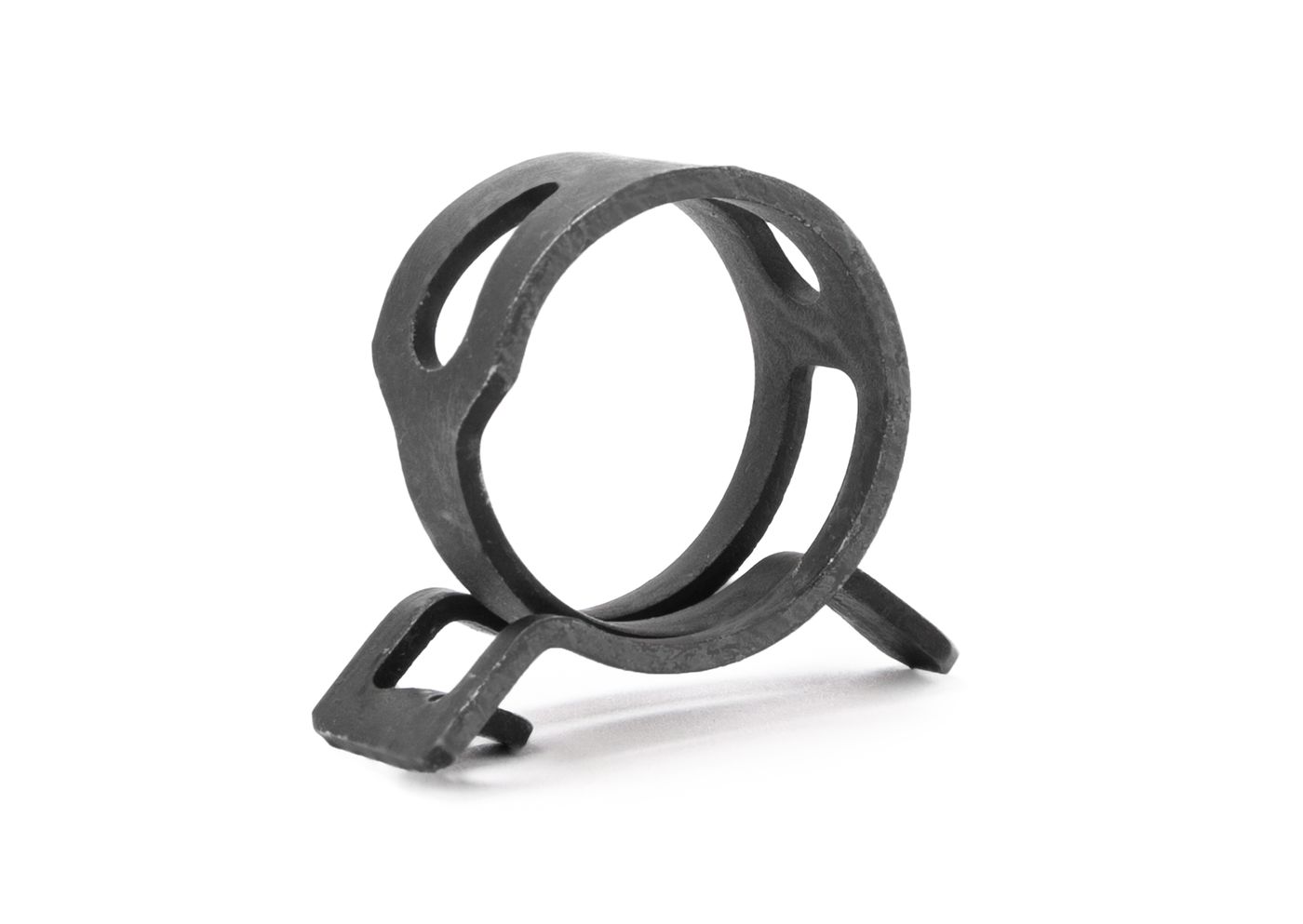

for heater hose
998cc (V)396448, approx. 1989 on
Required: 6

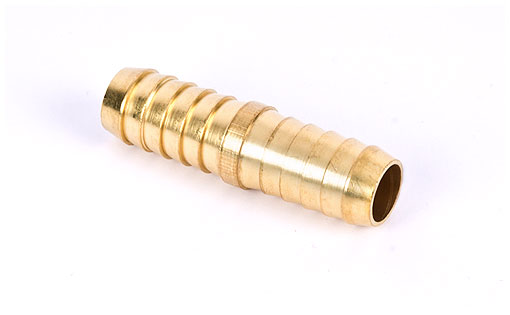

double - retaining hose to hose
998cc (V)396448, approx. 1989 on
Required: 1
cylinder head to inlet manifold, RH side
1275 cc 1990 on
Required: 1
manifold left to bottom hose and heater valve
1275 cc carburettor 1990 on
Required: 1
Engine (Thermostat) to heater valve (Interior)
1275 cc Multi Point Injection
Required: 1
with bracket. Fitted in the engine bay
1275 cc Carburettor models and 1.3 Spi to VIN...BD134455 (1990-96)
Required: 1
with bracket. Fitted in the interior
1.3 Mpi from VIN...BD134455 (1997-2000)
Required: 1
less bracket
1275 cc from 1991 on
Change the valve only. fitted with two pozi screws, ready.
Required: 1
heater to heater valve
1275 cc carburettor 1990 on
heater valve in engine bay
Required: 1
heater to heater valve
1275 cc Single Point Injection
heater valve in engine bay
Required: 1
heater to heater valve
1275 cc Multi Point Injection
interior heater valve
Required: 1
heater to radiator hose
LHD 1275 cc carburettor models from 1990
Required: 1
heater to radiator hose
RHD 1275 cc carburettor models from 1990
Required: 1
heater to thermostat housing
1275 cc Single Point Injection
Required: 1
Heater outlet (upper) to bottom cooler hose
1275 cc Multi Point Injection
Required: 1
heater hose to radiator hose
1275 cc 1990 on upto (V)504670
Required: 1
heater hose to radiator hose
1275 cc (V)504671 on
Required: 1
Extension type, for heater hose
1275 cc 1990 on
Required: 6
housing to face level vent when dashboard fitted
Required: 2

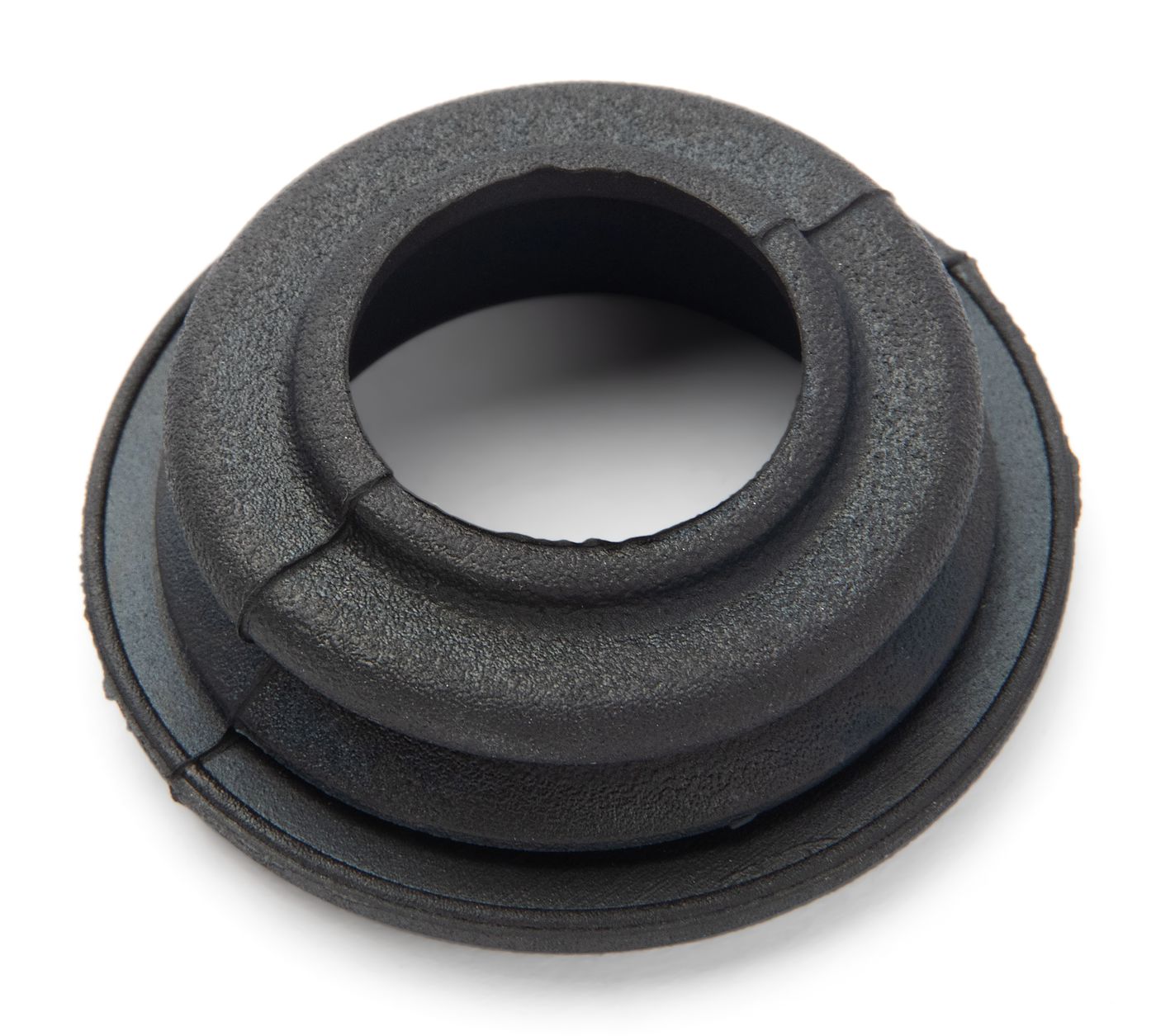

heater hose through crossmember
1959 to approx 1976
1959 to 1976
Required: 1
heater hose through crossmember
approx 1976 on up to 1988
1976 to 1988
Required: 1

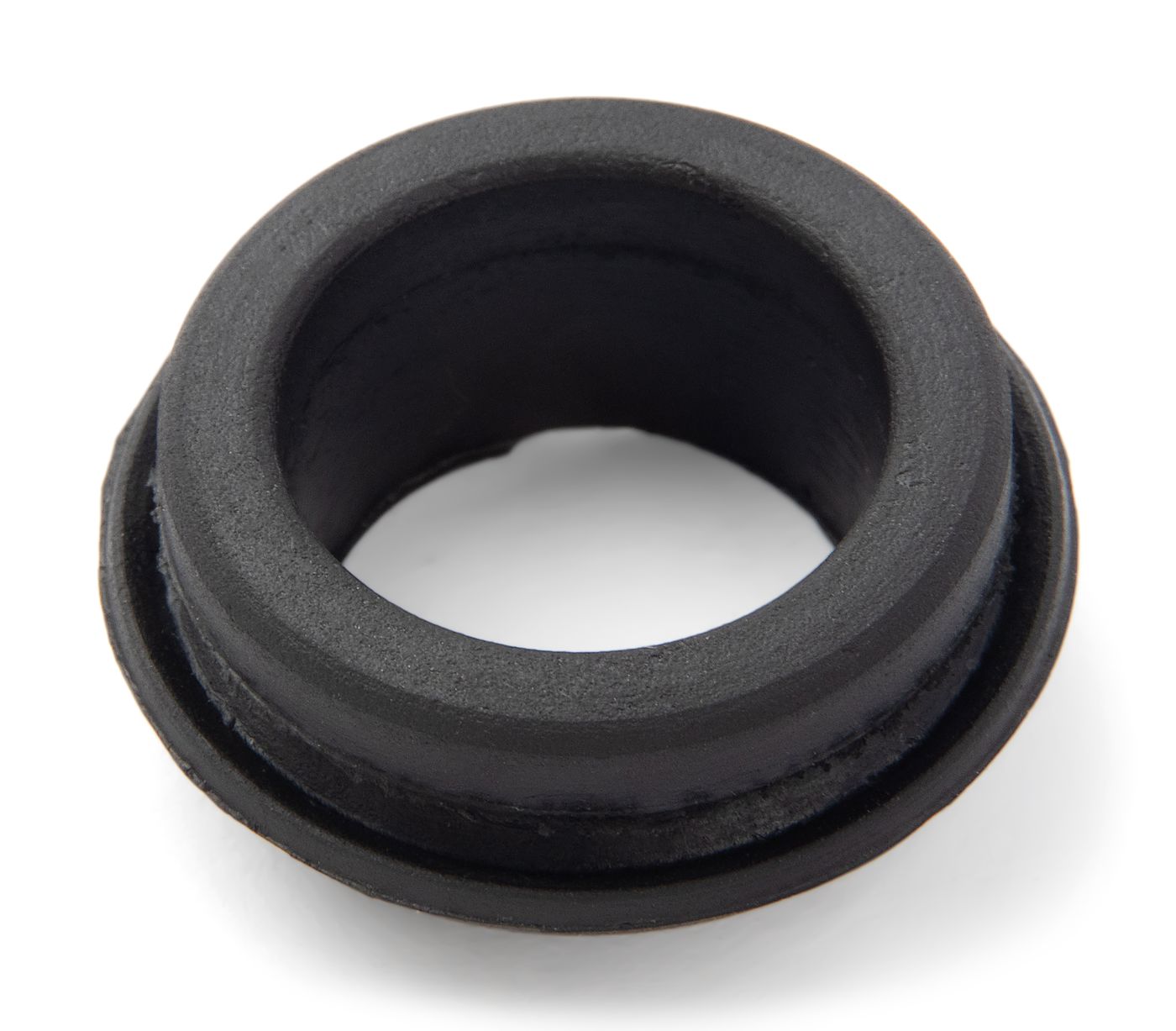

heater hose through crossmember
1959 up tp 1988
1959 to 1988
Required: 1
