Switches - MK4 1976 on

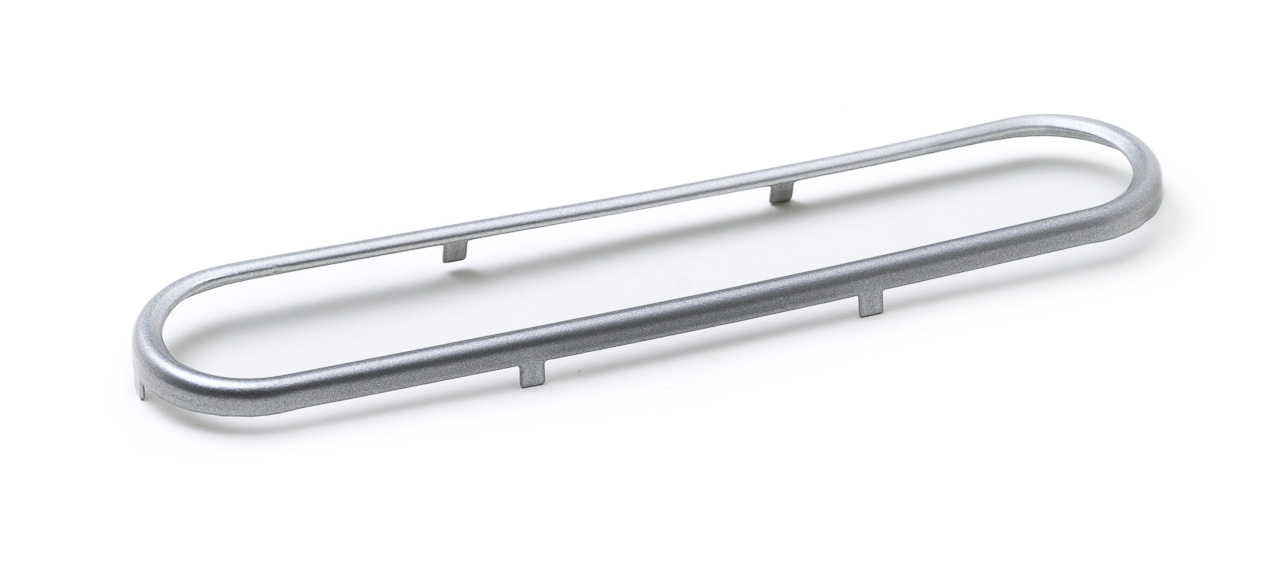

for 4 switches
1985 on
Feature: Choke cable attached with metal clip
Required: 1

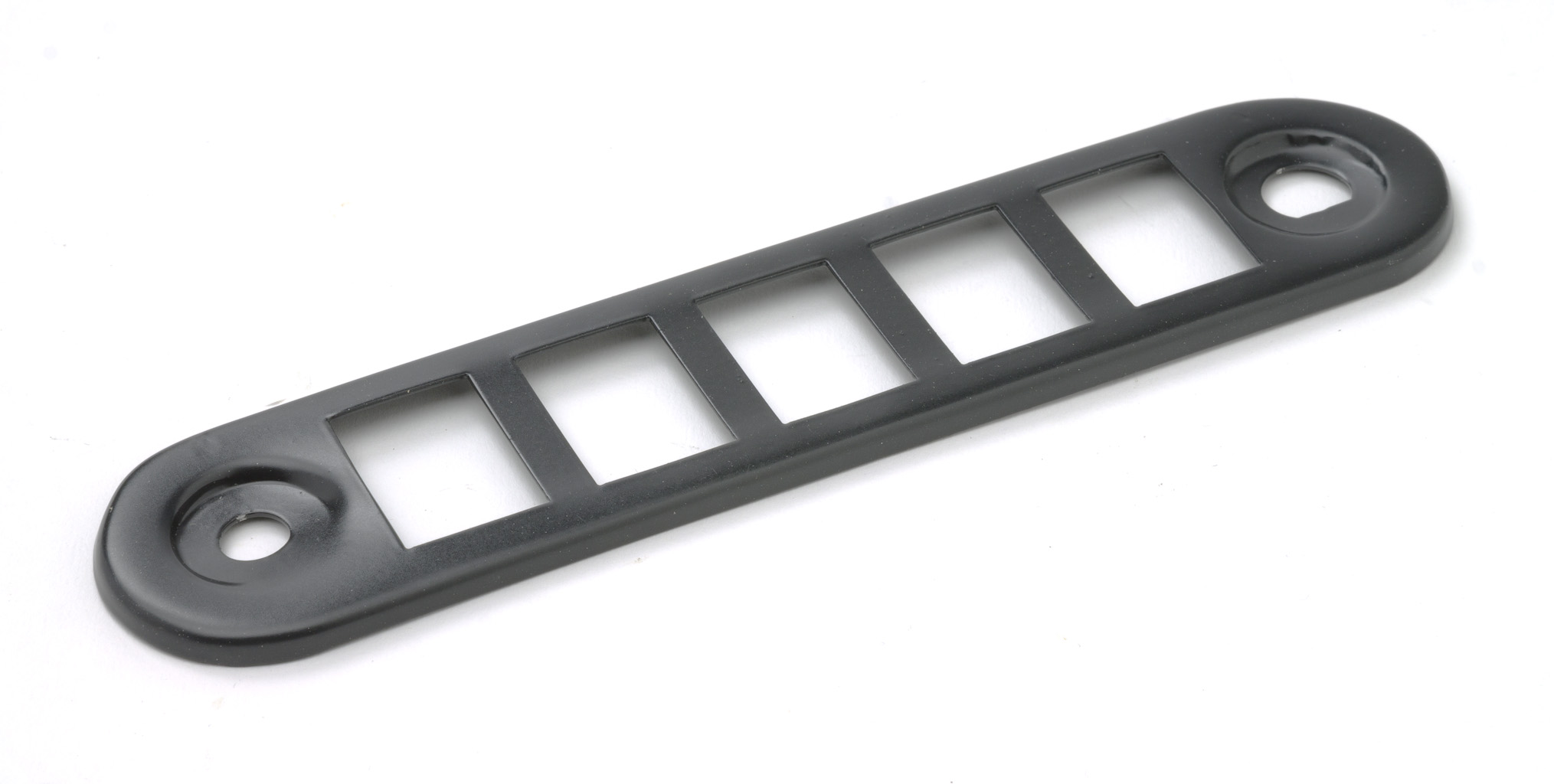

for 5 switches
late models
if works fitted front auxilliary lamps
Required: 1
head lights - variant with black bezel, pin terminals and 'lights' symbol. Hole size: 21 x 30 mm
Required: 1
light - pin terminals, with illumination
Canada only
alternative switch item no. 289285 could be used
Required: 1
front fog lamps - pin terminals (green control lamp lens)
optional - to (VIN) WM157879
if auxilliary fog lamps
Required: 1

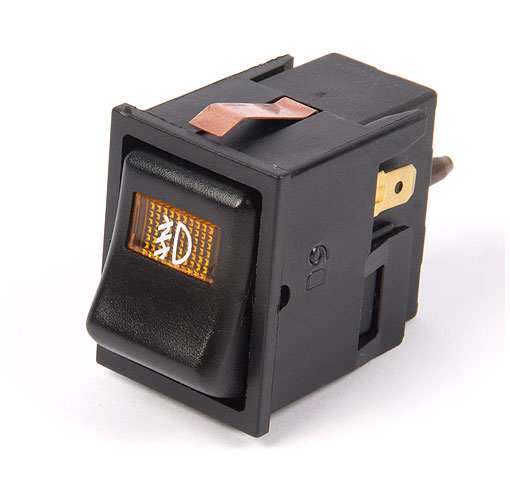

front fog lamps - pin terminals (orange control lamp lens)
from VIN...WM157880 on, optional if auxilliary fog lamps fittes. Alternative to part-no. 311653
Required: 1
12 volt, 0.75 watt, E5/8 screw base, clear bulb surface
switch illumination if fitted

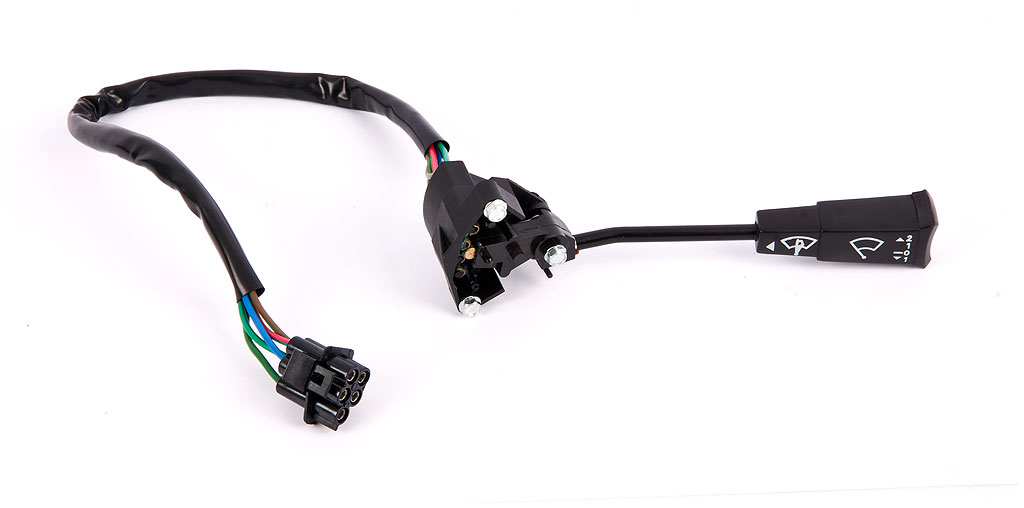

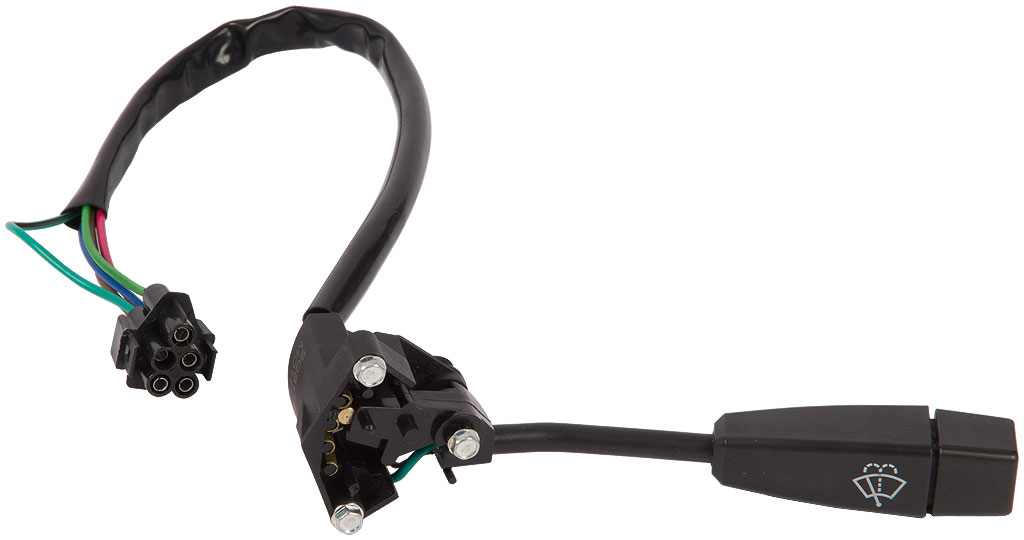

wiper switch - left hand fitted
RHD - 1976 upto 1984
serial number: 30444
Required: 1
wiper switch - right hand fitted
RHD - 1984 upto 1989, LHD - 1976 upto 1989
serial number: 30446
Required: 1
wiper switch - right hand fitted
RHD and LHD - 1989 upto 1997 Multi Point Injection
serial number: 35485
Required: 1

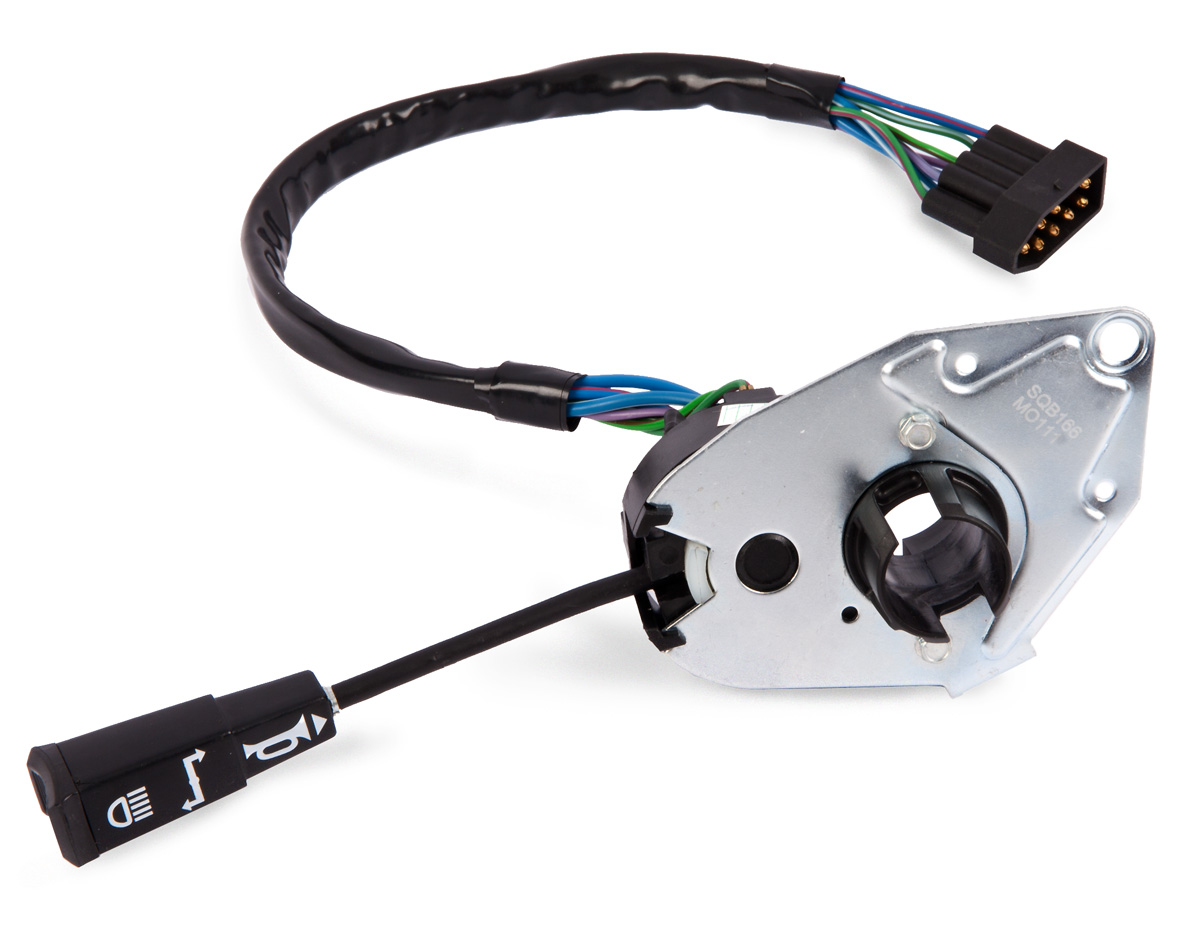

indicator switch with dip switch and horn push - right hand fitted
RHD - 1976 upto 1984
serial number: 30443
Required: 1

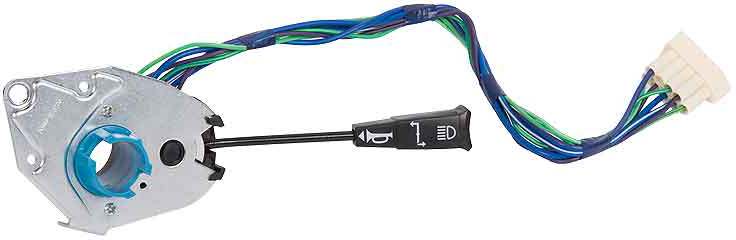

indicator switch with dip switch and horn push - left hand fitted
RHD - 1984 upto 1989, LHD - 1976 upto 1989
serial number: 30445
Required: 1
indicator, dipper lane change and horn - left hand fitted
RHD and LHD - 1989 upto 1997 Multi Point Injection
serial number: 35483
Required: 1
complete unit with indicator and wiper switch
1997 Multi Point Injection on
Required: 1
indicator, dipper lane change and headlamp flash - characteristic: square type, fitted on the left hand side of the column
1997 Multi Point Injection on
Required: 1
windscreen wipe and wash - characteristic: square type, fitted on the right hand side of the column
1997 Multi Point Injection on
Required: 1

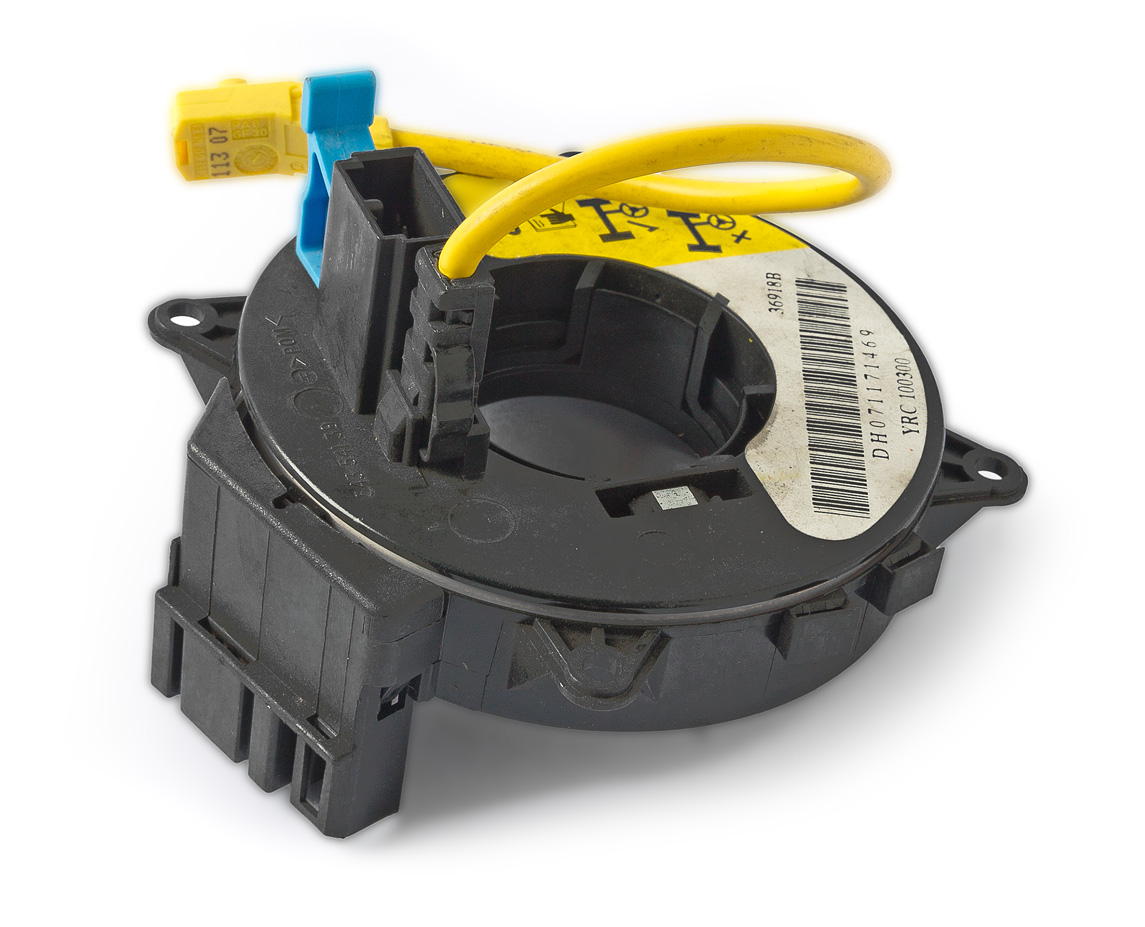

for steering wheel with air bag
1.3 Mpi (1997-2000)
Required: 1
for not used cutouts for rocker switches - size: 33 x 26 mm
electric sunroof
limited edition British Open and others
if fitted
Required: 1
interior light - metal base
upto (V)BD103112
screw fitting to A-Panel, alternative switch 243377 could be used
Required: 2
retaining switch interior light to A-panel
Required: 2
heater
upto (V)BD134454, 1997 Multi Point Injection
single speed
Required: 1

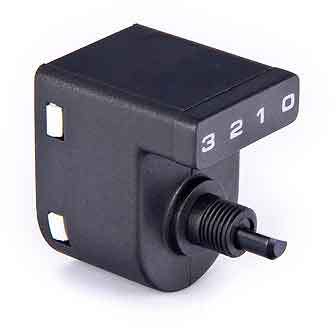

heater
(V)BD134455, 1997 Multi Point Injection on
twin speed
Required: 1

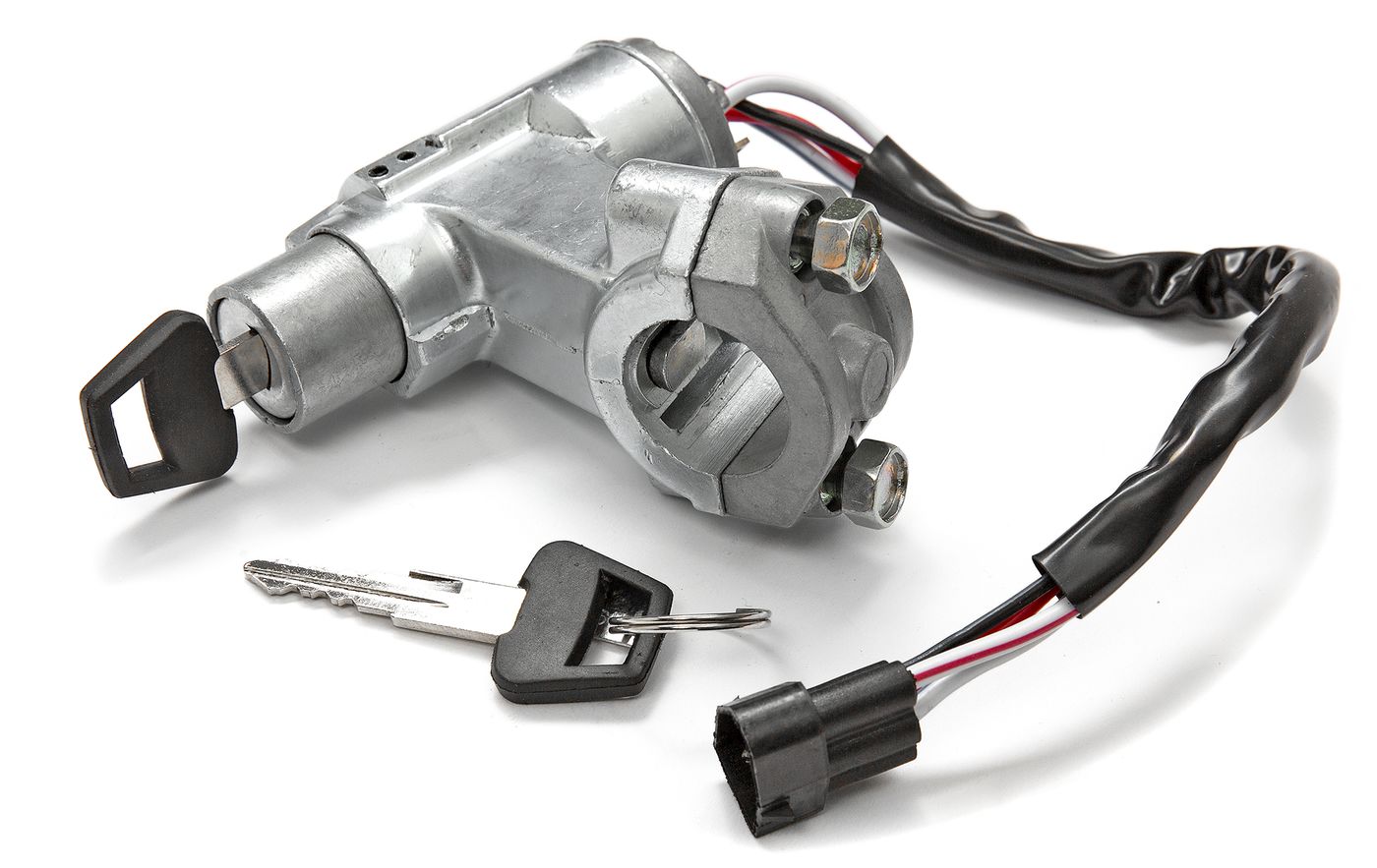

with ignition switch and 2 keys - characteristic: key enters in front of driver
upto (V)BD134454, 1997 Multi Point Injection
Required: 1
retaining steering lock
upto (V)BD134454, 1997 Multi Point Injection
Required: 2
with ignition switch and 2 keys
(V)BD134455, 1997 Multi Point Injection on
Required: 1
retaining steering lock
(V)BD134455, 1997 Multi Point Injection on
Required: 2
