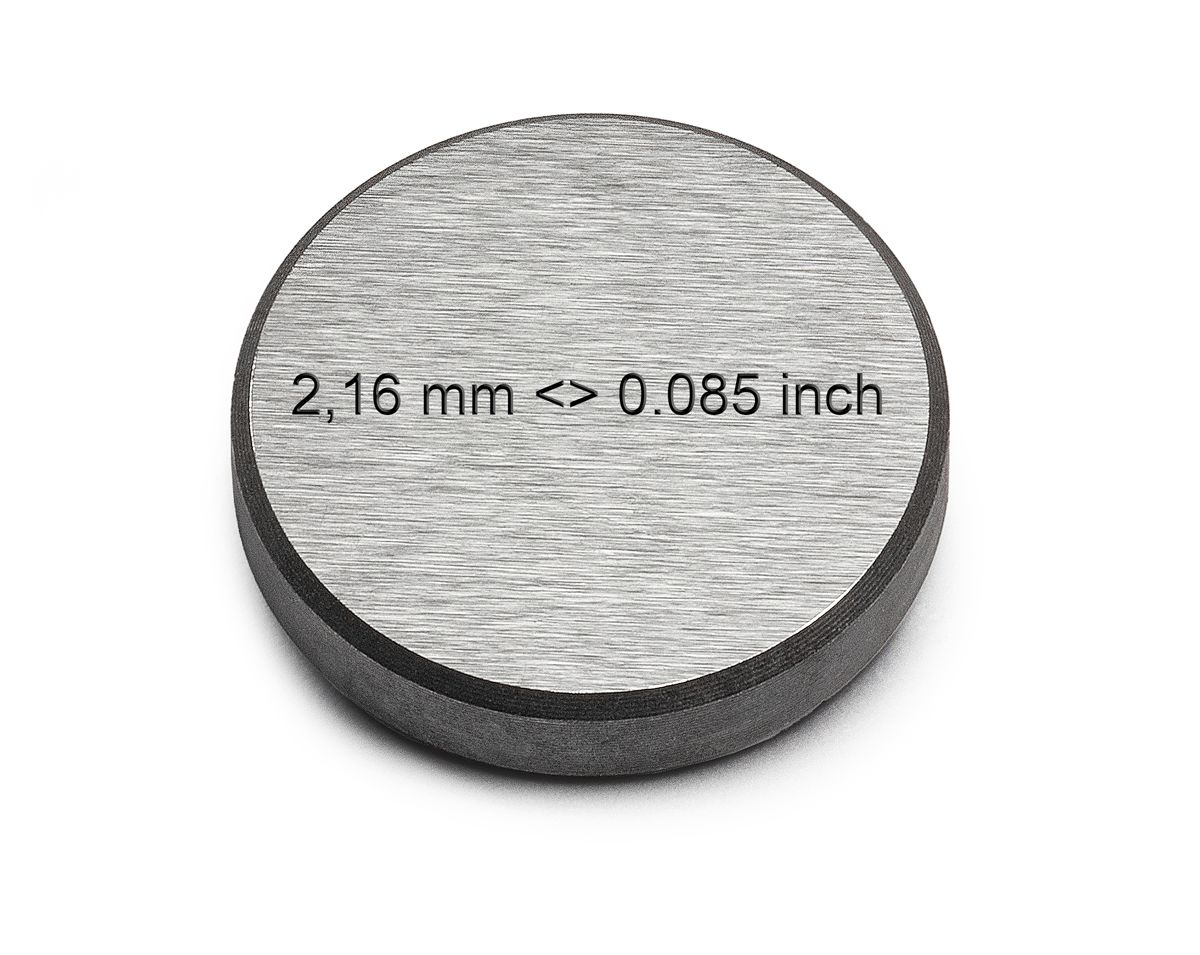

Tappet adjusting pad

thickness 2,16 mm <> 0,0850 inch --- (diameter 17,44 mm <> 0,6126 inch) Original number C2243/A

Top-mounted camshafts in combination with cup tappets have a number of design advantages. The direct drive of the valves has a low profile and allows maximum performance with few moving parts. Tappets with a shim for valve lash adjustment provide a firm connection for actuating the valves. The design is very reliable even under thermal load, very speed-resistant, cannot move and the maintenance intervals are long. The alternative to bucket tappets with shims are bucket tappets with hydraulic valve lash adjustment, in short: hydraulic tappets, which, however, can wear out and are far less solid and therefore less reliable in operation.
Adjusting the valve lash using shims therefore has a number of design advantages that are used in many demanding engines. These include: Many high-revving motorcycle engines, some Alfa and Fiat machines or even the current Jaguar AJ8 engine
When it comes to adjusting the valve clearance, you need a micrometer screw, a calculator, a variety of shims in the back, a feeler gauge and a lot of patience. That's why valve clearance adjustments with shims are considered difficult, but this is not true: With a system and the right tools, valve lash adjustment is quite feasible:
If you do not want to leave the engine open, make sure you have a sufficient supply of shims in advance. Used shims without traces of use can be reused, please check the printed dimension with the help of the micrometer screw. Many shims are labeled in inches and metric. Usually it is much easier to calculate with the metric dimensions. Errors in the conversion range occur, please check the plausibility of the selected shims before assembling.
The oversizes from 3.20 mm to 4.50 mm are exclusively available from us. These oversizes are required when standard camshafts have been re-ground. Either as part of an overhaul, or to extend valve opening times. We also carry undersizes from 2.00 mm to 2.15 mm. These undersizes allow the correct adjustment of the valve lash when the valve seat is heavily worn.
