Differential - MK3
with 4.11:1 ratio and overhauled crown wheel and pinion - reconditioned, in exchange
Ratio: 4.11:1
Required: 1
with 4.11:1 ratio and new crown wheel and pinion - reconditioned, in exchange
Ratio: 4.11:1
Required: 1
with new crown wheel and pinion - exchange
Ratio: 3.89:1
Required: 1
with 4.11:1 ratio. Please note: The assembly is carried out with solid spacer and shims
Required: 1
with 3.89:1 ratio. Please note: The assembly is carried out with solid spacer and shims
Required: 1
To chassis no. FD22570 (to differential no. FC106498)
Required: 1
From chassis no. FD22571 (from differential no. FC120000)
Required: 1
crown wheel to differential carrier
Required: 8
0.009"
0.013"
0.014"
0.020"
differential - 16 teeth
To chassis no. FD22570 (to differential no. FC106498)
Required: 2
differential - 16 teeth
From chassis no. FD22571 (from differential no. FC120000)
Required: 2
sun gear - always replace in pairs
Required: 2
planet gears
Required: 1

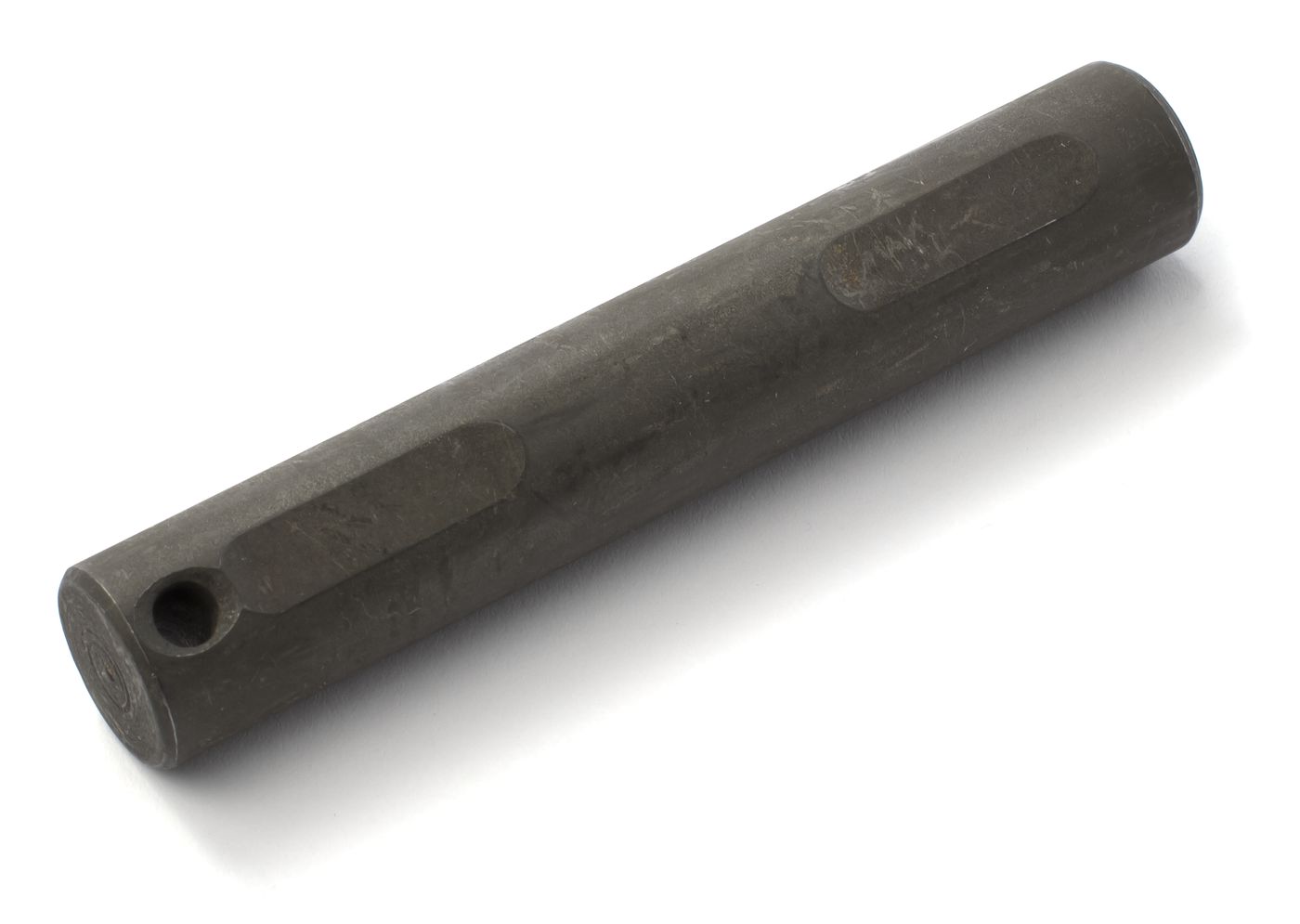

differential pinion shaft
Required: 1
differential - 10 teeth
To chassis no. FD22570 (to differential no. FC106498)
Required: 2
differential - 10 teeth
From chassis no. FD22571 (from differential no. FC120000)
Required: 2
planet gear - 0.036"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.040"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.044"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.048"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.052"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.056"
To chassis no. FD22570 (to differential no. FC106498).
planet gear - 0.027"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.029"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.031"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.033"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.035"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.037"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.039"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.041"
From chassis no. FD22571 (from differential no. FC120000).
planet gear - 0.043"
From chassis no. FD22571 (from differential no. FC120000).
oil drain and oil filler - 5/16" allen drive with 5/8" x 18 SAE thread, tappered, 1/2" total height
Required: 1
Required: 4
half shaft
To chassis no. FD22570 (to differential no. FC106498)
Required: 2
half shaft
From chassis no. FD22571 (from differential no. FC120000)
Required: 2
half shaft
To chassis no. FD22570 (to differential no. FC106498).
Required: 2
half shaft
From chassis no. FD22571 (from differential no. FC120000)
Required: 2
half shaft ball bearing
Required: 2
propshaft - square type
Required: 1
differential breather
An 1/8" breather hole must be drilled into the plug
Required: 1
- large
LH side only
Required: 1
