Instruments - TR5/250, TR6 to September 1972
SN6409/05A with mechanical drive and 5" diameter, black dial and black bezel. Range: 0-210 KP/H, final ratio: 3.45:1, turns: 680 - reconditioned, in exchange
TR5, TR6 P.I. to CP77718 (September 1972) – feature: 3.45:1 rear axle ratio and 165/80 section tyres
Required: 1
exchange - serial no. SN6409/04 resp. SN6409/06, range in MP/H
TR5, TR6 P.I. to CP77718 (September 1972) – feature: 3.45:1 rear axle ratio and 165/80 section tyres
Required: 1
exchange - serial no. SN6409/11, range in KP/H
TR250, TR6 Carburettor models to CC85737 (September 1972) – feature: 3.7:1 rear axle ratio and 185/80 section tyres
Required: 1
SN6409/08A with mechanical drive and 5" diameter, black dial and black bezel. Range: 0-130 MP/H, final ratio: 3.7:1, turns: 1120 - reconditioned, in exchange
TR250, TR6 Carburettor models to CC85737 (September 1972) – feature: 3.7:1 rear axle ratio and 185/80 section tyres
Required: 1
RN2413/00 with mechanical drive and 5" diameter, black dial and black bezel. Range: 0-6000 RPM - reconditioned, in exchange
Required: 1

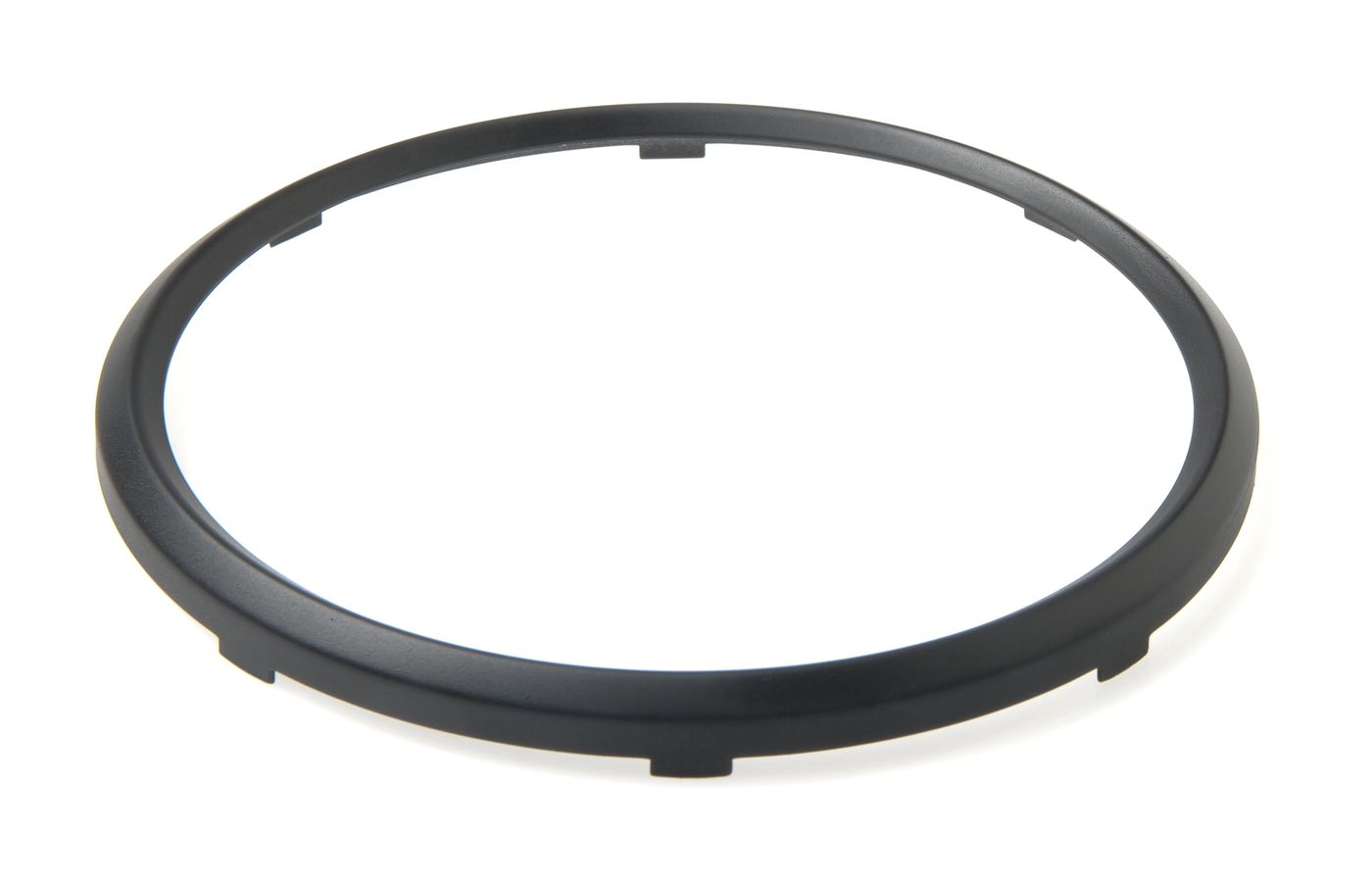

for speedometer and tachometer
round profile, inner
Required: 2
for speedometer and tachometer
square profile, outer
Required: 2
for bulbs with BA9s bayonet base - variant with screw connection for single wire
Required: 4
for gauges with studs with 3BA thread - in aluminium with 1/2" outer diameter
Required: 4
for gauges with studs with 3BA thread - in brass with 1/2" outer diameter
Required: 4
for speedometer and tachometer
Required: 4

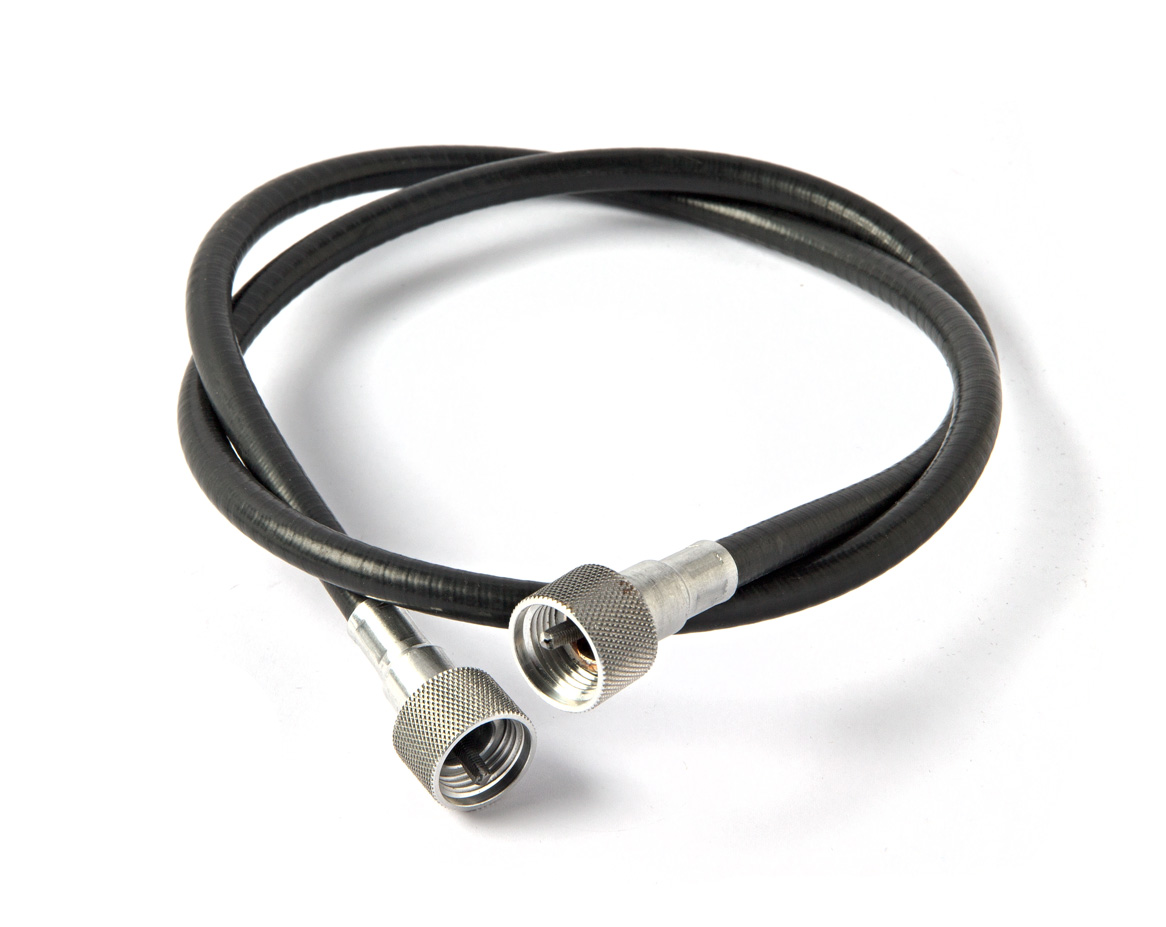

speedometer cable
Overdrive models only
Required: 1
speedo cable to chassis
LHD models without overdrive
Required: 1
speedo cable through bulkhead and wheel arch gusset
Required: 2
for speedometer and tachometer
Made from rubber
Required: 2
exchange - serial no. PL2302/33
Required: 1
between oil gauge and cylinder block
TR5, TR6 P.I.
Required: 1
between oil gauge and cylinder block
TR250, TR6 Carburettor
Required: 1
BT2215/00 - electric operated 12 volt auxilary gauge with 52 mm diameter, shrouded black dial with hanging pointer and black bezel. Range: C-N-H. Reconditioned, in exchange
Required: 1
water temperature - screwed into water pump housing
Required: 1
auxiliary gauges - in metal with insulation to the bracket, for two cables - variant with E10/13 screw base for bulb 2877
Required: 4
for gauges with studs with 3BA thread - in aluminium with 1/2" outer diameter
Required: 8
for gauges with studs with 3BA thread - in brass with 1/2" outer diameter
Required: 8
for instruments with 2" diameter, black painted - fuel gauge, oil pressure gauge, time clock and ammeter
Required: 4
electrical 12 volt clock CA1100-01 with 52 mm diameter. Black dial with white illumination, flat glass, black bezel, range: 12 hours with external rest switch. Variant with internal lit
Required: 1
€180.00
