Instruments and switches 3.8 and 4.2 Series 1 (1961-67)
36262 - exchange item for positive earthed cars
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Richiesto: 1
modello: 36342A, Quadrante e bordo nero, lancetta indicatrice sospesa, Indicazione: C-0-D, 60 Ampere - nuovo pezzo con doppia polarità
Richiesto: 1
36293 - exchange item for negative earthed cars
4.2 Series 1 OTS from 1E1001 to 1E1863 (RHD) and from 1E10001 to 1E15888 (LHD), FHC from 1E20001 to 1E21583 (RHD) and from 1E30001 to 1E34249 (LHD), 2+2 from 1E50001 to 1E50974 (RHD) and from 1E75001 to 1E77644 (LHD) (1964-67)
Richiesto: 1

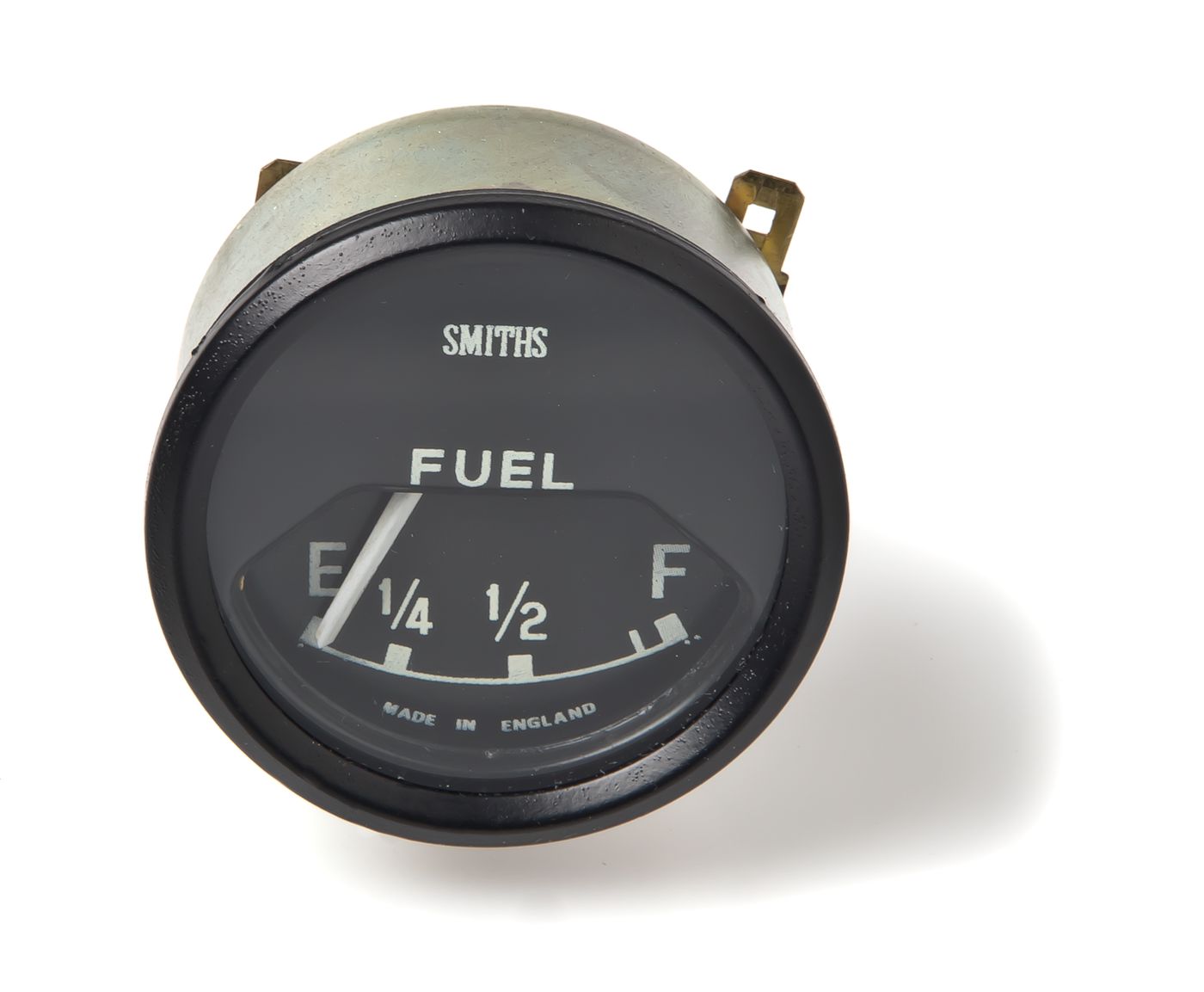

BF2200/01. Black dial with white illumination and clear glass, black bezel, range: E-1/4-1/2-F - reconditioned, in exchange
3.8 and 4.2 Series 1 OTS to 1E1863 (RHD) and 1E15888 (LHD), FHC to 1E21583 (RHD) and 1E34249 (LHD) (1961-67)
Richiesto: 1
BF2200/01 - new item. Black dial with white illumination and clear glass, black bezel, range: E-1/4-1/2-F
3.8 and 4.2 Series 1 OTS to 1E1863 (RHD) and 1E15888 (LHD), FHC to 1E21583 (RHD) and 1E34249 (LHD) (1961-67)
Richiesto: 1
BF2200/09 - exchange item. Black dial with white illumination and clear glass, black bezel, range: E-1/4-1/2-3/4-F
4.2 Series 1 and 1.5 2+2 from 1E50001 to 1E51379 (RHD) and from 1E75001 to 1E79222 (LHD) (1966-68)
Richiesto: 1
PE2300/02 - exchange item. Black dial with white illumination and clear glass, black bezel, range 0-20-40-60 in lbs/in²
Richiesto: 1
PE2300/02 - new item for positive earthed cars. Black dial with white illumination and clear glass, black bezel, range 0-20-40-60 in lbs/in²
Richiesto: 1
PE2300/02 - new item for negative earthed cars. Black dial with white illumination and clear glass, black bezel, range 0-20-40-60 in lbs/in². Supplied with oil pressure sender
Richiesto: 1
BT2200/01. Black dial with white illumination and clear glass, black bezel, range: 30-70-110 °C - reconditioned, in exchange
Richiesto: 1
BT2200/01 - new item. Black dial with white illumination and clear glass, black bezel, range: 30-70-110°C
Richiesto: 1
RV7403/00 - reconditioned, in exchange. Clock not inclusive
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Richiesto: 1
RV7413/11 - reconditioned, in exchange. Clock not inclusive
4.2 Series 1 OTS from 1E1001 to 1E1863 (RHD) and from 1E10001 to 1E15888 (LHD), FHC from 1E20001 to 1E21583 (RHD) and from 1E30001 to 1E34249 (LHD), 2+2 from 1E50001 to 1E50974 (RHD) and from 1E75001 to 1E77644 (LHD) (1964-67)
Richiesto: 1

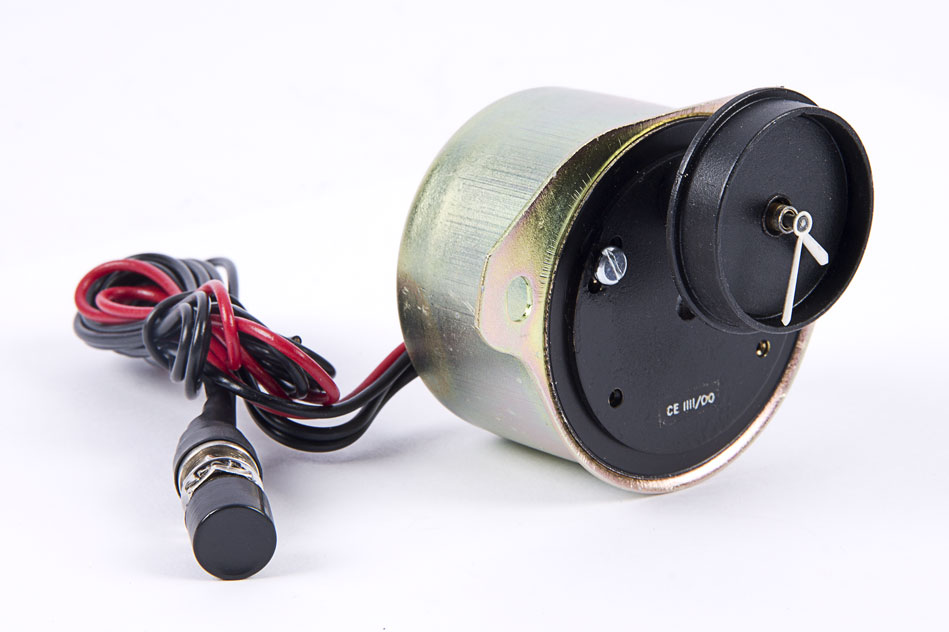

CE1111/00 - reconditioned, in exchange. Works with positive earth only
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Richiesto: 1
CE1111/01, works with either positive and negative earth - reconditioned, in exchange
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Richiesto: 1
CE1114/00 - reconditioned, in exchange. Works with either positive and negative earth
4.2 Series 1 (1964-67): OTS from 1E1001 to 1E1863 and from 1E10001 to 1E15888, FHC from 1E20001 to 1E21583 and from 1E30001 to 1E34249, 2+2 from 1E50001 to 1E50974 and from 1E75001 to 1E77644
Richiesto: 1
0-160 MPH
Richiesto: 1
Modello: SN6322/00, gamma: 0-160 MP/H, giri: 1216, rapporto finale: 3,31:1 - articolo nuovo-scambio
Richiesto: 1
model: SN6322/00, range: 0-160 MP/H, turns: 1216, final ratio: 3.31:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/03, range: 0-160 MP/H, turns: 1312, final ratio: 3.54:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/06, range: 0-160 MP/H, turns: 1086, final ratio: 2.93:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/09, range: 0-160 MP/H, turns: 1120, final ratio: 3.07:1 - reconditioned, in exchange
Richiesto: 1
please note: Use this part no., if you wish to have a speedo conversion to KP/H in addition to your reconditioning. Please add also the final ratio and the tyre size from your car
Richiesto: 1
model: SN6322/01, range: 0-260 KP/H, turns per Km: 760, final ratio: 3.31:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/02, range: 0-260 KP/H, turns per Km: 760, final ratio: 3.31:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/05, range: 0-260 KP/H, turns: 820, final ratio: 3.54:1 - reconditioned, in exchange
Richiesto: 1
modello: SN6322/05, visualizzazione: 0-260 KM/H, giri: 820 - nuovo
Richiesto: 1
model: SN6322/08, range: 0-260 KP/H, turns per Km: 678, final ratio: 2.93:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/10, range: 0-260 KP/H, turns per Km: 700, final ratio: 3.07:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/11, range: 0-260 KP/H, turns per Km: 700, final ratio: 3.07:1 - reconditioned, in exchange
Richiesto: 1
model: SN6322/30, range: 0-260 KP/H, turns per Km: 820, final ratio: 3.54:1 - new item
Richiesto: 1
for positive earthed cars. Fitted to back side of speedometer
Richiesto: 1
for negative earth cars. Fitted to back side of speedometer
Richiesto: 1

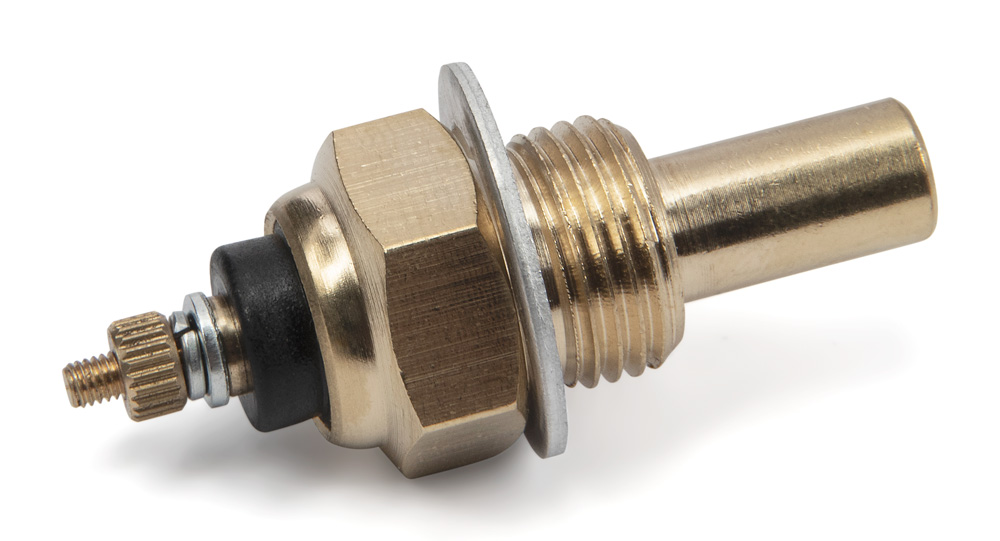

at RH side of cylinder block
Richiesto: 1
with thread for screw contact
3.8 Series 1 OTS from 850001 to 850943 (RHD) and from 875001 to 881887 (LHD), FHC from 860001 to 861799 (RHD) and from 885001 to 890873 (LHD) (1961-64)
Richiesto: 1
with lug for plug contact
4.2 Series 1 OTS from 1E1001 to 1E1863 (RHD) and from 1E10001 to 1E15888 (LHD), FHC from 1E20001 to 1E21583 (RHD) and from 1E30001 to 1E34249 (LHD), 2+2 from 1E50001 to 1E50974 (RHD) and from 1E75001 to 1E77644 (LHD) (1964-67)
Richiesto: 1
for retaining speedometer and rev counter - made of aluminium with 12.7 mm outer diameter
Richiesto: 4
for retaining the smaller instruments - made of aluminium with 9.5 mm outer diameter
tachometer - on inlet camshaft
Richiesto: 1

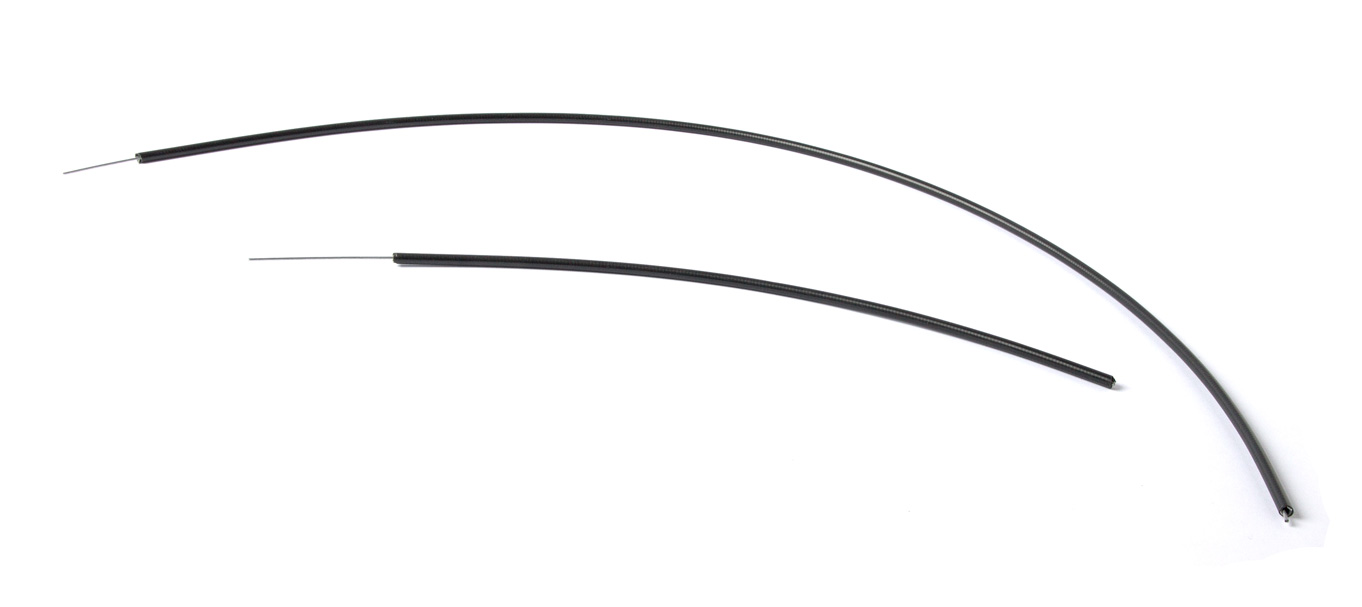

length: 60"
3.8 Series 1 (1961-64): LHD and RHD models
Richiesto: 1
with 66" length. For LHD models with manual transmission
4.2 Series 1 and 1.5 OTS and FHC models (1964-68)
Richiesto: 1
with 50" length. For RHD models with manual transmission
4.2 Series 1 and 1.5 OTS and FHC models (1964-68)
Richiesto: 1
length: 71"
2+2 LHD models with manual transmission
Richiesto: 1
length: 55"
2+2 RHD models with manual transmission
Richiesto: 1
length: 68"
2+2 LHD models with automatic transmission
Richiesto: 1
with 64" length for RHD models
2+2 models with automatic transmission
Richiesto: 1

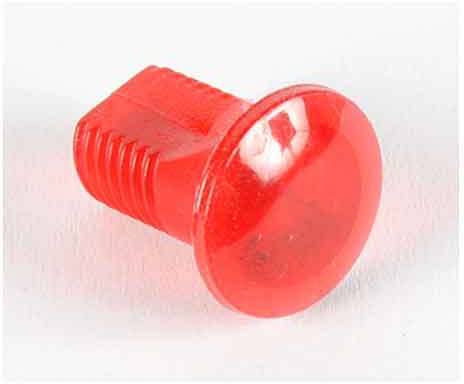

for warning lamp - hand brake and brake fluid level
Richiesto: 1
handbrake warning light and choke warning light
Richiesto: 1
covered with black vinyl
Richiesto: 1
centre part dashboard, instrument panel
Richiesto: 1

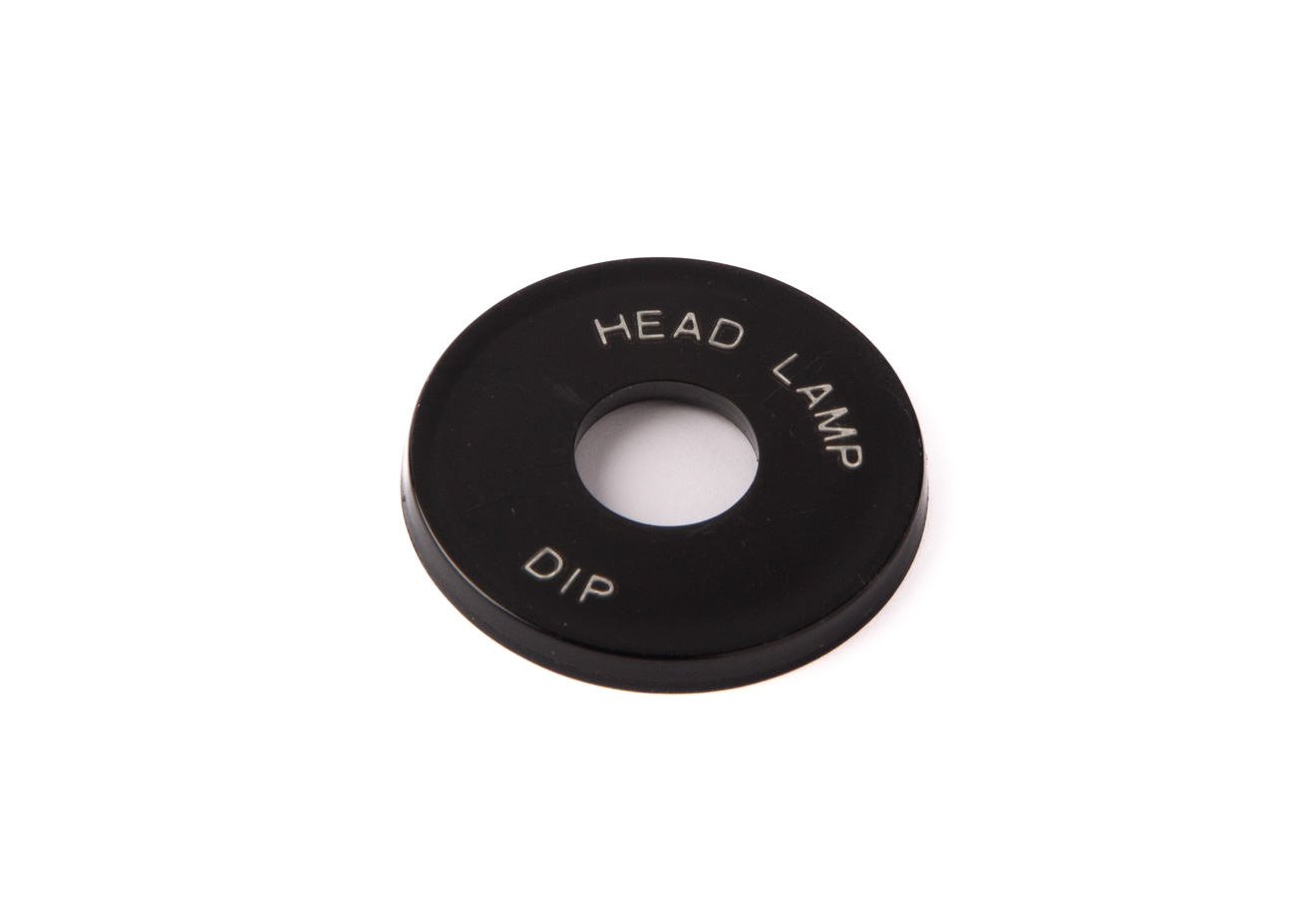

headlight switch
Richiesto: 1
for Lever
Richiesto: 1
with two keys. Ignition switch
Not suitable for models with steering column locks
Richiesto: 1
without barrel and keys. Comes with modern bezel, re-use existing
3.8 Series 1 (1961-64)
Richiesto: 1

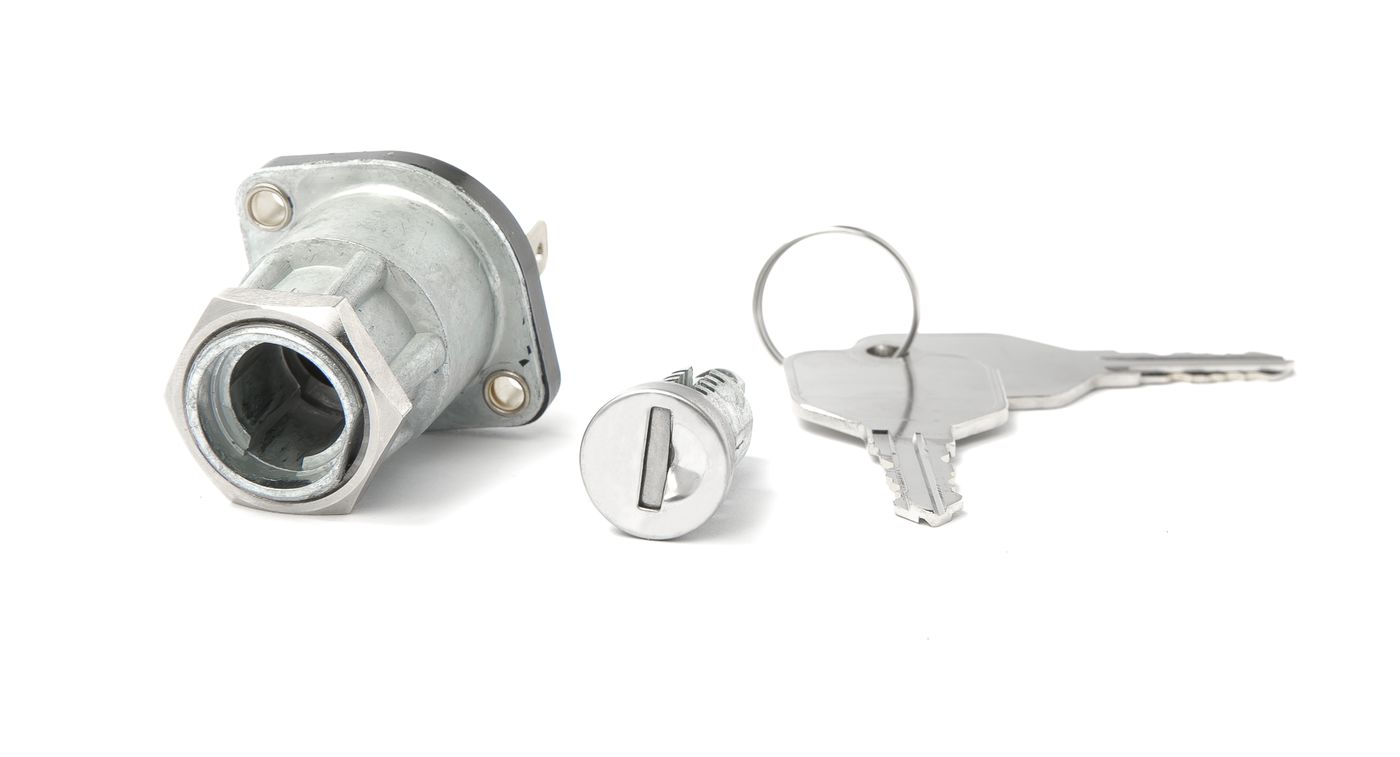

with barrel and key
4.2 Series 1 (1964-67)
Richiesto: 1
with knob - variant with push on terminals
Richiesto: 1
Earlier Jaguar XK type, may need some modification
Richiesto: 1
cigar lighter
Richiesto: 1

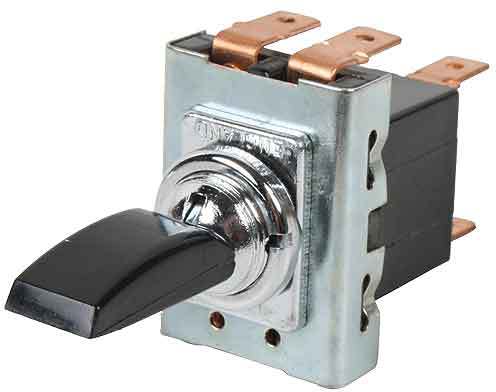

windscreen wiper - two speed
Richiesto: 1
for toggle switches, plastic, black - set of 6 pieces
Richiesto: 1

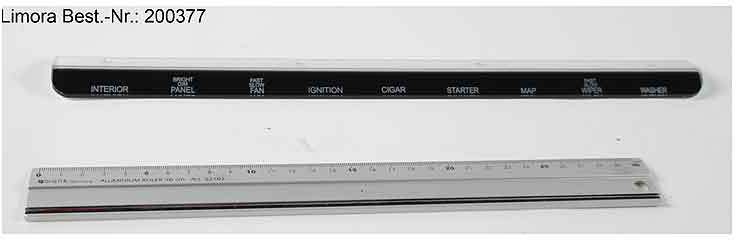

switch plate
4.2 Series 1 and 1.5 (1964-68)
Richiesto: 1

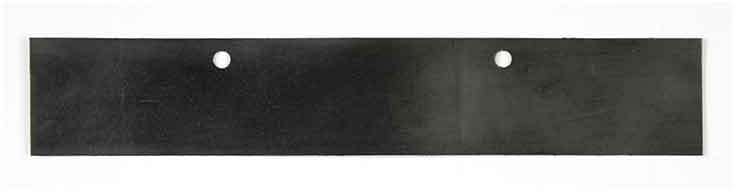

sealing switch plate
4.2 Series 1 and 1.5 (1964-68)
Richiesto: 1
retaining switch plate seal
4.2 Series 1 and 1.5 (1964-68)
Richiesto: 2
indicator, dipper lane change and headlamp flash - variant with reset mechanism
3.8 Series 1 OTS to 880870and 850810, FHC to 889819 and 861460 (to May 1964) - may need modification on very early models without reset mechanism
Richiesto: 1
indicator, dipper lane change and headlamp flash
later 3.8 and 4.2 Series 1 OTS from 880871 to 1E15888 and from 850811 to 1E1863, FHC from 889820 to 1E34249 and from 861461 to 1E21583 (May 1964 to September 1967)
Richiesto: 1
indicator, dipper lane change and headlamp flash
4.2 Series 1 and 1.5 to September 1967: 2+2 models from 1E50001 to 1E50974 and from 1E75001 to 1E77644
Richiesto: 1
indicator, dipper lane change, headlamp flash and horn
4.2 Series 1.5 from September 1967 on: 2+2 models from 1E50975 and 1E77645
Richiesto: 1
indicator lever
Richiesto: 1

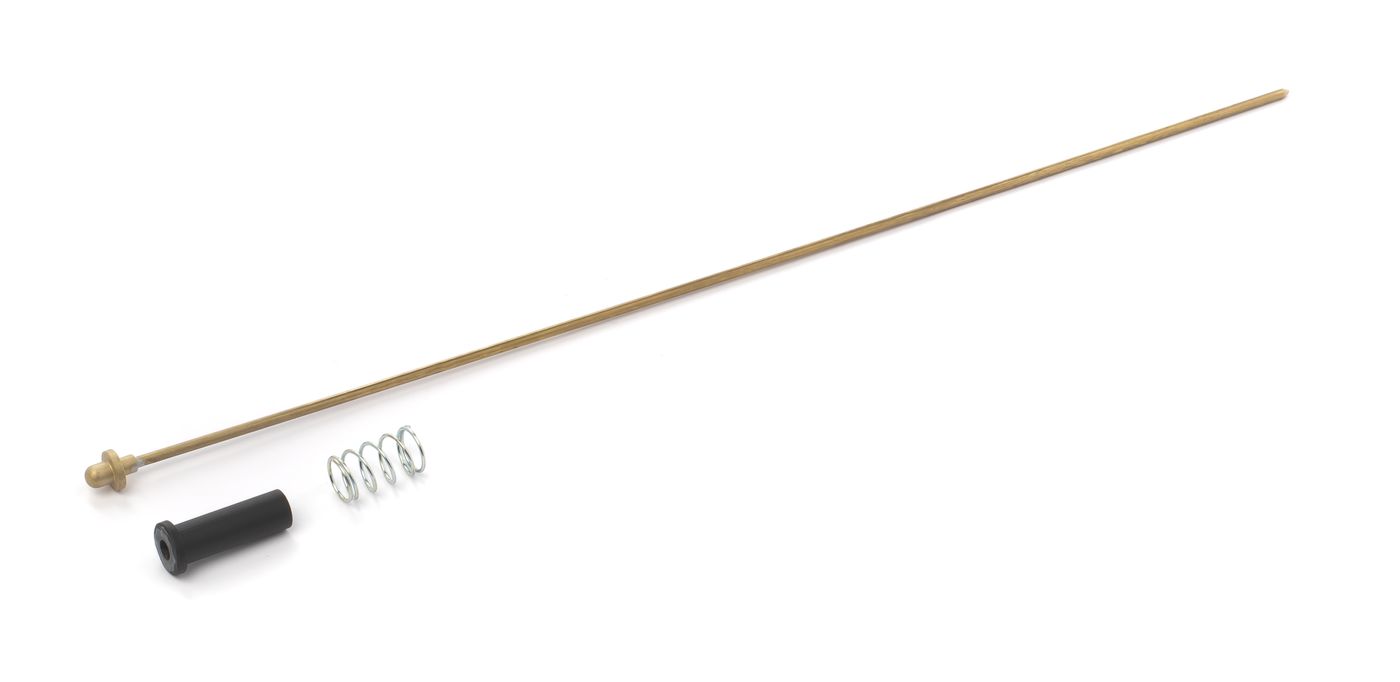

choke operation
Richiesto: 1

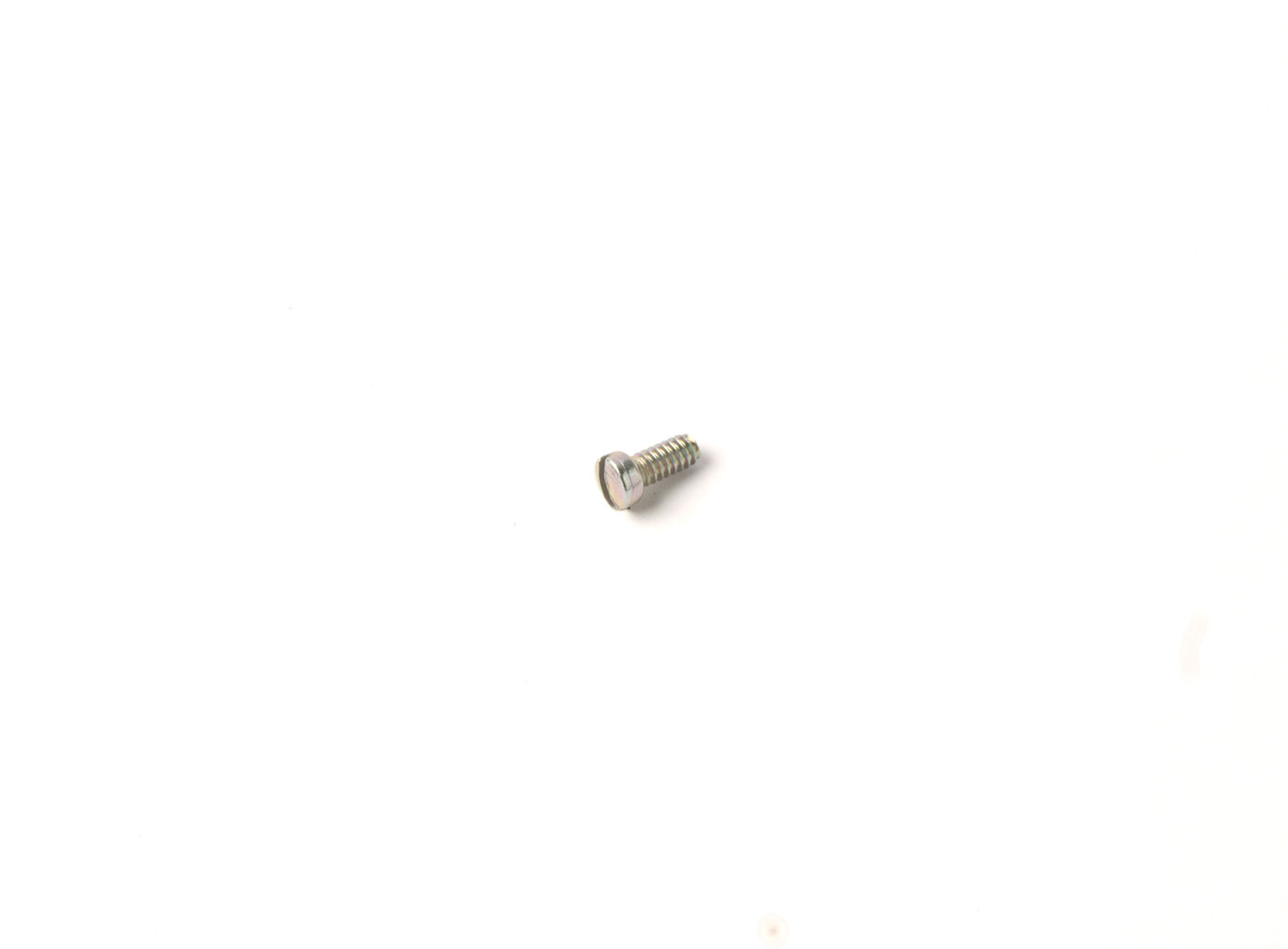

retaining choke base plate to dash board bracket
Richiesto: 1
retaining choke base plate to dash board bracket
Richiesto: 1
retaining choke base plate to dash board bracket
Richiesto: 1
choke lever
Richiesto: 1
choke lever
Richiesto: 1
5/16" - diametro esterno: 11/16" - spessore: 1,5 mm
Richiesto: 1
retaining choke cable to control lever
Richiesto: 1
retaining choke cable to control lever
Richiesto: 1
