Impianto elettrico

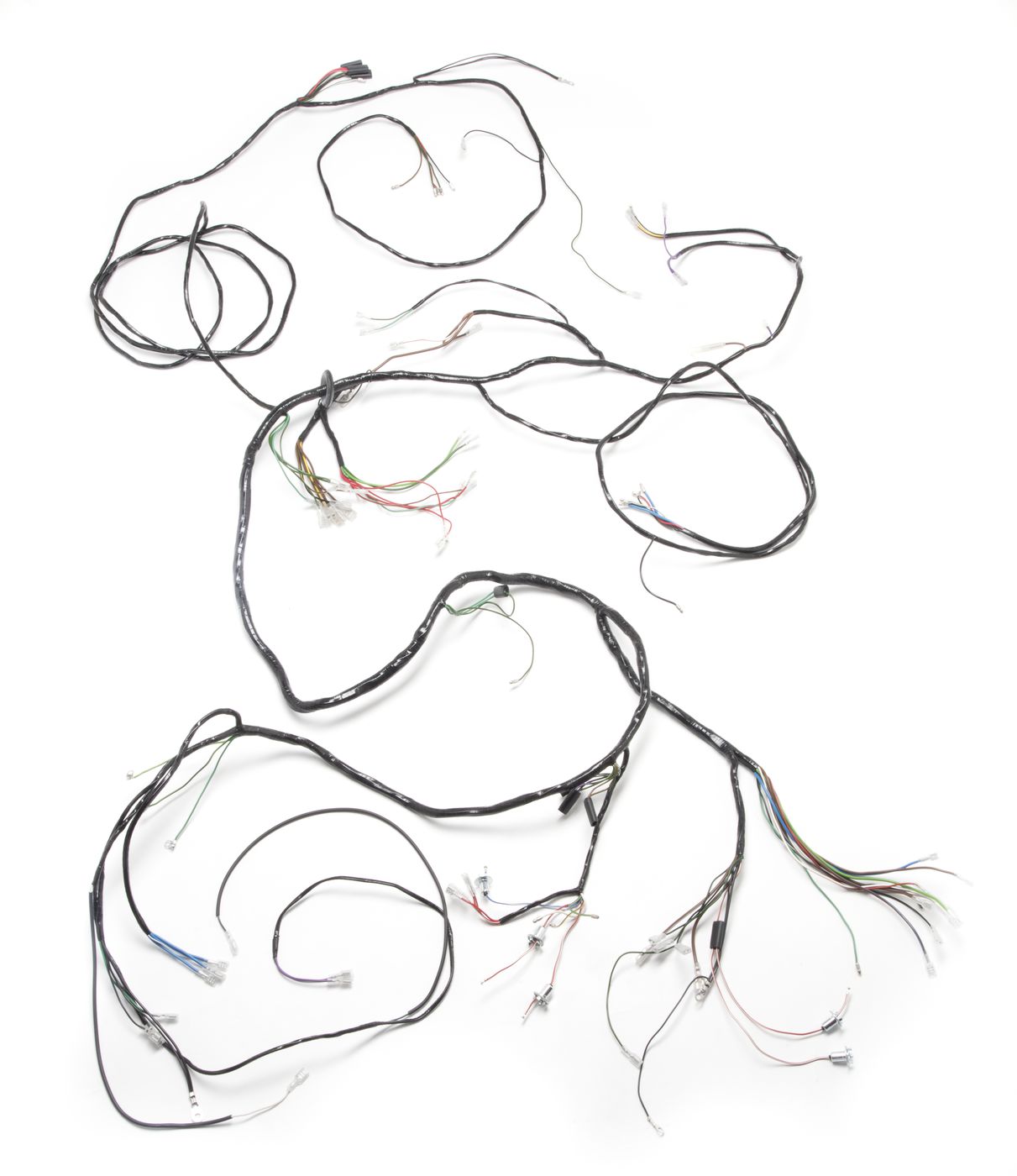

PVC cable and braided outer covering

TR2, TR3 to TS12568

- identify by non self parking wiper motor fitted on RH side of bulkhead and brake switch on LH side in engine bay

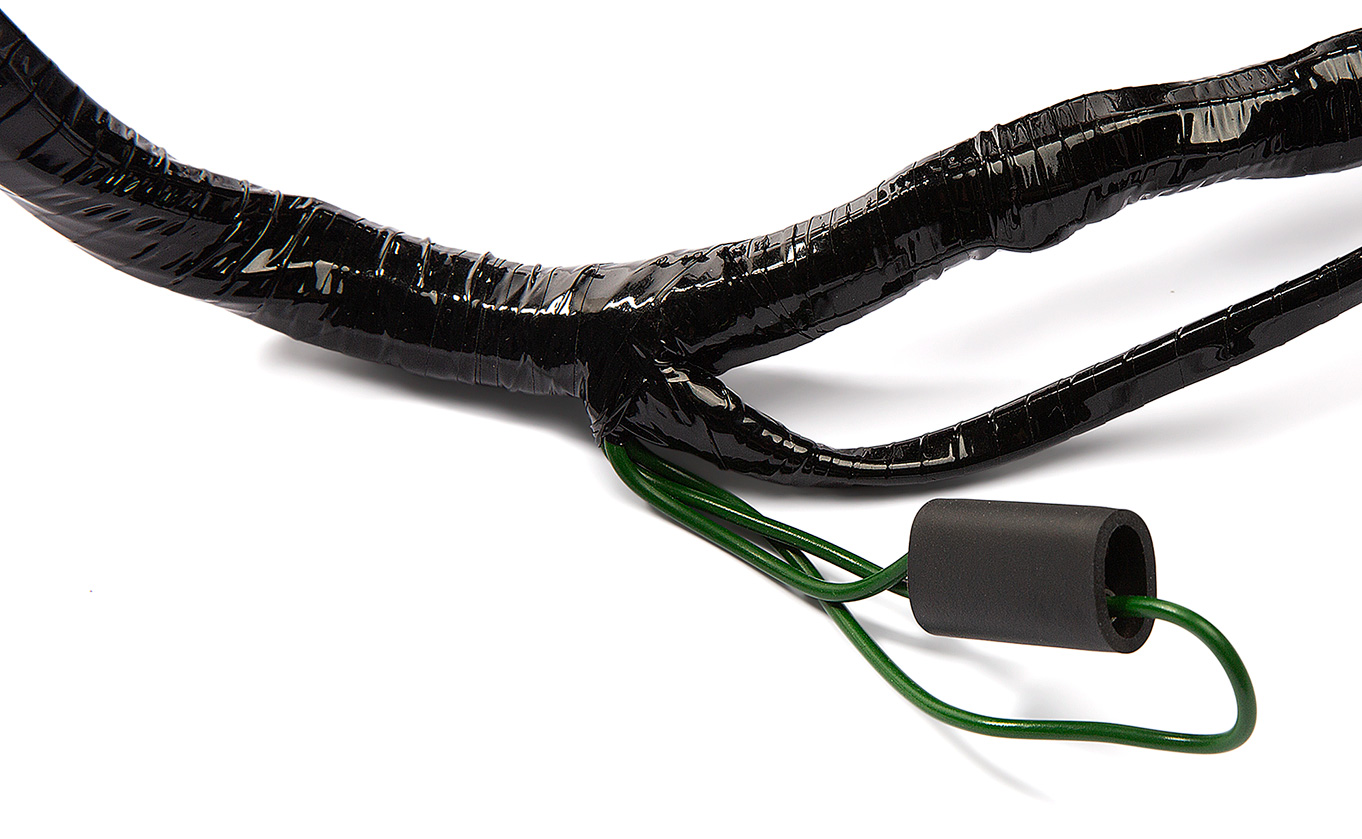

PVC cable and PVC tape for outer covering

TR2, TR3 to TS12568

- identify by non self parking wiper motor fitted on RH side of bulkhead and brake switch on LH side in engine bay

PVC cable and braided outer covering

TR3 from TS12569 to TS13045

- identify by self parking wiper motor fitted on LH side of bulkhead and brake switch on LH side in engine bay

PVC cable and PVC tape for outer covering

TR3 from TS12569 to TS13045

- identify by self parking wiper motor fitted on LH side of bulkhead and brake switch on LH side in engine bay

PVC cable and braided outer covering

TR3 from TS13046 to TS18912

- identify by self parking wiper motor fitted on LH side of bulkhead and brake switch on RH side in engine bay

PVC cable and PVC tape for outer covering

TR3 from TS13046 to TS18912

- identify by self parking wiper motor fitted on LH side of bulkhead and brake switch on RH side in engine bay

PVC cable and braided outer covering

TR3 from TS18913; TR3A to TS60000

- identify by separate rear indicator lamps

PVC cable and PVC tape for outer covering

TR3 from TS18913; TR3A to TS60000

- identify by separate rear indicator lamps

PVC cable and braided outer covering

TR3A from TS60001

- identify by lucar connectors on loom (instead of screwed terminals)

PVC cable and PVC tape for outer covering

TR3A from TS60001

- identify by lucar connectors on loom (instead of screwed terminals)

PVC cable and braided outer covering

TR4 RHD to CT14913

PVC cable and PVC tape for outer covering

TR4 RHD to CT14913

PVC cable and braided outer covering

TR4 RHD from CT14914

PVC cable and PVC tape for outer covering

TR4 RHD from CT14914

PVC cable and braided outer covering

TR4 LHD to CT9983

PVC cable and PVC tape for outer covering

TR4 LHD to CT9983

PVC cable and braided outer covering

TR4 LHD from CT9984 to CT26999

PVC cable and PVC tape for outer covering

TR4 LHD from CT9984 to CT26999

PVC cable and braided outer covering

TR4 LHD from CT27000

PVC cable and PVC tape for outer covering

TR4 LHD from CT27000

PVC cable and braided outer covering

TR4A RHD

PVC cable and PVC tape for outer covering

TR4A RHD

PVC cable and braided outer covering

TR4A LHD

PVC cable and PVC tape for outer covering

TR4A LHD

overdrive switch to main wiring loom

TR4 and TR4A fitted with overdrive

overdrive switch to relay

TR4 and TR4A fitted with overdrive

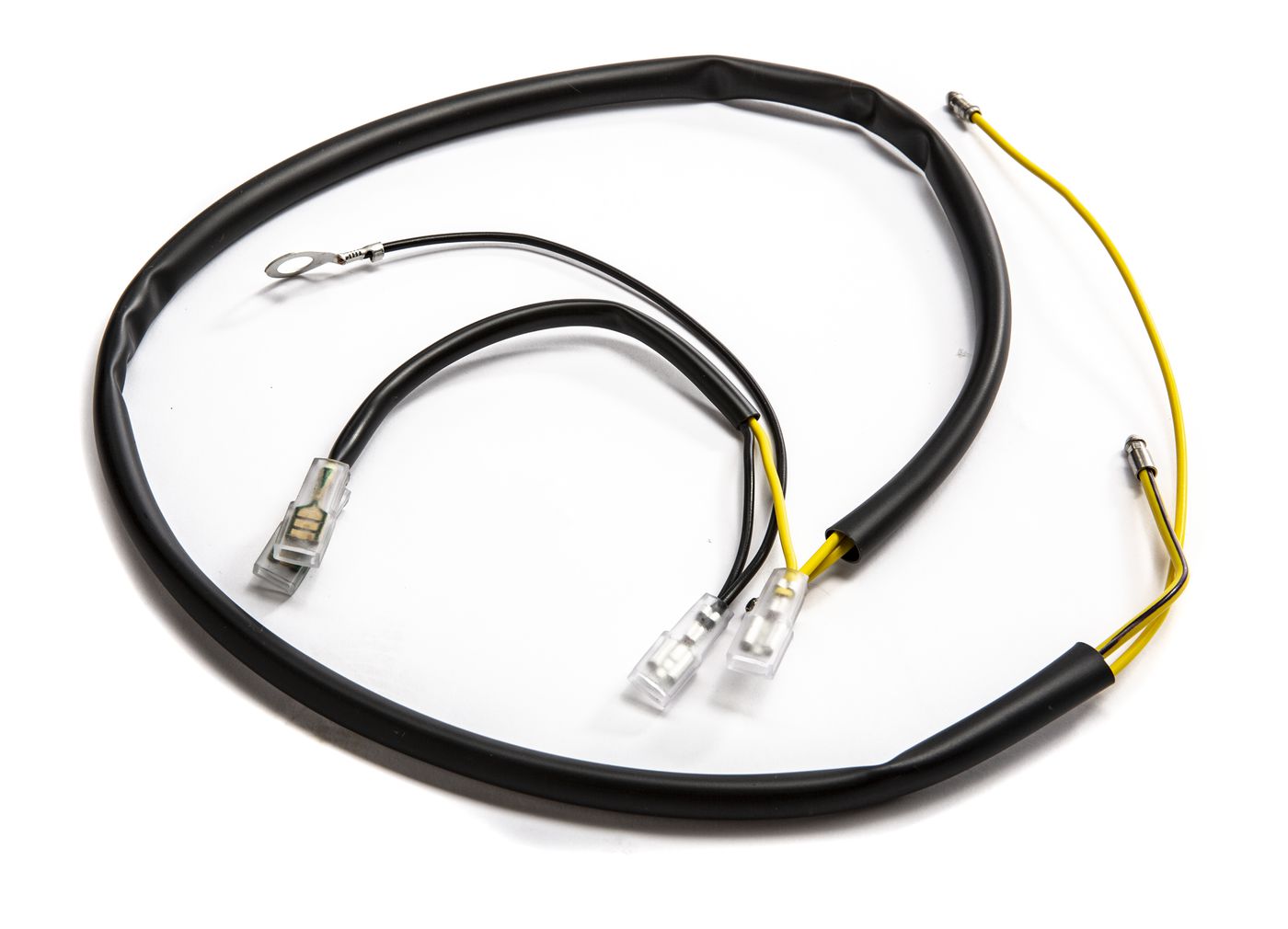

side light to main loom - colour: red

indicator to main loom - colour: green

lamp unit to chassis earth - colour: black

horn to main loom - colour: brown

for wires - inner diameter: 8 mm, supplied per metre

nel piantone dello sterzo - per la testa di comando

solenoid to starter motor. Length: 24"

engine to body - length: 12.1/2"

steering rack to chassis

TR4 and TR4A

flexible coupling on steering column

TR4 and TR4A
